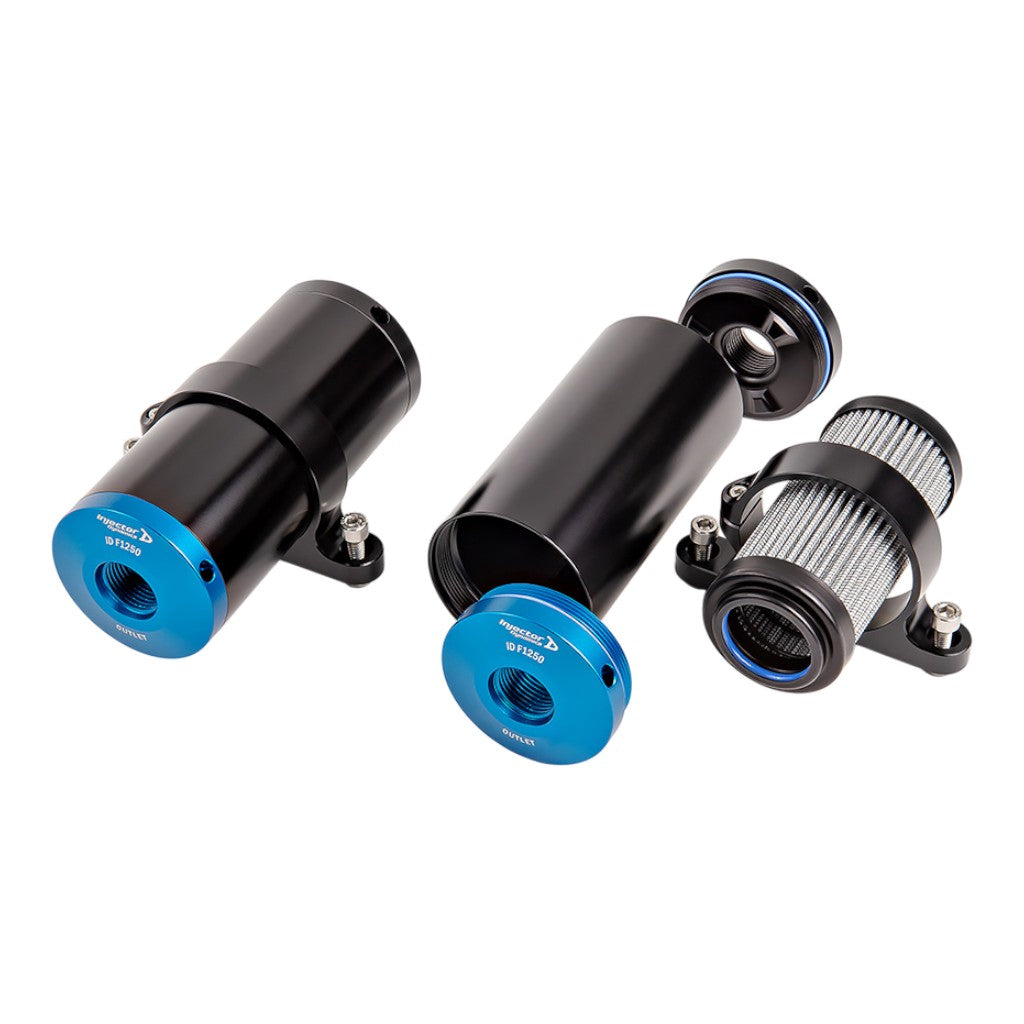

INJECTOR DYNAMICS ID-F1250 Fuel In-line Filter

Description INJECTOR DYNAMICS ID-F1250 Fuel In-line Filter

The INJECTOR DYNAMICS ID-F1250 fuel in-line filter is a high-flow filtration solution engineered to protect modern electronic fuel injectors and critical fuel system components. Designed for high-performance and motorsport applications, it delivers precise contaminant control while maintaining minimal pressure drop, supporting stable and reliable engine operation under demanding conditions.

Electronic fuel injectors operate with micron-level tolerances and require effective filtration to ensure trouble-free performance. The ID-F1250 meets Bosch filtration standards with a minimum capture efficiency of 87% at 5 microns and 100% at 35 microns, providing a level of protection far beyond common fuel system requirements.

With a nominal flow capacity of 1,250 l/h at just 1.1 psi pressure drop, the ID-F1250 is capable of supporting up to approximately 2,500 horsepower on ethanol-based fuels and up to approximately 3,750 horsepower on gasoline. Fully anodized internal components, fluorosilicone O-rings, and a glass fiber filter element ensure durability and compatibility with all known fuel types.

• High-efficiency filtration to protect precision electronic fuel injectors
• Low pressure drop design suitable for high-horsepower applications
• Glass fiber filter element for consistent micron-level filtration
• Fully anodized internals for corrosion resistance and durability
• Compatible with all known fuels, including ethanol-based blends

Specifications:

• Nominal Flow Rate: 1250 l/h @ 7.5 kPa (1.1 psi)
• Maximum Fuel Pressure: 21.0 bar (300.0 psi)
• Fuel Compatibility: Compatible with all known fuels
• Fluid Connection: SAE -10 ORB port
