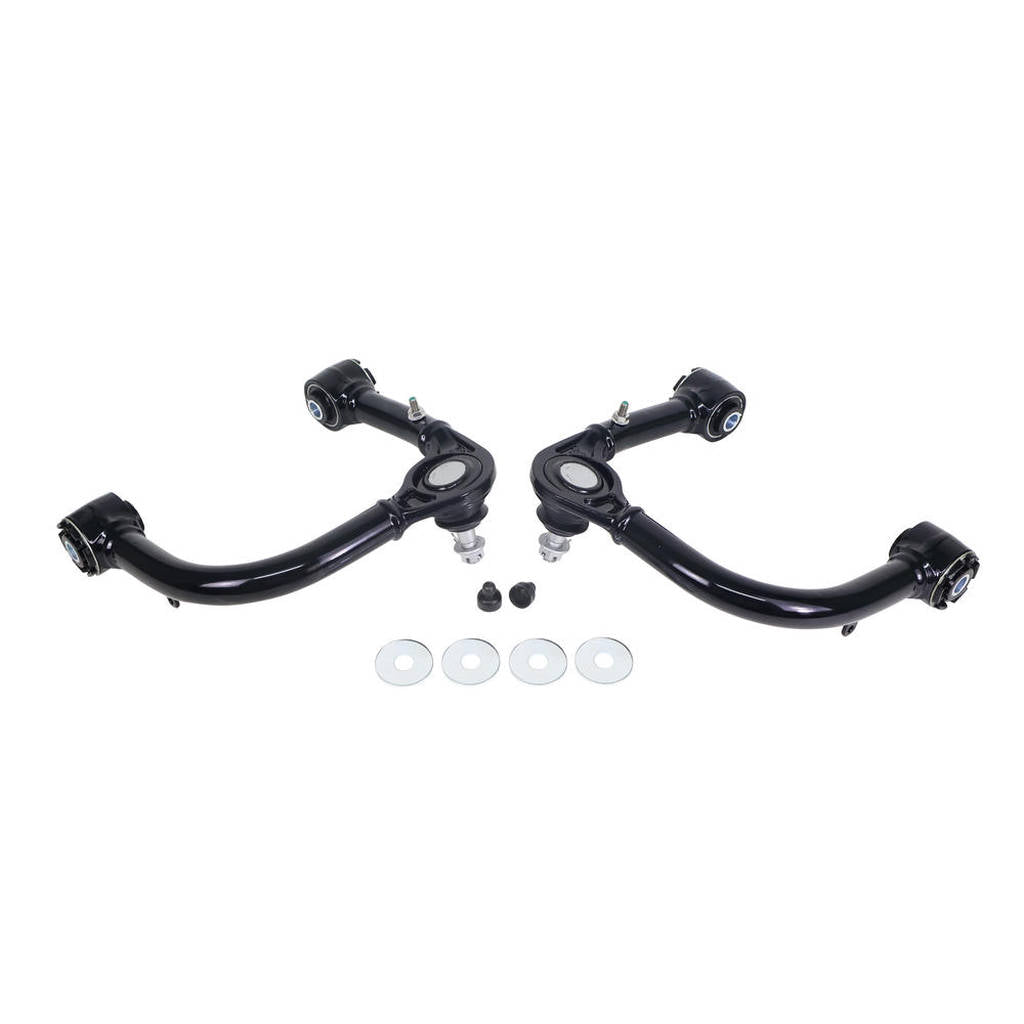

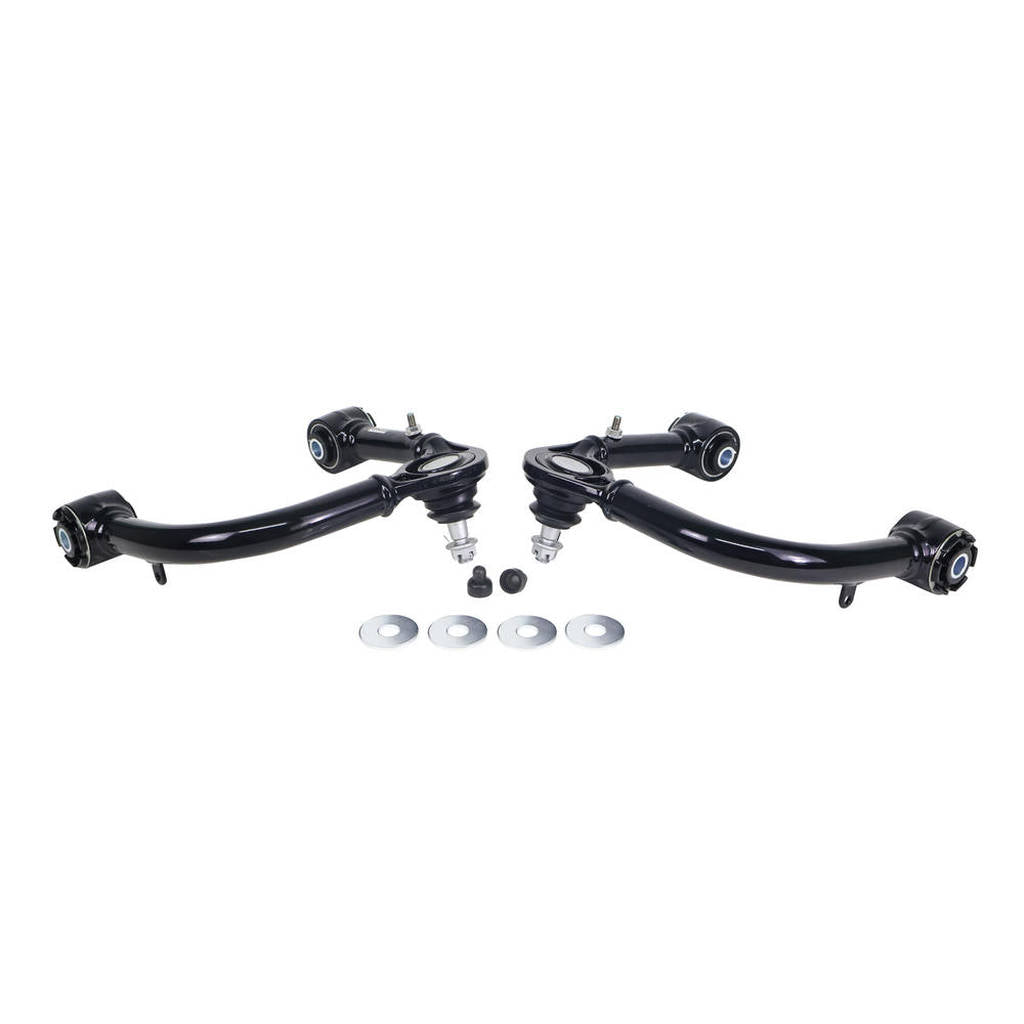

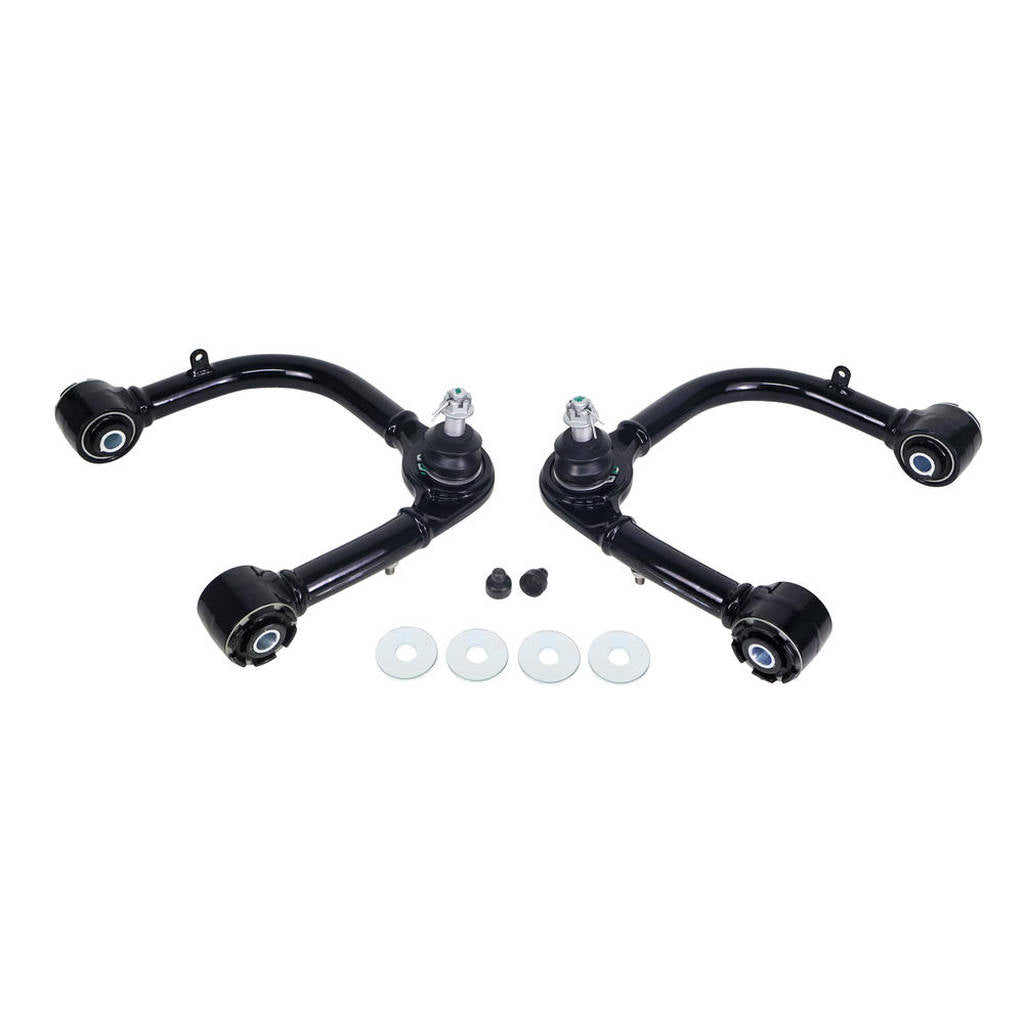

WHITELINE KTA246 Front Upper Control Arms Fixed Offset for Toyota Land Cruiser 200 Series

Description WHITELINE KTA246 Front Upper Control Arms Fixed Offset for Toyota Land Cruiser 200 Series

A limitation of modern IFS 4WD vehicles is the adjustment range available for proper wheel alignments, especially when the vehicle is lifted by more than 1 inch. This can lead to camber and caster issues, as well as ball joint articulation and clearance problems with the coil over strut at both ride and droop height.

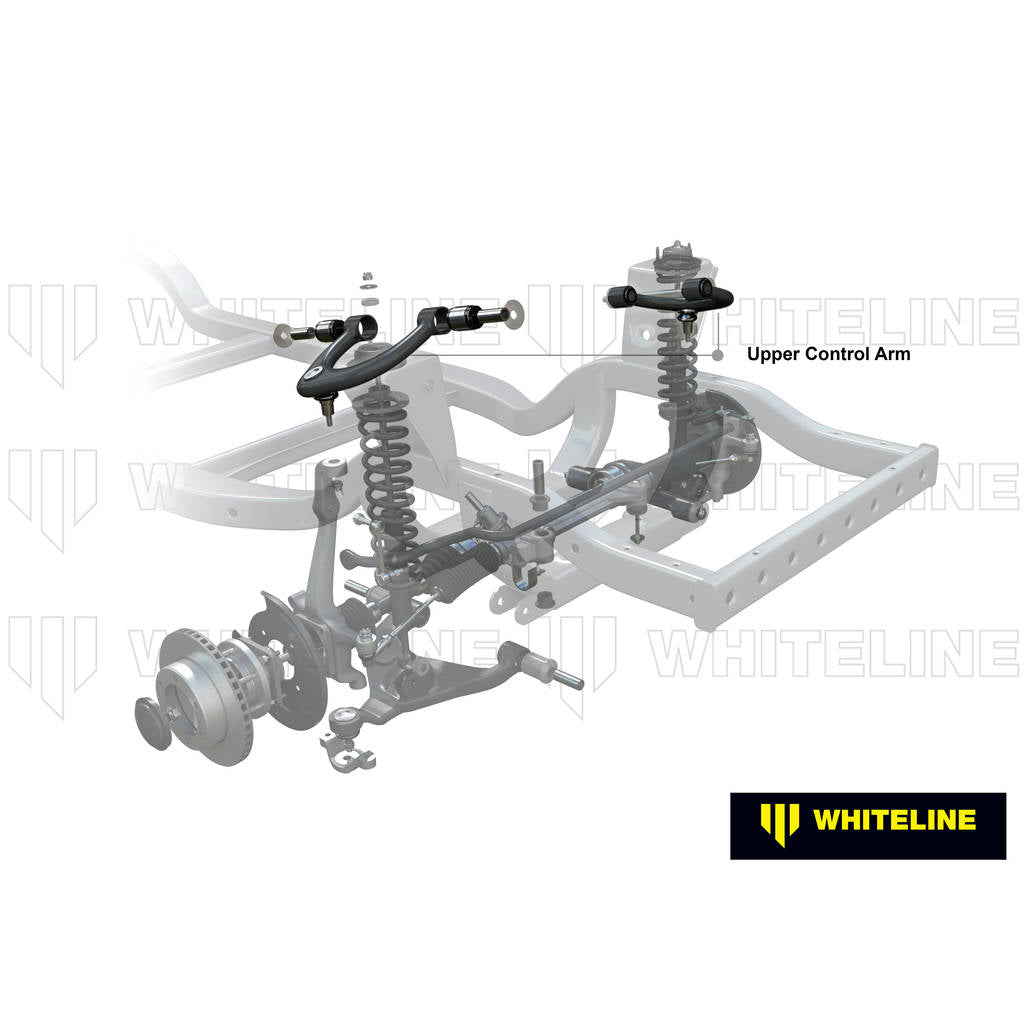

The Whiteline offset UCA (Upper Control Arm) offers an all-in-one solution for vehicles lifted between 30mm and 70mm. It provides an increase of +2.5 to +3.5 degrees of caster and up to 1.5 degrees of additional negative camber (figures based on an approximate 50mm/2 inch lift), along with improved clearance to the coil over strut and enhanced arm articulation through new maintenance-free GIIRO bushing technology.

• Designed for vehicles lifted between 30mm and 70mm
• Increases caster by +2.5 to +3.5 degrees
• Provides up to 1.5 degrees of additional negative camber
• Features maintenance-free GIIRO bushing technology for greater articulation

Kit comes with::

• 2 Arms

Vehicle Compatibility:

• Lexus LX570 Base 2011-2015
• Lexus LX570 Base 2016-2021
