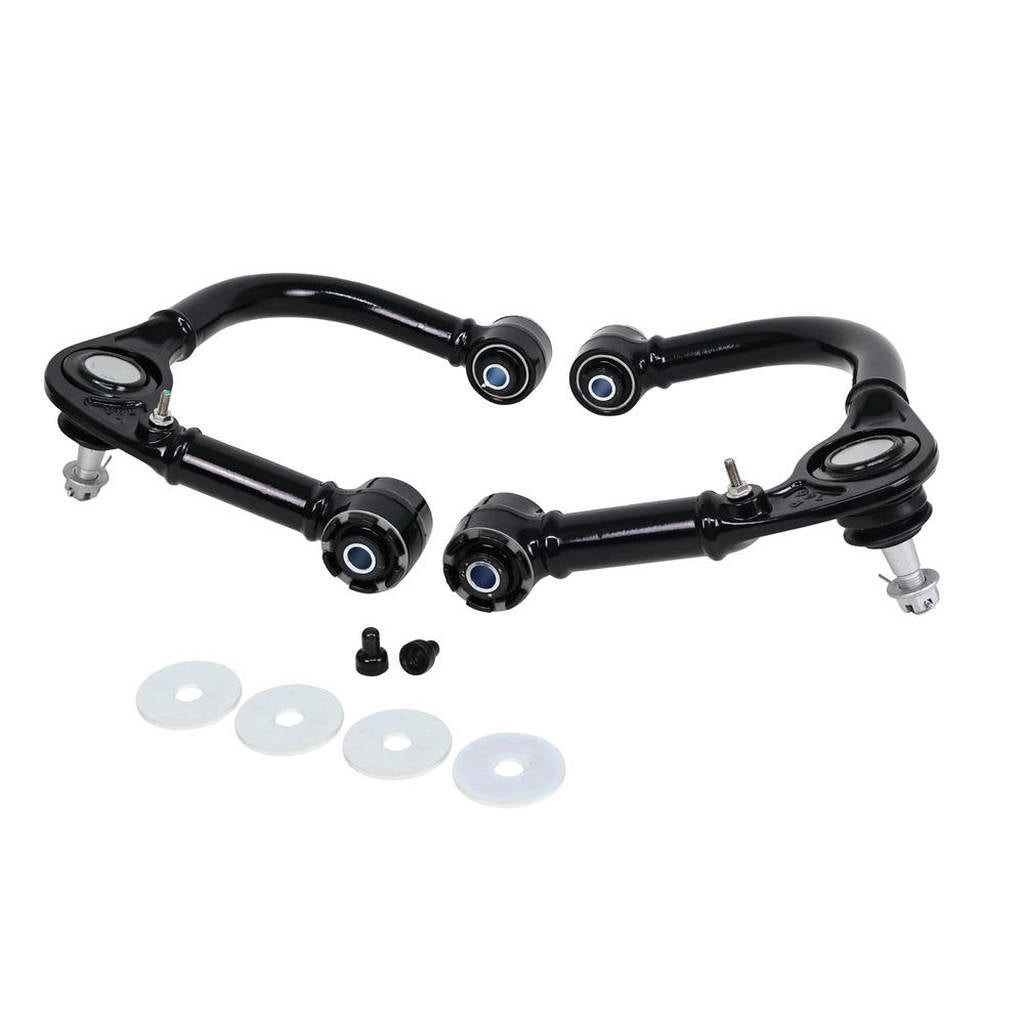

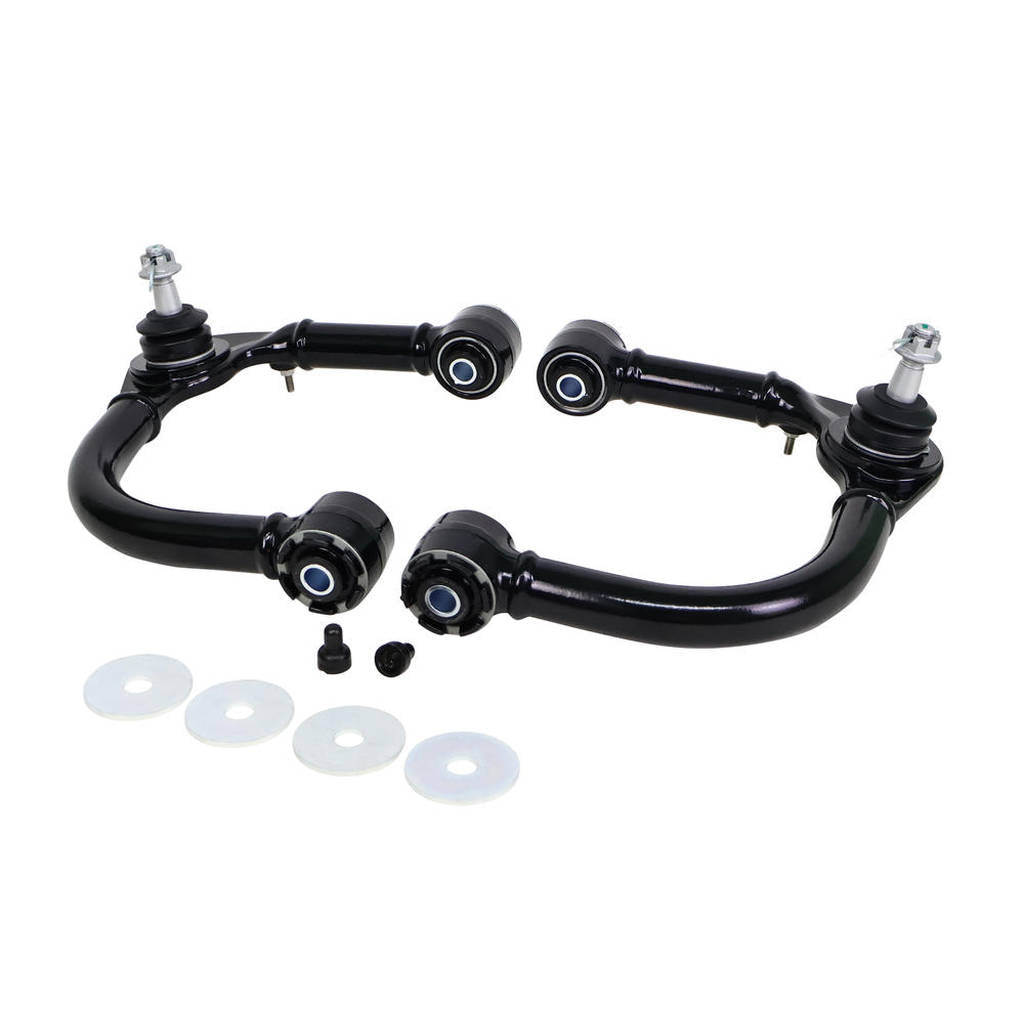

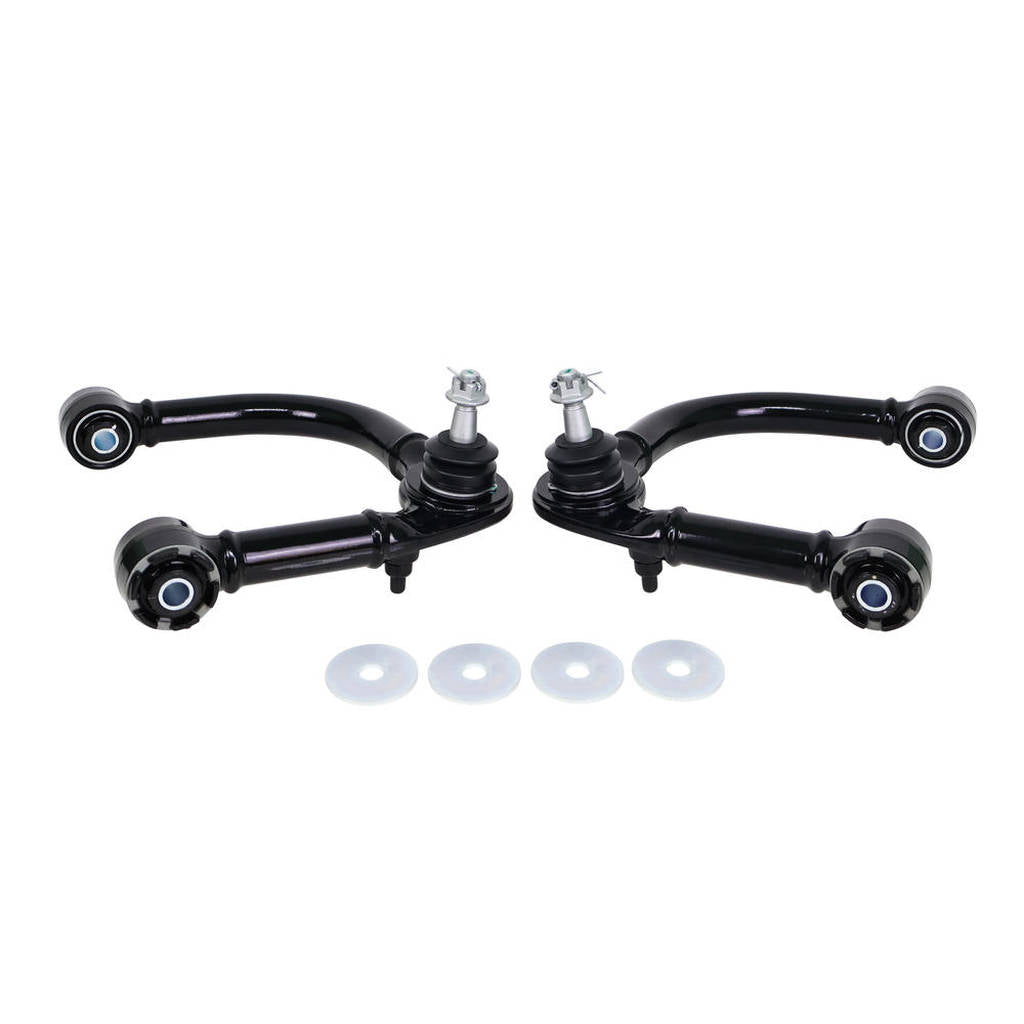

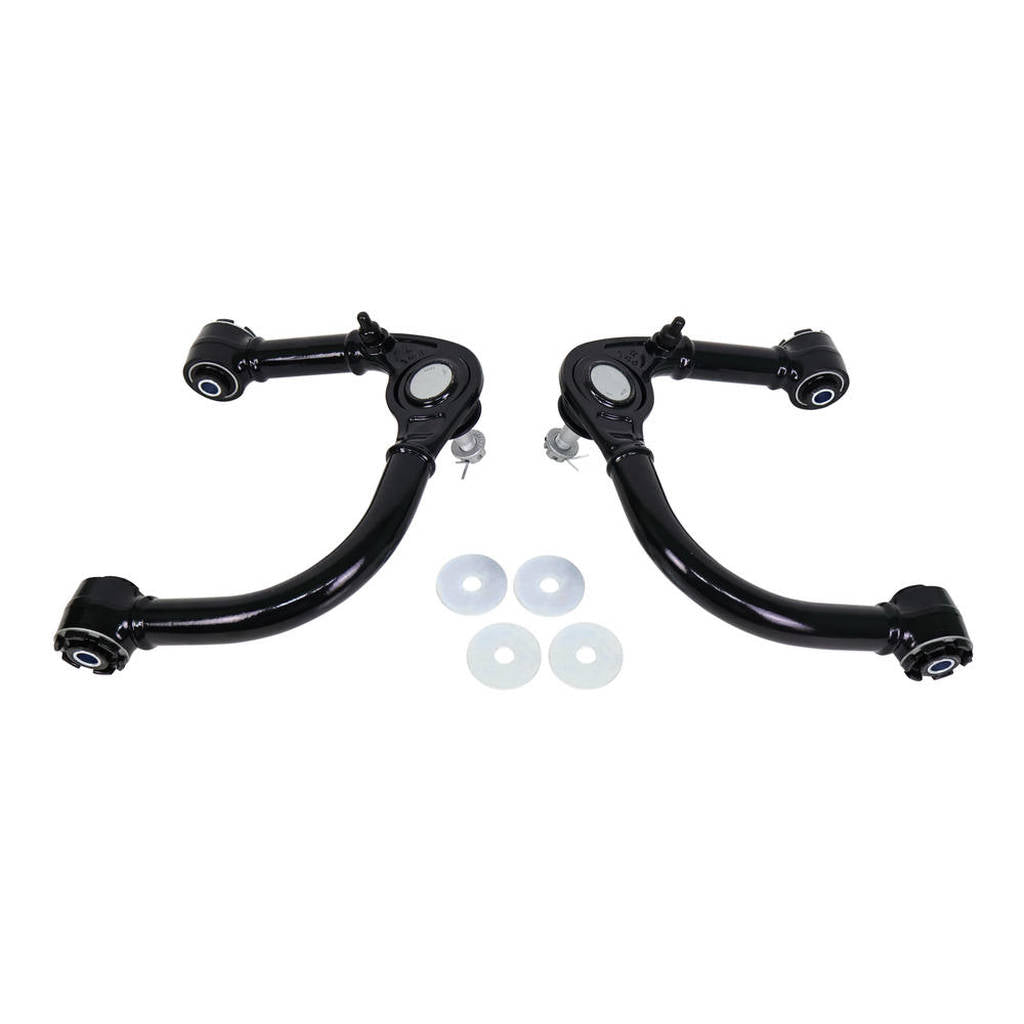

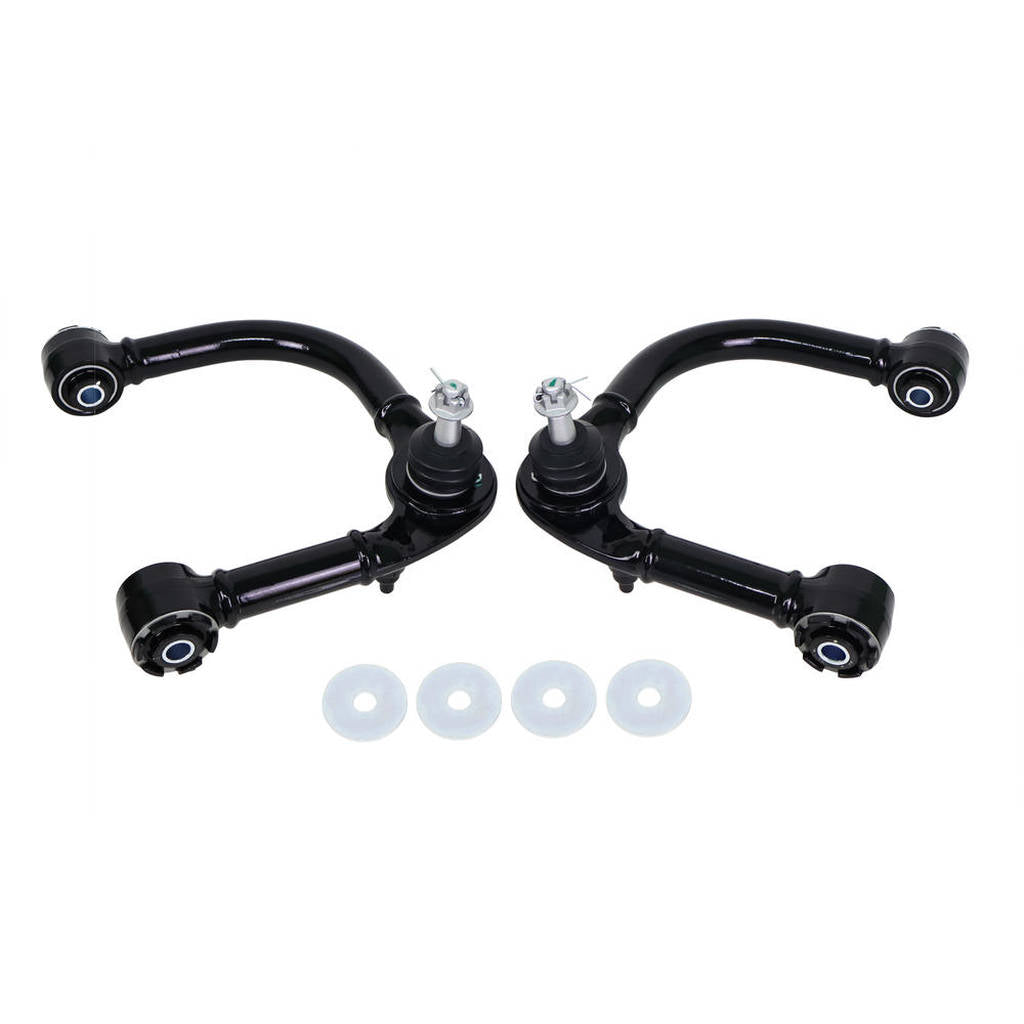

WHITELINE KTA239 Front Upper Control Arms Fixed Offset for Toyota Fortuner, Hilux GUN KUN/Foton Tunland 4wd

Description WHITELINE KTA239 Front Upper Control Arms Fixed Offset for Toyota Fortuner, Hilux GUN KUN/Foton Tunland 4wd

A common limitation of modern IFS 4WD vehicles is the restricted adjustment range for proper wheel alignments, especially when the vehicle is lifted by more than 1 inch. This often leads to camber and caster issues, as well as ball joint articulation and clearance problems with the coil over strut at both ride and droop height.

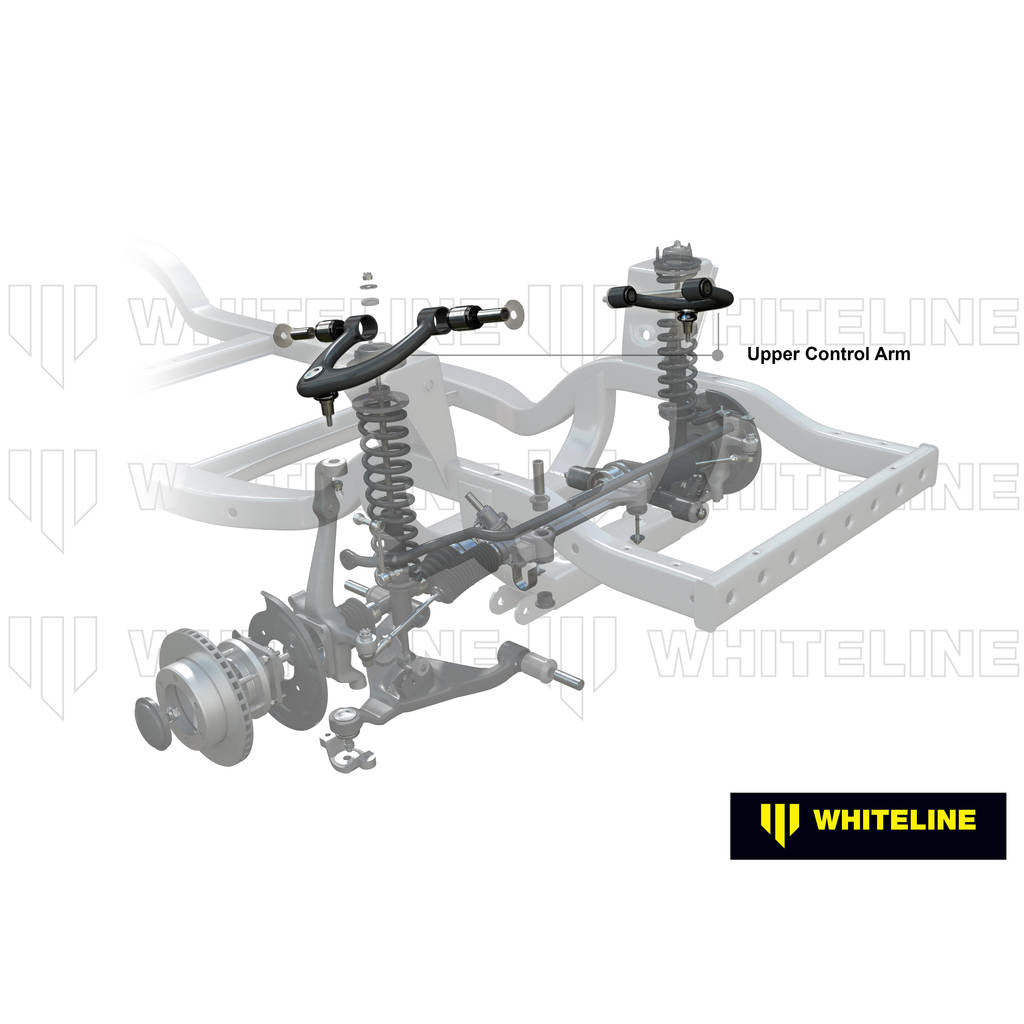

The Whiteline offset Upper Control Arm (UCA) offers an all-in-one solution for vehicles lifted between 30mm and 70mm. It provides an increase of +2.5 to +3.5 degrees of caster and up to 1.5 degrees of additional negative camber (based on an approximate 50mm/2 inch lift). The design also allows for greater clearance to the coil over strut and improved arm articulation, utilizing maintenance-free GIIRO bushing technology.

Benefit Note: All prices shown on the Whiteline website include GST. No additional tax fees will be charged.

• Designed for vehicles lifted between 30mm and 70mm
• Provides increased caster and negative camber adjustment
• Improves clearance to coil over strut and arm articulation
• Features maintenance-free GIIRO bushing technology

Vehicle Compatibility:

• FOTON TUNLAND 2012-2024 P201 4WD
• TOYOTA FORTUNER 2015-on GUN156 4WD
• TOYOTA HILUX 2015-2025 GGN125R, GUN126R, 136R (N80) 4WD
• TOYOTA HILUX 2005-2015 GGN25R, KUN26R (N70) 4WD
