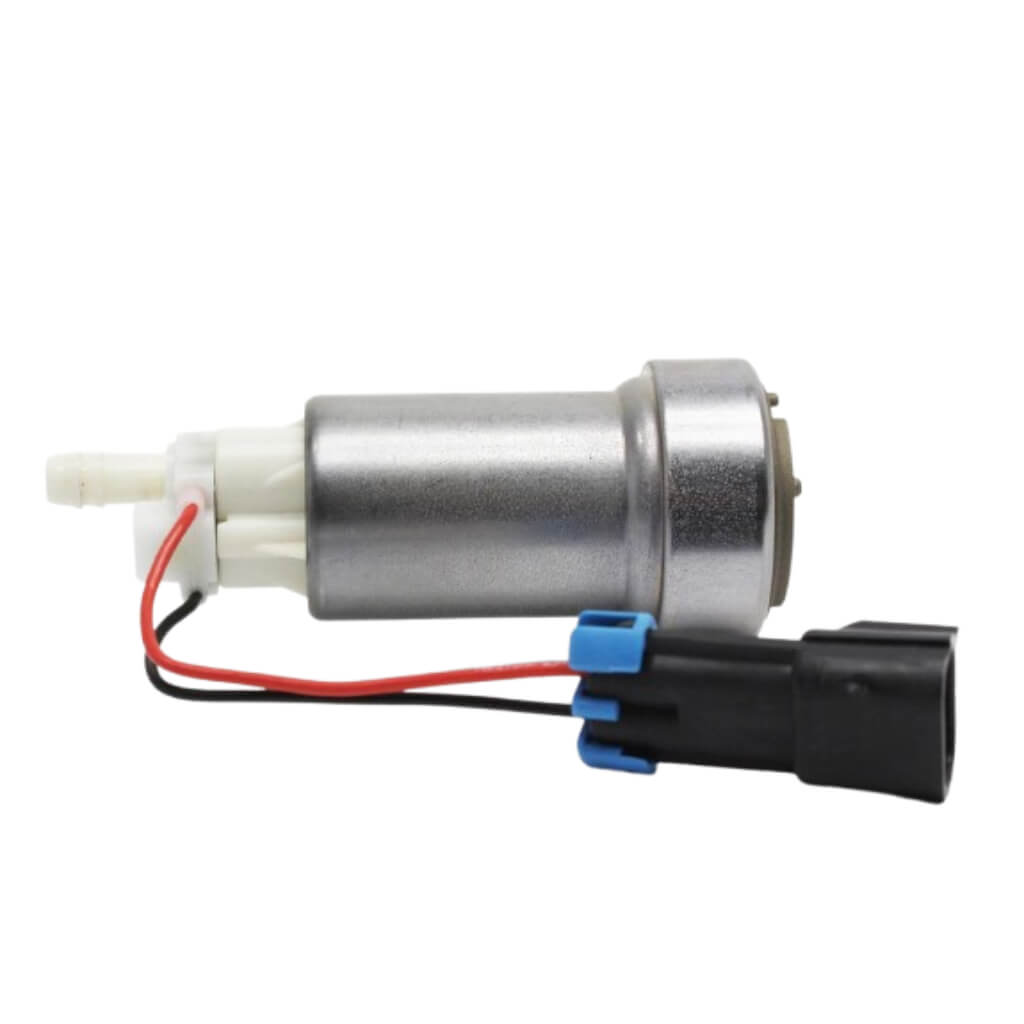

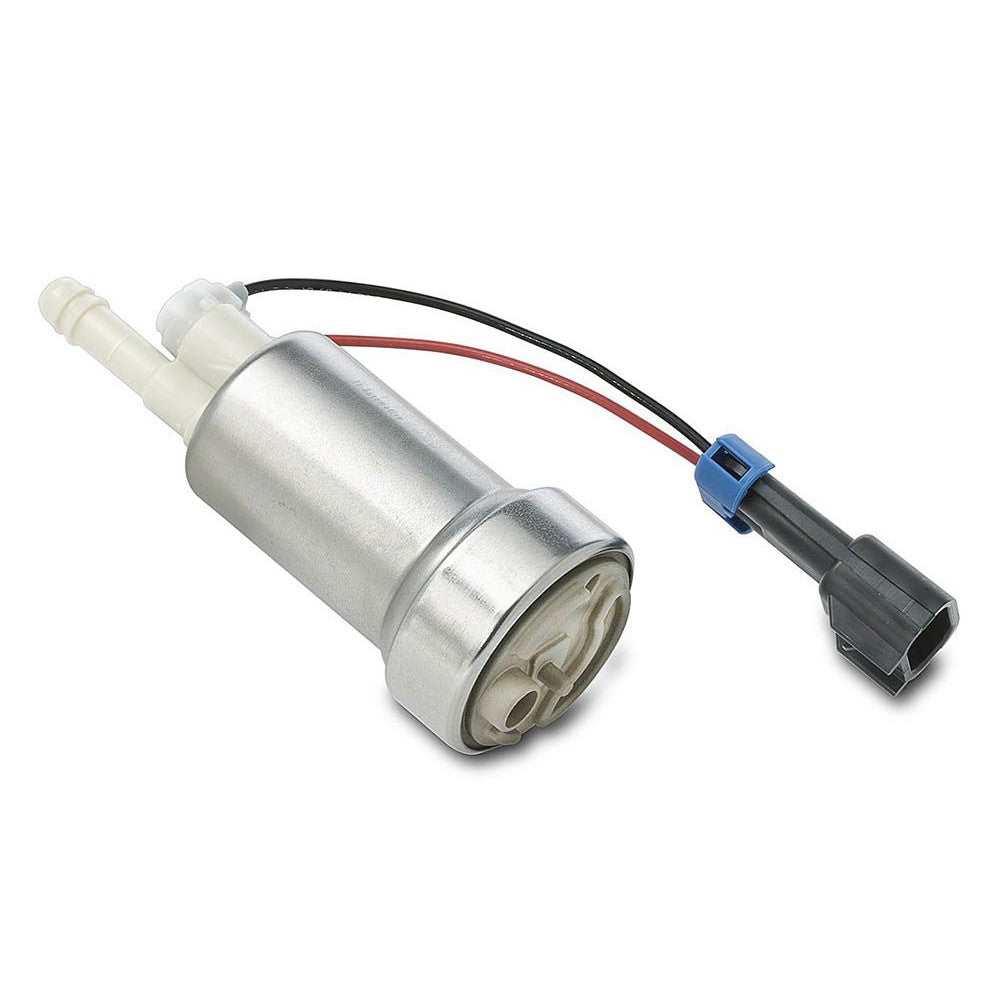

WALBRO GST520 Competition In-tank Fuel Pump 520 Ltr/Hr (F90000285)
Quantity:
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
WALBRO GST520 Competition In-tank Fuel Pump 520 Ltr/Hr (F90000285)
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
Pickup currently unavailable
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
- Outperforms all current market in-tank fuel pumps
- Designed for engines with up to 985hp
- Award Winning OE Technology
- High Pressure, High flow performance
- OEM technology designed and developed for E85.
- All pumping components have been validated to OEM specification for approved use in E85/Flex fuel application
Fuel pump specs:
- Fittings In (mm):- 11
- Fittings Out (mm):- 9
- Pump:- Ti Automotive (Walbro) F90000285
- Voltage DC:- 12
- Pulse Width Modulation Compatible:- Yes
- One Way Valve (NRV):- Yes
- Flow Ltr/Hr (Max):- 528
- Flow Ltr/Hr @ 3 Bar (44psi):- 435
- Flow Ltr/Hr @ 5 Bar (73psi):- 345
- Max Pressure (Bar):- 8.3
- Length (mm):- 130
- Diameter (mm):- 50 / 39
- Weight (Kg):-0.430
