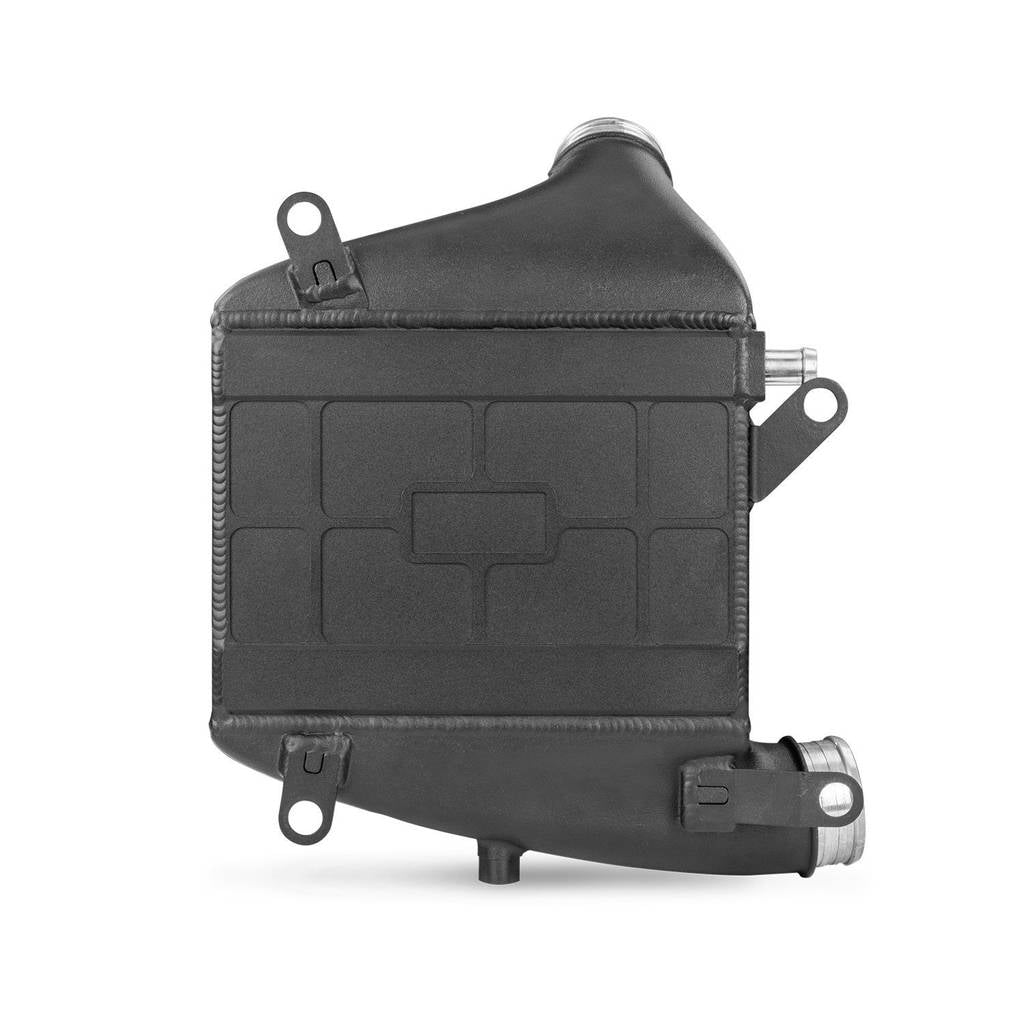

WAGNER TUNING 200001169 Performance Intercooler Kit KTM X-Bow Photo-0

WAGNER TUNING 200001169 Performance Intercooler Kit KTM X-Bow

AED 9,305.76

Tax included. Shipping calculated at checkout

WAGNER TUNINGP/N: 200001169
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

WAGNER TUNING 200001169 Performance Intercooler Kit KTM X-Bow

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description WAGNER TUNING 200001169 Performance Intercooler Kit KTM X-Bow

The Wagner Tuning intercooler for KTM X-Bow offers a significant performance upgrade, providing 80% more volume compared to the standard water-cooled intercooler. This direct replacement is designed to improve cooling performance, minimize back pressure, and increase power output for the 2.0 TFSI turbo engine.

The intercooler features an innovative performance mesh with dimensions of 222 mm x 297 mm x 95 mm, resulting in a much larger external mesh volume. Optimized cast aluminum end cases, developed using CAD and CFD simulations, ensure ideal internal airflow and outstanding cooling properties. The improved air mass flow rate of 33% delivers optimal charge air cooling with minimal back pressure, reducing the load on the turbocharger.

Weighing only 8.3 kg, the intercooler is lightweight and features a special heat-conducting anti-corrosion coating for long-lasting protection. The all-aluminum construction is pressure-stable up to 6 bar. Installation is straightforward, with a direct replacement design and an increased connection diameter towards the throttle valve from Ø62 mm to Ø70 mm for improved flow.

Note: Silicone hoses and the necessary mounting materials are not included in the scope of delivery and must be ordered separately. Please select the desired version.

  • 80% larger external mesh volume compared to the standard cooler
  • Optimized cast aluminum end cases for ideal airflow and cooling
  • Lightweight design with anti-corrosion coating for durability
  • Direct replacement with increased connection diameter for improved flow

Specifications:

  • Net dimensions: 222 mm x 297 mm x 95 mm
  • Net volume: 6.3 liters (+80% vs. OEM 3.5 L)
  • Inlet/outlet: Ø62 mm / Ø70 mm
  • Weight: 8.3 kg
  • Installation: 100% plug-and-play (direct replacement)
  • Part number: 200001169

Vehicle Compatibility:

  • KTM X-Bow (177-210 kW / 240-286 hp) 2008-2017 (K03 turbo)
  • KTM X-Bow GT (220 kW / 299 hp) 2017+ (K04 turbo)
  • KTM X-Bow R (220 kW / 299 hp) 2010+ (K04 turbo)
