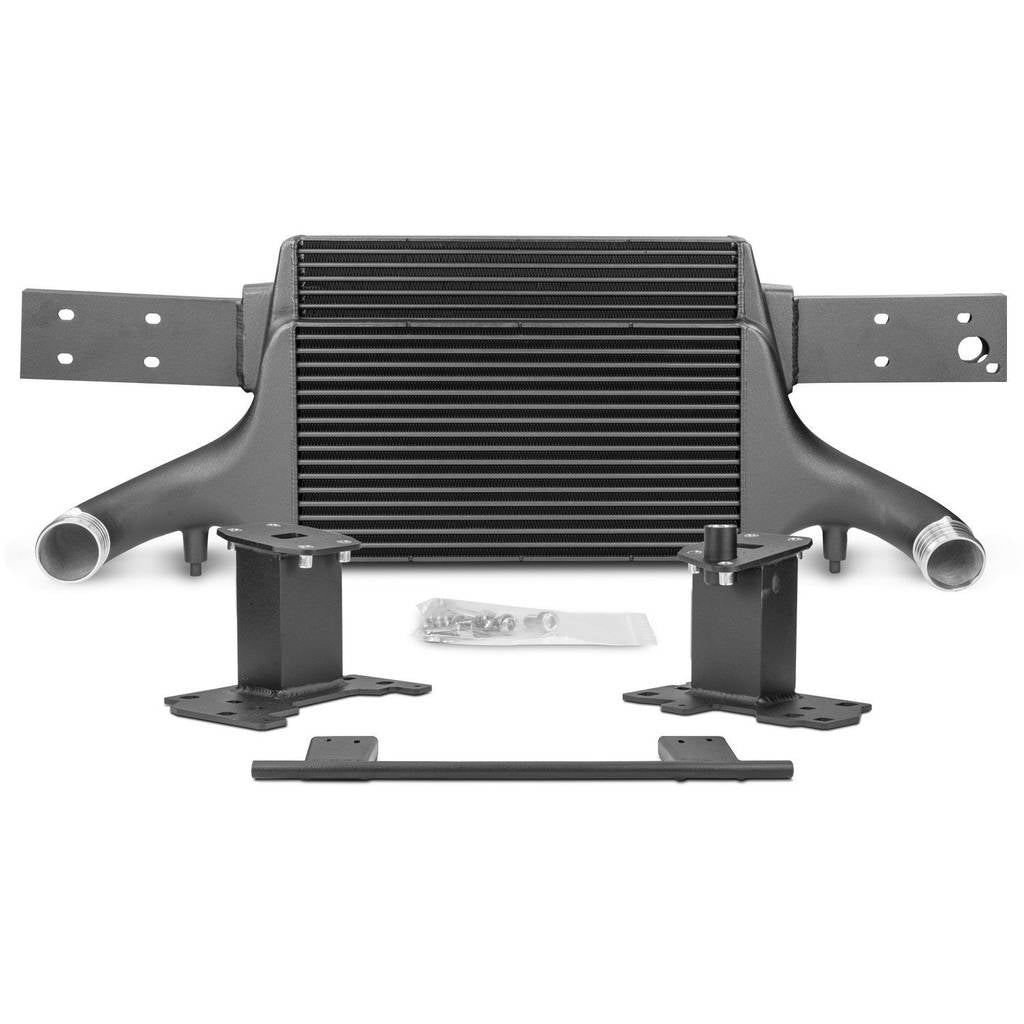

WAGNER TUNING 200001167 Competition Intercooler Kit EVO3 AUDI RSQ3 F3

Description WAGNER TUNING 200001167 Competition Intercooler Kit EVO3 AUDI RSQ3 F3

The Wagner Tuning EVO 3 Intercooler is designed for the Audi RSQ3 F3, offering a 101% increase in charge air volume compared to the standard intercooler. This high-performance upgrade is engineered to dramatically improve cooling efficiency, minimize back pressure, and support significant power gains.

The intercooler features a competition-grade tube fin core with internal turbulators and cast aluminum end boxes optimized using CAD and CFD simulations. Weighing only 11.7 kg, it includes a special anti-corrosion coating for durability and effective thermal conductivity, ensuring reliable performance even under extreme conditions.

Installation is straightforward with a plug-and-play design that mounts at the original points. The intercooler is pre-welded to the original cross member, simplifying the process further. Two versions are available: a standard version for power levels up to 600 hp and an X version for applications above 600 hp.

• 101% more charge air volume compared to the standard intercooler
• Optimized airflow and minimal back pressure with competition tube fin core
• Lightweight design with anti-corrosion coating for durability
• Plug-and-play installation at original mounting points

Specifications:

• Dimensions: 515 mm x 367 mm x 95 mm (stepped)
• Flow area: 1890 cm² (+84% vs. OEM 1024 cm²)
• Core volume: 16.5 liters (+101% vs. OEM 8.2 L)
• Inlet/outlet: Ø68 mm
• Weight: 11.7 kg
• Installation: 100% plug-and-play
• Part number: 200001167

Kit comes with::

• 1x intercooler together with cross member
• 1x mounting hardware
• 1x installation instructions

Vehicle Compatibility:

• 2019-2023 Audi RSQ3 F3 (294 kW/400 hp)
