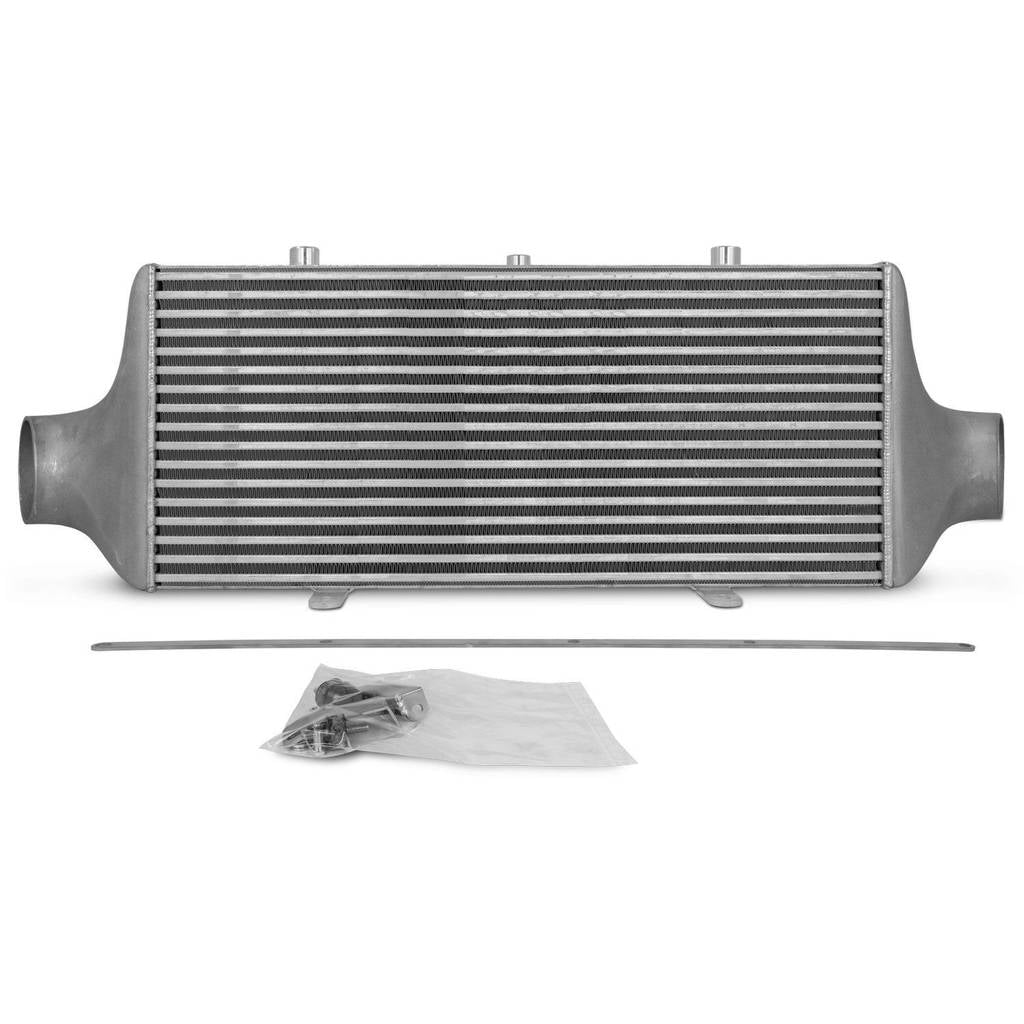

WAGNER TUNING 200001155 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

Description WAGNER TUNING 200001155 Competition Intercooler Kit EVO2 TOYOTA Supra JZA80 (MK4)

The WAGNERTUNING Competition Intercooler Kit EVO2 for Toyota Supra JZA80 MK4 features a new high-performance tube fin core with dimensions of 700 mm x 300 mm x 155 mm (27.5 Inch x 11.8 Inch x 6.1 Inch). This core provides a 262% larger frontal surface and 331% more core volume compared to the stock intercooler.

The aluminum cast end tanks are designed in CAD and optimized using CFD simulations for ideal internal airflow. The connection position is angled at 30° to the back, with a standard connection diameter of 4 Inch (Ø102mm), adaptable to other sizes as required. Special shapes and sizes are available upon request.

This intercooler offers excellent cooling properties with minimal back pressure. The lightweight competition core ensures sufficient airflow to adjoining components, such as the water cooler, making it suitable for racing applications. All products undergo continuous quality monitoring.

Important notes for the installation: No Plug and Play installation. SMIC to FMIC swap (including all mounting material for the intercooler). Elimination of AC cooler. Expansion tank must be repositioned (separately available). Cooling loop for the power steering must be repositioned (separately available). Charge pipes must be modified according to the intercooler (not included in the kit).

• 262% larger frontal surface compared to stock intercooler
• 331% more core volume than the original unit
• Aluminum cast end tanks optimized for internal airflow
• Excellent cooling with minimal back pressure

Specifications:

• Competition core dimensions: 700 mm x 300 mm x 155 mm / 27.5 Inch x 11.8 Inch x 6.1 Inch
• Stock intercooler core dimensions: 270 mm x 215 mm x 130 mm / 10.6 Inch x 8.5 Inch x 5.1 Inch
• Stock intercooler volume: 7.54 L / 460 Inch³
• Stock intercooler frontal area: 580.5 cm² / 90 Inch²
• Standard silicon hose connection: 3 Inch (Ø76mm), 3.5 Inch (Ø89mm), 4 Inch (Ø102mm)
• Vibrant pipe connection: 3 Inch (Ø76mm), 3.5 Inch (Ø89mm), 4 Inch (Ø102mm)

Vehicle Compatibility:

• Toyota Supra JZA80 MK4
