WAGNER TUNING 200001129 Intercooler Kit HYUNDAI I30N

Description WAGNER TUNING 200001129 Intercooler Kit HYUNDAI I30N

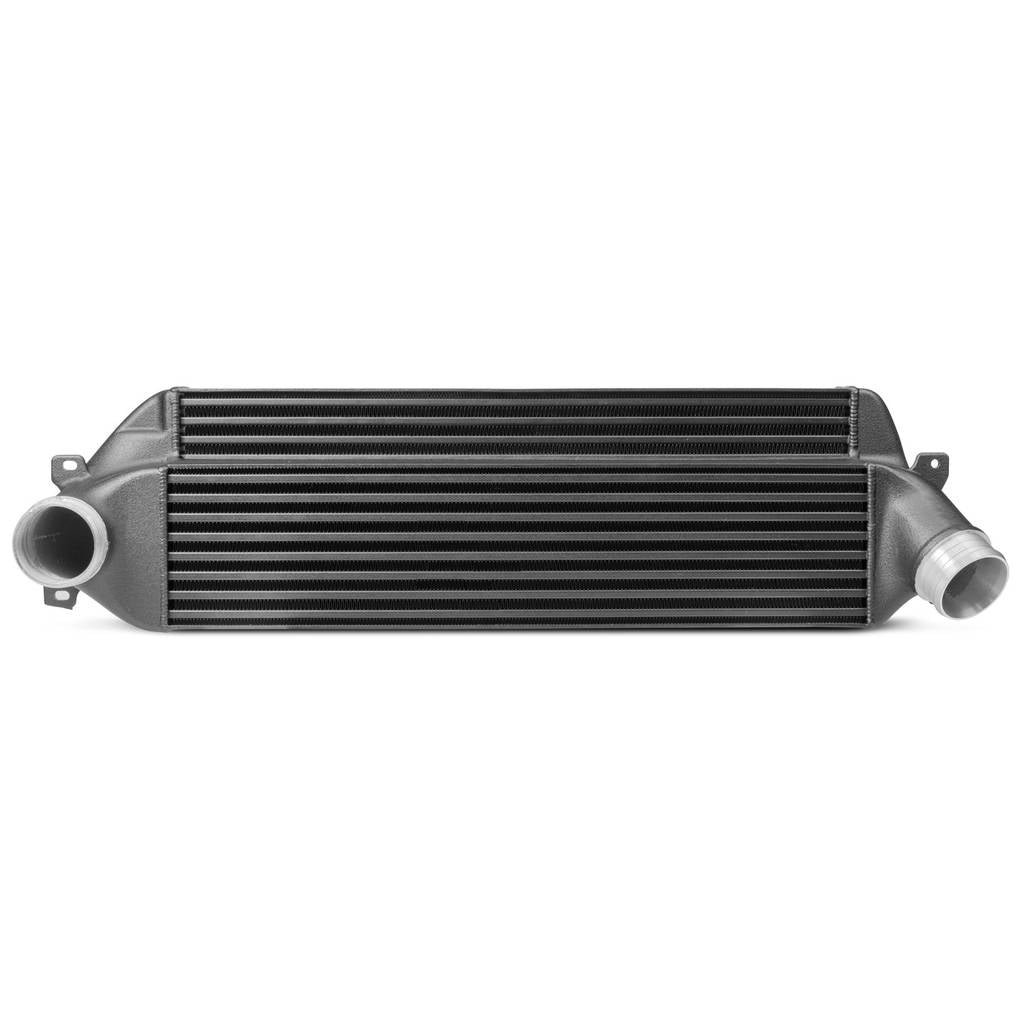

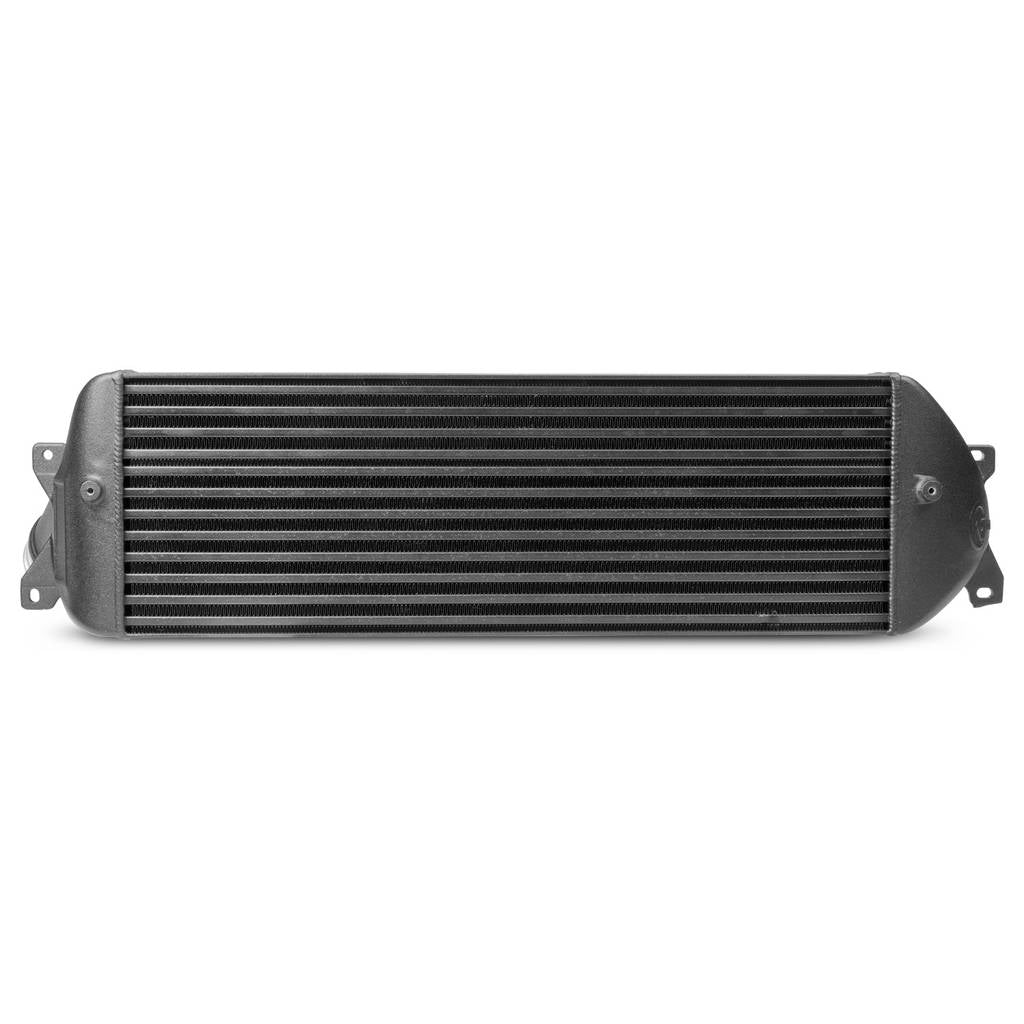

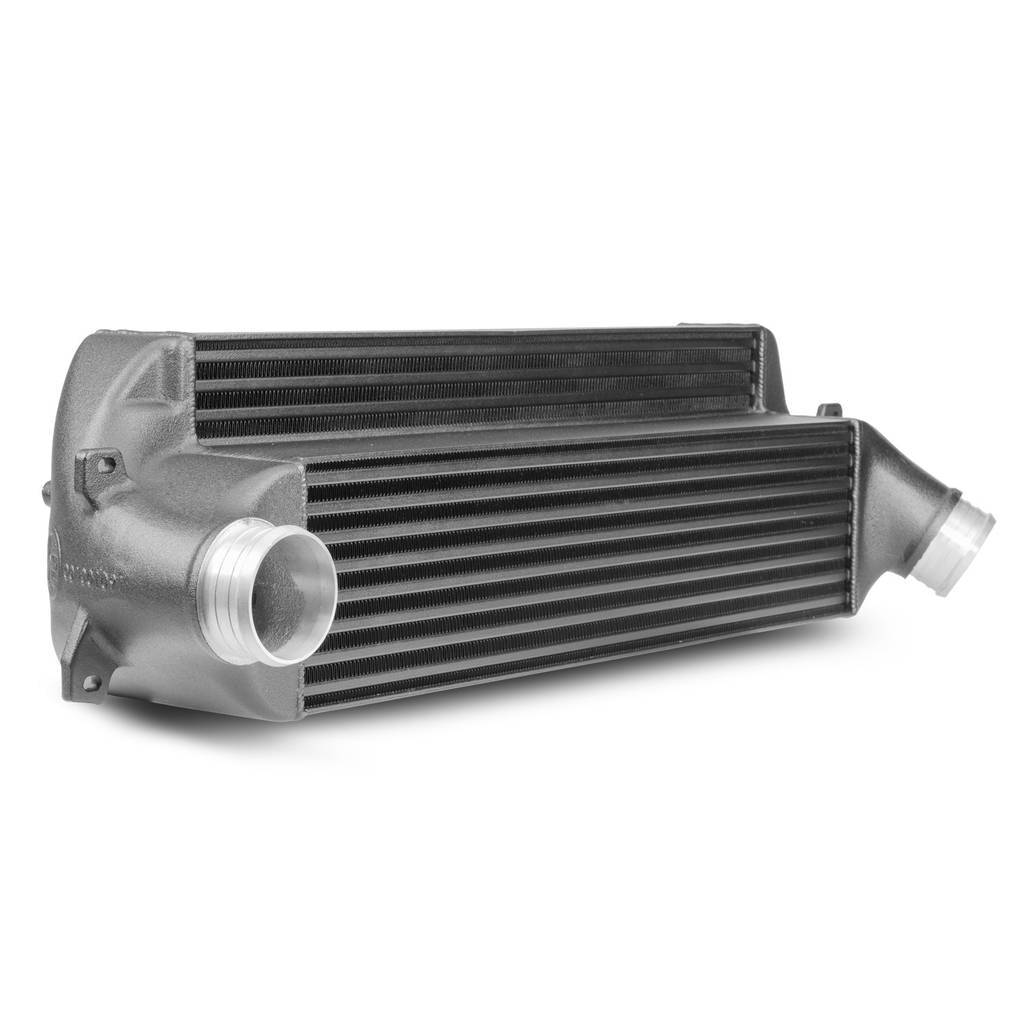

The Wagner Tuning Competition intercooler for the Hyundai i30 N offers a significant upgrade in cooling performance and airflow. Designed as a plug-and-play solution, this intercooler provides increased core volume and a larger flow area compared to the standard unit.

The high-quality tube fin core, combined with cast aluminum end boxes optimized using CFD simulations, ensures optimal airflow and minimal back pressure. An integrated air baffle further improves air distribution and cooling efficiency. The lightweight construction and anti-corrosion coating guarantee durability and consistent performance.

Note: Not suitable for facelift models from 05/2021 onwards.

• 101.4% more core volume compared to the standard intercooler
• 44.3% larger flow area for improved cooling
• Plug-and-play installation at original mounting points
• Anti-corrosion coating with excellent thermal conductivity

Specifications:

• Core dimensions: 580 mm x 150 mm x 135.4 mm + 580 mm x 62 mm x 70 mm (stepped)
• Cooling surface: 1142.6 cm² (+44.3% vs. OEM 793.60 cm²)
• Core volume: 14.3 liters (+101.4% vs. OEM 7.1 liters)
• Connection diameter: Ø65 mm (both sides)
• Weight: 9.3 kg
• Installation: Plug-and-play
• Parts certificate: Yes, for Euro 6b models (without OPF)
• Part number: 200001129

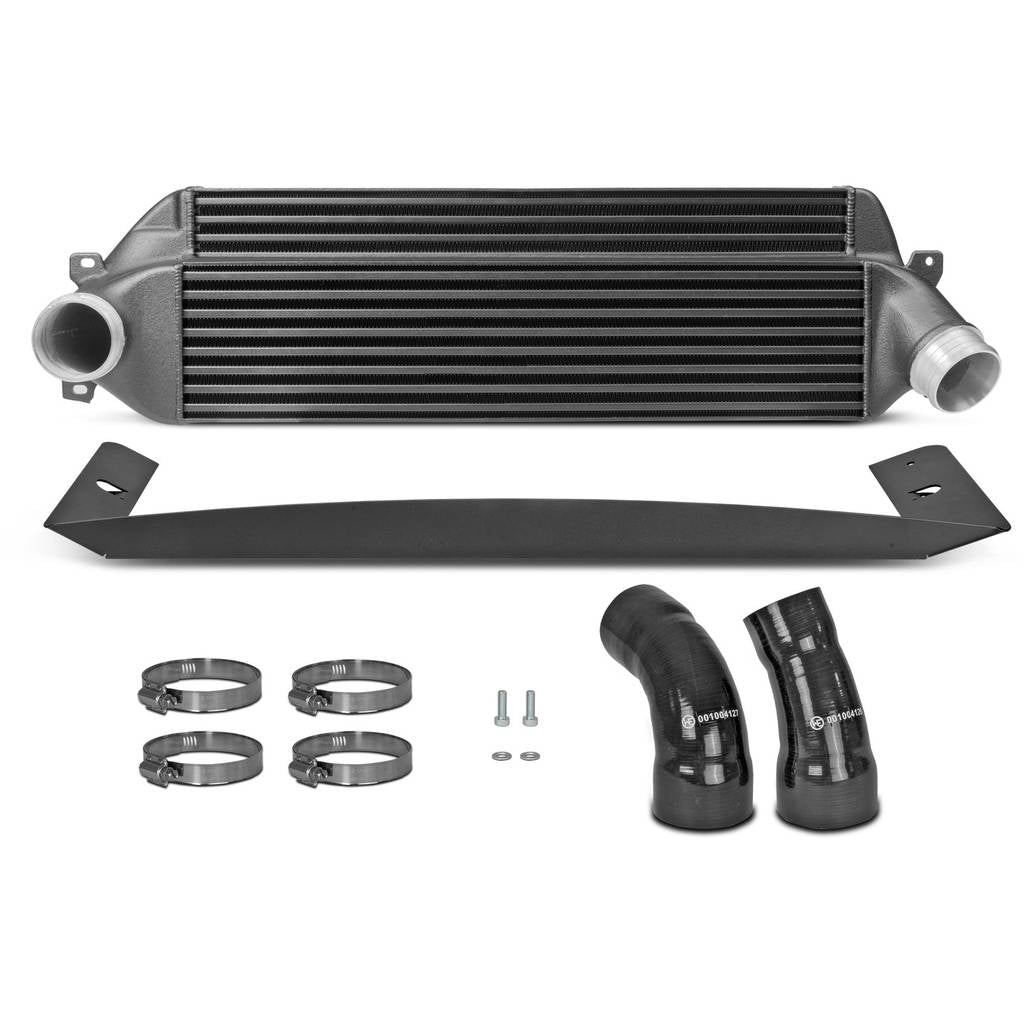

Kit comes with::

• 1x intercooler
• 2x silicone hoses
• 1x air deflector
• 1x mounting material
• 1x parts certificate (TGA) + installation instructions

Vehicle Compatibility:

• 2017-2020 Hyundai i30 N (184 kW/250 hp)
• 2017-2020 Hyundai i30 N Performance (202 kW/275 hp)
• 2019-2020 Hyundai i30 N Project C (202 kW/275 hp)
