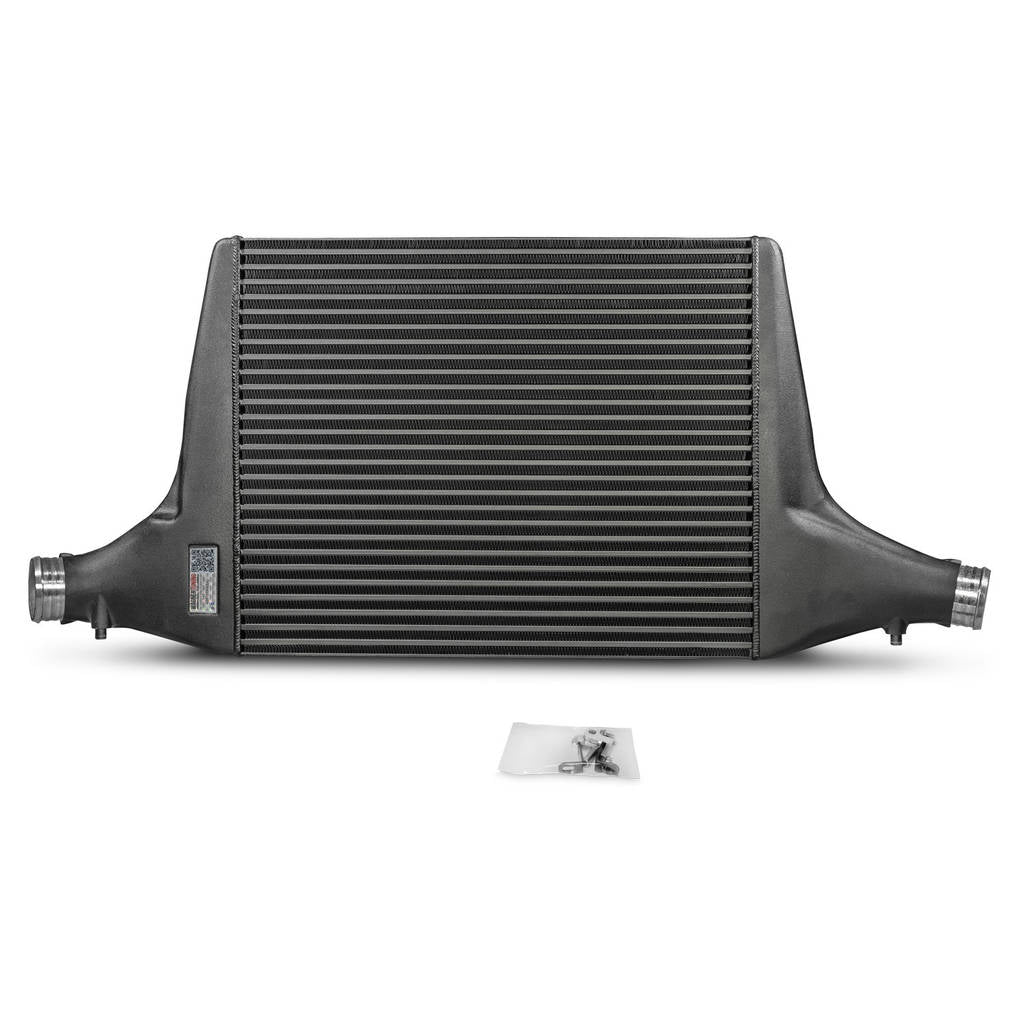

WAGNER TUNING 200001120USA.KITSINGLE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

Description WAGNER TUNING 200001120USA.KITSINGLE Competition Intercooler Kit AUDI S4 B9 3.0TFSI

The Competition high performance intercooler is designed to maximize vehicle performance. It features a 134% larger inflow area and 105% more charge air volume compared to the conventional intercooler, providing improved cooling and increased power. The core is constructed from high quality Tube Fin material with internal turbulators for maximum heat transfer and efficient airflow.

Despite its large size, the intercooler weighs only 9.5 kg, minimizing additional load on the vehicle. The cast aluminum end boxes are optimized using CFD flow analysis, resulting in excellent cooling with minimal backpressure. An anti-corrosion coating ensures long-lasting performance and optimal heat conduction. The kit is ready to install and allows for easy replacement of the stock intercooler with a plug and play design.

Note: The supplied brackets are only suitable for the US model.

• 134% larger inflow area and 105% more charge air volume
• High quality Tube Fin mesh with internal turbulators
• Lightweight design at 9.5 kg
• Plug and play installation

Specifications:

• Core dimensions original intercooler: 720 mm x 145 mm x 80 mm, V=8.35 Liter, A=1044 cm²
• Core dimensions Wagner Tuning intercooler: 550 mm x 445 mm x 70 mm, V=17.13 Liter, A=2447 cm²
• Weight: 9.5 kg
• Tested up to 6 bar and pressure stable
• Part number: 200001120USA.KITSINGLE

Kit comes with::

• 1 intercooler (black coated)
• 1 mounting material
• 1 assembly instruction

Vehicle Compatibility:

• 2016+ Audi S4 B9 3.0TFSI 260KW/354PS
• 2016+ Audi S5 F5 3.0TFSI 260KW/354PS
