WAGNER TUNING 200001107 Competition Intercooler Kit EVO1 AUDI RS3 8V TTRS 8S 2.5 TFSI

Description WAGNER TUNING 200001107 Competition Intercooler Kit EVO1 AUDI RS3 8V TTRS 8S 2.5 TFSI

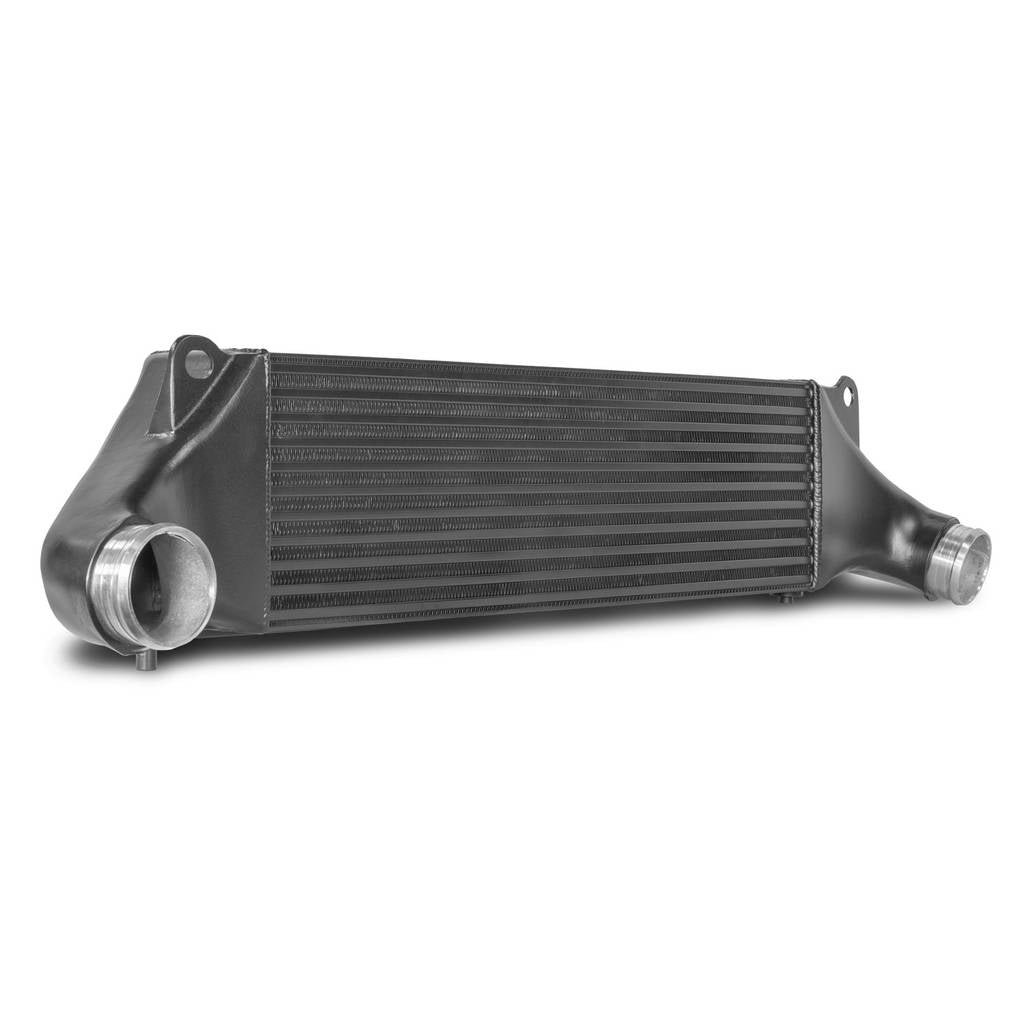

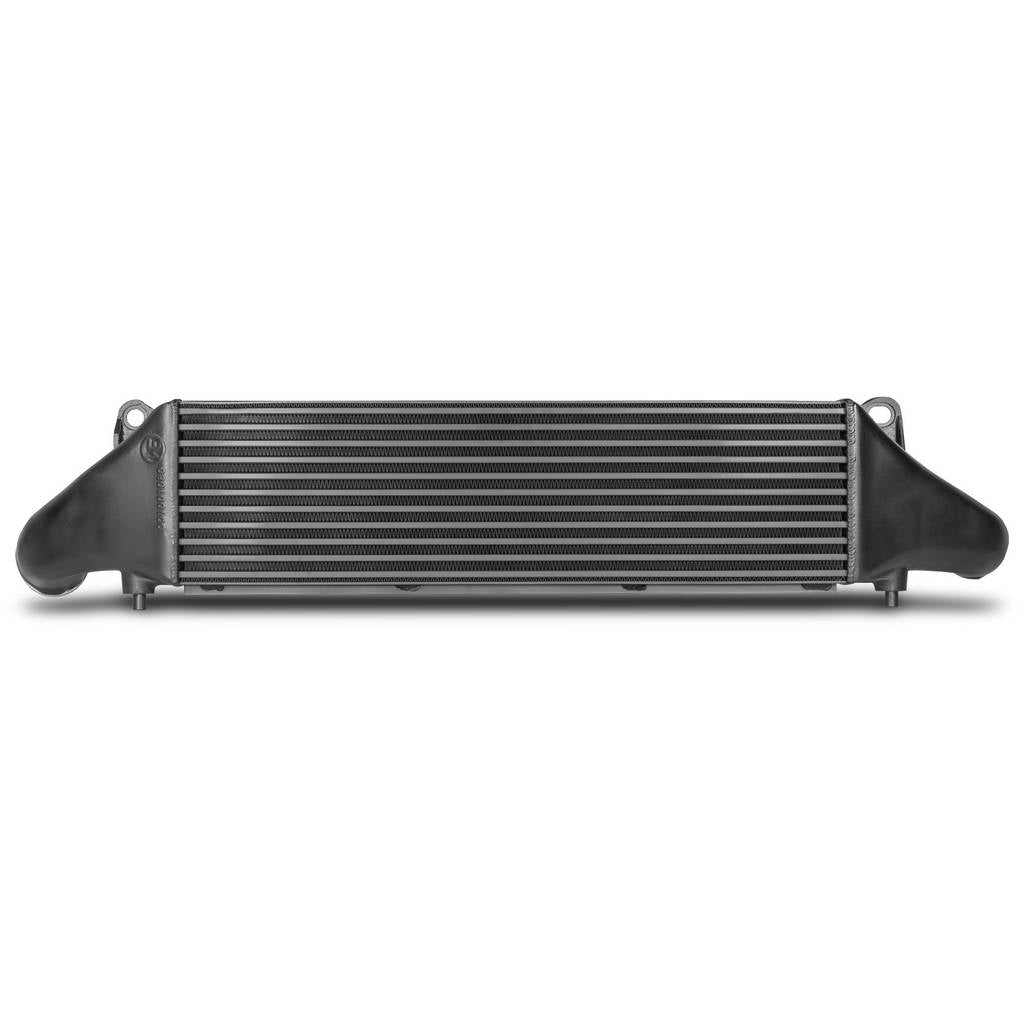

The Wagner Tuning Competition Intercooler EVO1 is designed for Audi RS3 (8V, 8Y) and TTRS (8S) models. This intercooler upgrade increases charge air volume by 57% and is a plug & play solution for enhanced engine cooling and reduced back pressure.

The core dimensions are 660 mm x 180 mm x 110 mm, providing a 14% larger flow area and significantly more cool, dense air to the engine. The Competition Tube Fin core with internal turbulators and cast aluminum end boxes, optimized using CFD simulations, ensure optimal airflow and minimal pressure losses. Weighing only 8.3 kg, the cooler is robust and pressure stable up to 6 bar.

Installation is straightforward with a plug & play design and detailed instructions. The intercooler features a special anti-corrosion coating with excellent thermal conductivity for long-lasting performance.

• 57% more charge air volume compared to OEM
• Optimized airflow and minimal pressure loss
• Plug & play installation with detailed instructions
• Pressure tested up to 6 bar for racing applications

Specifications:

• Net dimensions: 660 mm x 180 mm x 110 mm
• Cooling surface: 1188 cm² (+14% vs. OEM 1043 cm²)
• Charge air volume: 13.07 liters (+57% vs. OEM 8.3 liters)
• Weight: 8.3 kg
• Pressure stability: Up to 6 bar
• Installation: Plug & Play (1:1 replacement)

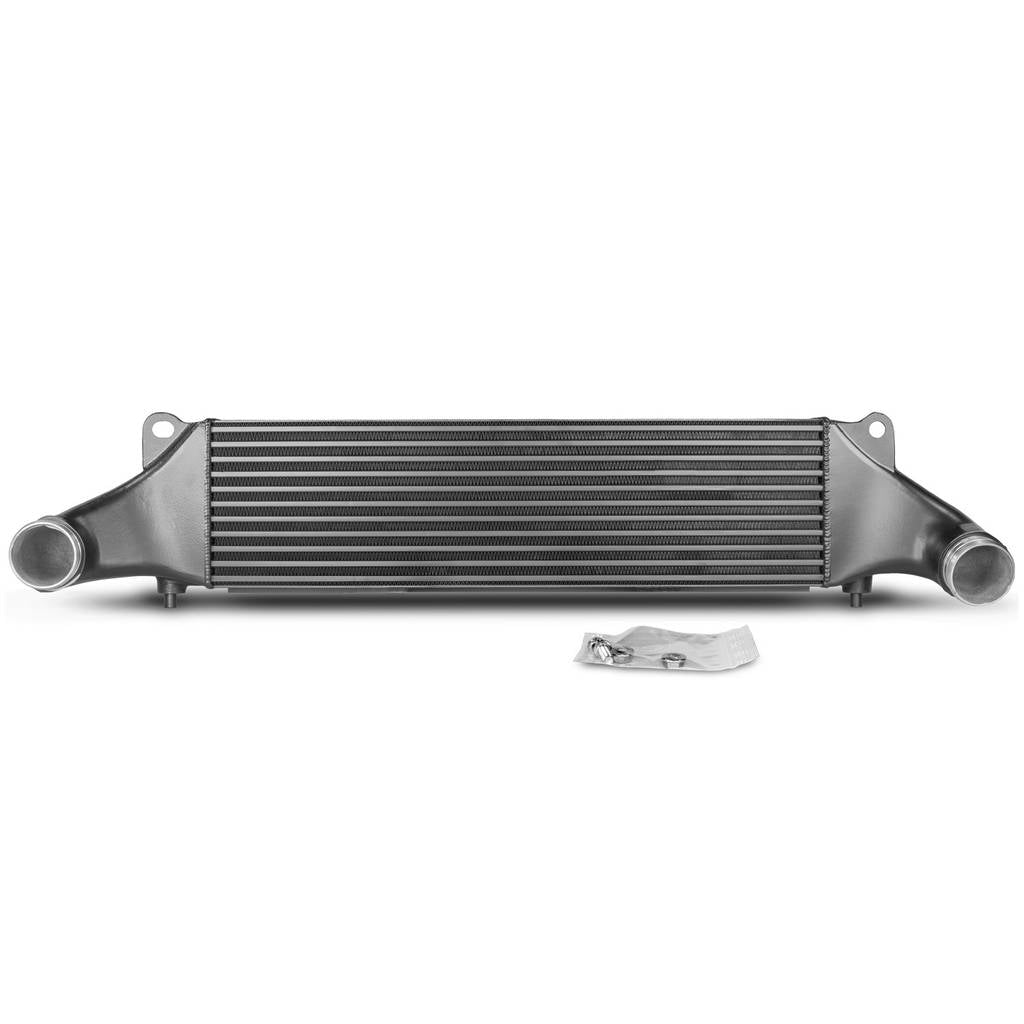

Kit comes with::

• 1x Wagner Tuning intercooler (black coated)
• 1x Mounting material
• 1x Installation instructions

Vehicle Compatibility:

• Audi RS3 8V Sportback (270 kW/367 hp) 2015-2016
• Audi RS3 8V Sportback/Sedan (294 kW/400 hp) 2017-on
• Audi RS3 8Y Sportback/Sedan (294 kW/400 hp) 2021-on
• Audi TTRS 8S (294 kW/400 hp) 2016-on
• Audi RSQ3 F3 (294 kW/400 hp) 2019-on
