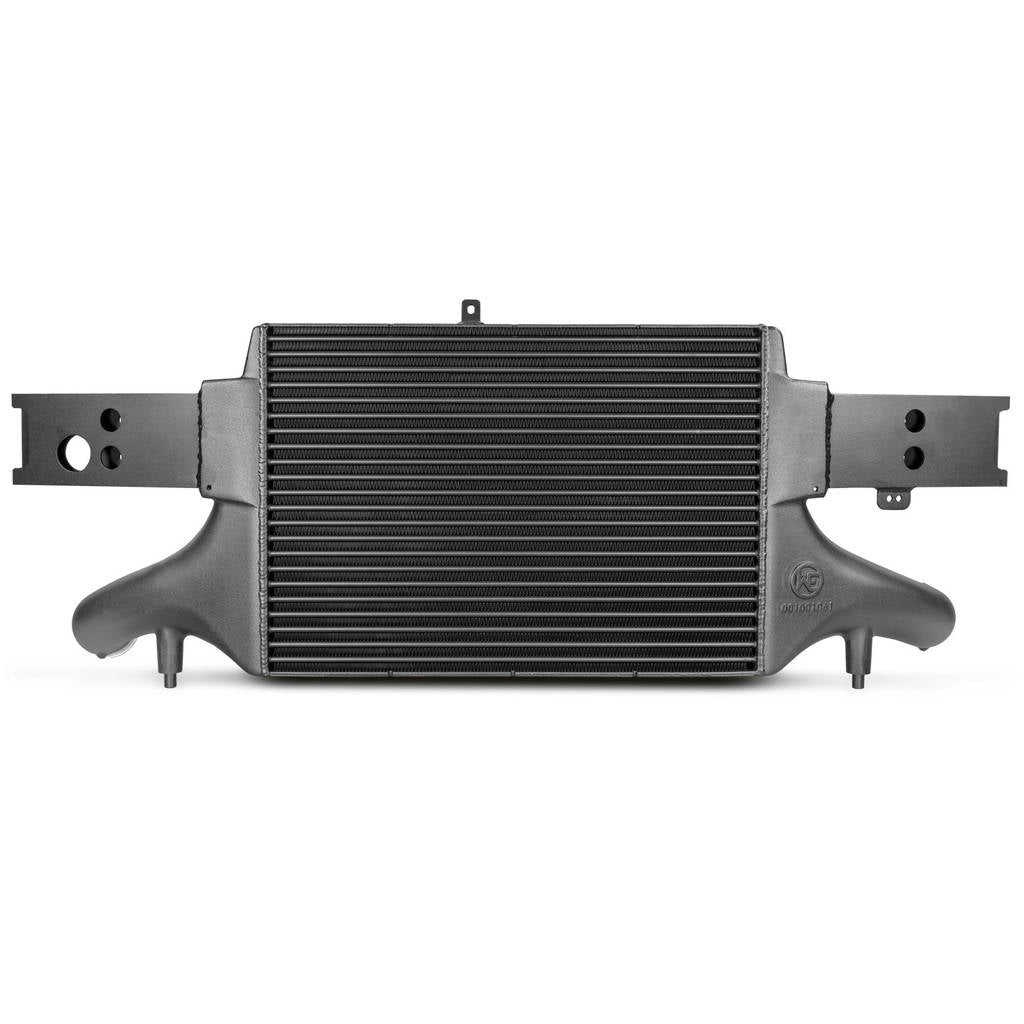

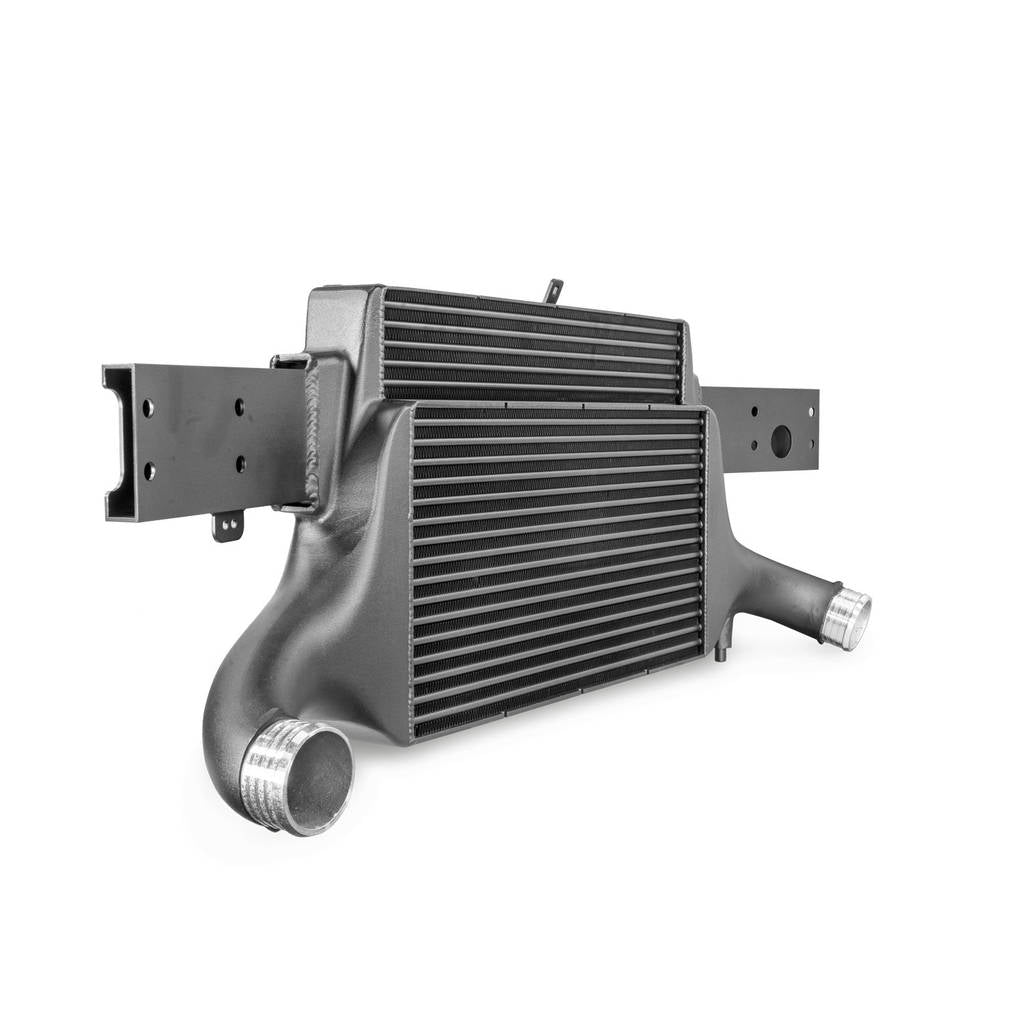

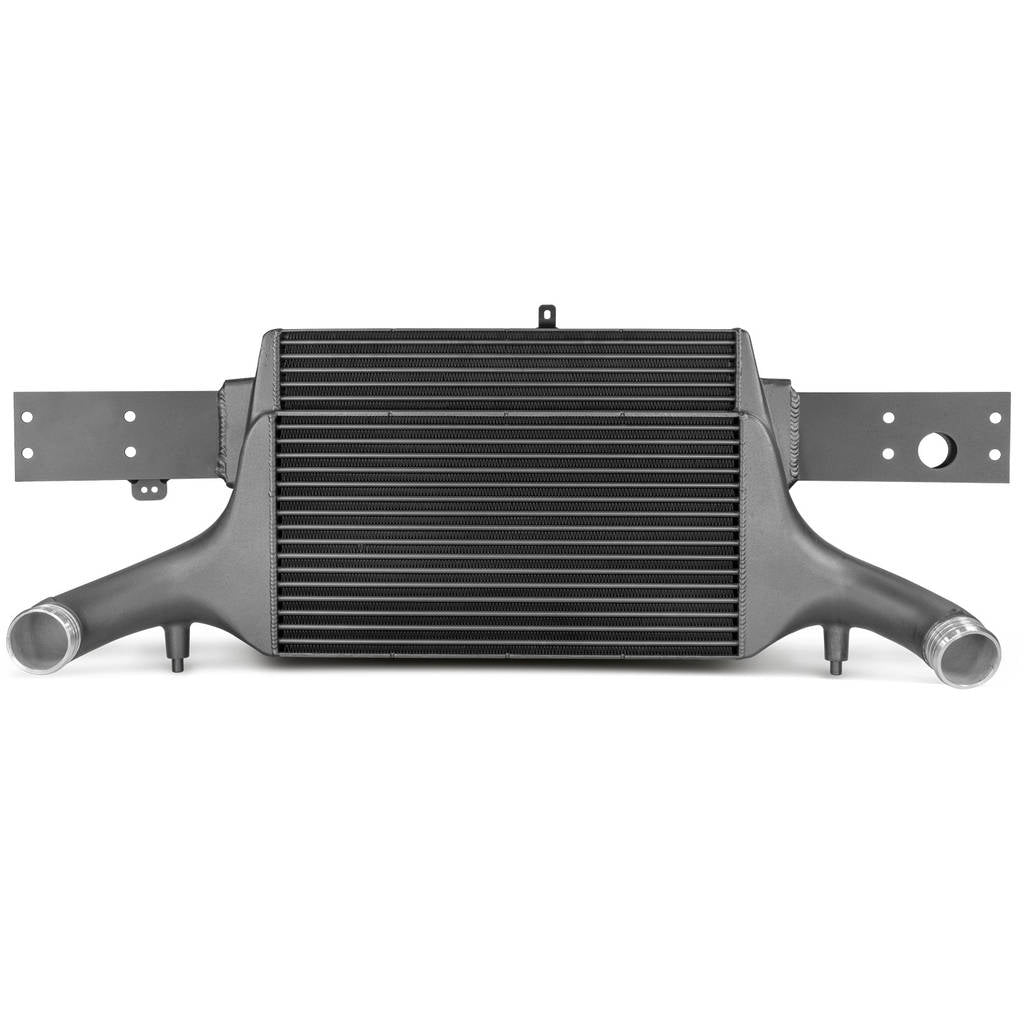

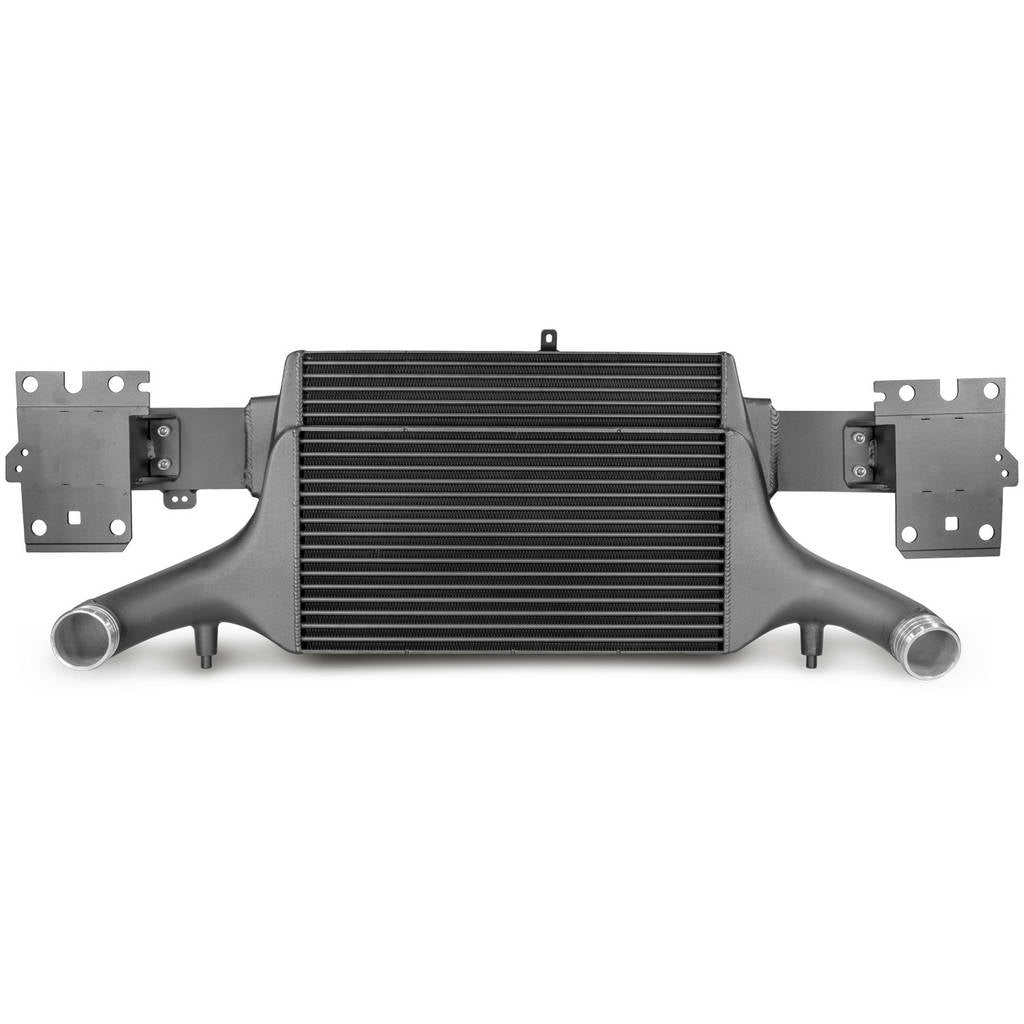

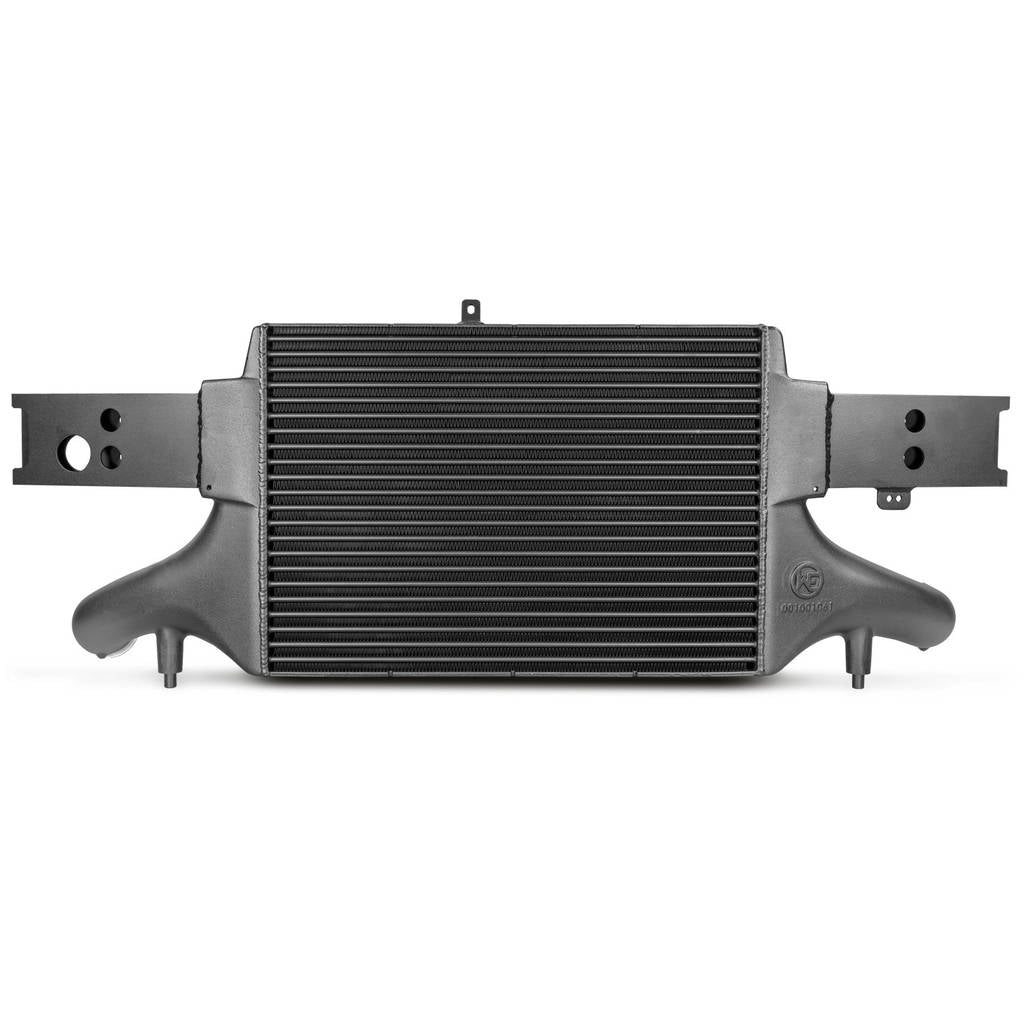

WAGNER TUNING 200001081.NOACC.S Competition Intercooler EVO3 AUDI RS3 8V 2.5 TFSI

Description WAGNER TUNING 200001081.NOACC.S Competition Intercooler EVO3 AUDI RS3 8V 2.5 TFSI

The Competition Intercooler EVO 3 for Audi RS3 8V is now available with certification and two different intercooler core options. This intercooler offers improved cooling performance, featuring an 84% larger inflow area and 101% more charge air volume compared to the original unit.

The high performance intercooler has a core dimension of 515mm x 367mm x 95mm (16.5L), providing a significant increase in cooling surface and charge air volume. The design includes optimized cast aluminum end tanks and additional air guides for uniform filling and excellent cooling properties with minimal pressure drop. Installation is straightforward, utilizing the original mounting points for a direct 1:1 exchange.

Important note: It is recommended to use the standard version for power applications up to 600HP and the X-version for power applications above 600HP.

• Improved cooling performance
• 84% larger inflow area
• 101% more charge air volume
• Plug & Play installation

Specifications:

• Weight: 15KG
• Inlet and outlet: 68mm (2.67 Inch)
• Core dimensions: 515mm x 367mm x 95mm (16.5L / 1006.9 Inch³)
• OEM intercooler cooling surface: 1024cm² (158.7 Inch²)
• OEM charge-air-volume: 8.2L (500.4 Inch³)
• Wagner Tuning EVO 3 Competition cooling surface: 1890cm² (293 Inch²)
• Wagner Tuning EVO 3 Competition charge-air-volume: 16.5L (1006.9 Inch³)

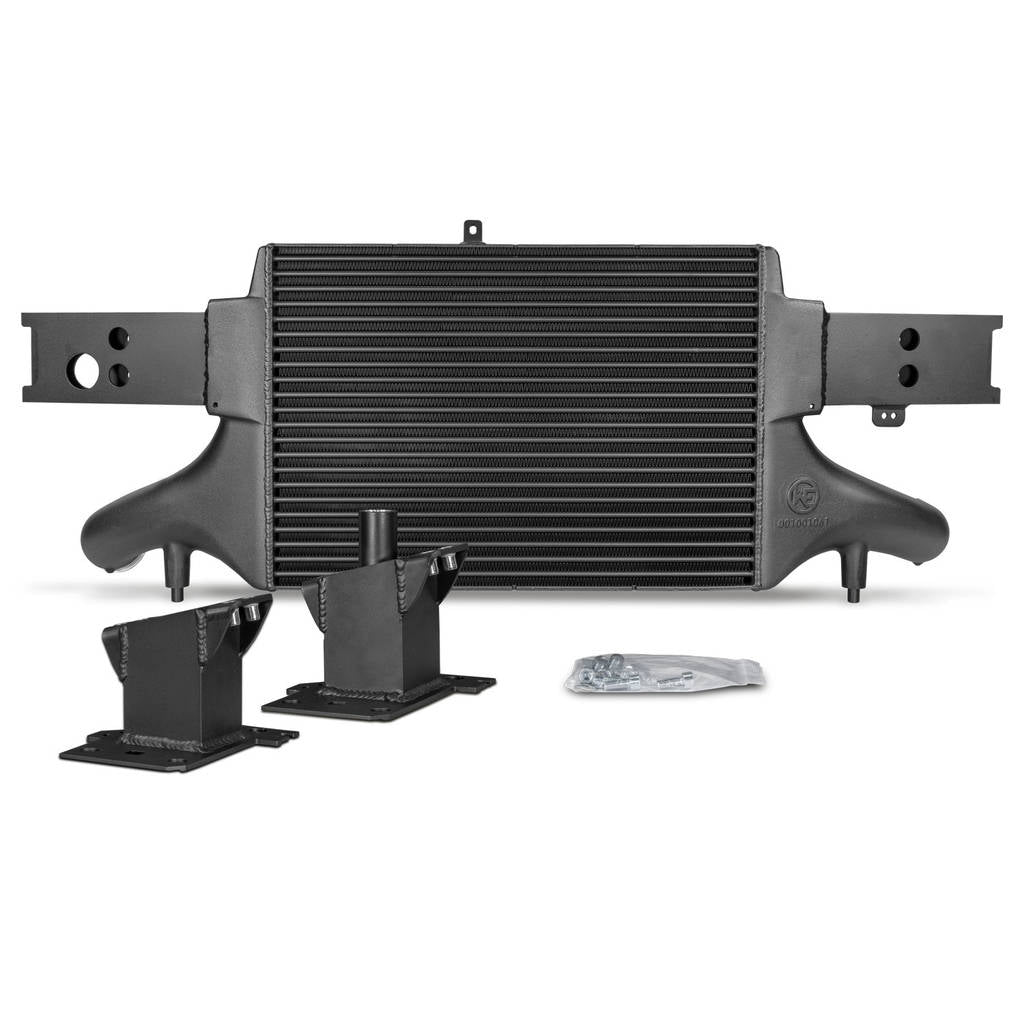

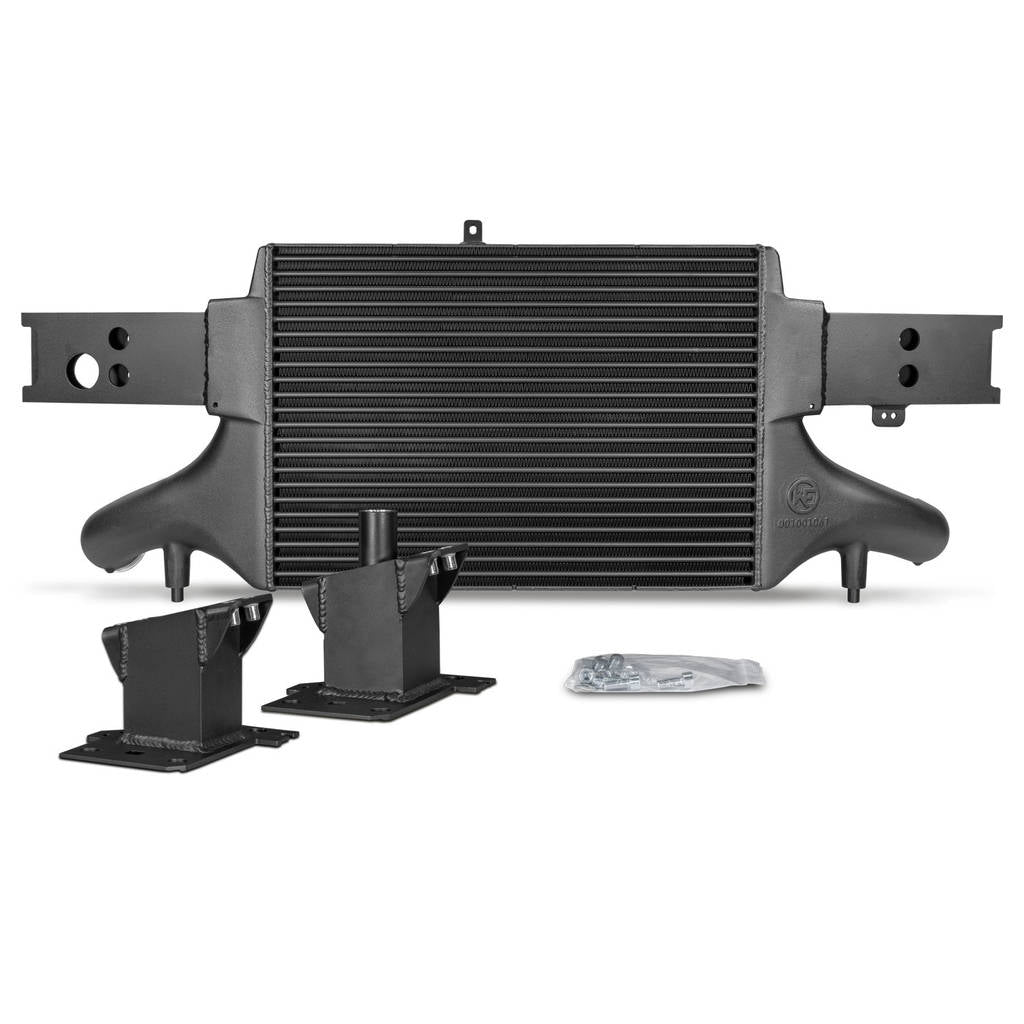

Kit comes with::

• 1 intercooler including crossmember
• 1 mounting material
• 1 installation instruction
• 1 certification

Vehicle Compatibility:

• 2015-2016 Audi RS3 8V Sportback 270KW/367PS
• 2017+ Audi RS3 8V Sportback/Sedan 294KW/400PS
