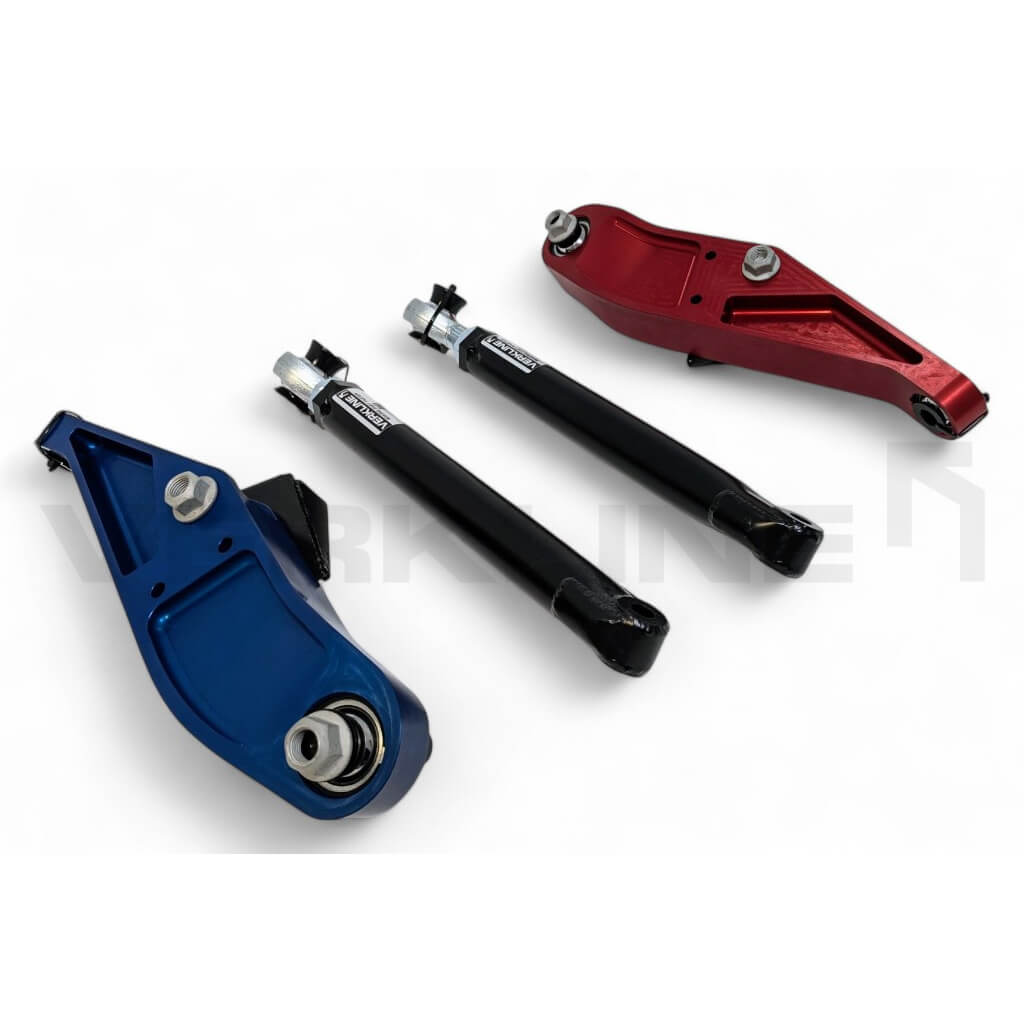

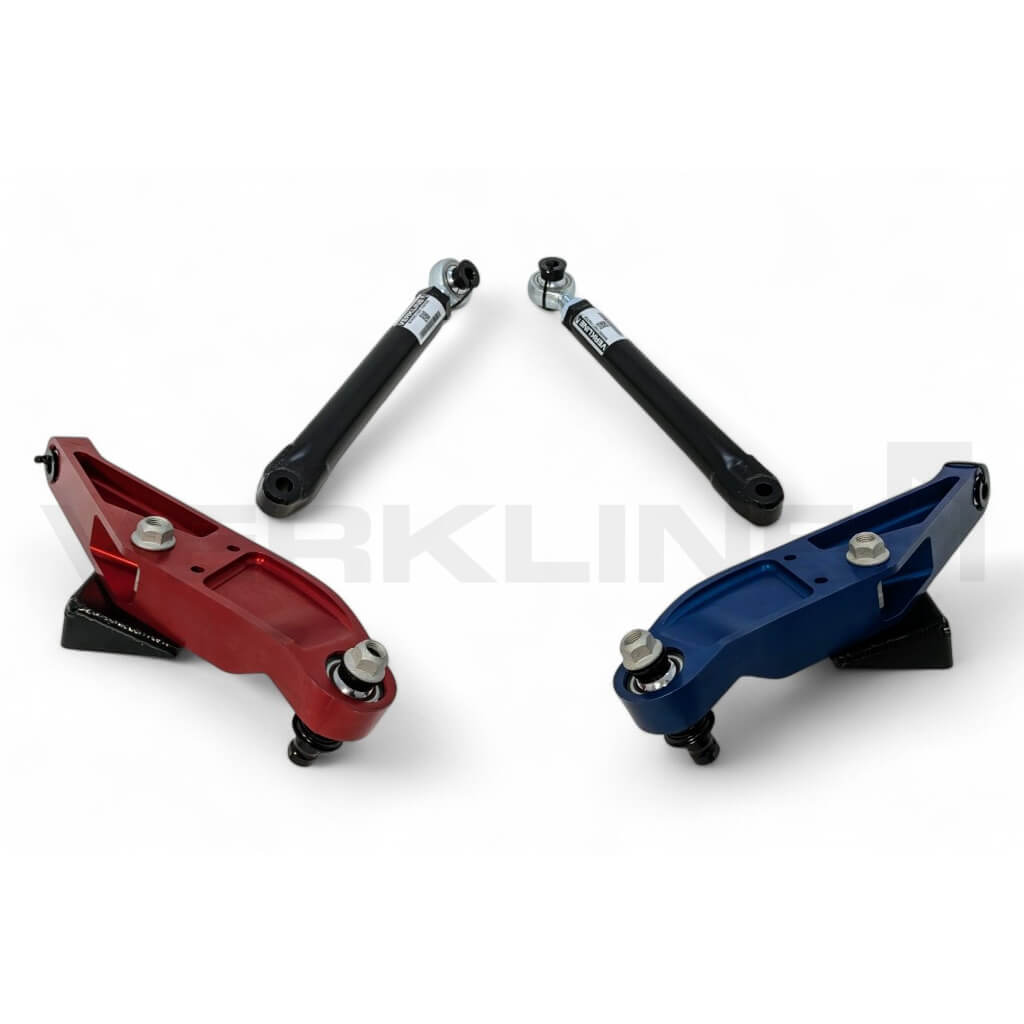

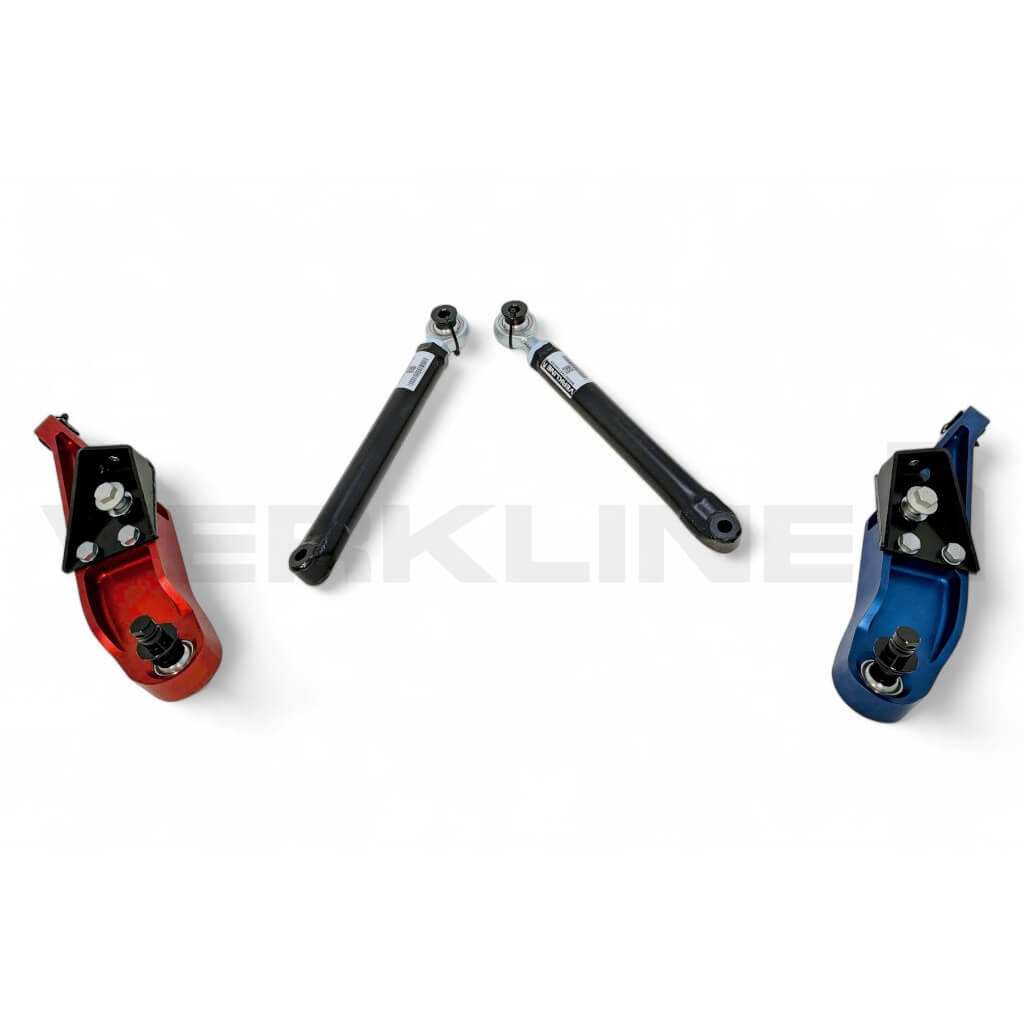

The kit consists of
- Front light weight aluminium wishbones (left and right).
- Two pins for uprighs.
- Two M22 motorsport rod ends.
- Four motorsport bearings.
- Two arm antiroll brackets.
- Spacer sleeves for assemble of the rod ends in the front subframe.
- Six 10.9 bolts used.
- Four 10.9 screws used.
Features
- R4 spec front suspension arm.
- Comes preassembled ready for fitment in the car.
- Allow increased caster and camber adjustment.
- R4 rally kit compliant.
- Same rod end suppler as for original R4 kit.
- Greater strength over OEM wishbones.
- Wishbones are anodized in red and blue colors.
Technical details
- Manufactured from 7075 aluminium on 5 axis CNC.
- T45 tube used.
- Pin made from 42CrMo4.
- Tig Welded.
- Full 3D CAD designed.
- FEA Tested.
