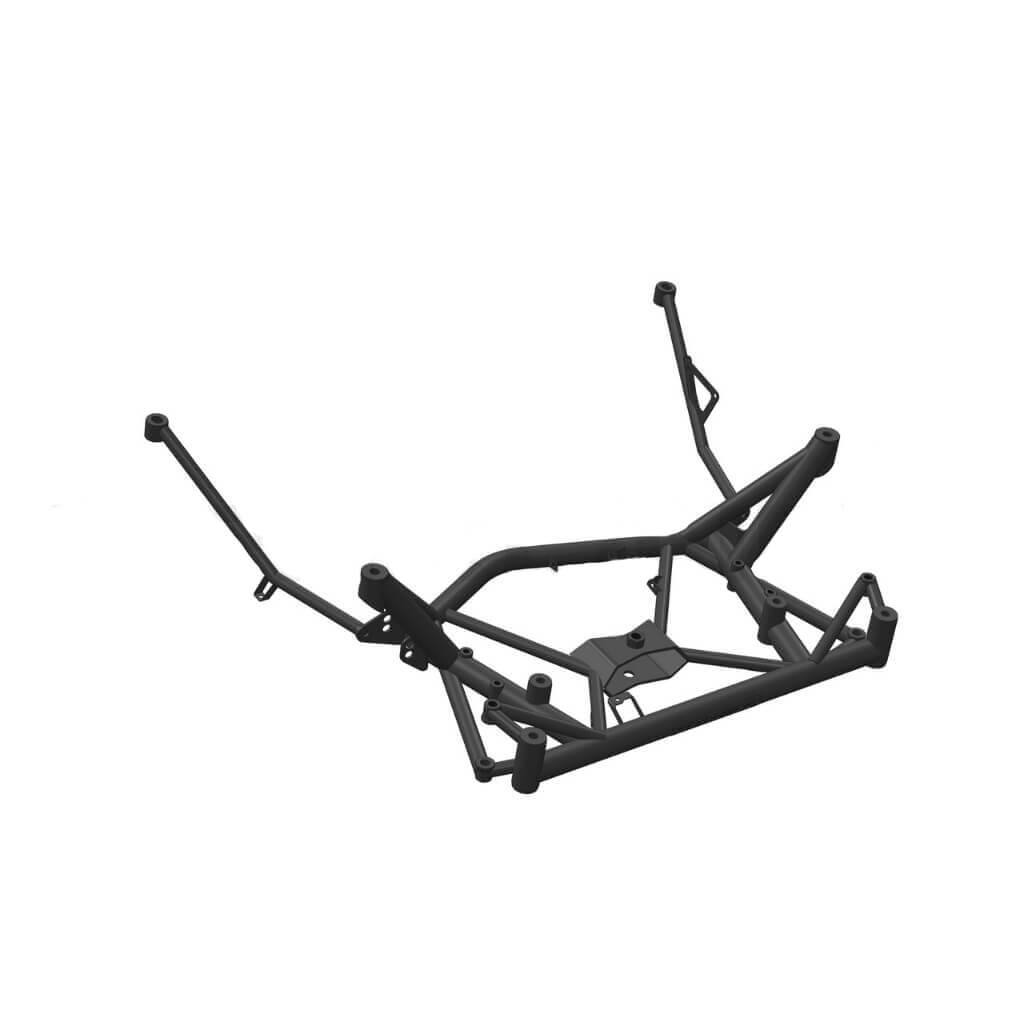

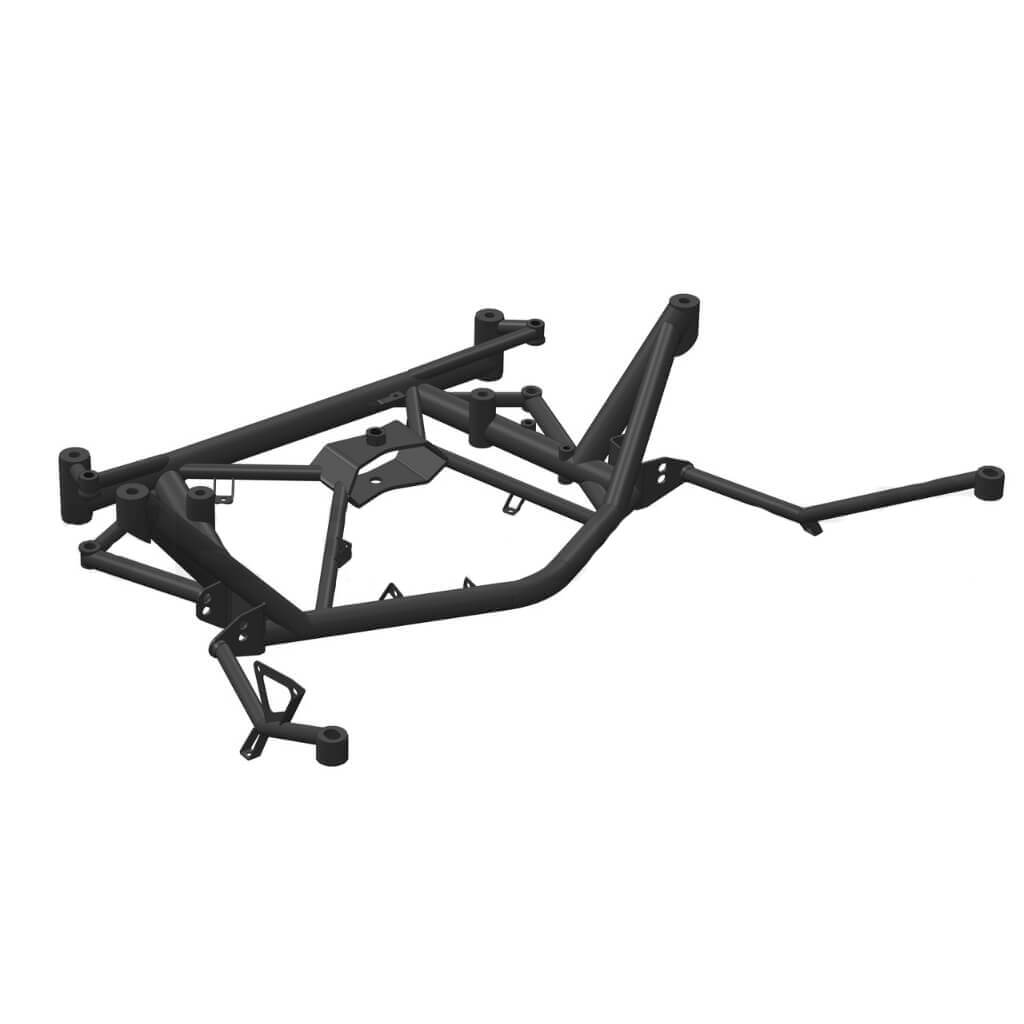

VERKLINE WAS-601 Front Lightweight Tubular Subframe Kit for TOYOTA GR Yaris (XP210) 2020-
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-601 Front Lightweight Tubular Subframe Kit for TOYOTA GR Yaris (XP210) 2020-
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Product Features:
- Additional (modified) suspension mounting points (cross arms, steering rack, anti-sway bar) to improve suspension kinematics for lowered race cars.
- The single subframe position eliminates subframe misalignment under the car. No subframe retainer kit / offset clamp kit required (weight saving).
- Increases chassis rigidity for improved handling. No need for additional lower beam/beam (weight saving).
- Improved access to the underside of the vehicle.
Features:
- Lighter than the factory subframe by 7 lbs. OEM weight is 17.75 kg. Our subframe weighs 10.75 kg.
- Made from heavy duty T45 tubing.
- Compatible with OEM and Verkline crossmembers
What's included
- Supplied painted (powder coated) in black color
- Set of bushings for kinematics modification (cross arms, steering rack, anti-skid bar)
- Set of mounting bolts.
- Individual air duct
- Printed installation instructions (8 pages).
Note: If you want to use the modified suspension mounting points available on our subframe, you will also need to use Verkline front lower cross arms - OEM WAS-611 cross arms will not fit there. For standard OEM mounting points on the subframe, you can use OEM cross arms.
Note2: Installing this rear insert kit will result in some additional NVH (noise, vibration and harshness) transfer to the passenger compartment.
