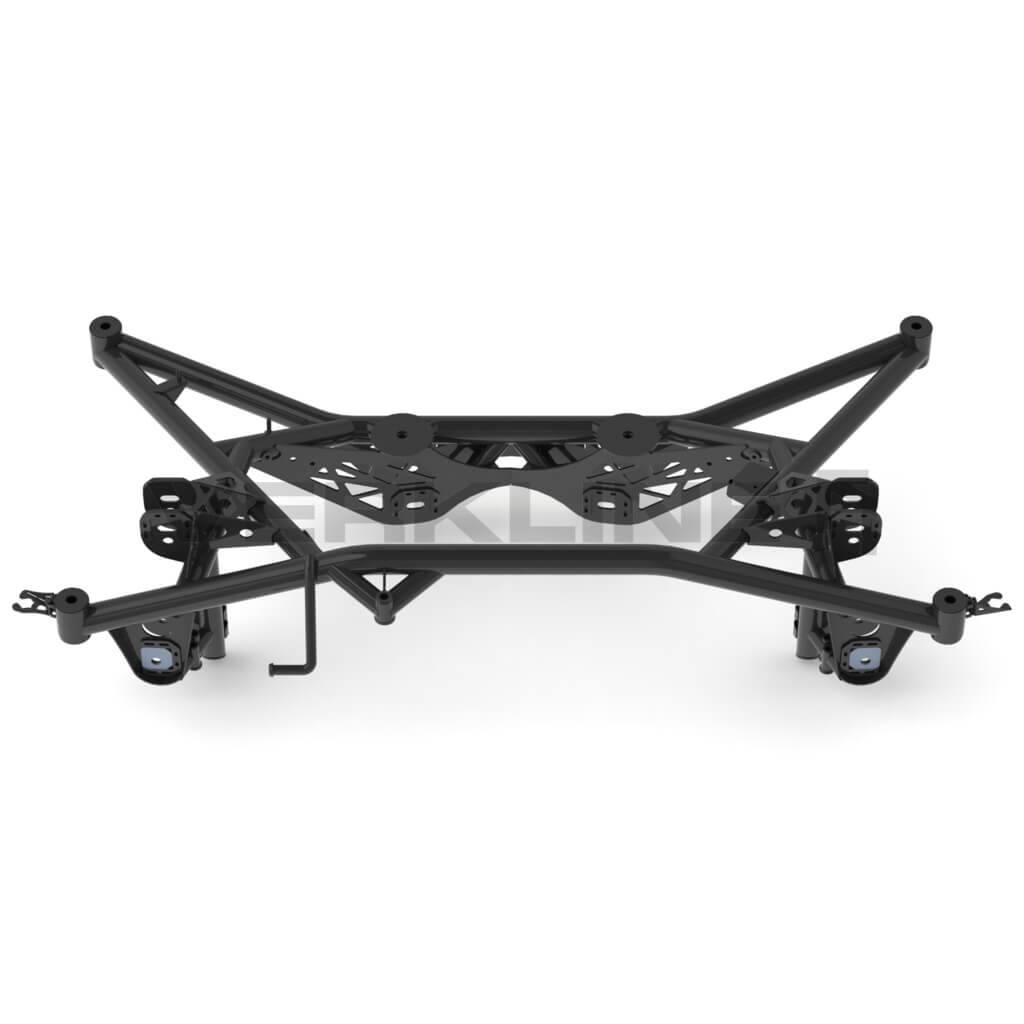

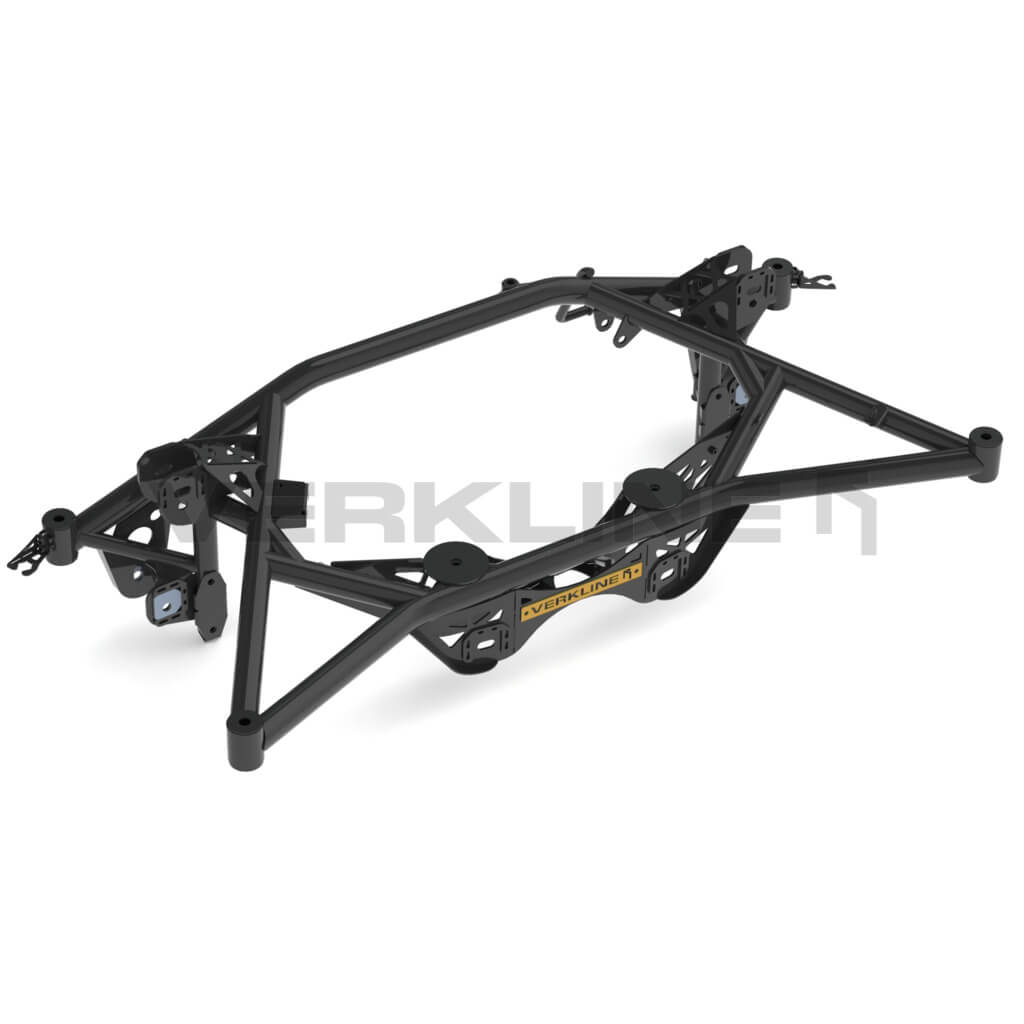

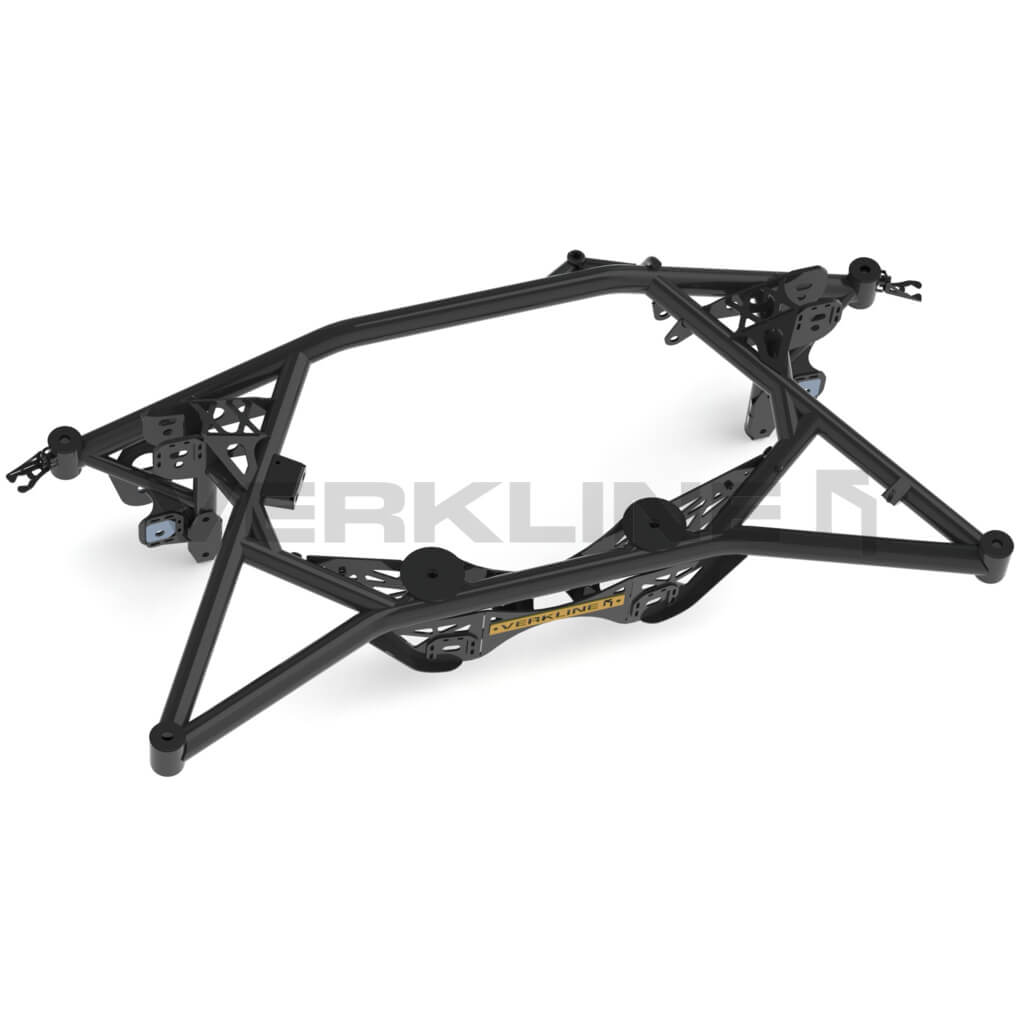

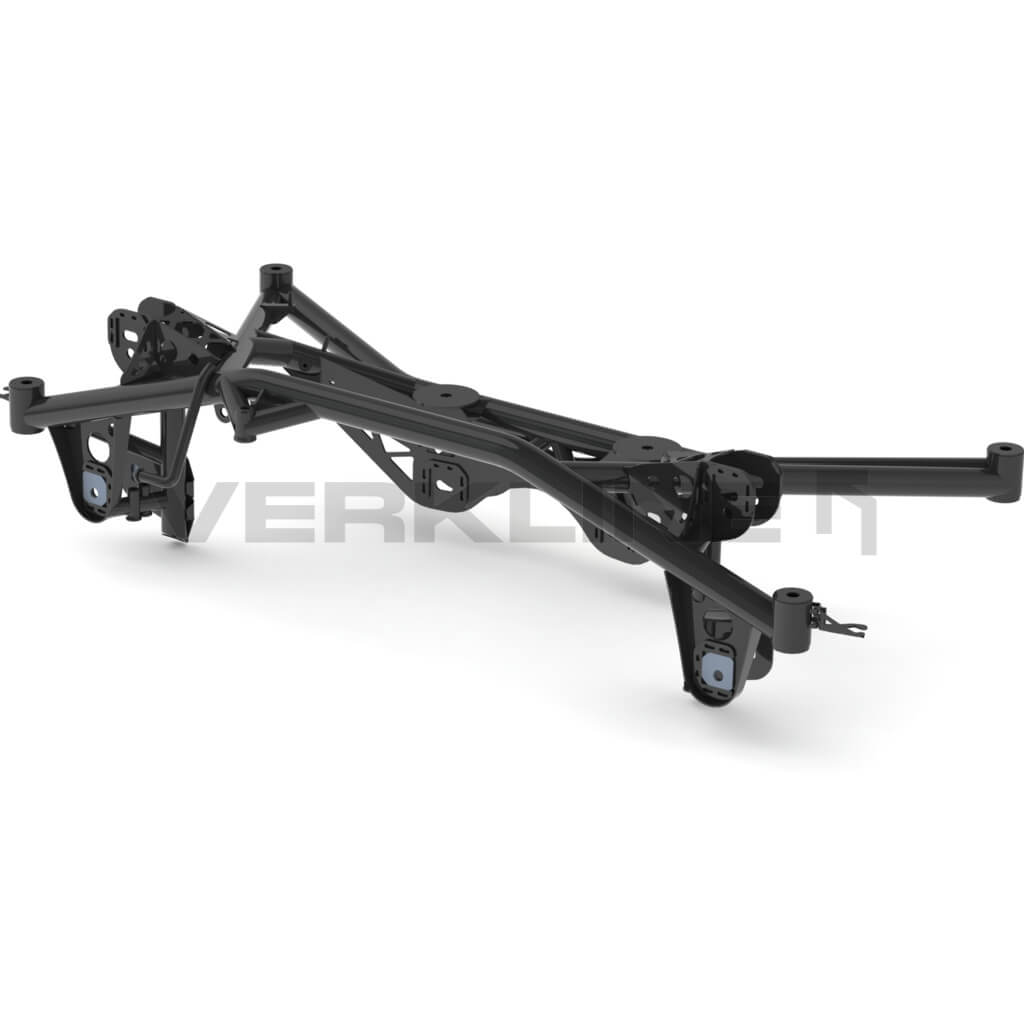

VERKLINE WAS-561 Rear Lightweight Tubular Subframe Drag for AUDI RS3 (8Y / 8V) / VW Golf GTI / R (Mk7 / Mk8)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-561 Rear Lightweight Tubular Subframe Drag for AUDI RS3 (8Y / 8V) / VW Golf GTI / R (Mk7 / Mk8)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Using same T45 tubing as in WRC cars, this subframes provide increased stiffness and mass reduction. All factory parts bolt up to this unit, no other modifications are necessary.
This version is for cars looking to maximum lightweight solution for the rear subframe – drag cars.
Benefits
- 12 kg. It is 6 kg saving over OEM steel MQB subframe or 6.5 kg savings over OEM PQ35 (TT 8J, A3 8P) steel subframe.
- Possibility of adjusting camber, toe and bump steer.
- Additional drag setup mounting for upper control arm – provides better camber gain and roll center position (requires adjustable control arm to keep camber adjustment).
- One mounting subframe position, eliminates subframe shifting under the car. No need for subframe locking kit / billet aluminium rear subframe inserts (weight savings).
- Increases chassis rigidity for improved handling performance.
Features
- Better access to car under body and enables wishbones change without subframe removal.
- T45 (BS4T45 to BS4T100) tubing imported from UK and S355 metal sheets.
- All components TIG welded.
- Delivered painted (powder coated) black.
- Can be used with OEM wishbones or our adjustable wishbones.
- Mounts to the OEM car body and no other modifications are needed to fit the subframe.
- Includes mounts for two OEM rear xenon lights sensors.
- Can be used with exhaust up to 4 inch. OEM positioning.
- No need for subframe inserts or our aluminium subframe bushings as the subframe comes with solid mounts to the car body.
What is included
- Rear subframe powder coated in back.
- Set of 3 mm metal adjustable wishbone position shims for -5, -4, -3, -2, -1, 0, 1, 2, 3, 4, 5 mm positioning.
- Printed install instructions.
Replaces
- 5Q0505235E
- 5Q0505235J
Notice: Sold for off road, track and racing applications only. Mounting the subframe may increase some noise, vibration, and harshness (NVH) in the car.
Notice 2: Does not work with Audi RS3 8P and VW Golf R32. Battery is located under the car behind the rear subframe. It is possible to use VERKLINE subframe but the battery compartment has to be relocated.
