VERKLINE WAS-301 Rear Lightweight Tubular Subframe Kit for NISSAN GT-R (R35)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-301 Rear Lightweight Tubular Subframe Kit for NISSAN GT-R (R35)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

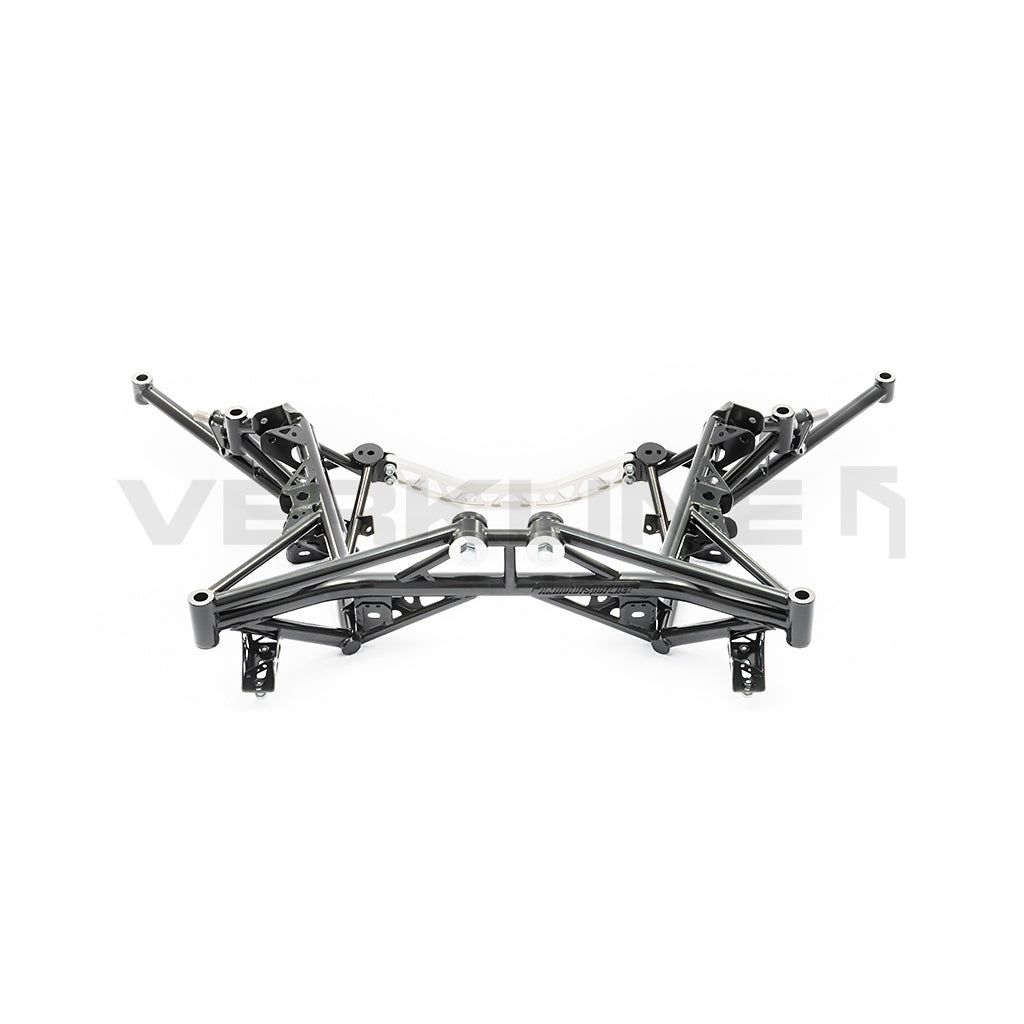

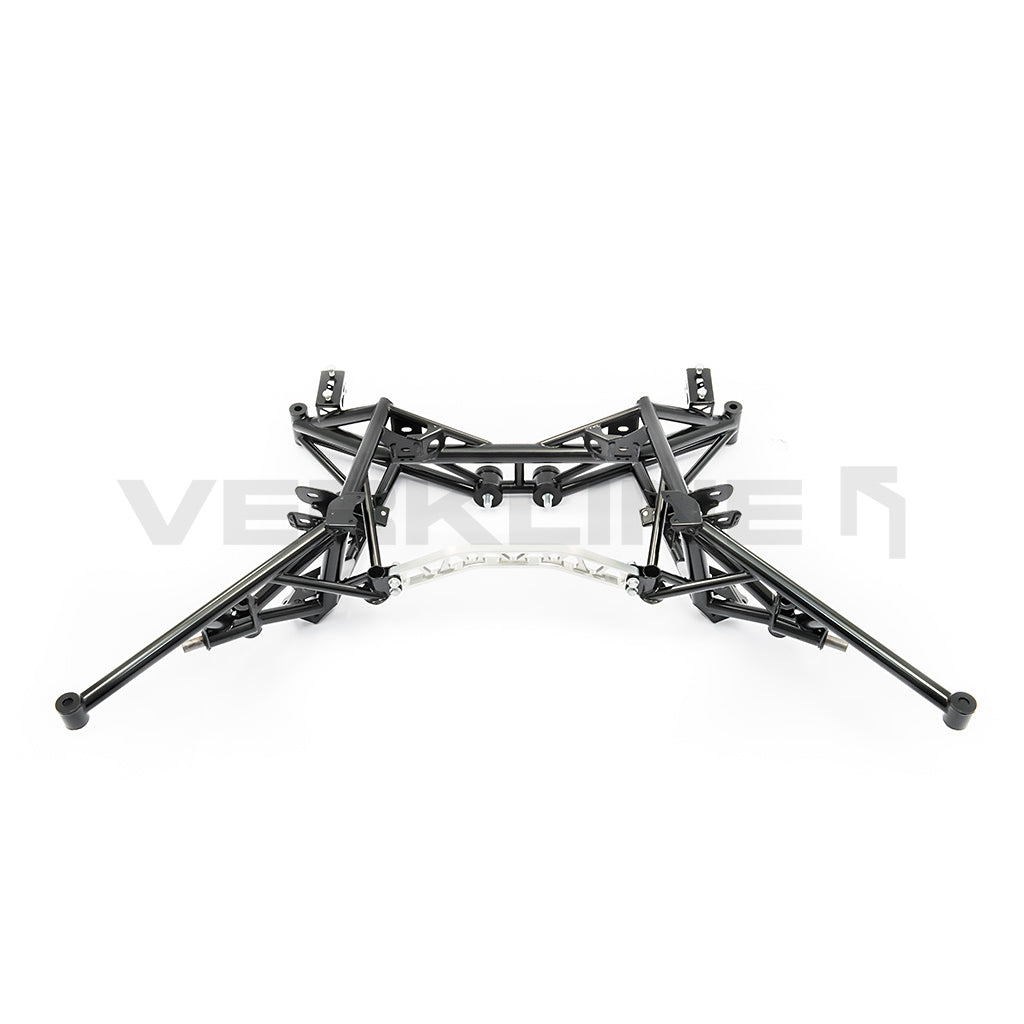

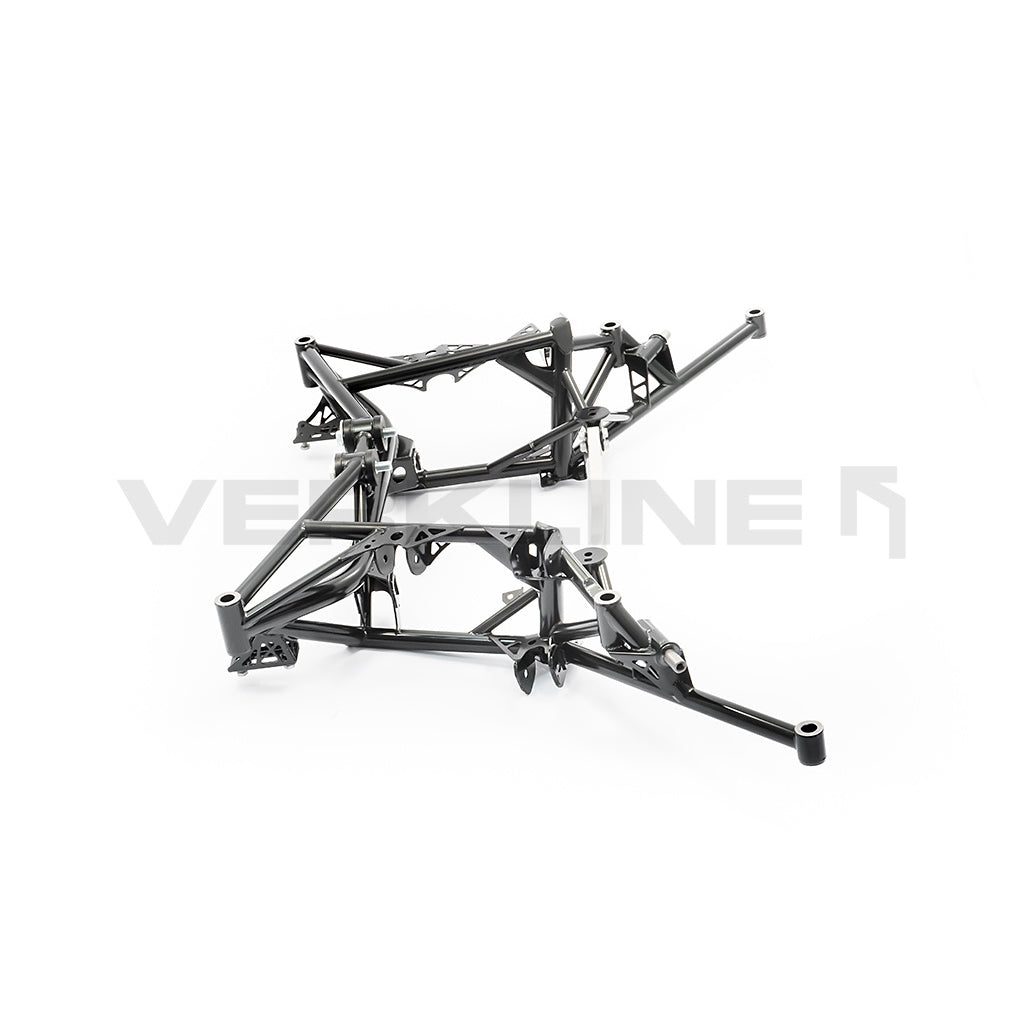

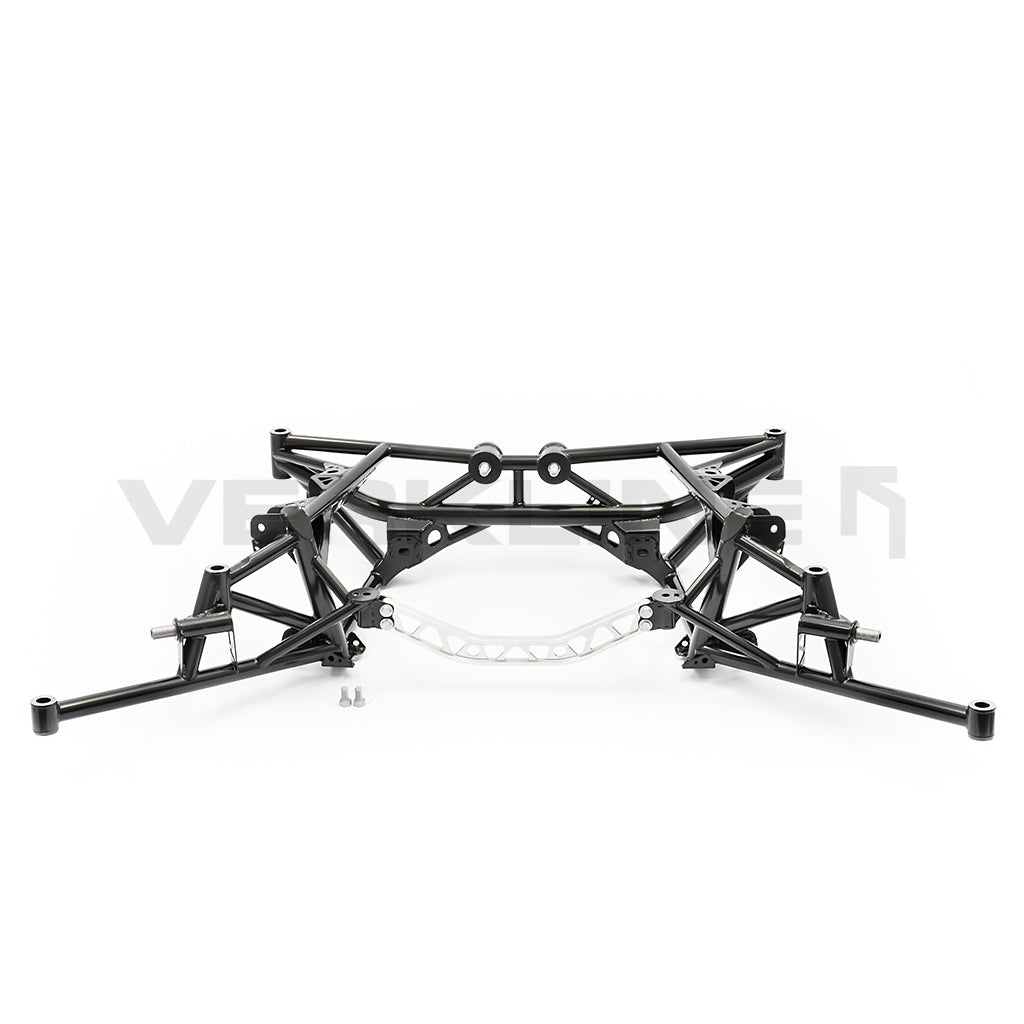

The tubular lightweight rear subframe allows you to remove the transmission without having to remove the subframe from the vehicle.
A weight reduction of almost 50% compared to the 66.35 lbs (30.10 kg) that the OEM rear subframe weighs.
The rear lightweight tubular subframe is based on a 3D scan of the OEM subframe, fully CAD designed, FEM tested, made from T45 tubing (full name: BS4 T45 - BS5T100 / BS6S100 ).
The crossbar is fully hand TIG welded to ensure absolute quality control with a special Lincoln Electric tig wire that matches the tensile and flow properties of the pipe. The removable middle connector is made of 7075 aircraft aluminum and anodized.
You can remove the transmission from the vehicle without removing the subframe. The Boost Logic Solid Transmission Mount Kit is required for this feature to work.
Replaces:
- 55400-JF00B
- 55400-KB50A
Features
- The weight of the subframe is 15.85 kg / 34.94 lbs. This is -47% lighter and represents a 14.25kg / 31.41lb saving over the OEM subframe.
- T45 tubes (BS4 T45 to BS5T100 / BS6S100) imported from the UK and S355 sheet metal.
- Tubes are supplied painted (powder coated).
- Aluminum bracket 7075, silver anodized.
- Easier maintenance due to better access to the underbody.
- Mounts for OEM or aftermarket subframe.
What's included
- Rear subframe painted black.
- Black polyurethane rear gearbox mounts with washers or optional solid aluminum inserts.
- Silver aluminum bracket with M10 bolts and nuts.
- M16 bolts for rear transmission mounts.
- M12x1.25 bolts for Boost Logic Solid Transmission Mount Kit.
- Printed installation instructions.
Important information
T45 tubing is a unique seamless carbon steel pipe that is used in many industries. It is stronger than Co-Mo 4130 (chromoly) pipe, which is also used in motorsports. T45 is widely used in the aerospace sector in equipment such as pilot and crew seats, due to the material's ability to withstand high G forces without seizing or splitting. This material has a carbon-manganese base and meets all aerospace specifications set by British Standards.
Properties for T45 are as follows:
- Tensile: 700 - 900 MPa, 0.2% yield 620 MPa minimum
- Hardness test: 201min - 262 max HB or 210min - 275max HV.
S355 metal sheets are also used in the subframe.
The size of the subframe is 1412 x 886 x 295 mm (length x width x height).
Note: Sold for off-road, race track and racing use only. If the purchaser wants to use the parts elsewhere, he/she must file the appropriate paperwork.
