VERKLINE WAS-002 Replica Wishbones Full Set for AUDI S1 (B2)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
VERKLINE WAS-002 Replica Wishbones Full Set for AUDI S1 (B2)
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The arm kit (replica) provides the greater strength needed to withstand the much greater loads and significant geometry changes that are also required for efficient use. Proven on racing and rally cars.

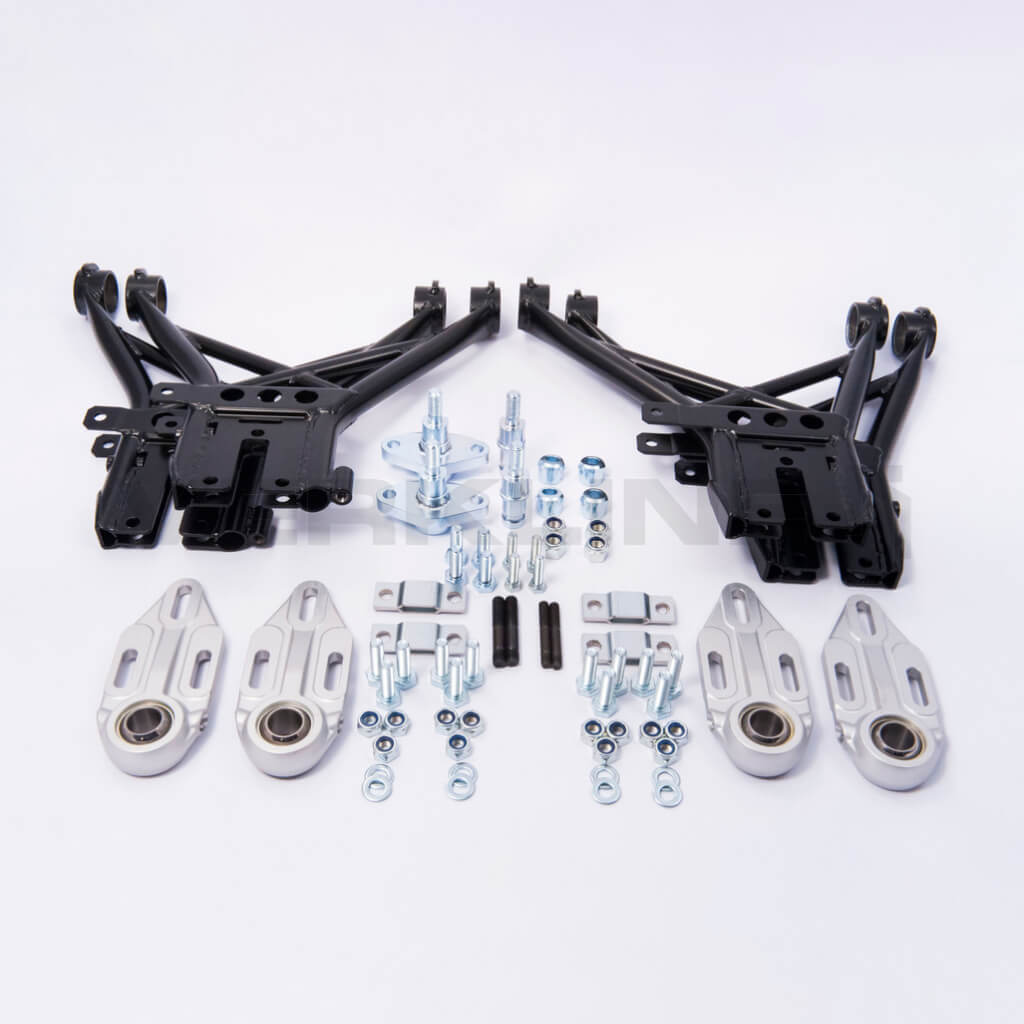

What’s Included
- Two wishbones (E355 N / St 52.4 steel) for front axle.
- Two wishbones (E355 N / St 52.4 steel) for rear axle.

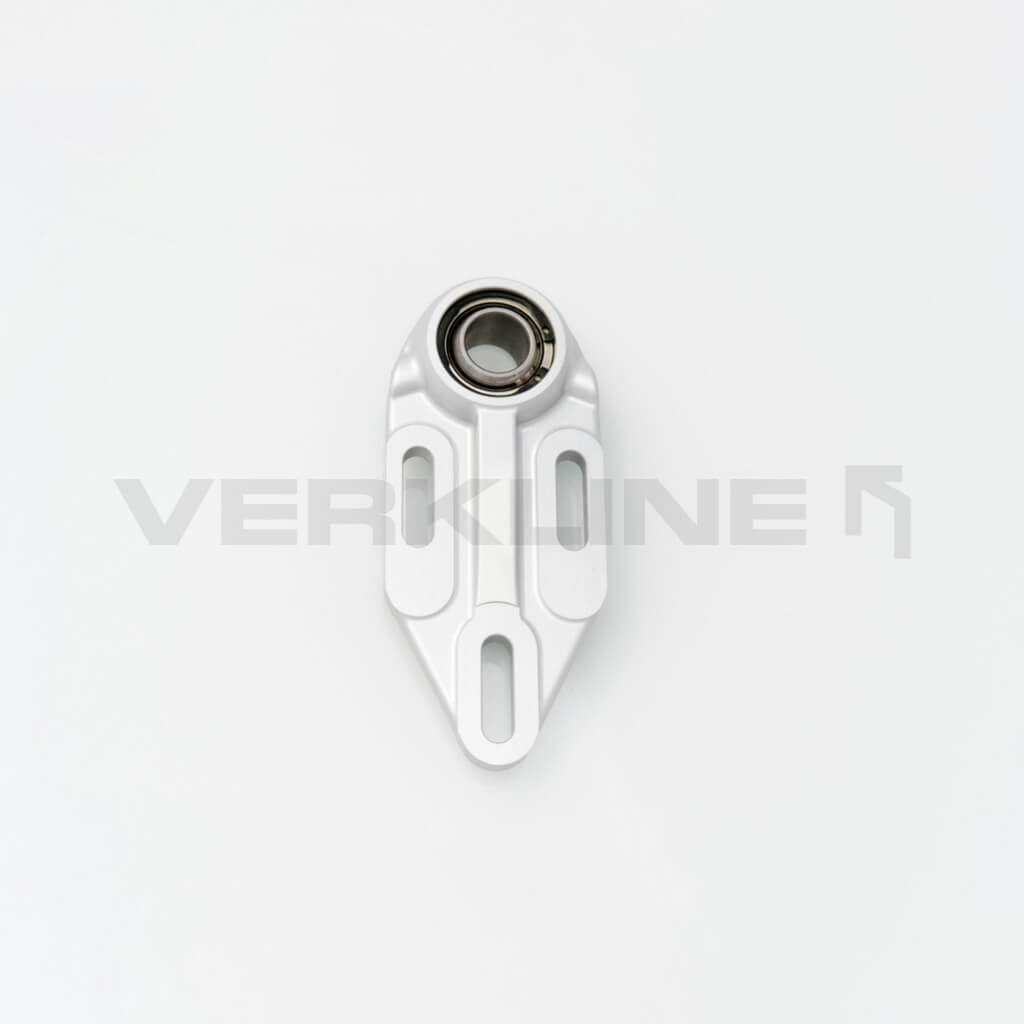

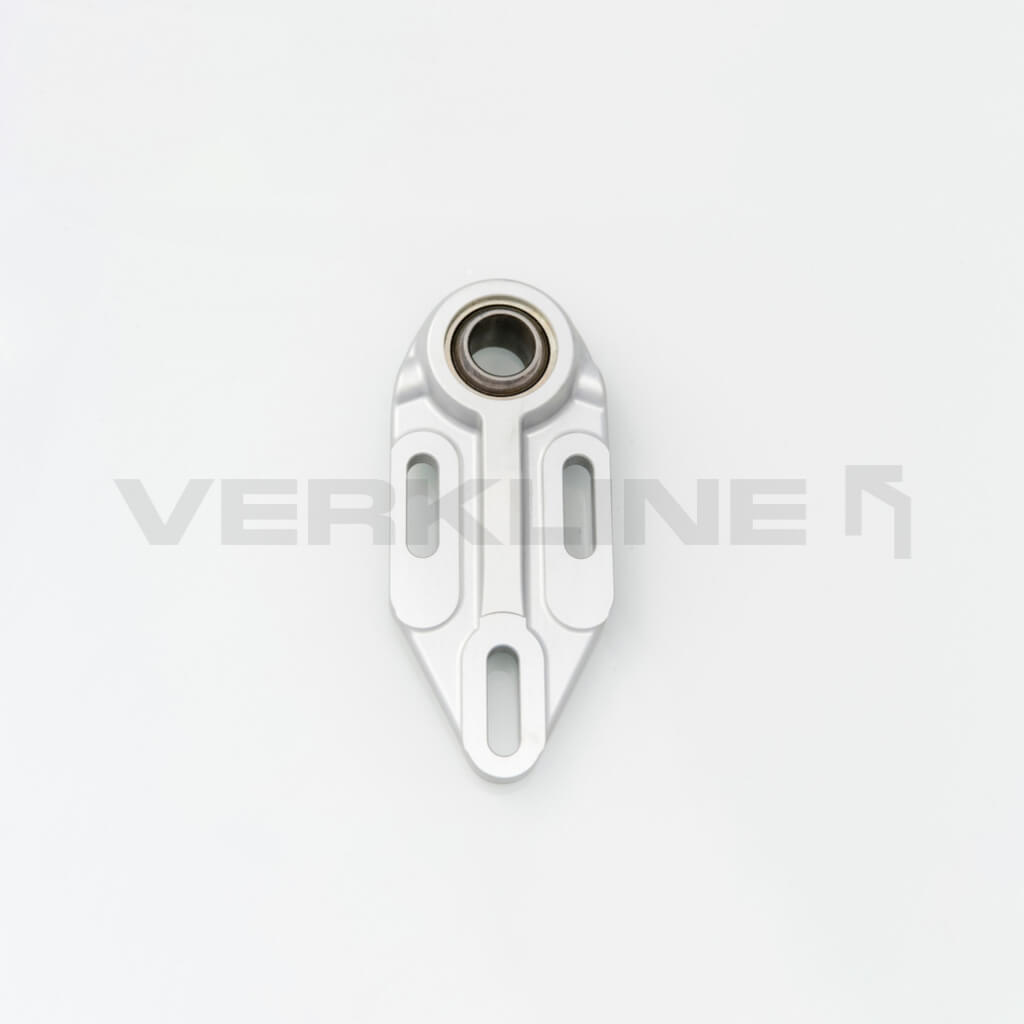

- Four aluminum (PA9 / 7075) ball joint carriers milled on CNC machine and anodized in silver.
- Four maintenance free sport Fluro bearings (22 mm hole).
- Two steel pins (EU C45) to connect with OEM struts.
- Two steel mounts (EU C45) for rear OEM struts.
- Eight steel galvanized locking plates for securing aluminum ball joint carriers.
- All necessary screws for mounting ball joint carriers and steel pins.
Features
- Can be used in conjunction with the standard front/rear sub-frame.

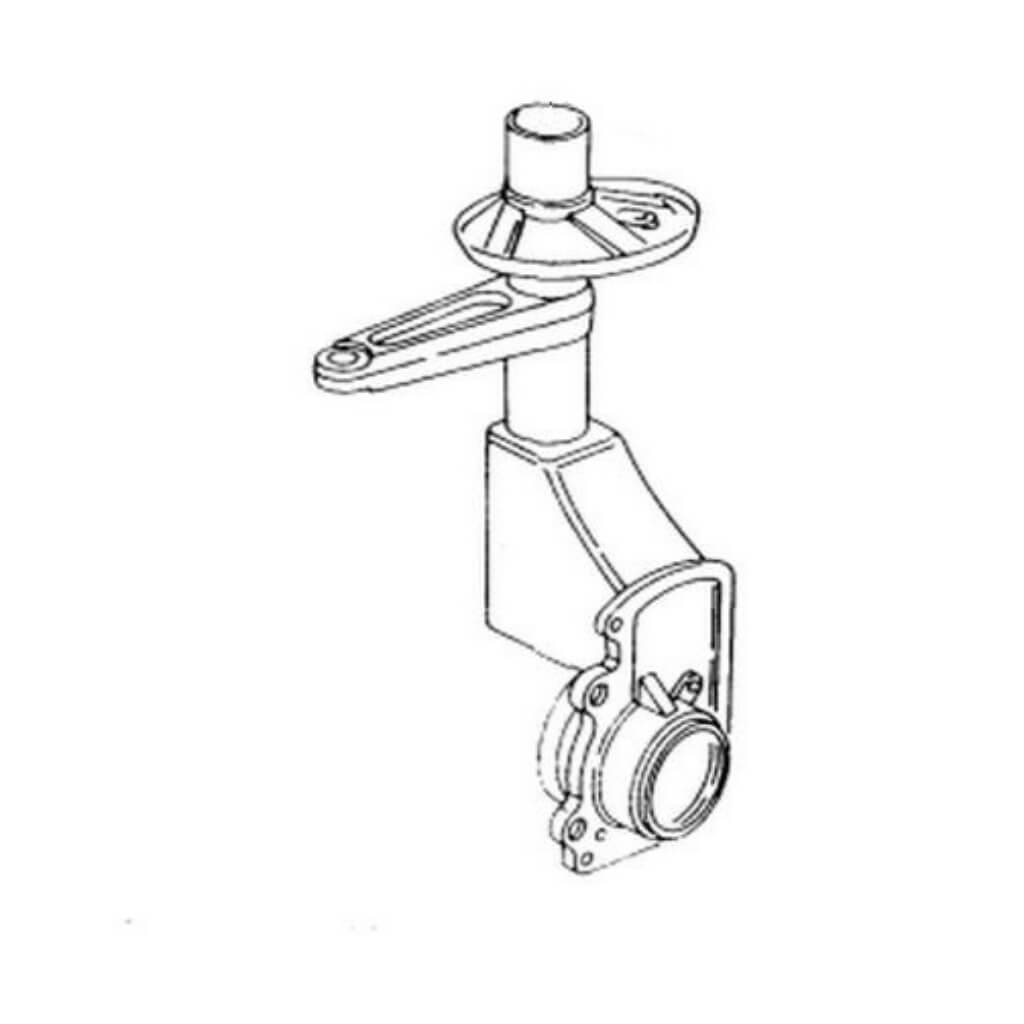

- Made to work with OEM uprights (Quattro B2/B3, Ur-quattro – see drawing).
- Allows for massive camber adjustment (up to 25mm more versus OEM) and wider track.
- Gives additional caster. Audi B2 OEM caster is 1,25 and with our wishbone it is 2.65.
- Works fine with Audi Sport blade type anti roll bars.
- Works with Audi Sport uprights (22 mm bolt).
- Prepared to work with additional trailing arm (both in front and rear).
- Possible to use with “turn stop” on Audi Sport uprights.
- On the contact area between aluminum ball joint carrier and inside of the wishbone the area is knurled for better grip of the carrier.
- To be used with 37mm diameter bushes for mounting the wishbone to the subframe.
Notice: minor tools are required to install rear wishbones bolts. You need to have burner to heat the rear uprights for the bolt to be pushed inside. Instructions are provided to the customer on the installation of the kit. Front wishbones increase significantly caster angle.
