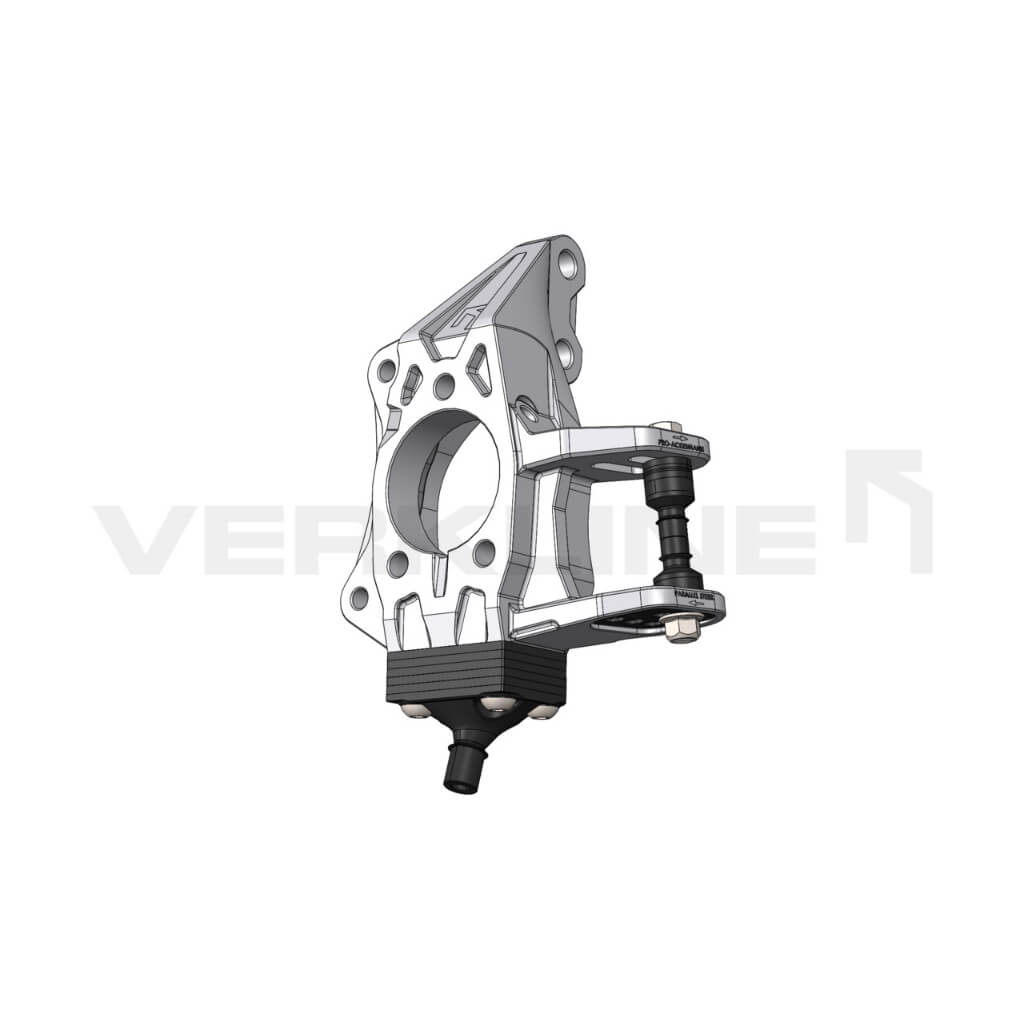

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020- Photo-0

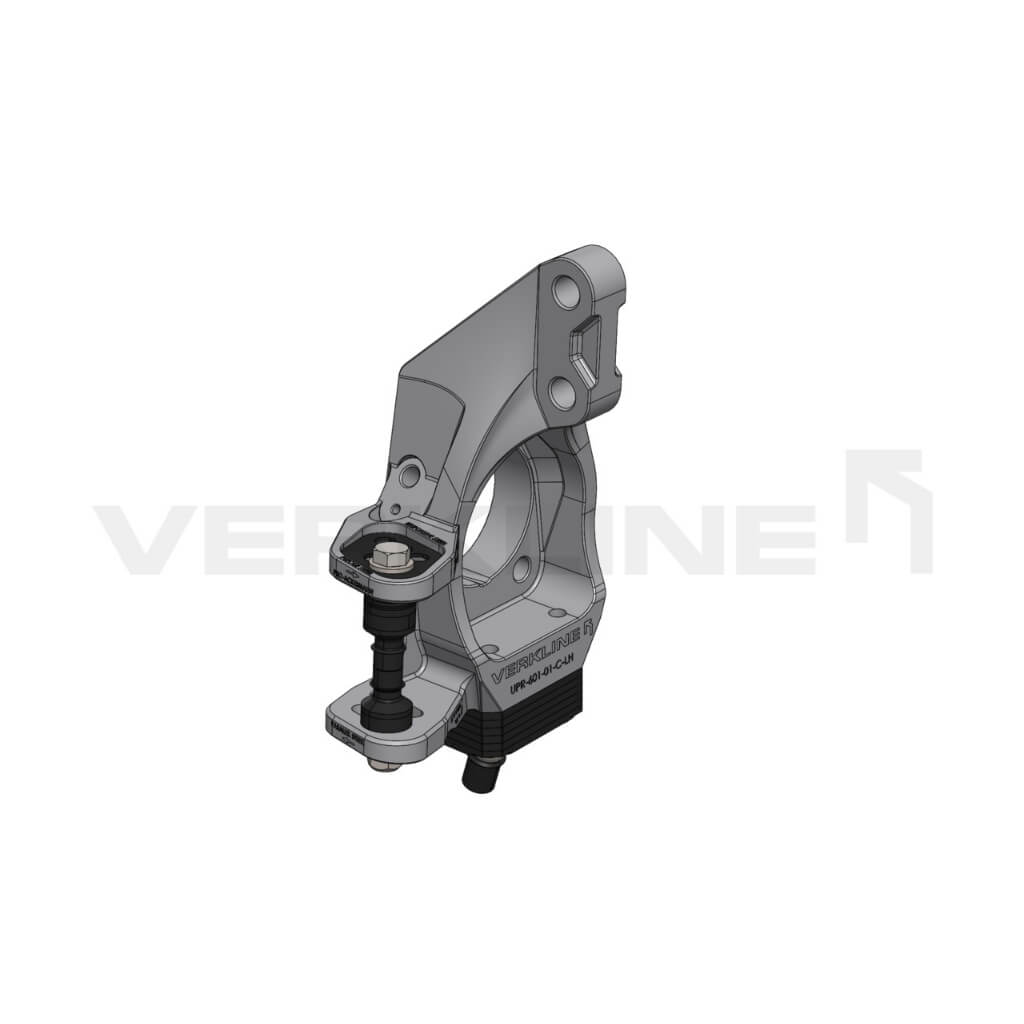

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020- Photo-1

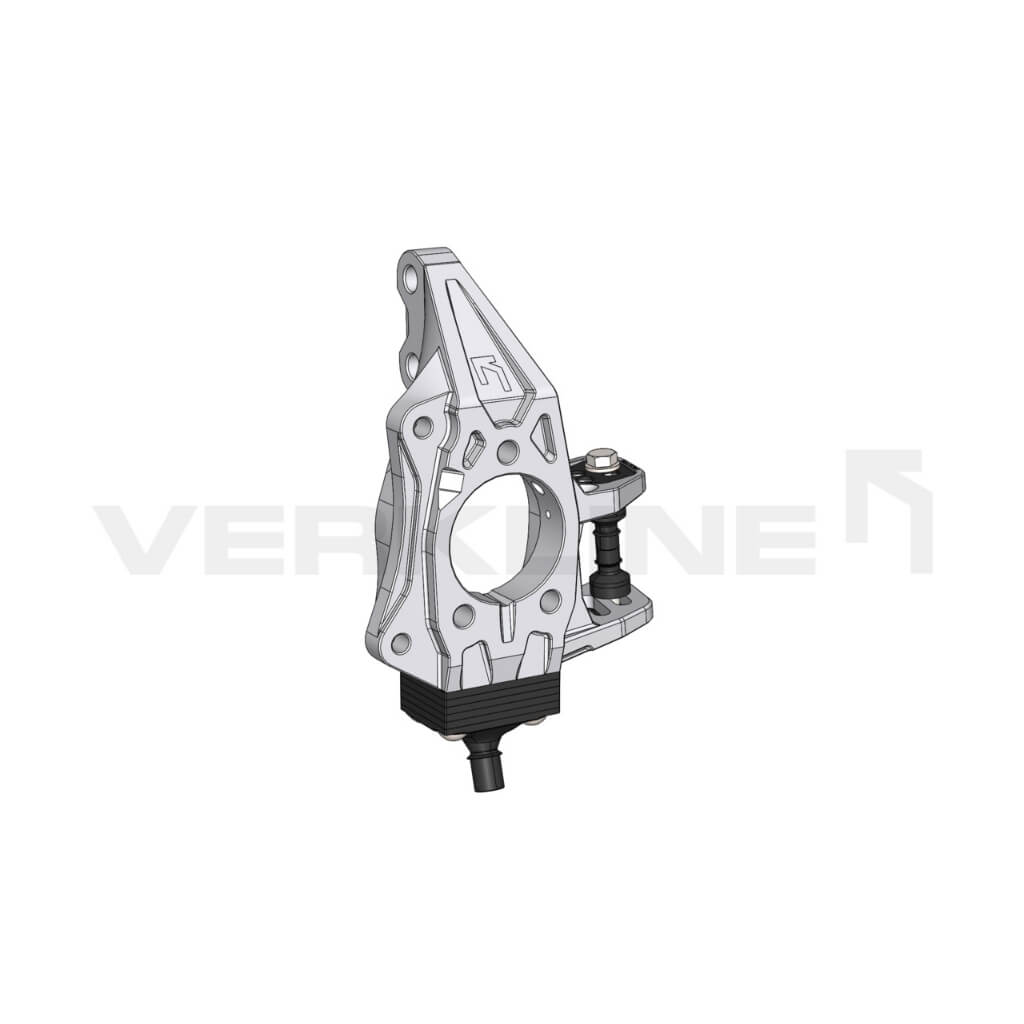

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020- Photo-2

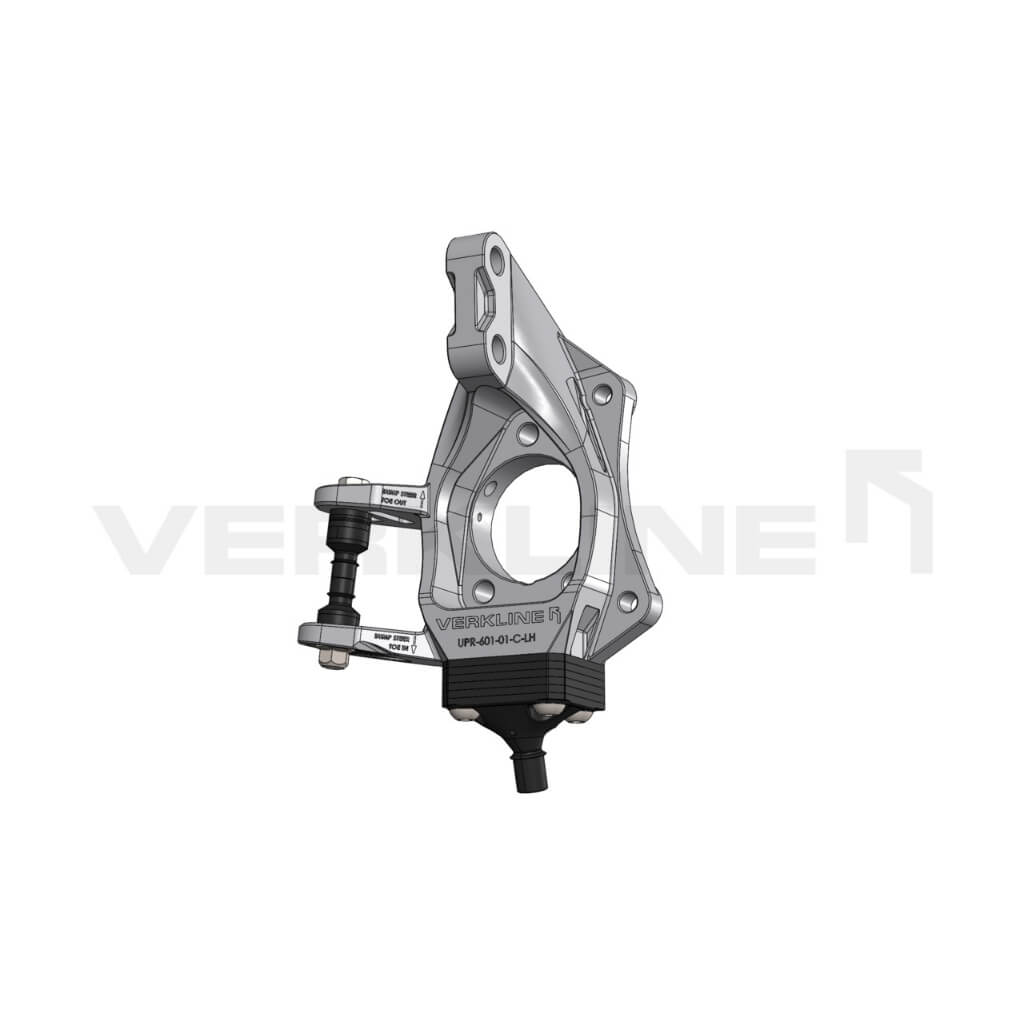

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020- Photo-3

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020-

AED 13,302.36

Tax included. Shipping calculated at checkout

VERKLINEP/N: UPR-601 GTIN: 5901138356715
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

VERKLINE UPR-601 Front Lightweight Adjustable Billet Aluminium Upright Kit for TOYOTA GR Yaris (XP210) 2020-

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

Product functionality:

  • Roll center adjustment.
  • Adjustment of camber gain.
  • Possibility of tilt angle adjustment.
  • Ackerman adjustment.
  • Adjustment of steering ratio.
  • Possibility to adjust the steering lock.
  • Works with extended shock absorber travel.
  • Works with OEM wheel speed sensors.

Features:

  • Lighter than OEM by about 11% / 1 kg per set.
  • Dual steering linkage mount for increased rigidity.
  • Fits 15" wheels.
  • Fits smaller brake kit for 15" wheels from Ligur Racing
  • Precision CNC machined from aluminum and high-strength steel.
  • Silver and black finish for a beautiful appearance and corrosion resistance.
  • Tougher and stronger than OEM - designed to withstand racing and rally loads.
  • Works with Verkline lower crossmember (WAS-611) and steering link lug (WAS-612) only.

What's included:

  • Two anodized (lleft and right) aluminum front struts (hub bearing housings / steering knuckles).
  • Two machined, high-strength steel lower cross arm mounts.
  • Set of plates for roll center adjustment and camber gain.
  • Four shims for adjusting the ackerman and steering ratio.
  • Set of adjustment shims for uneven steering.
  • Set of bushings for steering lock adjustment.
  • Set of installation bolts.
  • Printed installation instructions - 16 pages.

Note: Installing this rear insert kit will result in some additional NVH (noise, vibration and harshness) transfer to the passenger compartment. This kit works with 15" wheels and smaller brakes.
