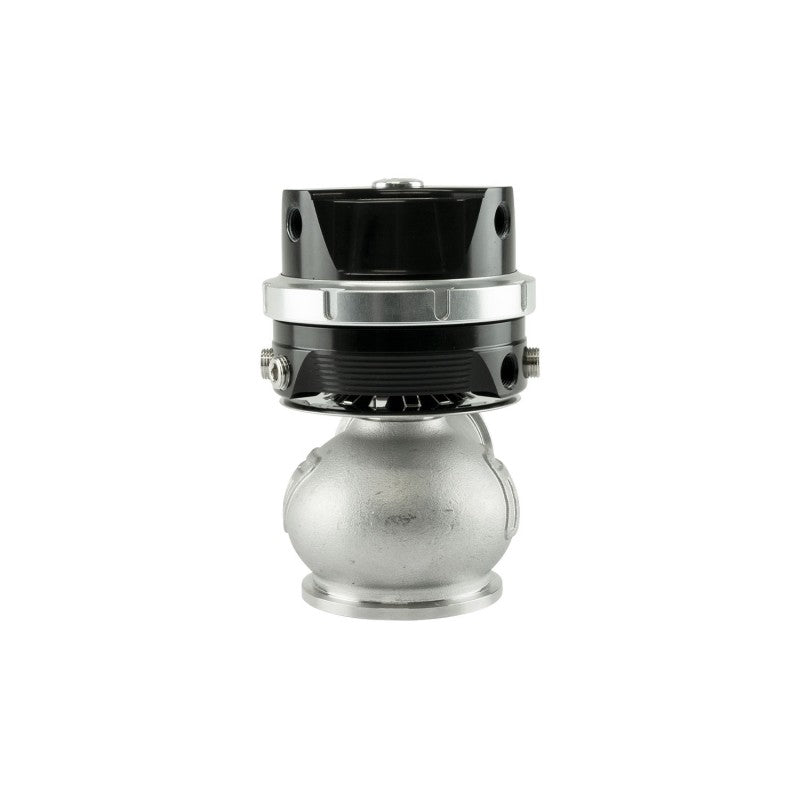

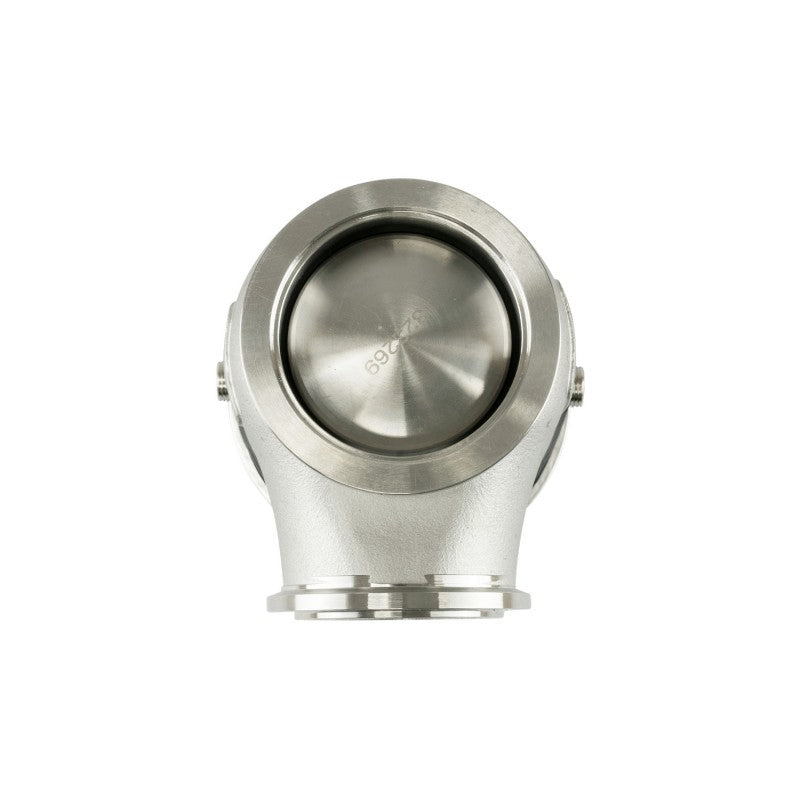

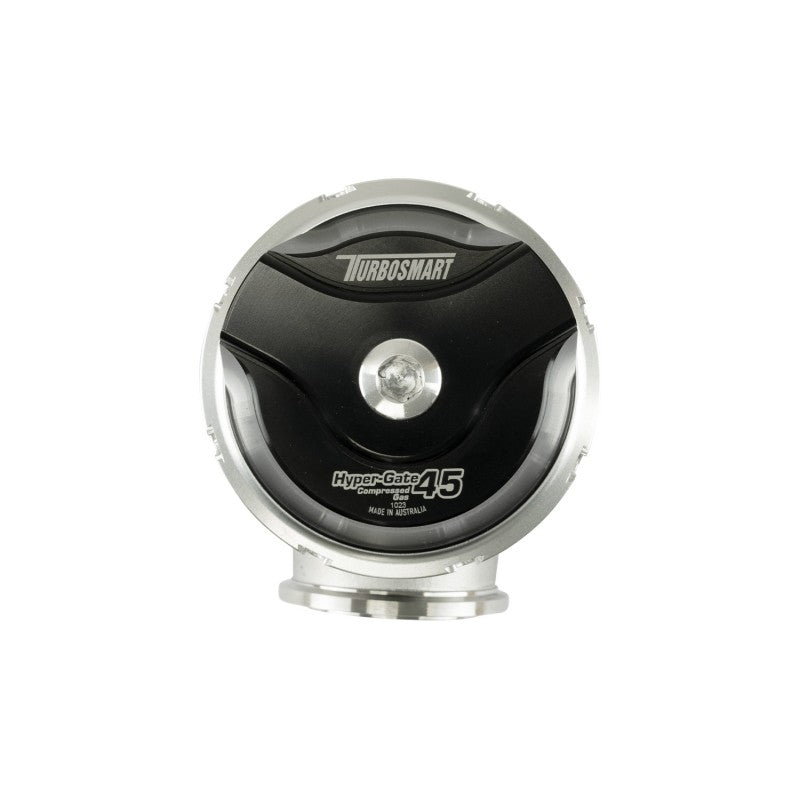

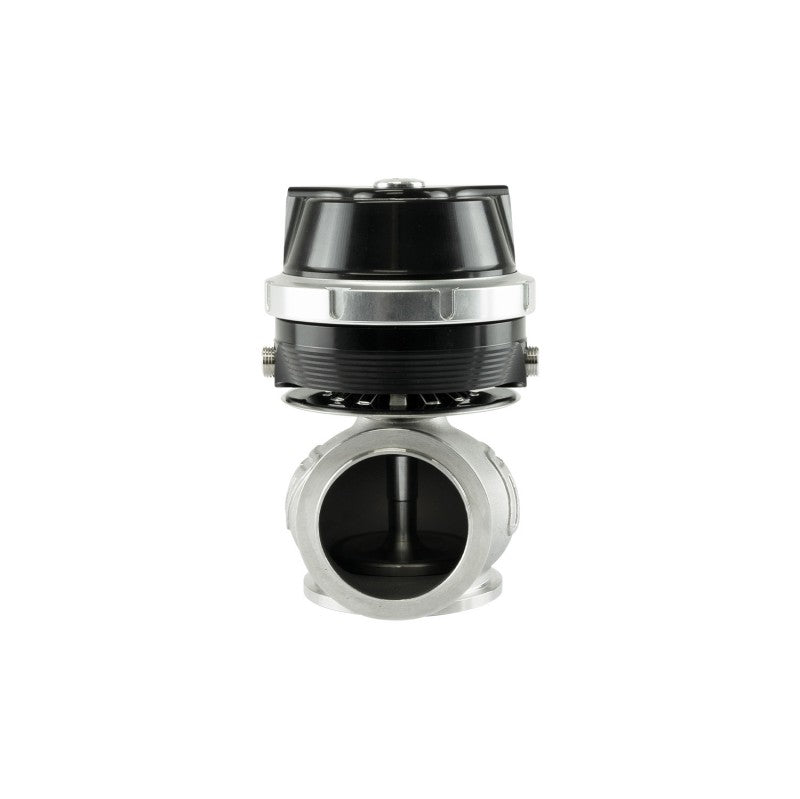

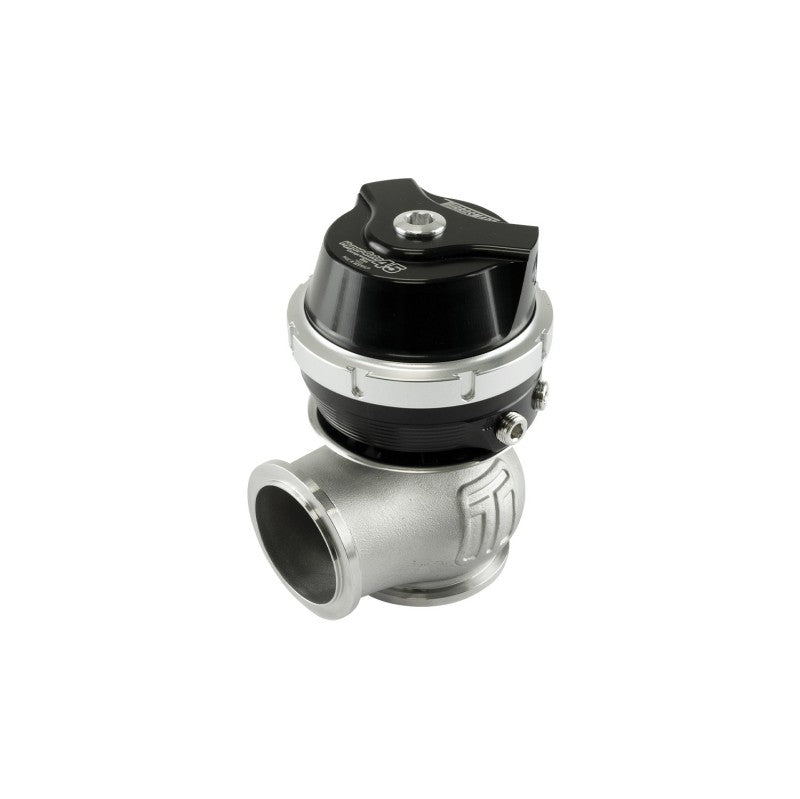

TURBOSMART TS-0553-1242 External Vestgate for Compressed Gas GenV WG45CG HyperGate45 7psi Black

The GenV HyperGate45 Compressed Gas external wastegate is a cost-effective, high performing 45mm external wastegate designed for control strategies that actively bias the top chamber with increased pressure for large boost bandwidth operation, such as CO2 drag racing or compressed air applications. The Compressed Gas / C02 external wastegate range features an inverted diaphragm suitable for high-pressure CO2 or compressed air systems and large pressure differentials.

The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

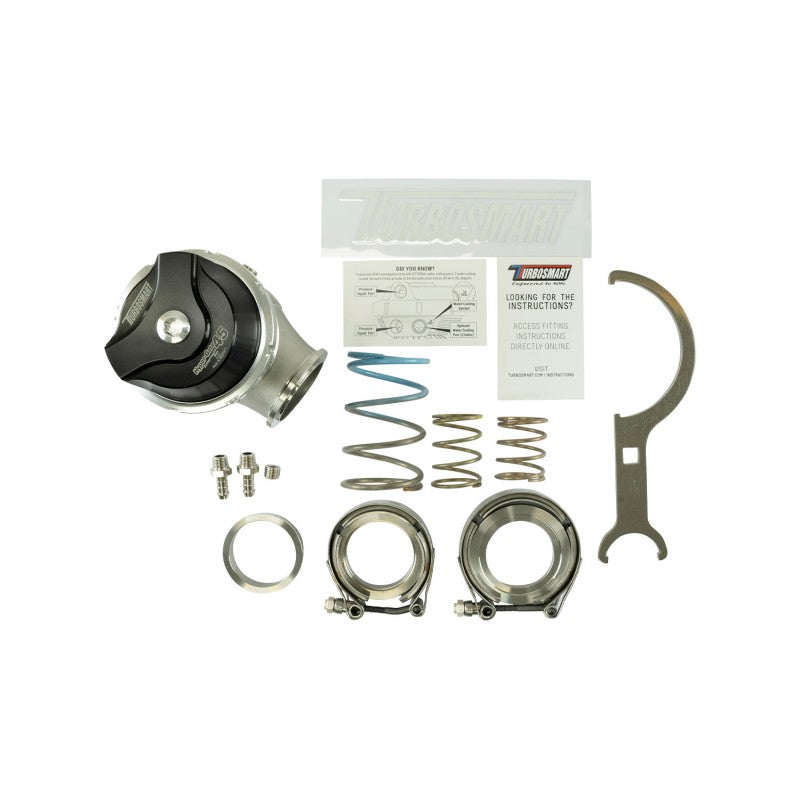

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8? NPT reference ports and are provided with the full range of available springs.

Features

• Base Spring Options of 3 -26 PSI
• Class Leading, Thermal Performance
• Class Leading, CFD and Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• 45mm V-Band Fitment
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps
