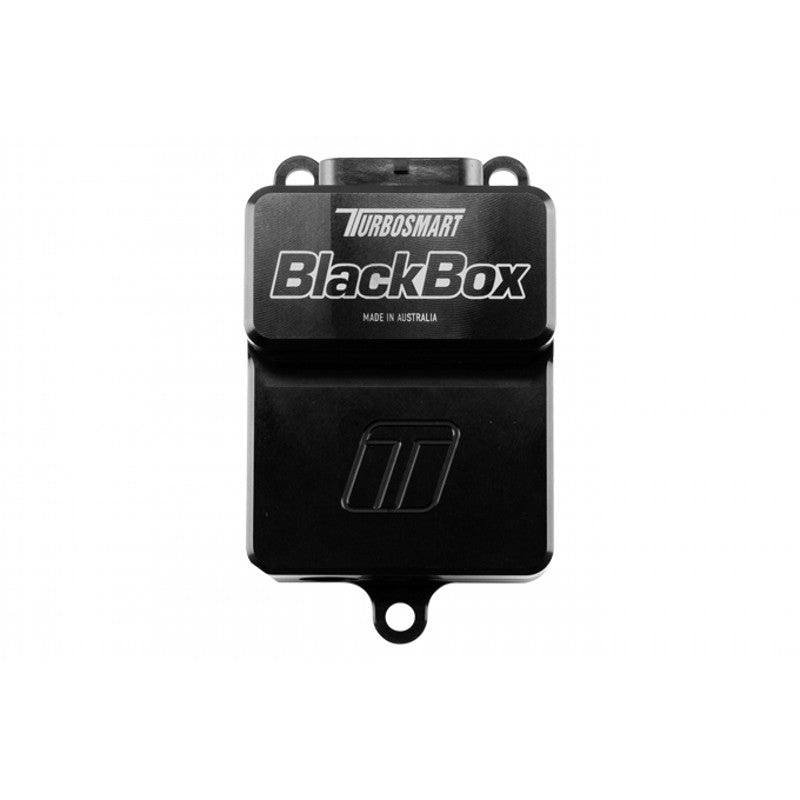

TURBOSMART TS-0305-1001 Electronic Wastegate Controller BlackBox
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TURBOSMART TS-0305-1001 Electronic Wastegate Controller BlackBox
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
BlackBox by Turbosmart is a dedicated Electronic Wastegate Controller which can be used in cooperation with a range of Factory, Aftermarket and Motorsport ECU’s. The BlackBox provides protection from the current demands and translation of basic as well as more advanced boost control strategies into a gate position and can be used on single, or twin electronic wastegate systems for the ultimate in boost control.
The BlackBox is a Dual Channel, High current Capable H-Bridge Driver for use with the Turbosmart range of Electronic External Wastegates, including the StraightGate50 as well as our Electronic poppet style gates including; CompGate40, HyperGate45, ProGate50 and PowerGate60 electronic Wastegates. The BlackBox is capable of multiple strategies and will accept PWM (Pulse Width Modulation) inputs as used for traditional boost control solenoids, 0-5v position target, CAN position target and CAN bus override for more advanced ECU’s where control strategy can be developed natively.
The Blackbox provides for auto-calibration of Electronic External Wastegates via a full sweep and includes over temp safety features using the temperature sensor inputs. The BlackBox is pre-configured with the flow vs. lifts calibration data of all Electronic Actuatuated Wastegates from Turbosmart for simple setup and accurate boost control. Settings can be adjusted via a simple USB connection and PC-based application, and unlimited control strategies can be implemented with the CAN-based override system where your strategy is limited only by your ECU’s capability.
Features
- Dual Channel High Current H-Bridge Outputs
- 2 x Wastegate Valve Position Inputs (0-5v)
- 2 x Wastegate Temperature Inputs (0-5v)
- 2 x Frequency Inputs (Advanced Wastegate Position Encoder)
- PWM Target Position Input
- Analog 0-5v Position Target
- CAN Bus Position Demand Target
- CAN Bus Valve Area Target
- CAN Bus Programmable PID Mode Option
- Factory Loaded PID Calibration for all Turbosmart eGates
- Internal Over-Current Protection
- Internal Over-Temp Protection
- Auto Position Calibration
- Anodized Aluminium Housing
- 34 Pin Superseal Connector
