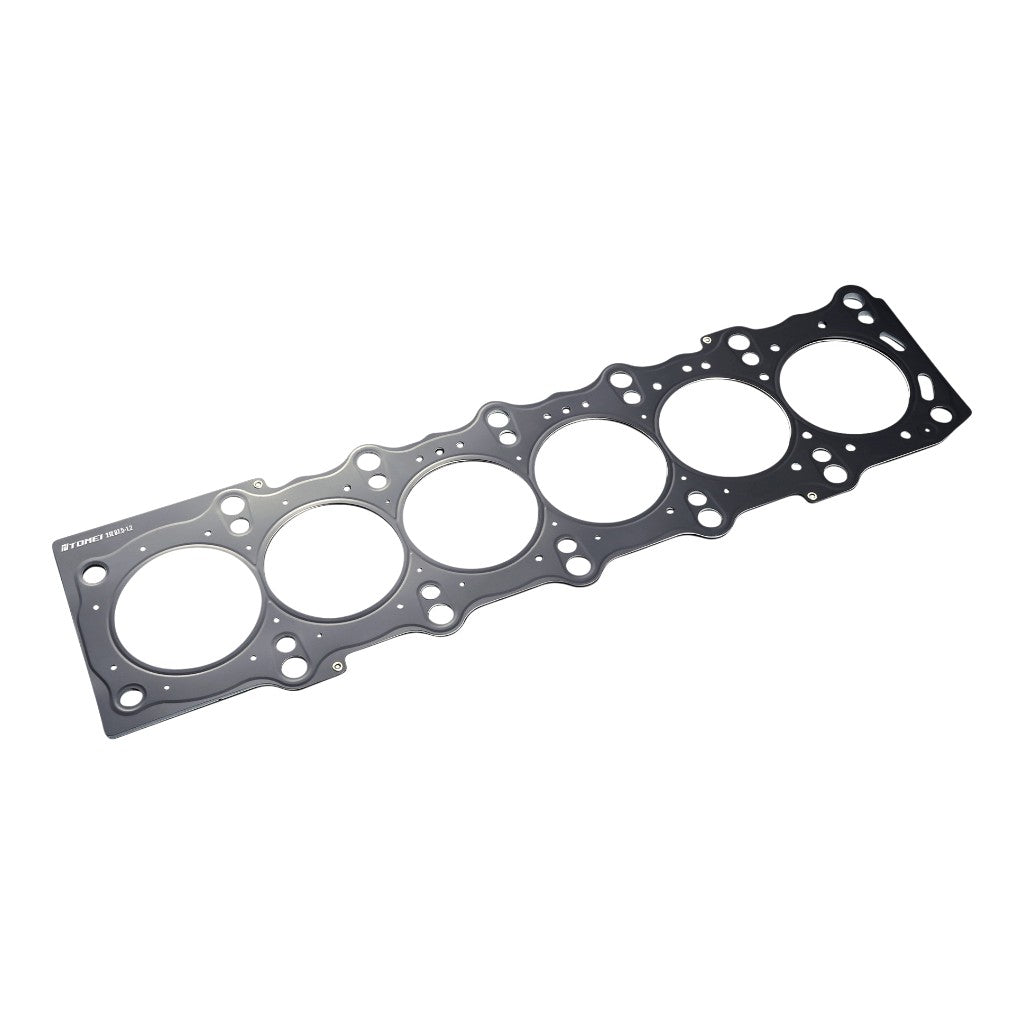

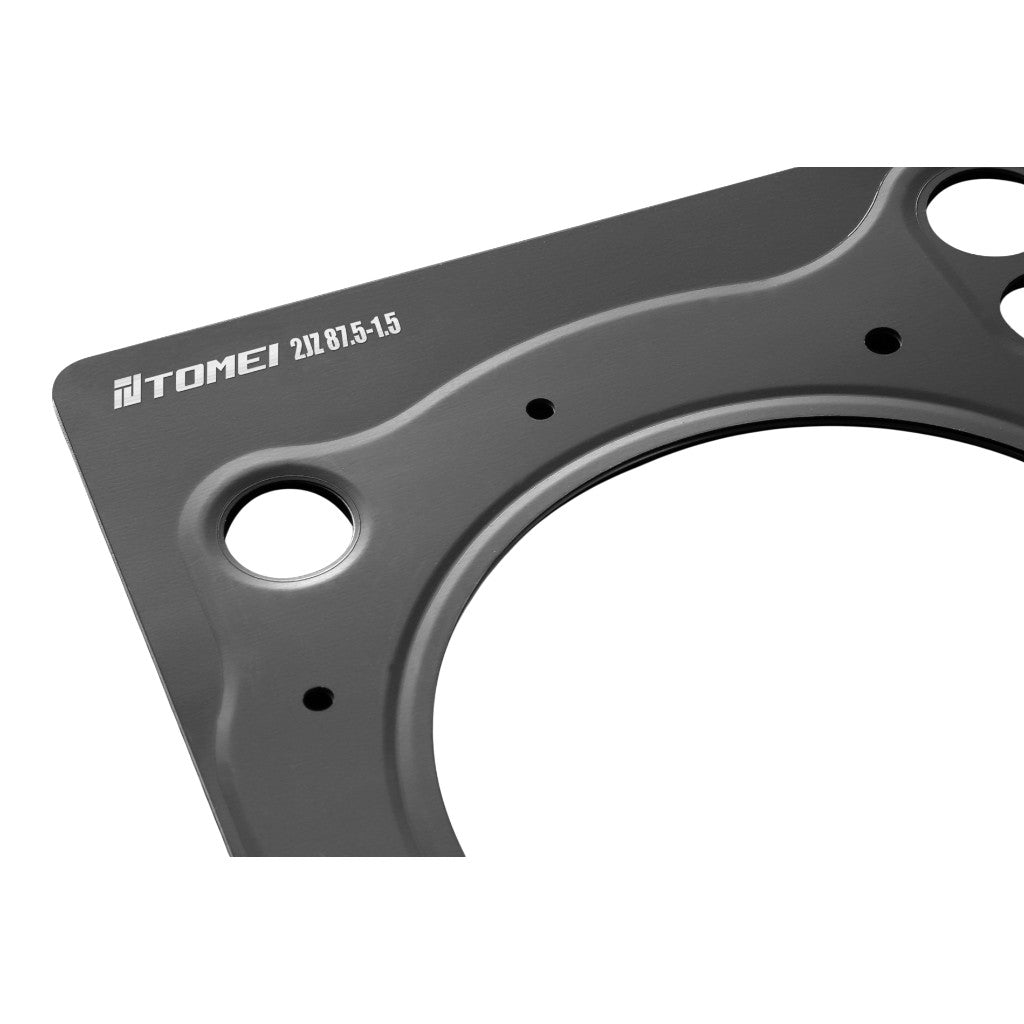

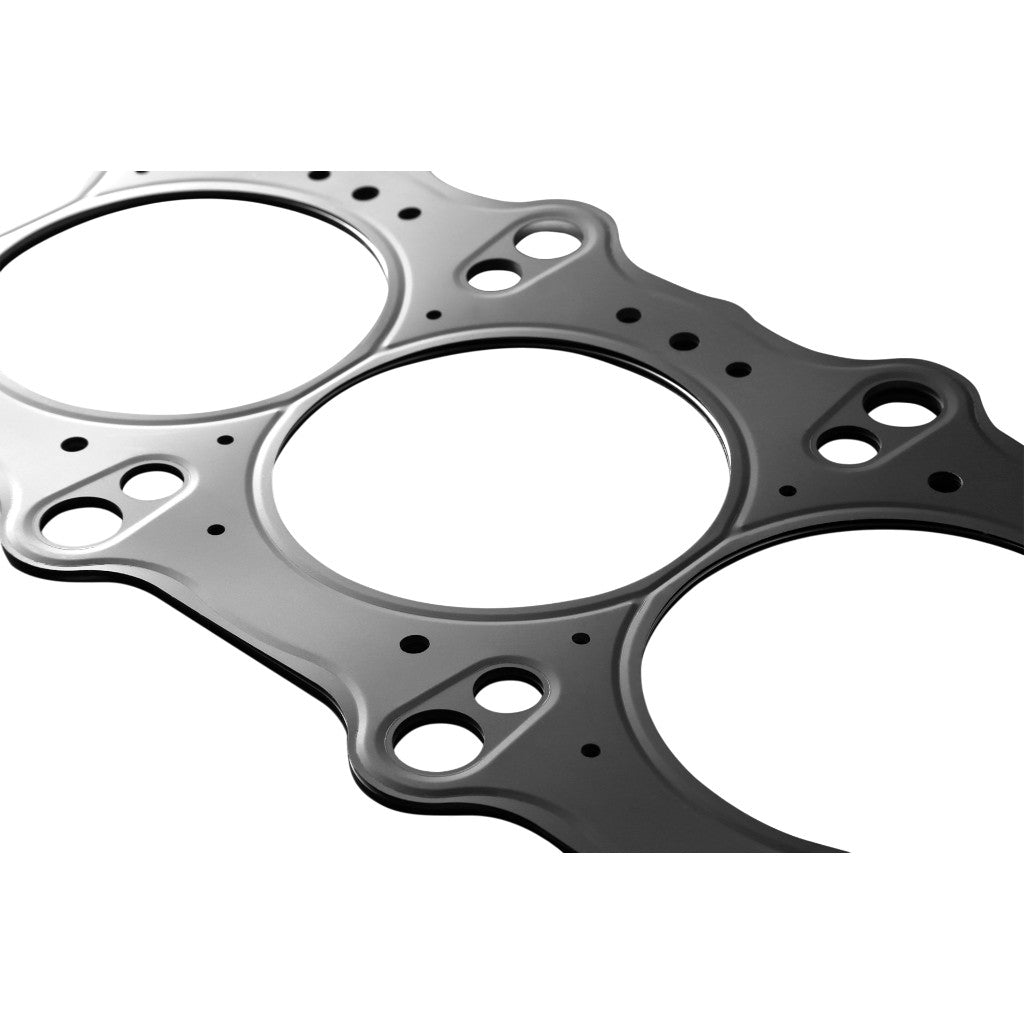

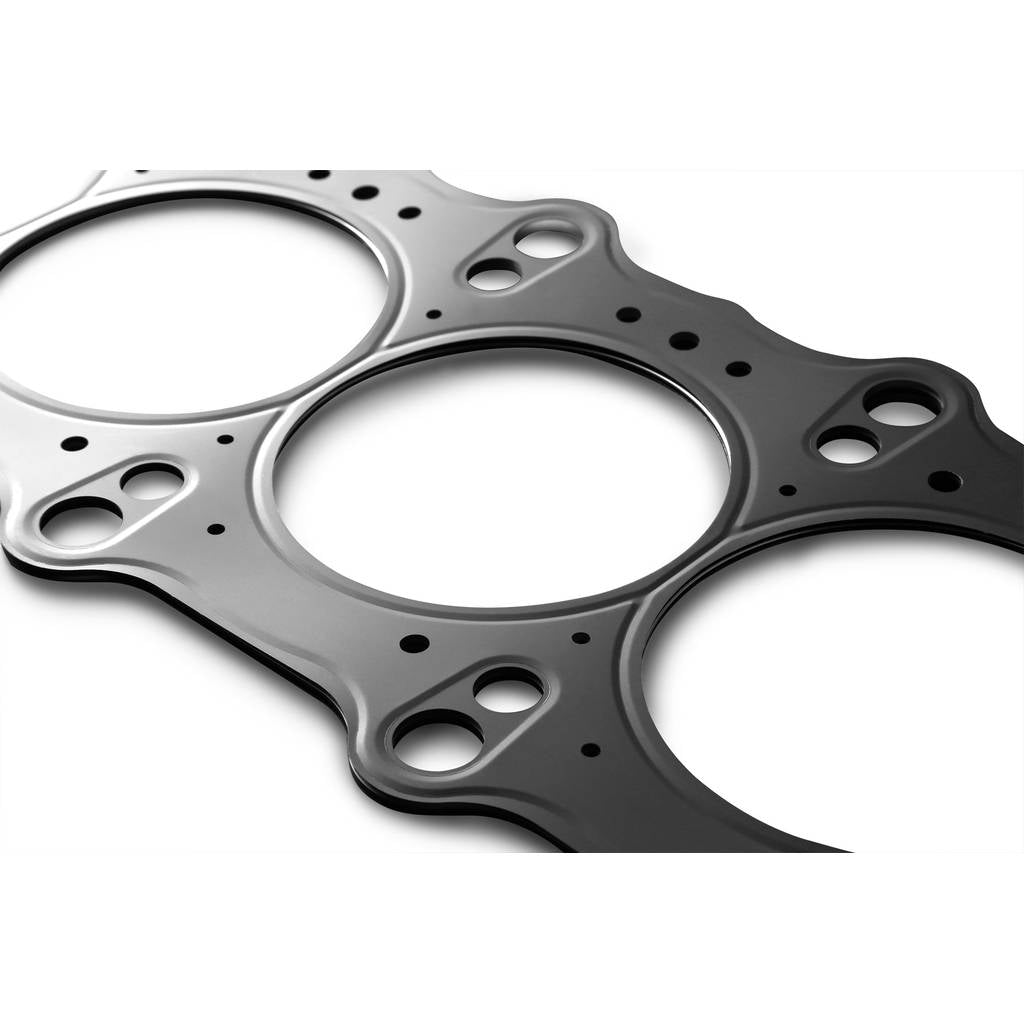

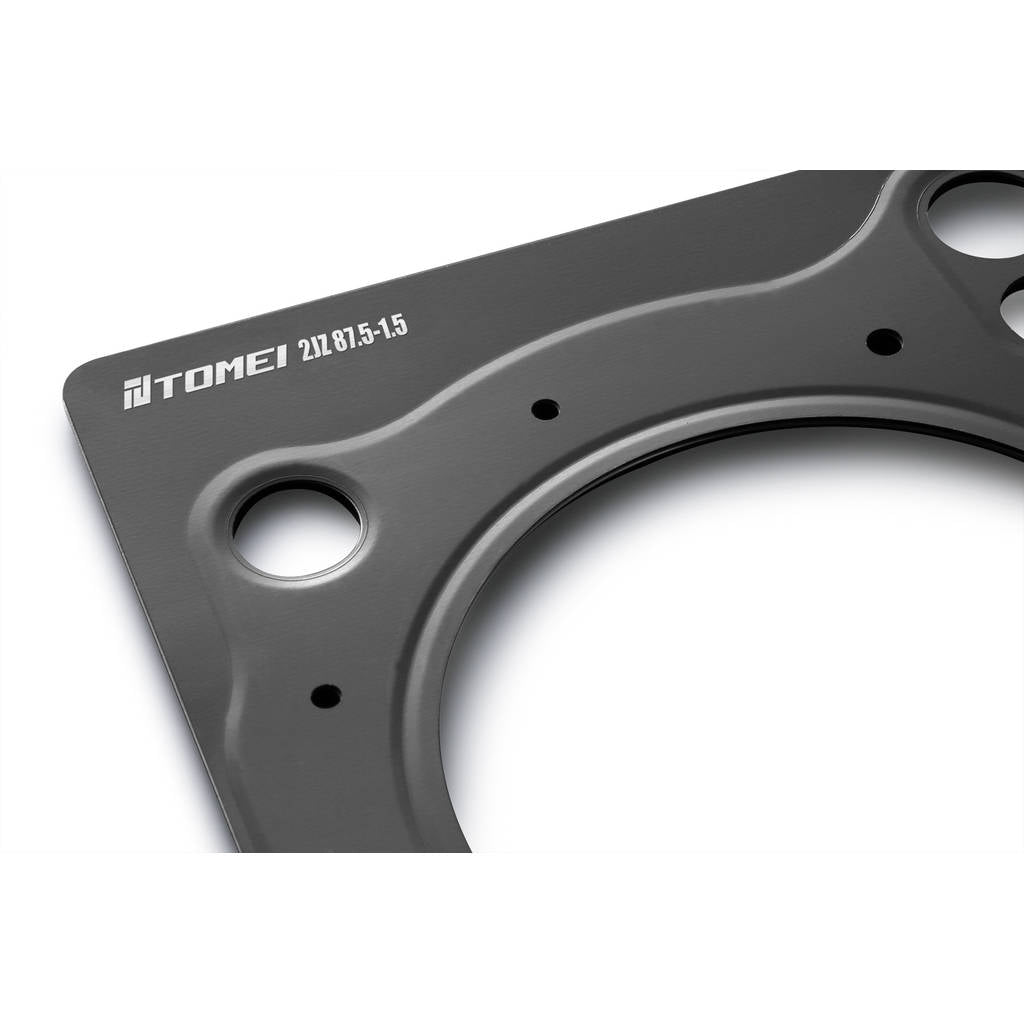

TOMEI TA4070-TY03D Head Gasket 87.5-1.2mm for 2JZ-G(T)E Engines

Description TOMEI TA4070-TY03D Head Gasket 87.5-1.2mm for 2JZ-G(T)E Engines

The TOMEI TA4070-TY03D Metal Head Gasket is engineered for high-performance TOYOTA 2JZ-GE and 2JZ-GTE engines used in the TOYOTA Supra Mk4. Designed to withstand elevated cylinder pressures, boost levels, and operating temperatures, this gasket provides reliable sealing performance for both street and motorsport applications.

Manufactured from premium-grade stainless steel, the gasket offers excellent heat resistance and durability while promoting efficient heat transfer between the cylinder head and engine block. Precision-engineered sealing areas around combustion chambers, oil passages, and coolant passages ensure consistent sealing performance under demanding operating conditions.

The gasket features reinforced bore sealing areas designed to contain combustion pressure while maintaining effective sealing around oil and coolant circuits. A specially developed rubber coating is applied to both sides of the gasket to improve surface conformity and sealing performance.

• Designed for TOYOTA 2JZ-GE and 2JZ-GTE engines
• High-performance multi-layer metal head gasket
• Constructed from premium stainless steel
• Engineered for high boost and high-temperature applications
• Reinforced combustion chamber sealing areas
• Precision oil and coolant passage sealing
• Promotes efficient heat transfer between engine components
• Special rubber coating on both sides for enhanced sealing
• Suitable for performance street and racing applications
• Available thickness options support compression ratio adjustments

Specifications:

• Engine Compatibility: TOYOTA 2JZ-GE, TOYOTA 2JZ-GTE
• Bore Diameter: 87.5 mm
• Thickness: 1.2 mm
• Material: Stainless steel
• Coating: Special rubber coating (both sides)
