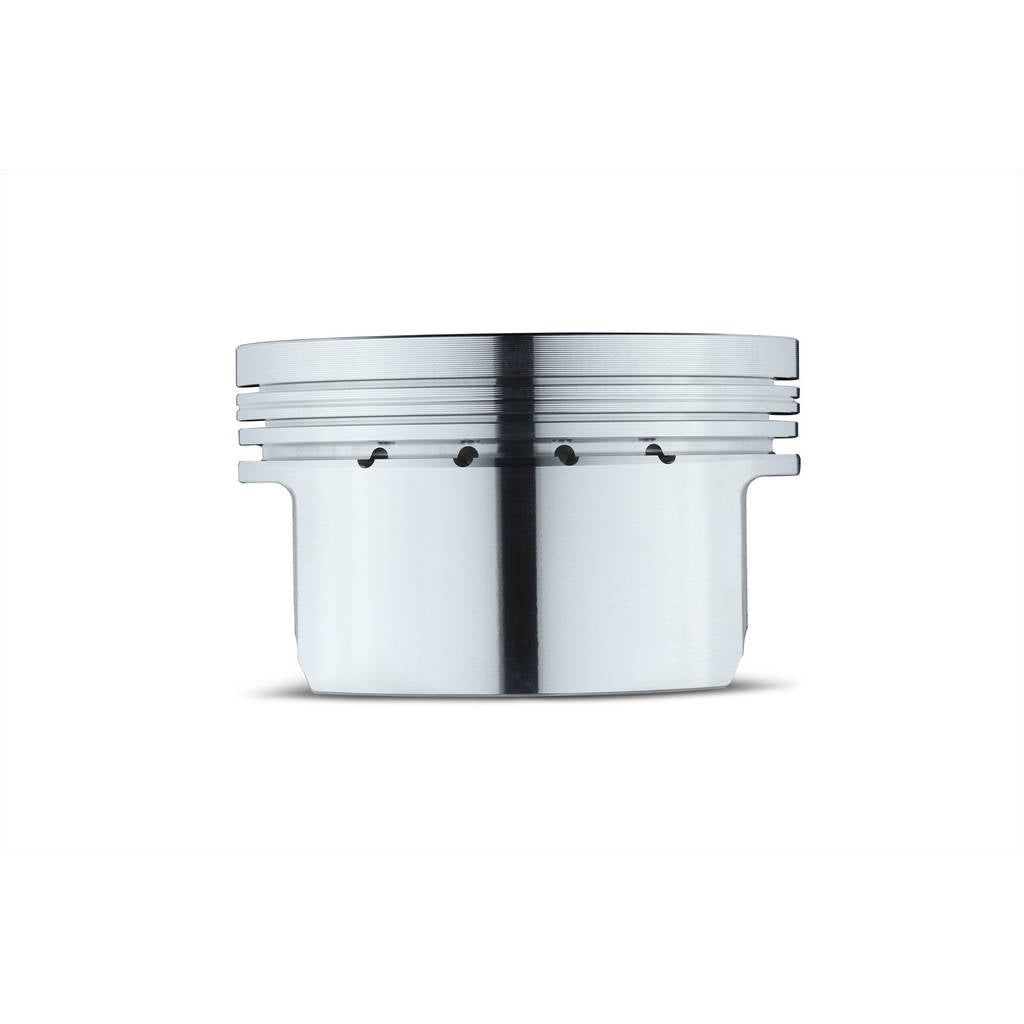

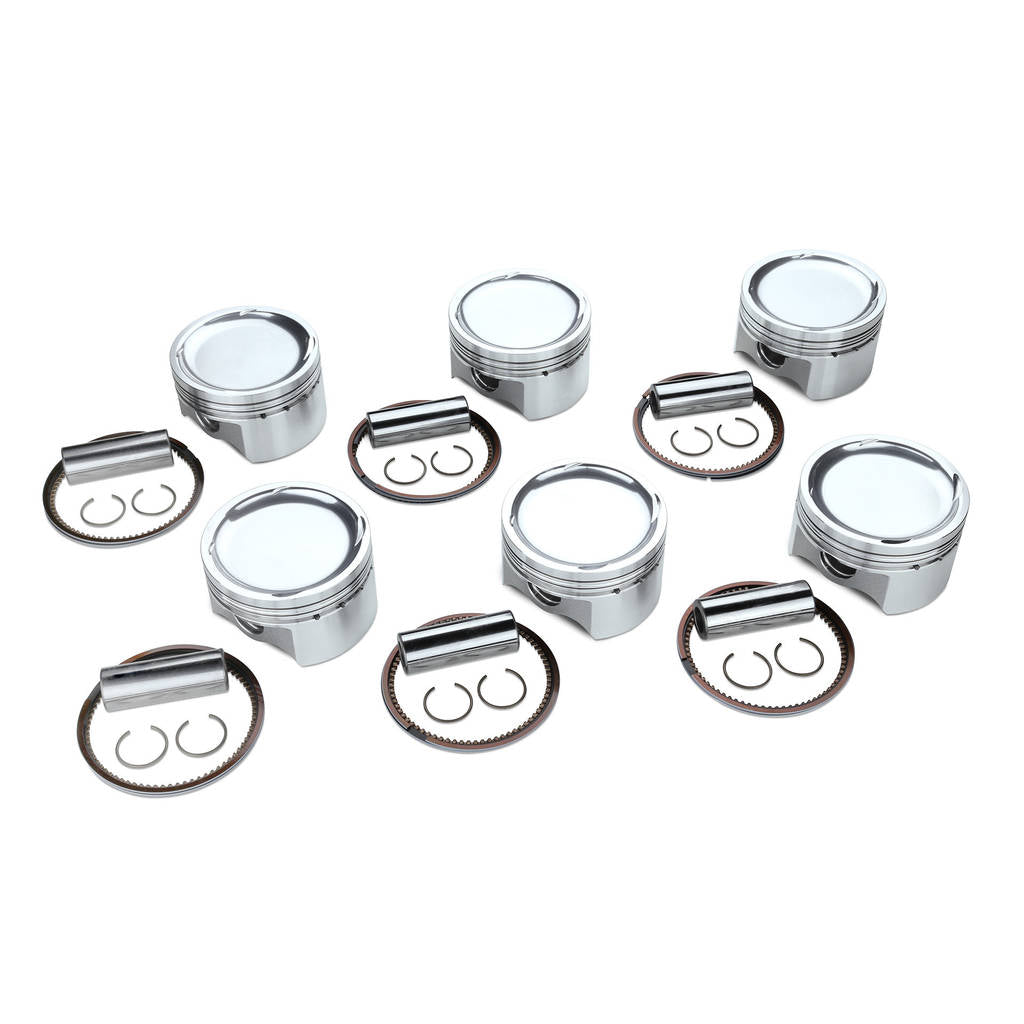

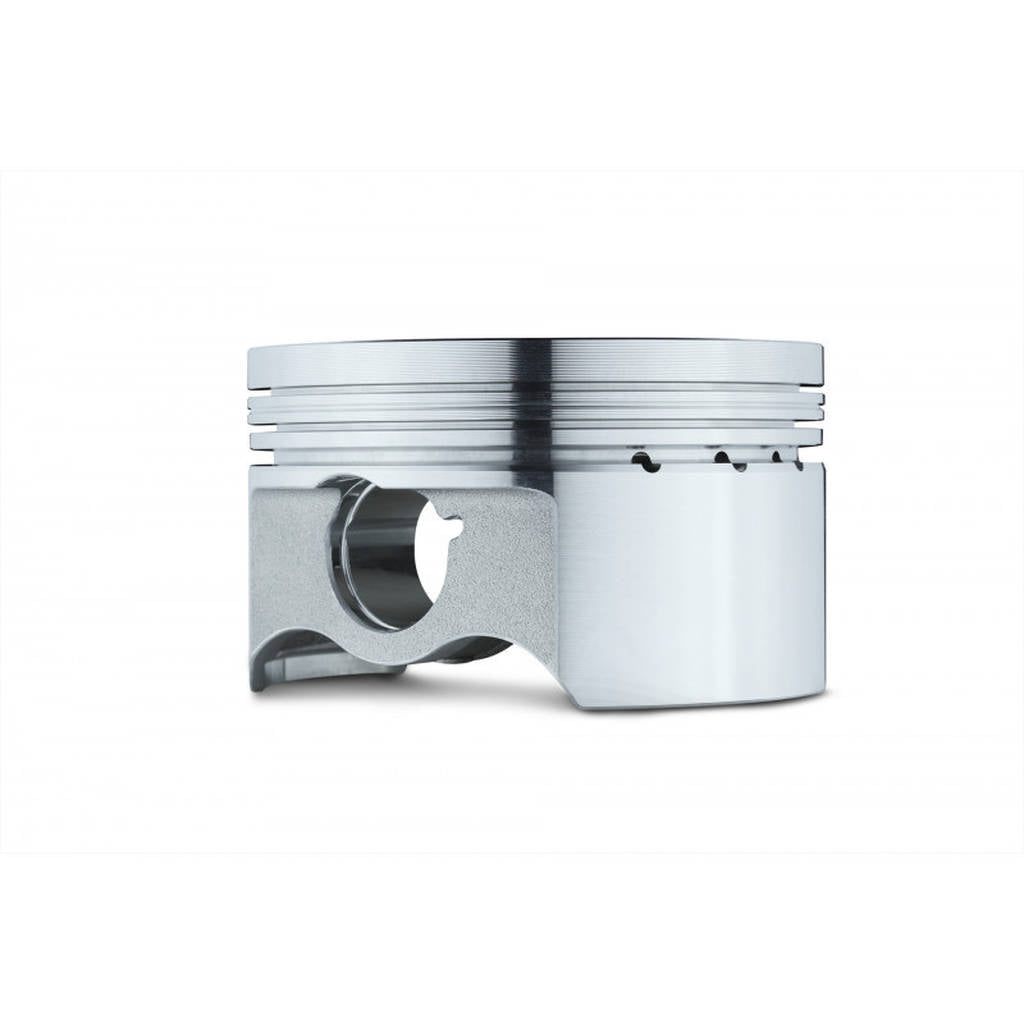

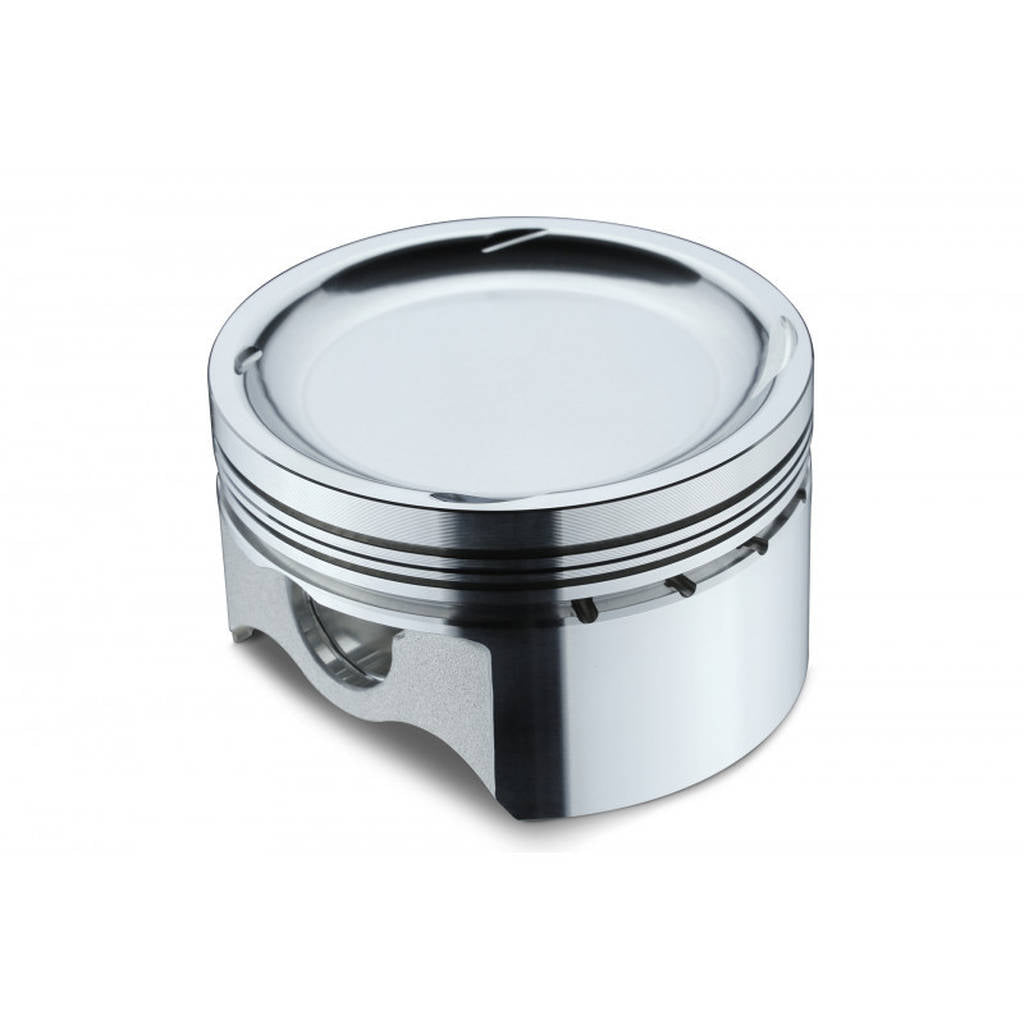

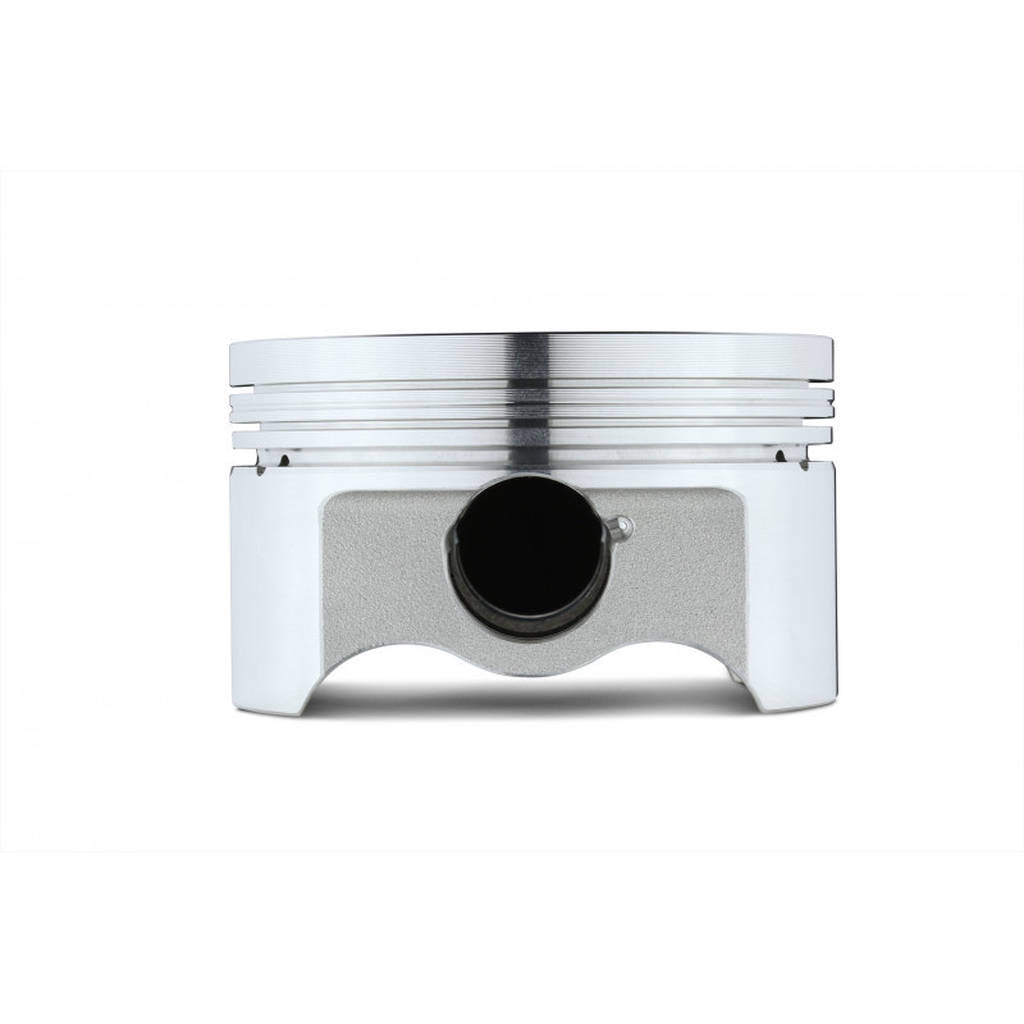

TOMEI TA202A-TY03E Forged Piston Kit 86.50 mm for 2JZ-GTE 3.6 L
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
TOMEI TA202A-TY03E Forged Piston Kit 86.50 mm for 2JZ-GTE 3.6 L
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles. Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.
| Application | 2JZ-GTE |
| Type | TOMEI |
| Bore (mm) | 86.50 (OEM +0.5) |
| Pin Diameter (mm) | 22.0 |
| Pin Length (mm) | 60.0 |
| Circlip Inner Diameter (mm) | 22.0 |
| Valve Recess | WITH |
| Compression Height (mm) | 29.50 (OEM -4.5) |
| Piston Volume (cc) | -22.6 |
| Piston Weight (g) | 278.5 |
| Pin Weight (g) | 121.5 |
| Total Weight (g) | 400.0 |
| Top Ring (mm） | 1.20 x 3.05 |
| Second Ring (mm） | 1.20 x 3.90 |
| Oil Ring (mm） | 2.50 x 2.95 |
| Piston Material | A4032 |
| Compatibility |
