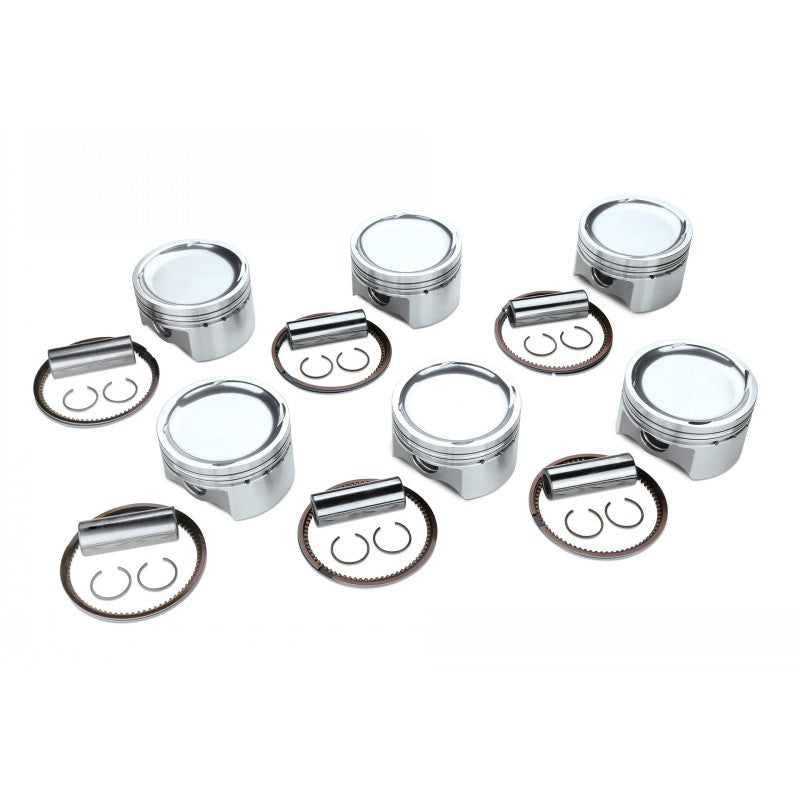

TOMEI TA202A-TY03D Forged Piston Kit 86.50 mm for 2JZ-GTE 3.4 L Photo-0

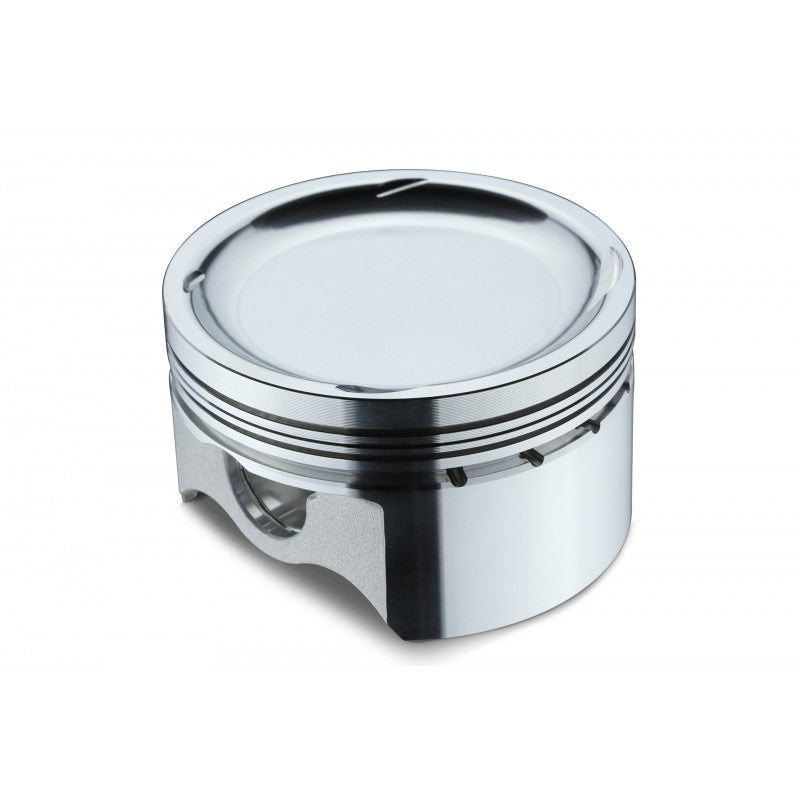

TOMEI TA202A-TY03D Forged Piston Kit 86.50 mm for 2JZ-GTE 3.4 L Photo-1

TOMEI TA202A-TY03D Forged Piston Kit 86.50 mm for 2JZ-GTE 3.4 L

Sale priceAED 7,692.30

Tax included. Shipping calculated at checkout

TOMEIP/N: TA202A-TY03D
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

TOMEI TA202A-TY03D Forged Piston Kit 86.50 mm for 2JZ-GTE 3.4 L

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

High-strength forging manufacturing method is adopted rather than the mainstream casting method used for commercial vehicles.  Taking advantage of high temperature strength and high strength, weight reduction is achieved by making the walls thinner.

Application 2JZ-GTE
Type TOMEI
Bore (mm) 85.50 (OEM +0.5)
Pin Diameter (mm) 22.0
Pin Length (mm) 60.0
Circlip Inner Diameter (mm) 22.0
Valve Recess WITH
Compression Height (mm) 30.00 (OEM -4.0)
Piston Volume (cc) -17.5
Piston Weight (g) 299.6
Pin Weight (g) 121.5
Total Weight (g) 421.1
Top Ring (mm) 1.20 x 3.05
Second Ring (mm) 1.20 x 3.90
Oil Ring (mm) 2.50 x 2.95
Piston Material A4032
Compatibility
