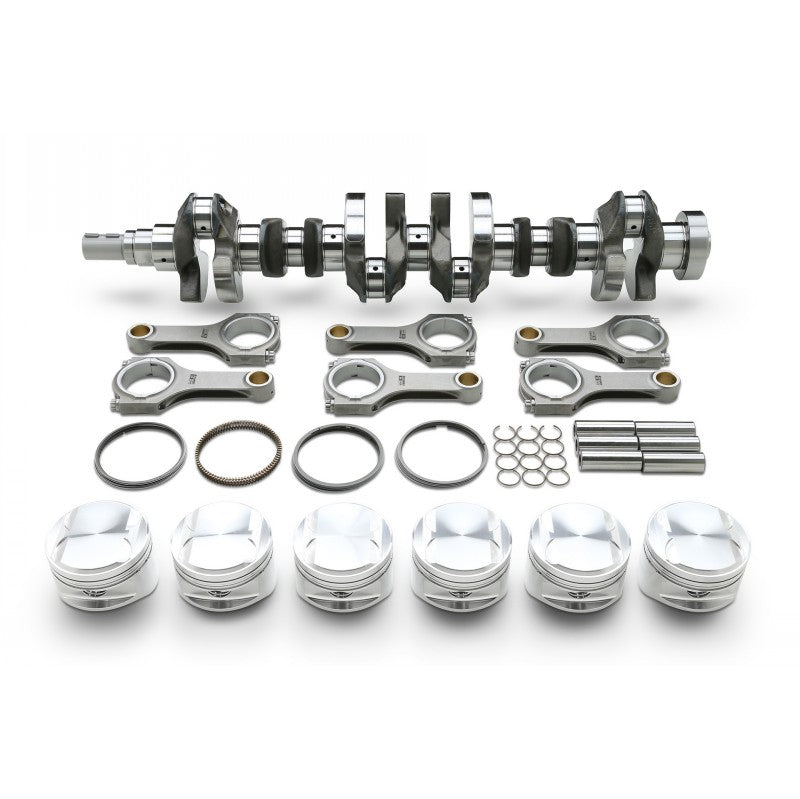

TOMEI TA201A-NS05E Stroker Kit for RB26DETT/RB25DET 2.8 L
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
TOMEI TA201A-NS05E Stroker Kit for RB26DETT/RB25DET 2.8 L
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

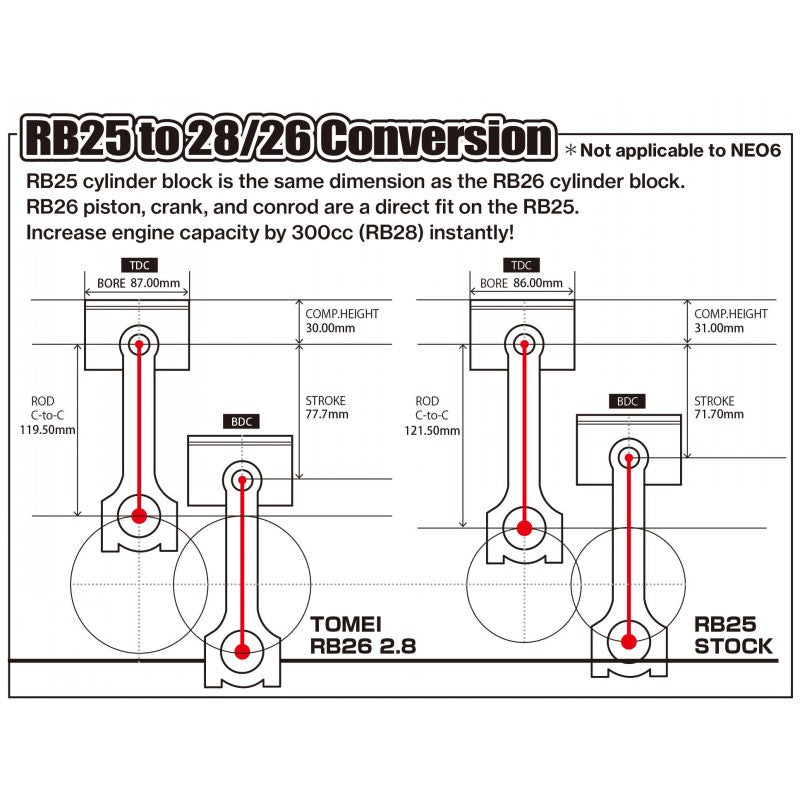

| Application | RB26DETT/RB25DET 2.8 |
| Type | TOMEI |
| Bore (mm) | 86.50 (OEM +0.5) |
| STROKE (mm) | 77.70 (OEM +4.0) |
| DISPLACEMENT (cc) | 2739.6 |
| C.C. VOLUME (cc) | 64.5 |
| PISTON VOLUME (cc) | 10.8 |
| PISTON DECK CLEARANCE/HIGHT (mm) | ±0.0 |
| PISTON COMP.HEIGHT (mm) | 30.00 (OEM ±0.0) |
| ROD C-to-C (mm) | 119.50 (OEM -2.0) |
| HEAD GASKET BORE (mm) | 87.0 |
| C/R With 87.0-1.2 | 8.51 |
| C/R With 87.0-1.5 | 8.29 |
| C/R With 87.0-1.8 | 8.09 |
| Compatibility |
