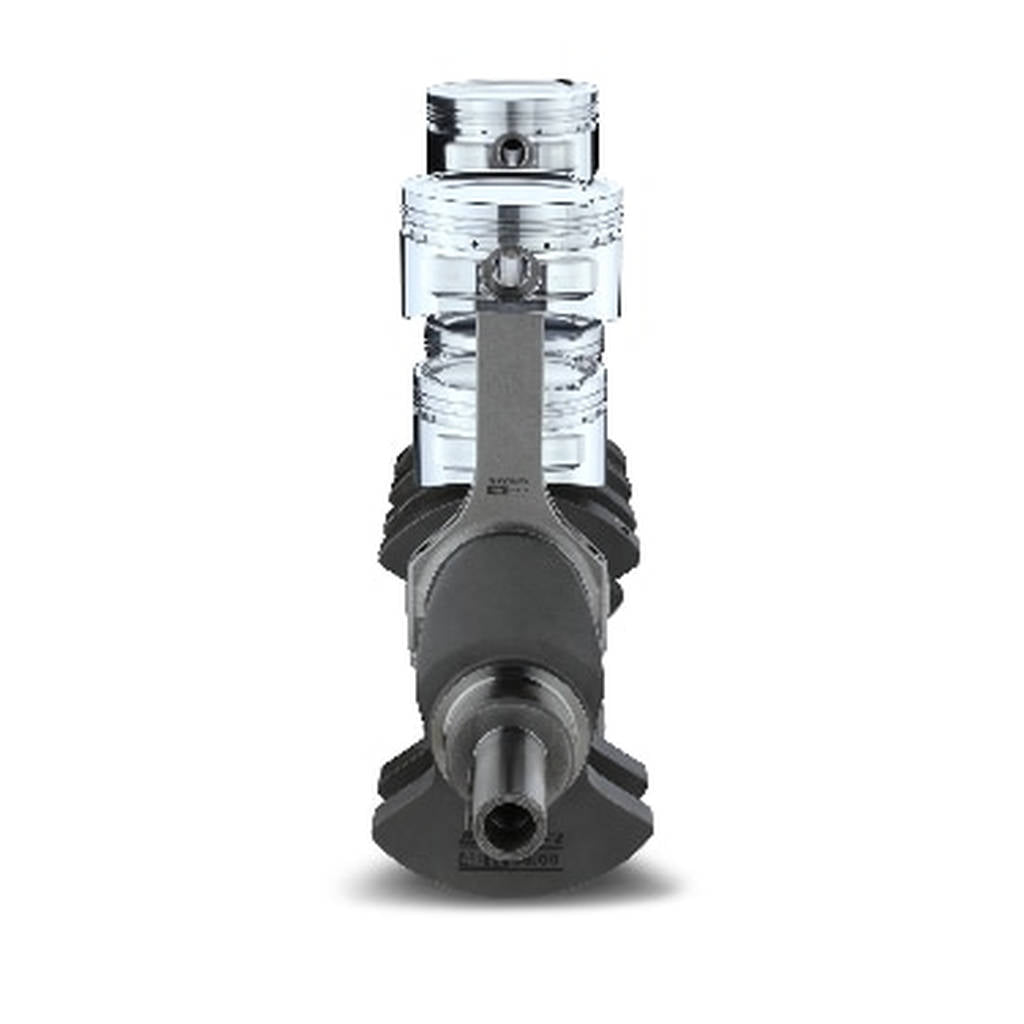

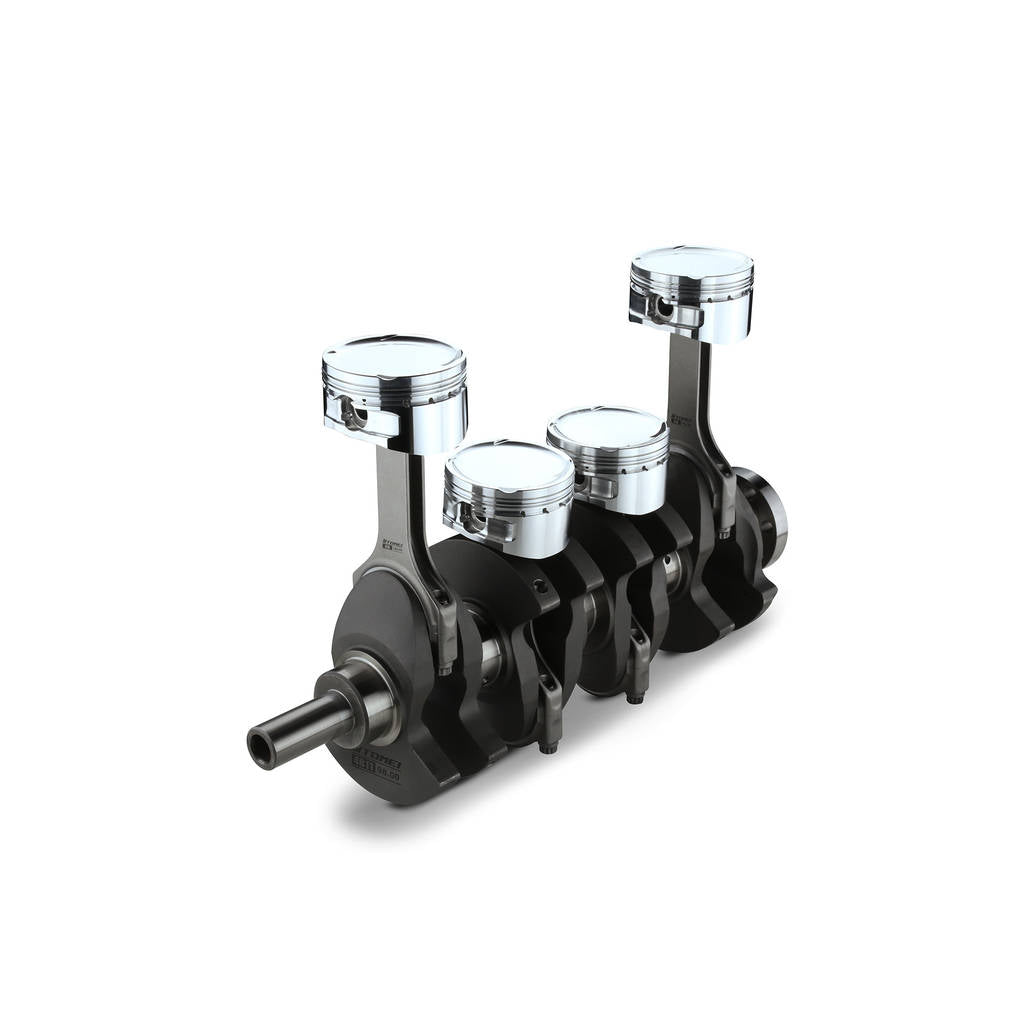

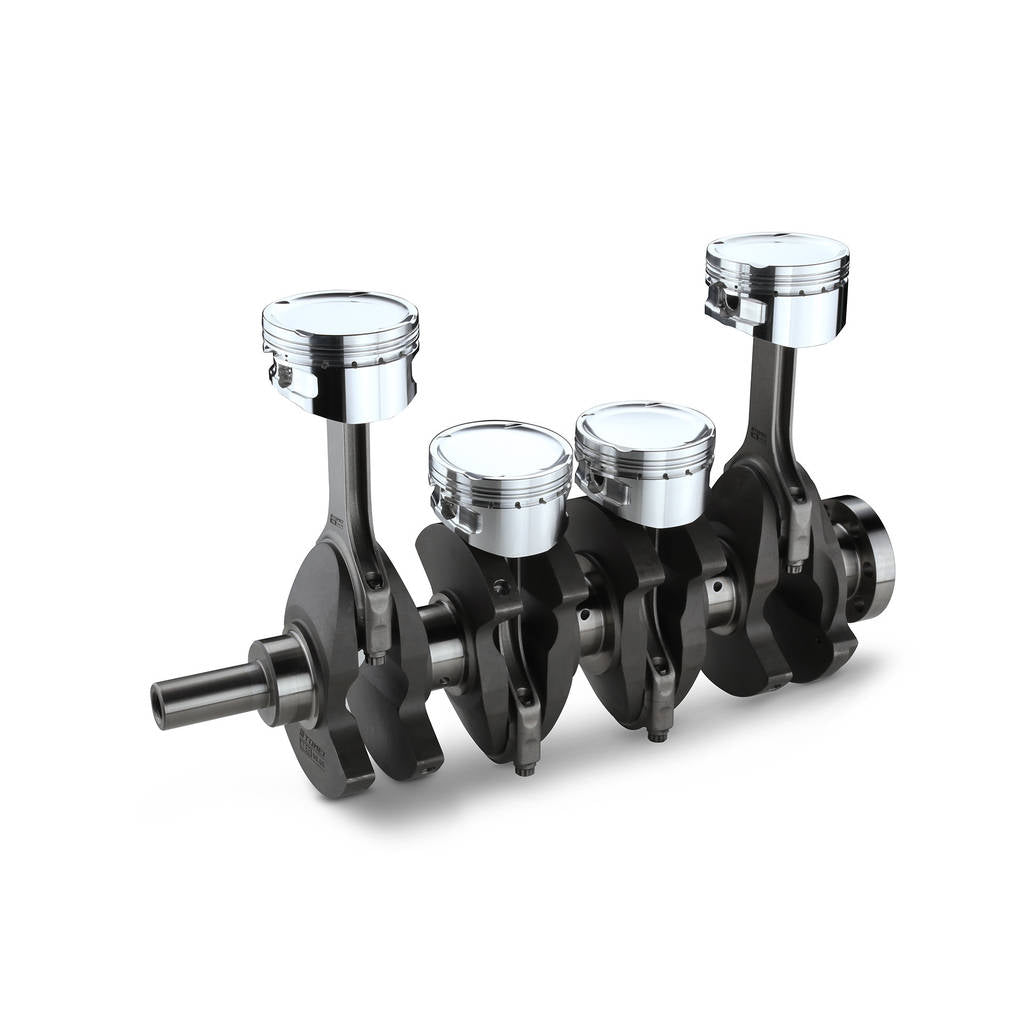

TOMEI TA201A-MT02B Stroker Kit for 4B11 2.3 L
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
TOMEI TA201A-MT02B Stroker Kit for 4B11 2.3 L
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Application | 4B11 |
Type | TOMEI |
Bore (mm) | 86.50 (OEM +0.5) |
STROKE (mm) | 98.00 (OEM +12.0) |
DISPLACEMENT (cc) | 2303.6 |
C.C. VOLUME (cc) | 49.0 |
PISTON DOME VOL. (cc) | -12.5 |
PISTON DECK CLEARANCE/HIGHT (mm) | ±0.0 |
PISTON COMP.HEIGHT (mm) | 27.40 (OEM -6.0) |
ROD C-to-C (mm) | 143.80 (OEM ±0.0) |
HEAD GASKET BORE (mm) | 87.5 |
C/R With 87.5-1.0 | 9.53 |
C/R With 87.5-1.2 | 9.38 |
C/R With 87.5-1.5 | 9.17 |
Compatibility |
