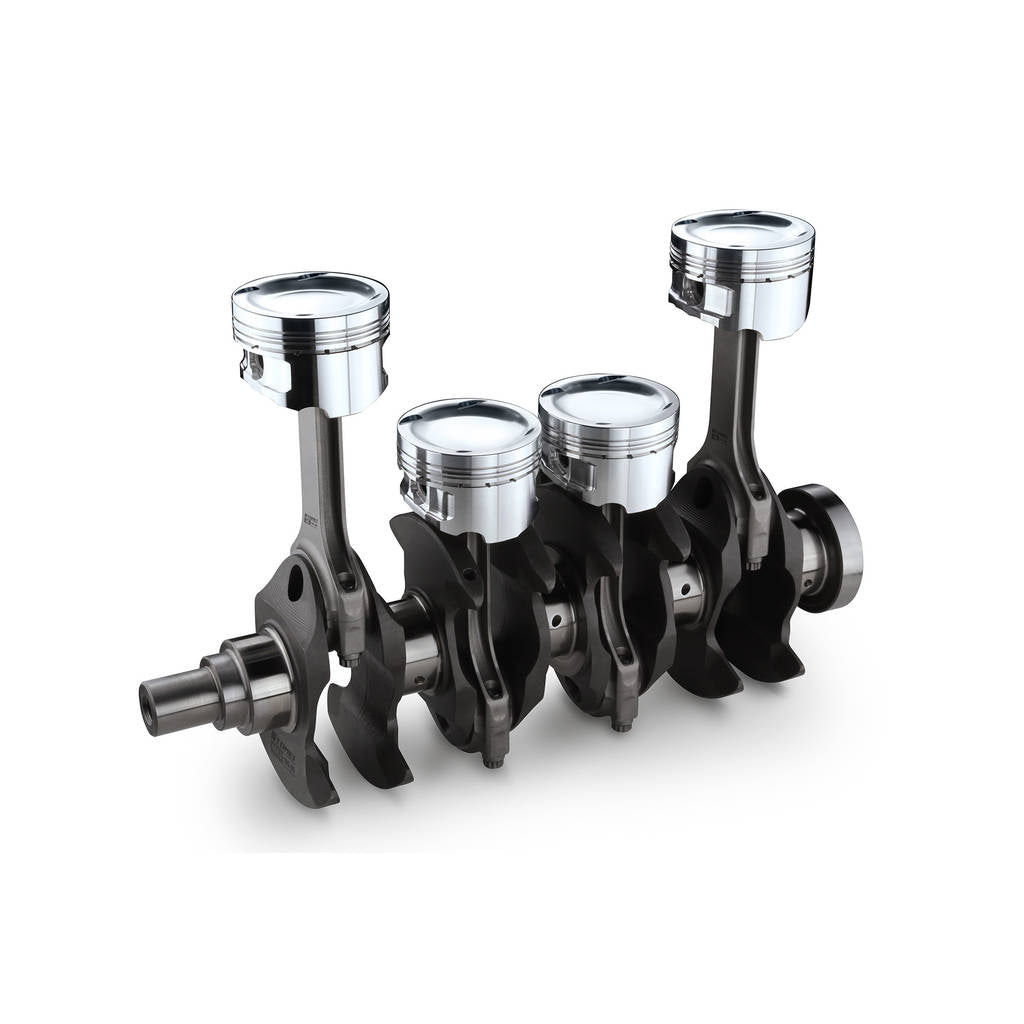

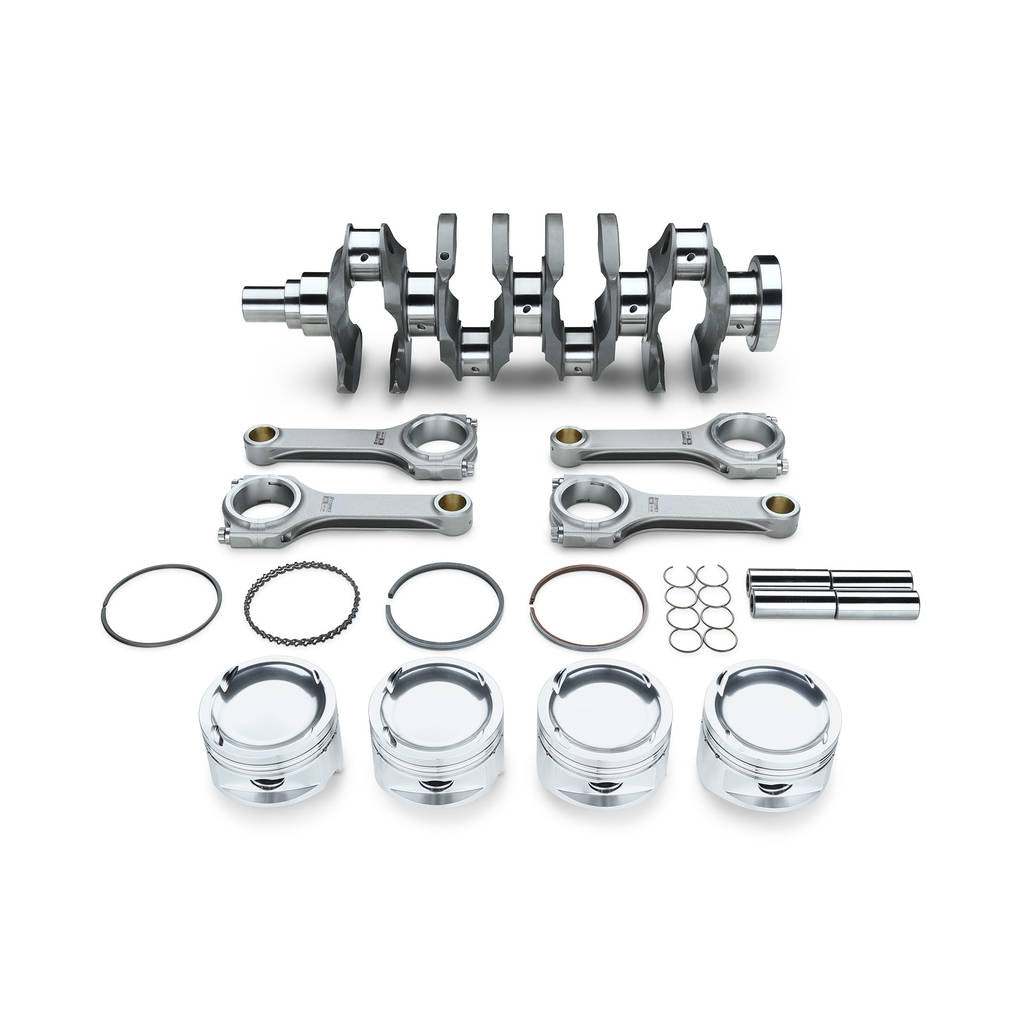

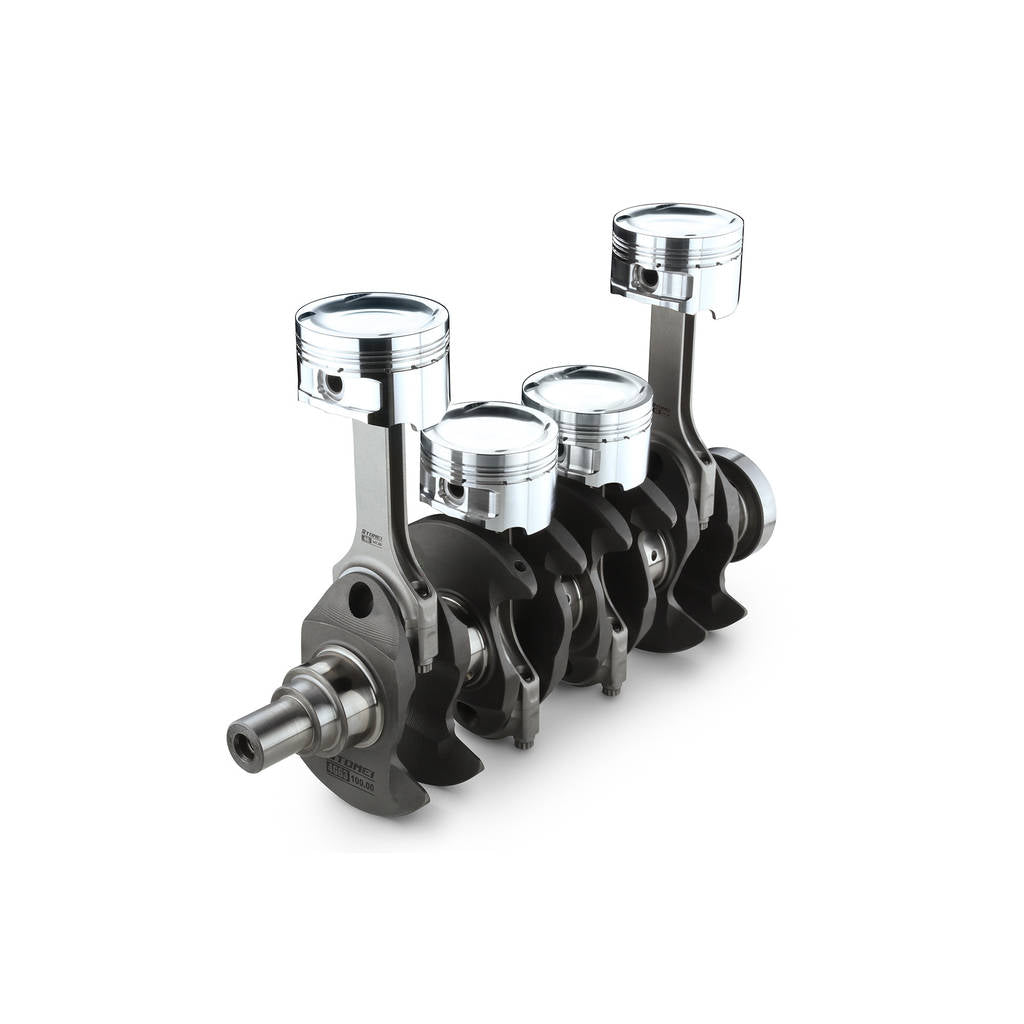

TOMEI TA201A-MT01BP Stroker Kit 2.3 (CP piston) for MITSUBISHI EVO 1-9 (4G63) 1992-2007
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TOMEI TA201A-MT01BP Stroker Kit 2.3 (CP piston) for MITSUBISHI EVO 1-9 (4G63) 1992-2007
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATOMIC-SHOP UAE (RABDAN Motorsport)
14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| Application | 4G63 | |
| Type | TOMEI | CP |
| Bore (mm) | 86.00 (OEM +1.0) | 86.00 (OEM +1.0) |
| STROKE (mm) | 100.00 (OEM +12.0 ) | 100.00 (OEM +12.0 ) |
| DISPLACEMENT (cc) | 2323.5 | 2323.5 |
| C.C. VOLUME (cc) | 43.0 | 43.0 |
| PISTON VOLUME (cc) | -19.5 | -19.6 |
| PISTON DECK CLEARANCE/HIGHT (mm) | -0.35 | -0.35 |
| PISTON COMP.HEIGHT (mm) | 31.65 (OEM -3.35) | 31.65 (OEM -3.35) |
| ROD C-to-C (mm) | 147.00 (OEM -3.0) | 147.00 (OEM -3.0) |
| HEAD GASKET BORE (mm) | 86.5 | 86.5 |
| C/R With 86.5-1.0 | 9.25 | 9.24 |
| C/R With 86.5-1.2 | 9.11 | 9.10 |
| C/R With 86.5-1.5 | 8.92 | 8.91 |
| C/R With 86.5-1.8 | 8.73 | 8.72 |
| Compatibility | ||
