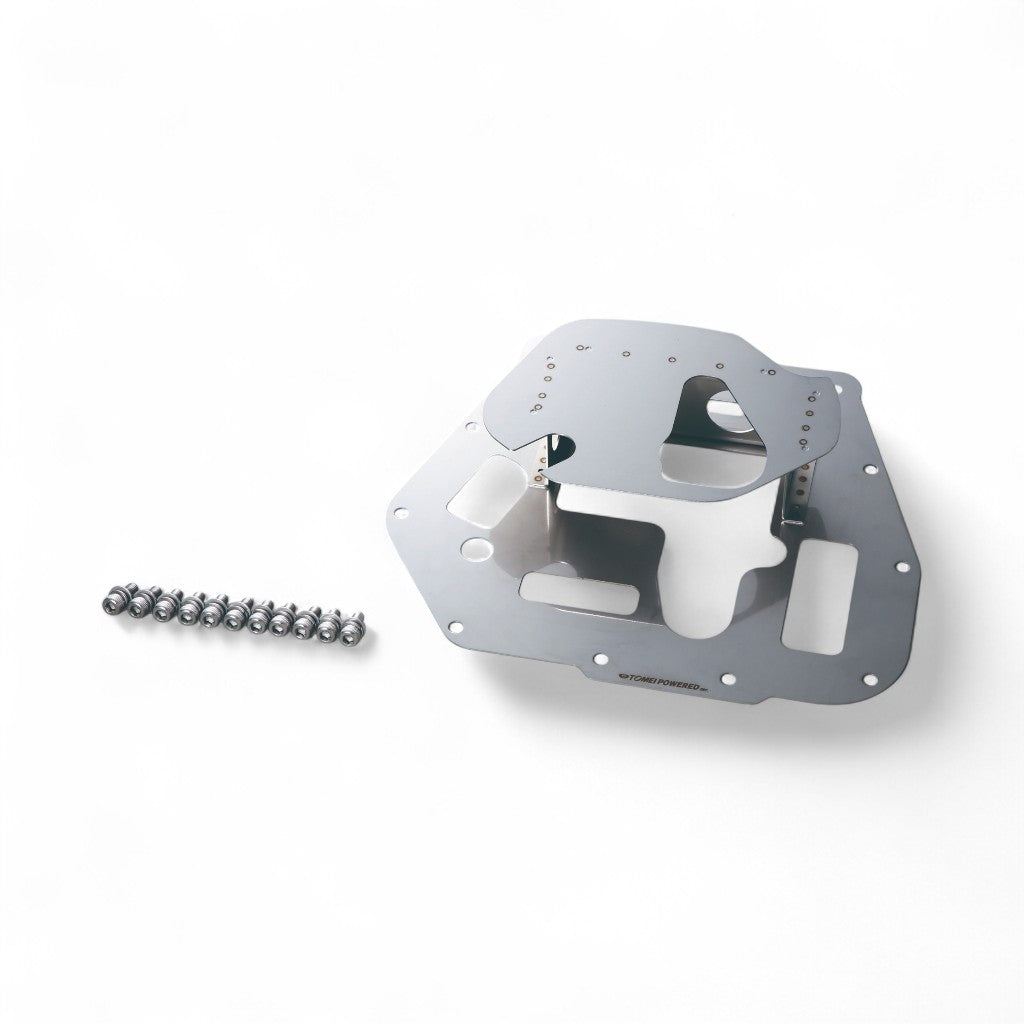

TOMEI 194017 Oil Pan Baffle Plate for SUBARU BRZ (ZD8) / TOYOTA GR86 (ZN8)

Engine Oil Stabilization Under High G-Force Conditions

During aggressive acceleration, deceleration, and high-speed cornering, inertial forces can cause excessive oil movement, leading to temporary oil starvation as the oil shifts away from the pickup point. The TOMEI baffle plate addresses this issue with a multi-plated structure that ensures consistent oil delivery under extreme driving conditions. Its dual-plate design integrates both upper and lower baffling components to maintain optimal oil positioning within the oil pan.

• Multi-plated configuration stabilizes oil movement in all directions
• Upper plate suppresses upward and lateral oil displacement
• Lower plate retains oil near the pickup to prevent cavitation
• Enhances engine reliability during motorsport and track-day use

Specifications:

• Material: SUS304
• Plate Thickness: 1.2 mm
• Weight: 580 g
