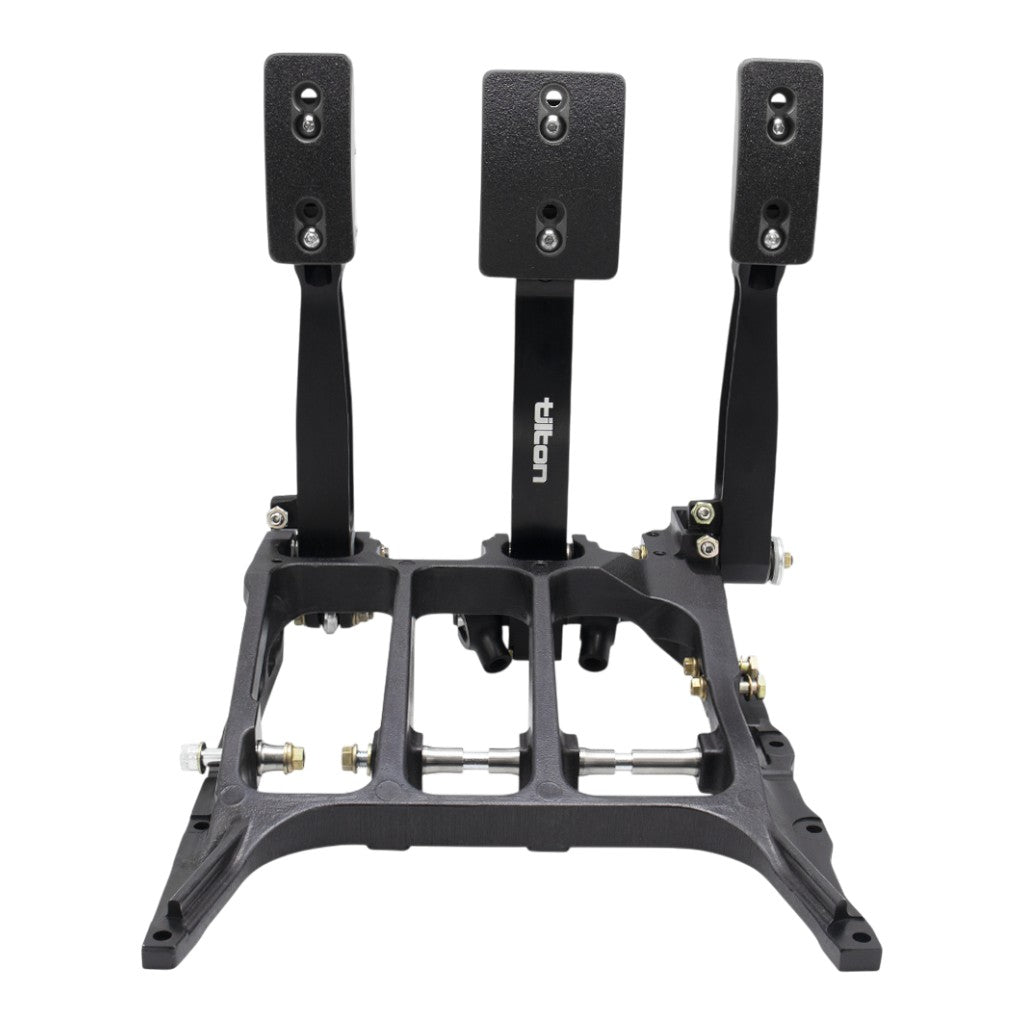

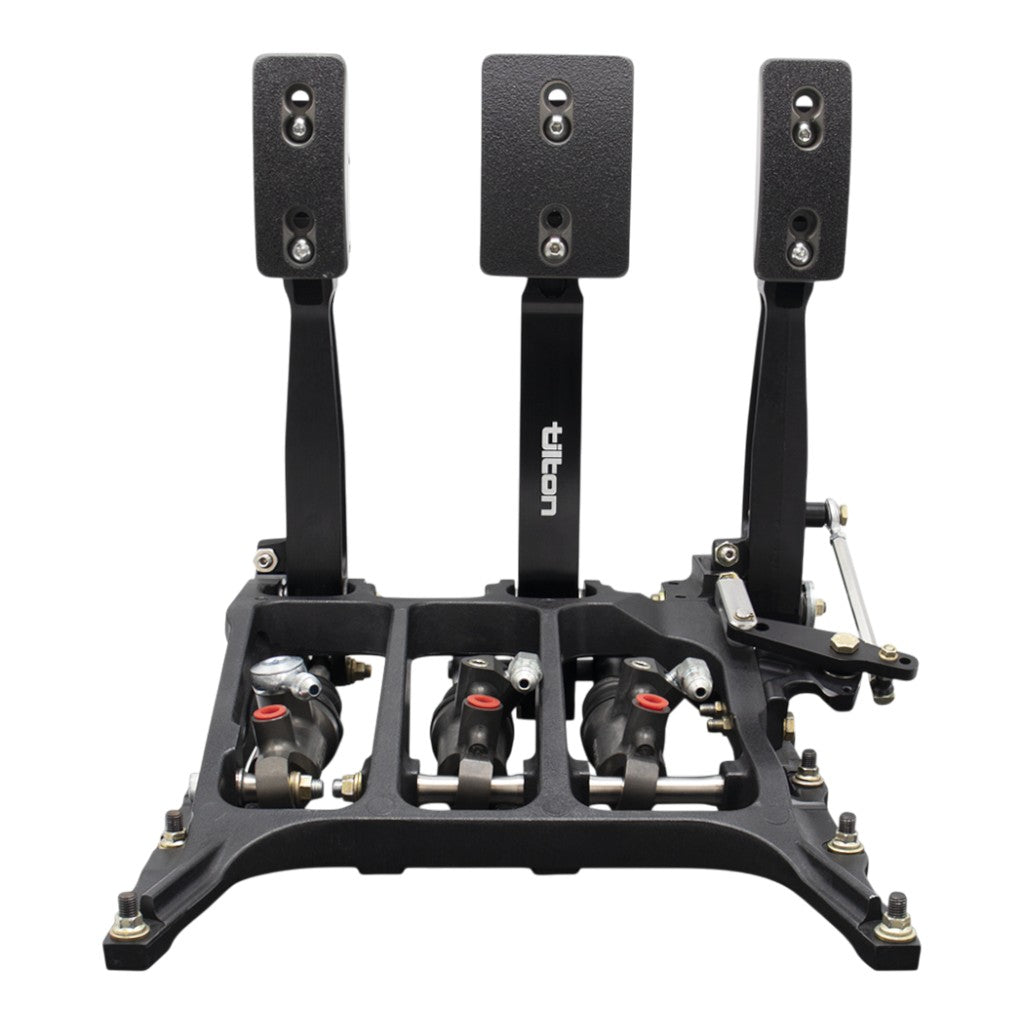

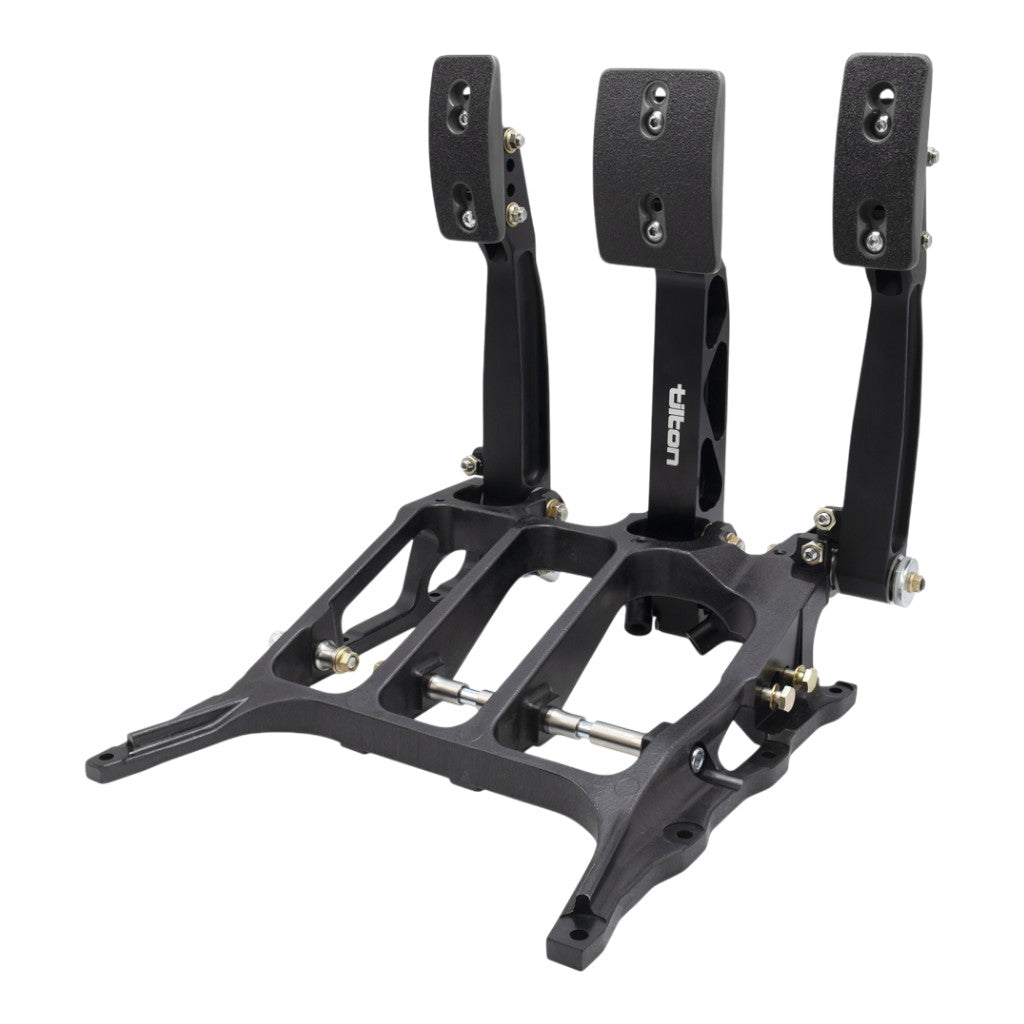

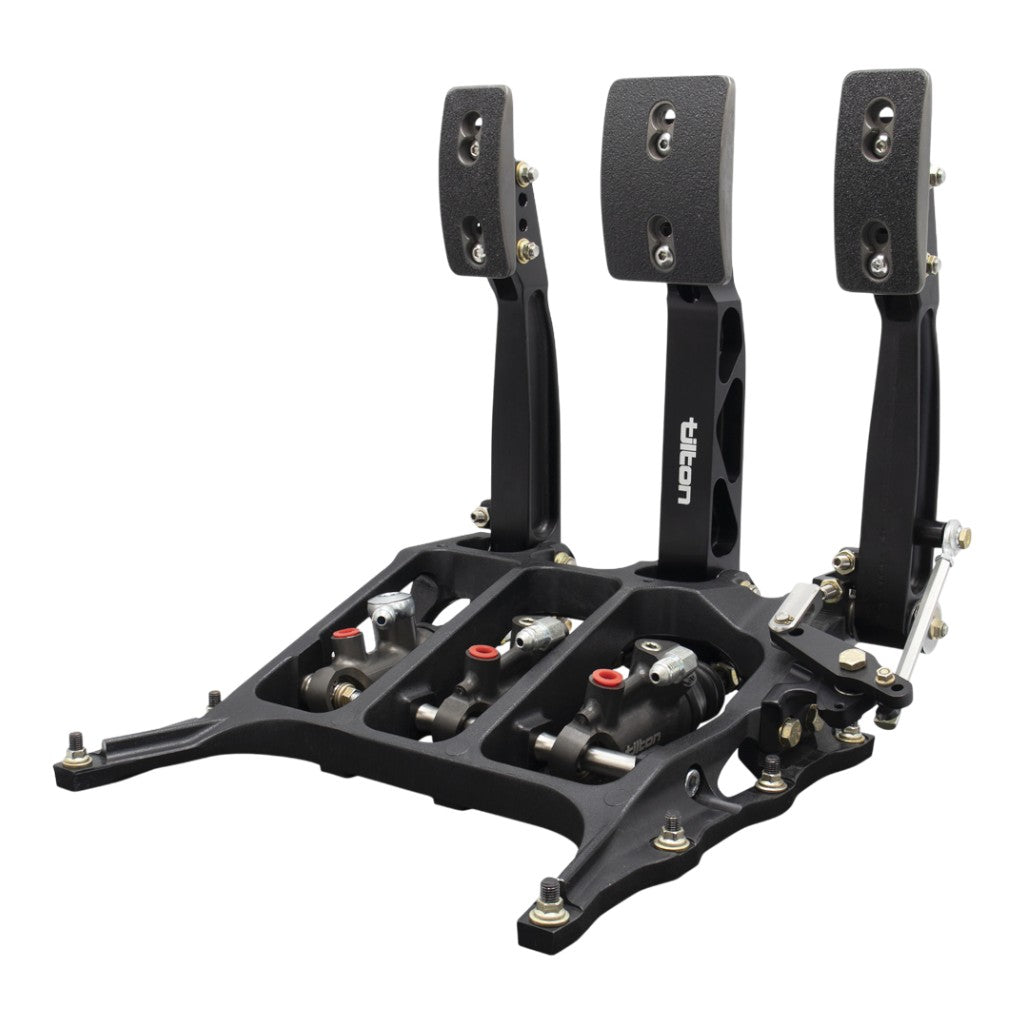

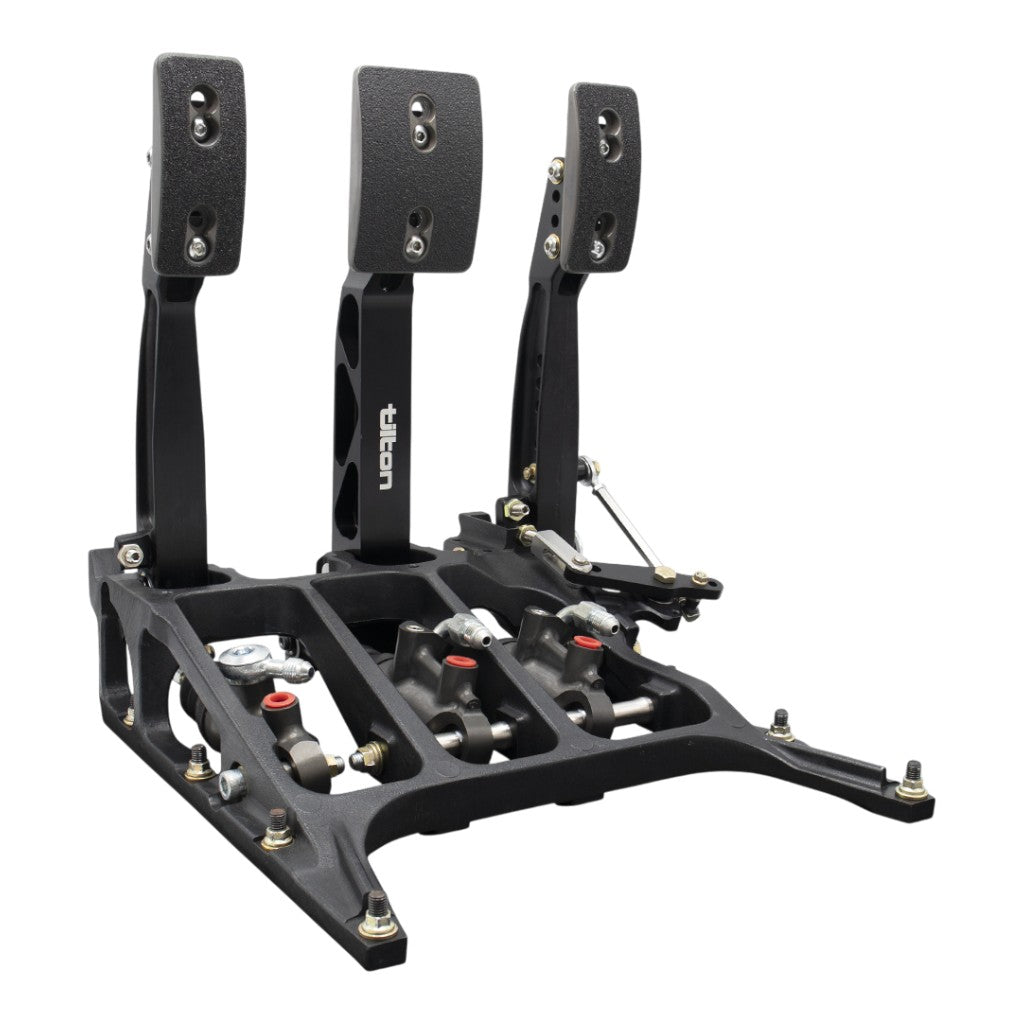

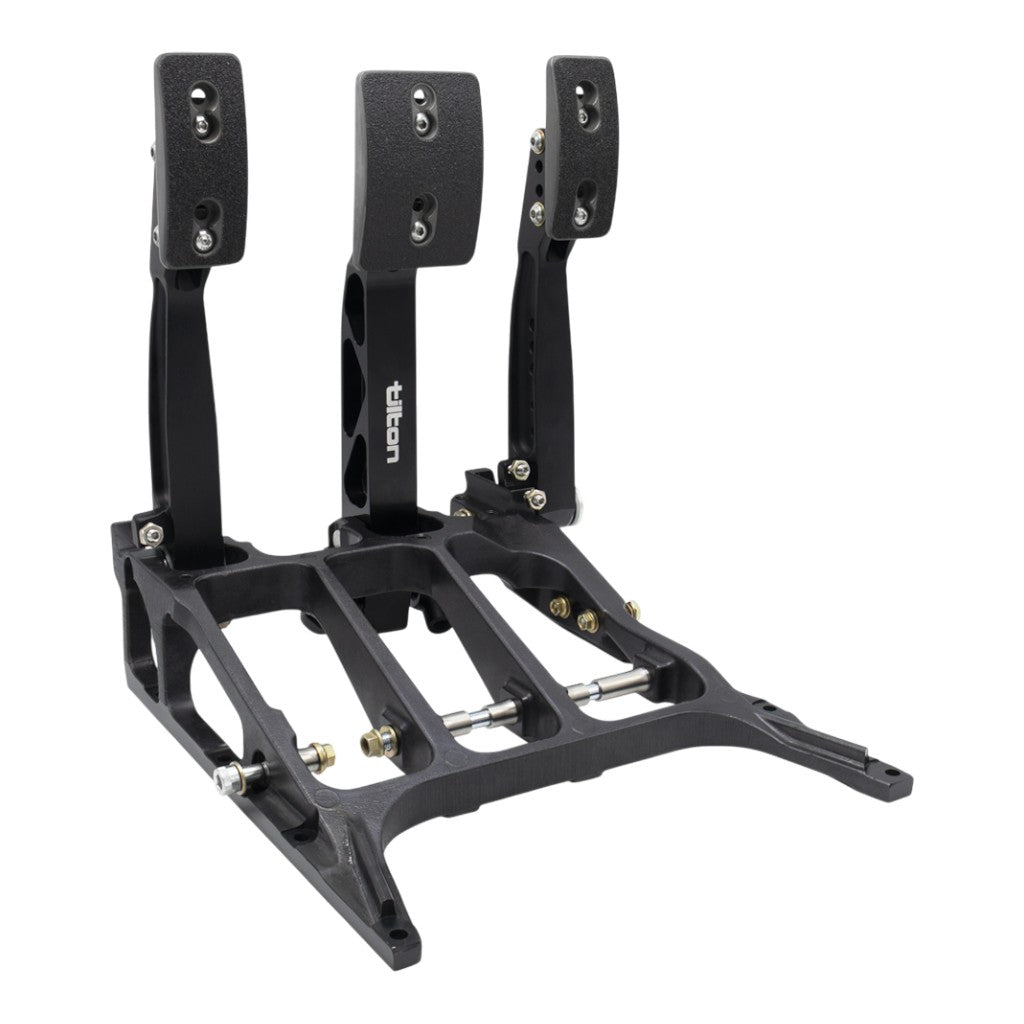

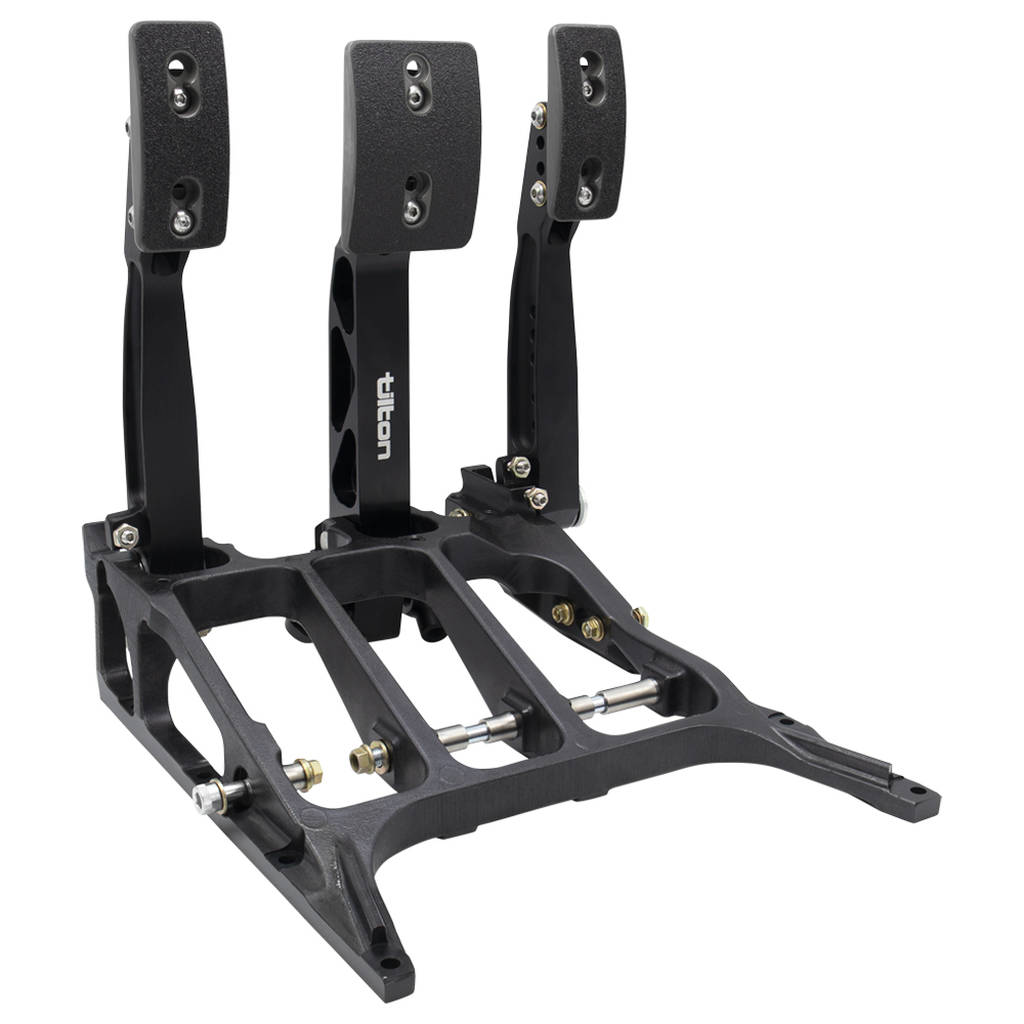

TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)

Description TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly (Floor Mount)

The TILTON 72-856-S 850-Series 3-Pedal Underfoot Assembly is a professional-grade floor-mounted pedal box engineered for motorsport and high-performance vehicle applications. Designed with lightweight aluminum construction and precision-machined components, the assembly provides exceptional pedal feel, durability, and adjustability for demanding racing environments.

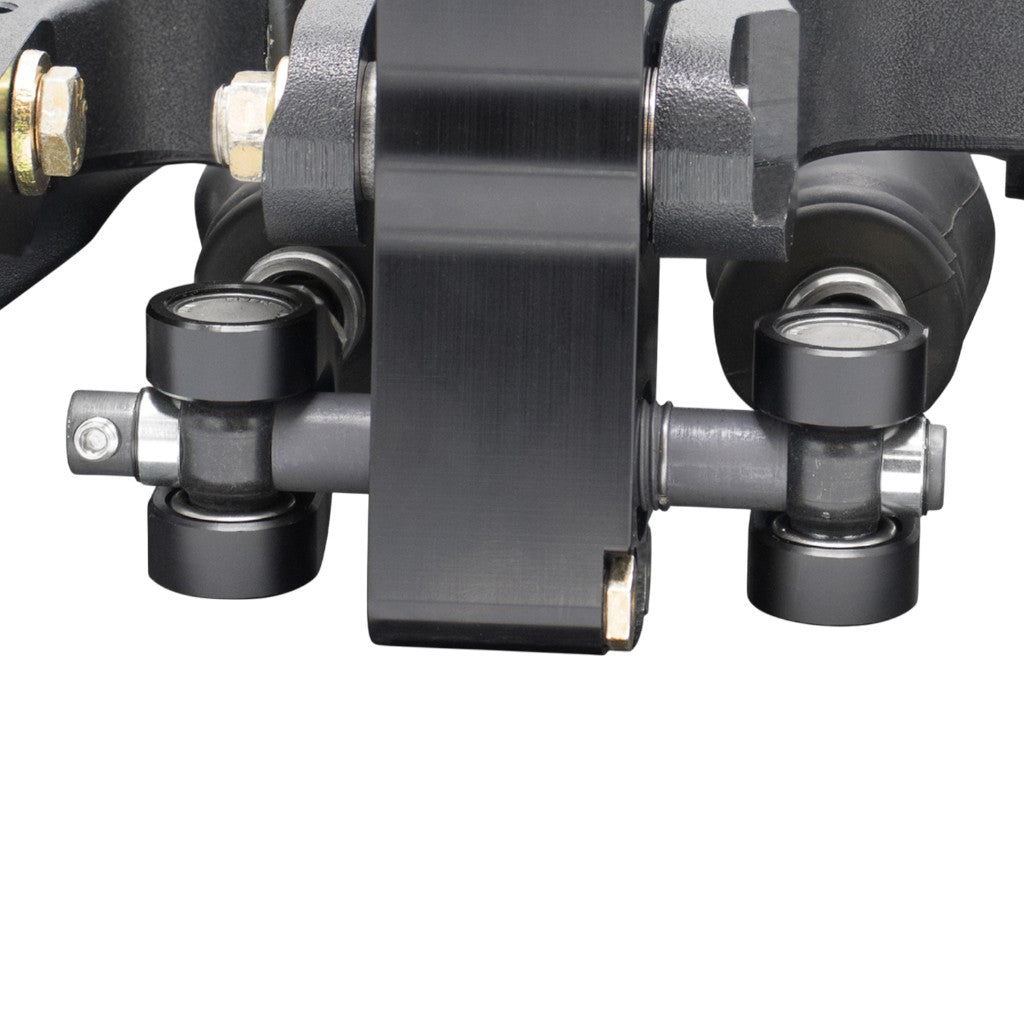

The system features an ultra-efficient 7/16”-20 trunnion-type balance bar that minimizes brake bias migration under heavy braking. The billet aluminum brake pedal incorporates ball-bearing pivots for smooth operation, while the forged aluminum throttle and clutch pedals utilize oil-impregnated bronze bushings for long-term reliability. Adjustable pedal ratios and customizable foot pad positions allow precise tailoring to individual driver preferences.

• Floor-mounted 3-pedal assembly for motorsport applications
• 7/16”-20 trunnion-style balance bar minimizes brake bias migration
• Billet aluminum brake pedal with ball-bearing pivot
• Forged aluminum throttle and clutch pedals
• Oil-impregnated bronze bushings in throttle and clutch pivots
• Lightweight, high-strength aluminum frame construction
• Adjustable brake pedal ratio for customized pedal feel
• Adjustable foot pads for position and angle optimization
• Compatible with mechanical throttle linkage and Drive-by-Wire systems
• Designed for use with Tilton racing master cylinders

Specifications:

• Series: 850-Series
• Mounting Type: Floor mount
• Balance Bar Thread: 7/16”-20
• Brake Pedal Material: Billet aluminum
• Throttle & Clutch Pedal Material: Forged aluminum
• Frame Material: Aluminum
• Pedal Ratio Adjustment Range: 4.8:1 to 6.1:1
• Weight: 7.6 lbs
• Brake Master Cylinder Compatibility: Tilton 78-Series or 79-Series (sold separately)
• Clutch Master Cylinder Compatibility: Tilton 78-Series (sold separately)
• Throttle Linkage Compatibility: Mechanical linkage or Drive-by-Wire systems
• Important Note: Remote Brake Bias Adjuster required for 800/850-Series pedal assemblies
