TIAL 006678 Actuator MV-I 2.5 Black 12 PSI, straight rod
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TIAL 006678 Actuator MV-I 2.5 Black 12 PSI, straight rod
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

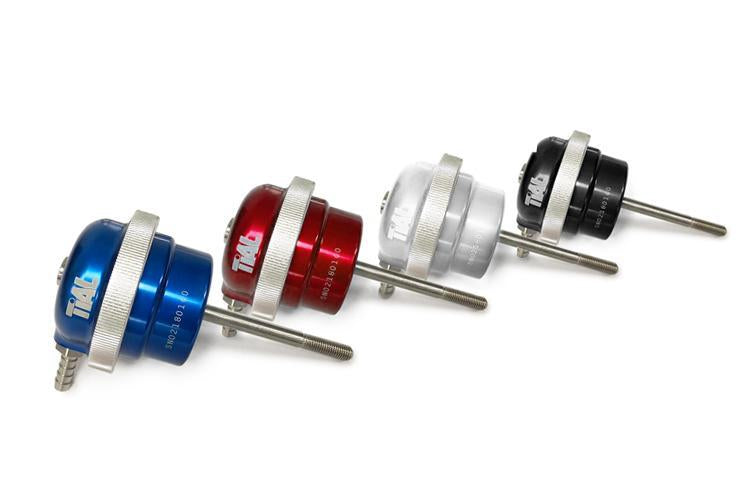

The MVI 2.5 unit is our compact wastegate actuator standing only 2.2” in height without fittings and actuator rod. This compact design makes it easier for installations involving confined space.
SPECIFICATIONS
- Compact actuator body with multiple spring options available.
- High temperature silicone Nomex reinforced actuator diaphragm.
- 17-7 PH Stainless Steel actuator spring gives consistent pressure at high temperature and resists "relaxing" up to 900F (483C).
- Internal components anodized for corrosion resistance.
- Color anodized aluminum actuator body (Silver, Red, Black, Blue).
- Ultra compact design fits in very tight spaces.
CONFIGURATION
Colors Black, Blue, Red, Silver - To choose
Spring Pressures .13bar to 1.5bar (2psi to 22psi) - To choose
Actuator Rod Straight & Bent - To choose
Thread Top Air Ports (2): M8 x 1.0
WHATS IN THE BOX
Included with every TiAL MVI 2.5:
MVI 2.5 Assembly with specified spring pressure
M8 x 1 Straight Banjo Air Fitting
M8 x 1 Air Port Plug with Aluminum Sealing Washer
Specified actuator rod
1/4 x 28 Bolts for mating to actuator bracket
