TIAL 003020 TIALVB42130 V-BAND HOUSING GT42 1.30 A/R
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
TIAL 003020 TIALVB42130 V-BAND HOUSING GT42 1.30 A/R
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

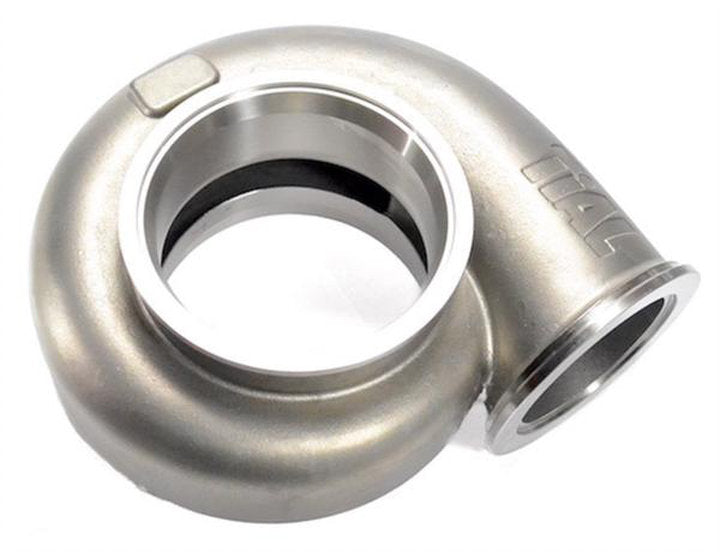

Lightweight stainless steel turbine housing for the GT/X 42 series turbochargers. Compatible with the 82mm 84 trim turbine wheel
SPECIFICATIONS
Typically lighter weight than a corresponding iron housing of the same A/R
Investment cast stainless steel for a beautiful, smooth interior and exterior
Vband inlet and outlet gets rid of gaskets and bolts, no leaks and no broken bolts
Three A/R options
Overall physical size is smaller than standard housing, allowing it to fit in tight engine bays
Better heat retention than cast iron
Pivoting of the turbo 360* possible
CONFIGURATION
Flange Materials 304L Stainless
Pipe Size Inlet Flange: 2.75" OD, Outlet Flange: 4.00" OD
Flanges/Clamps Included? No
Housing Weight 13.3lbs (largest A/R)
Turbine Wheel 82mm 84 Trim
INCLUDED WITH EVERY HOUSING
Turbine Housing
AVAILABLE A/R
1.02
1.16
1.30
TIAL V-BAND CLAMP AND FLANGE SYSTEM
TiAL V-Band flanges are manufactured in house
TVBFL42INLET - Inlet Flange
VC381 - Inlet Clamp
TVBFL42DC40 - Outlet Flange
VC450 - Outlet Clamp
VC450 - CHRA to Housing Clamp
