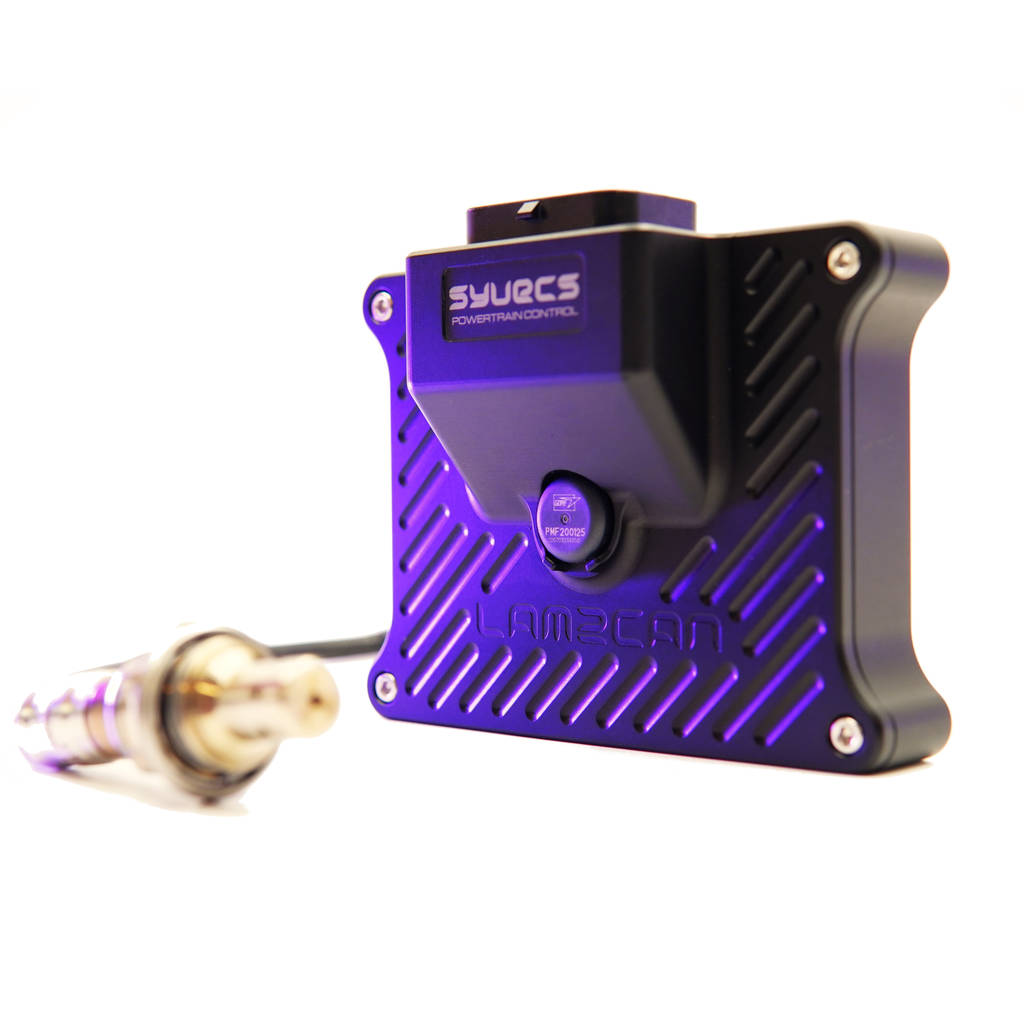

SYVECS SYV-LAM2CAN 8 Channel Lambda Expander Photo-0

SYVECS SYV-LAM2CAN 8 Channel Lambda Expander

AED 5,638.92

Tax included. Shipping calculated at checkout

SYVECSP/N: SYV-LAM2CAN
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

SYVECS SYV-LAM2CAN 8 Channel Lambda Expander

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description SYVECS SYV-LAM2CAN 8 Channel Lambda Expander

The Syvecs Lam2CAN is an 8-channel laboratory-grade NTK lambda sensor interface with comprehensive onboard fault logic. Dual dedicated exhaust pressure sensor inputs enable compensation for the effects of exhaust pressure on lambda measurement.

Data is transmitted via CAN to provide fast and accurate information to engine control units and external data loggers.

Connectivity:

  • Eight PWM outputs, configurable via Syvecs SCAL software for lambda heaters or custom PWM strategies
  • Two analogue inputs that can be linearised for pressure sensors and assigned to either exhaust manifold bank
  • Single CAN bus interface, adjustable via Syvecs SCAL software for transmitting and receiving data sets
  • USB-C connectivity for calibration software
