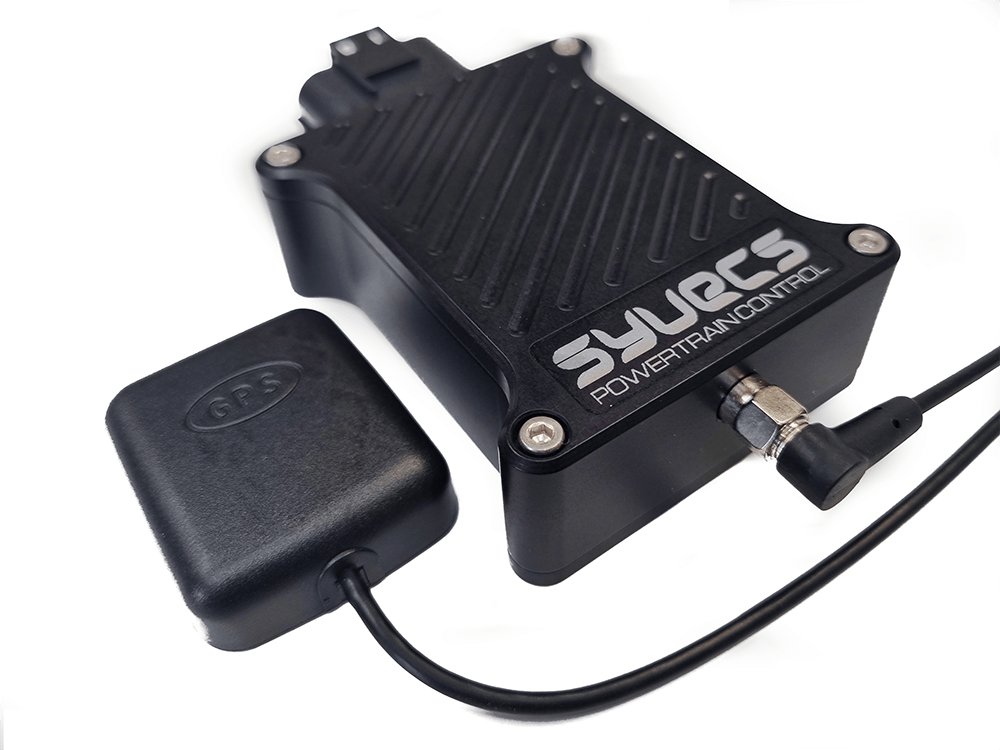

SYVECS SYV-GPS100 100HZ GPS IMU MODULE
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
SYVECS SYV-GPS100 100HZ GPS IMU MODULE
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
The Syvecs 100hz GPS IMU Module is designed to provide even more control to our engine control units with accurate global positioning, acceleration forces for 6 axis and GPS Speed.
The Unit features fast positioning lock with hot restarts due to internal battery storing last positioning data.
- Supports global GPS, Beidou, Galileo, GLONASS
- Supports regional QZSS, SBAS
- 16 million time-frequency hypothesis testing
- per sec
- -148dBm cold start sensitivity
- -165dBm tracking sensitivity
- 29 second cold start TTFF
- 3.5 second TTFF with AGPS
- 1 second hot start
- 2.0m CEP accuracy
- Multipath detection and suppression
- Jamming detection and mitigation
- AGPS Support
- Contains LNA, SAW Filter, TCXO, RTC Xtal
- Works with active and passive antenna
- On board active antenna short protection
- On board active antenna detection
This is something that our dealers and customers have asked for quite some time in order to provide an accurate speed measurement that allows our advanced traction control strategy to be used on 4wd or drag cars.
Circuit based cars gain huge benefits also being able to calibrate the ECUs traction control, torque management and warnings to be based off GPS position, allowing calibrators for example to limit torque and lower a slip target in different corners.
The following parameters are available from our 100Hz GPS IMU Module
GPS Lateral Position
GPS Longitude Position
GPS Speed
GPS Course
GPS Altitude
GPS Time and Date
Number of Locked Satellites
GPS Mode Letter
GPS Fix Quality
Lateral G Force
Longitudinal G Force
Vertical G Force
Roll
Pitch
Yaw
