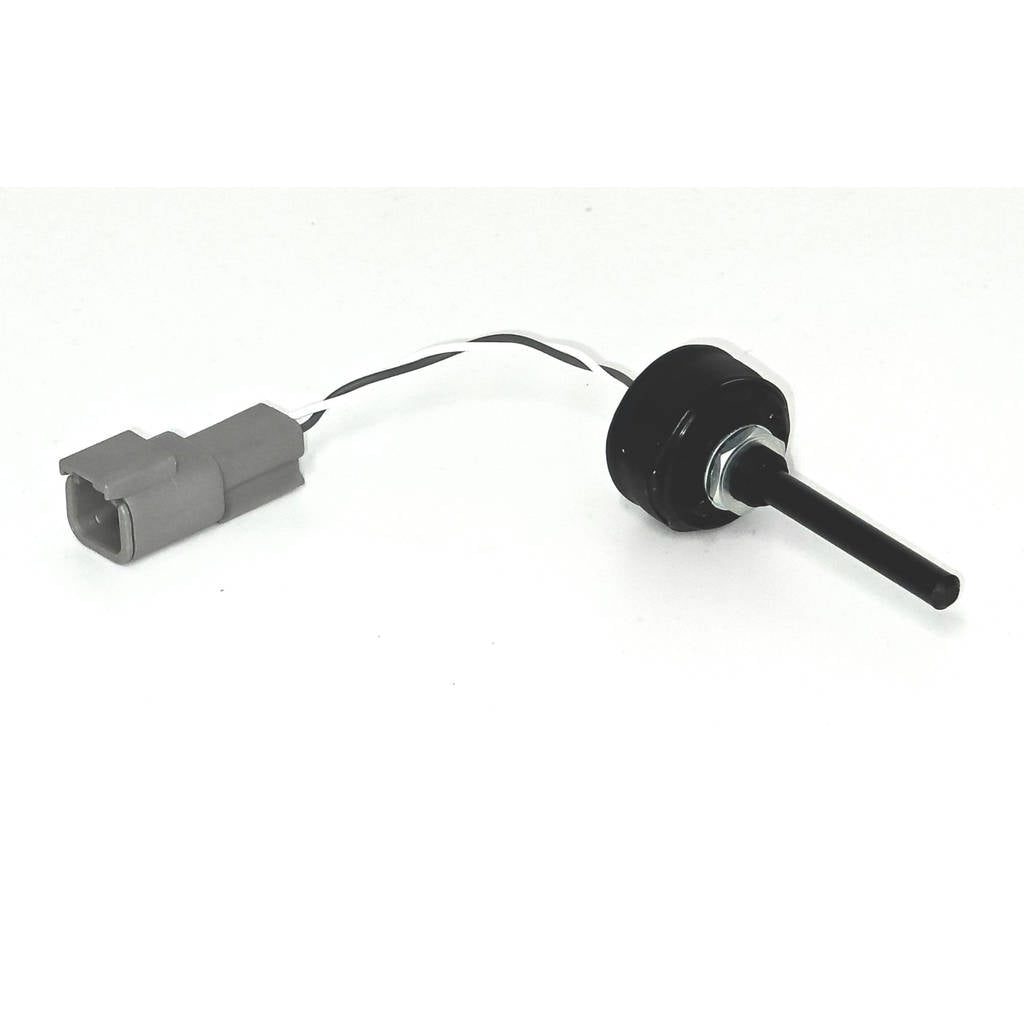

SYVECS SYV-CAL Calibration Switch Photo-0

SYVECS SYV-CAL Calibration Switch

Sale priceAED 899.92

Tax not included

SYVECSP/N: SYV-CAL
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

SYVECS SYV-CAL Calibration Switch

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

Description SYVECS SYV-CAL Calibration Switch

The Syvecs Calibration Switch is a simple universal multi-position switch used for map switching on almost any aftermarket ECU.

  • Simple two-wire connection
  • Up to 11 positions from a 5 V external pull-up
  • Adjustable detent lockout ring with 2 to 11 positions
  • Fitted with a Deutsch 2-pin connector

Specifications:

  • Outputs: 11 positions via one signal wire
  • Power Supply: 5 V; 3 kOhm pull-up required if no internal pull-up is available. Syvecs unipolar and thermistor inputs already have a 3 kOhm pull-up
  • Mounting: Panel mount via 10 mm hole
  • Maximum Panel Thickness: 4 mm
  • Maximum External Diameter: 30 mm
  • Maximum Shaft Length: 42 mm
  • Maximum Overall Length: 75 mm
  • Mating Fly-Lead Length: 80 mm

Kit comes with:

  • Deutsch 2-pin connector
  • Mating pins and connector
