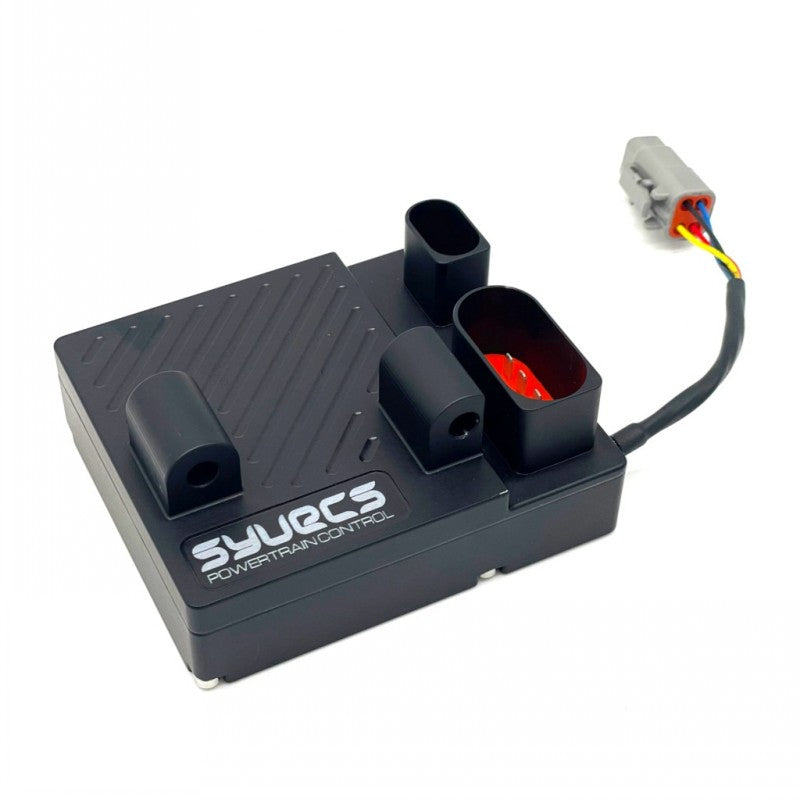

SYVECS SYV-4WD-HALP-VAG Controller 4WD for AUDI S3, VW VW Golf R7.1/R7.5
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
The Syvecs MQB AWD module is a standalone AWD/4WD/Centre Diff controller designed to control the haldex system in the VAG group 4 Cylinder MQB cars. This includes the following and more.
- Audi S3
- Seat Leon Cupra
- VW Golf R7.1
- VW Golf R7.5
Please note this unit will not work with the RS3/TTRS, you will require the Special controller from Iroz motorsport for this. Please see the dedicated product page for the RS3/TTRS 4wd module
The OEM haldex controller are locked down and not adjustable, but by simply fitting our AWD Module a whole new level of control is available. The unit allows users to optimise control and provide the best performance available from the powertrain.
The MQB version of the controller replicates all the OEM CAN information as well as pick up lots of variable from the OEM Can to link into the control strategies like Steering Angle, Brake Pressure, Rpm, Tps, Lateral G, Yaw, Long G, Speeds, Temperatures and mode switches
Limp Protection options for large slip, high current, high temps which warn the driver but keep awd active unlike the OEM controllers which shut down the outputs which is not ideal with high horsepower!
Works with any Engine management system
The Drive Mode Button on the MQB is used for Map switching so allows users to be able to change between Awd Select 1, 2, 3 which means all the maps below can be adjusted. You can also enable the burnout mode to be active when Hazards are on or if handbrake is present.
With the use of our Scal Software, users can connect to the Device and adjust over 40 maps to adjust the control of the solenoids/motors used in the AWD systems.
Live adjustment potentiometers which gives drivers the ability to adjust the AWD Duty on the move or go 2wd from the flick of a switch.
SPECIFICATIONS:
- Maximum of 30 Amps via pin sharing (HBR1&2 or HBR3&4)
- Onboard Current Monitoring of each output
- 2 x CanBus – Configurable Transmit Via Scal Program
- 4 x Analog inputs for assigning Burnout Switch, Adjustment Pot, Pressure sensor and Temp sensor.
- 4 x MagnetoResistive ABS Sensor Inputs for direct Speed monitoring
- USB Connection – Dedicated Scal software with full calibration control
- VCDS Support – Communicates with OEM Tools and Replicates OEM Haldex Ecu’s
- Mains Power control circuit based from Ignition Switch
- Reverse Polarity Protection
- Weatherproof Enclosure
- 125c Temperature capable
- 6v to 25v capable
