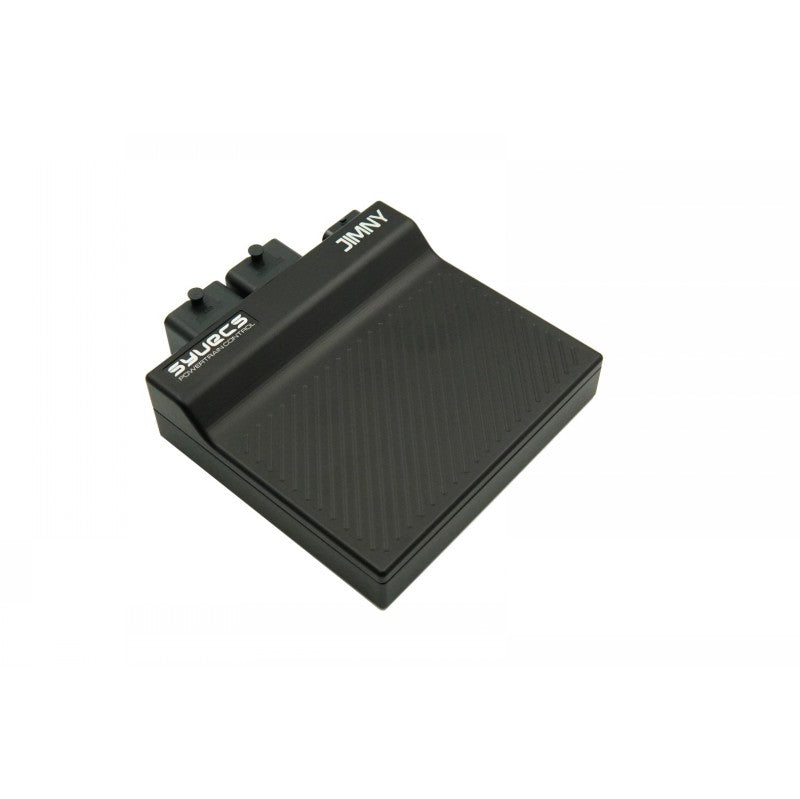

SYVECS S7i- JimnyDF Direct Fit ECU Kit for SUZUKI Jimny 2018-

The Syvecs Suzuki Jimny JB74 plug in ecu brings a new level of engine management control to the Suzuki Jimny range with a complete replacement Engine Control Module.

Supports both the manual and automatic transmission models.

The Syvecs Plug in kit comes complete with:

• NTK Lambda Sensor
• NTK Loom
• 4Bar Map Sensor
• Air Charge Temperature Sensor

By simply plugging in the kit, a whole new level of control is available which allows turbo and supercharger installations to be safely managed and controlled.

Syvecs Jimny Features:

• Flat Shift/GearCut On Manual Transmission. Allowing Full throttle shifts
• Rev matching on downshift with manual transmission
• Support for automatic transmission with monitoring of line pressure and custom torque reductions.
• Flex Fuel control.
• Fully functional with every other module on the Car.
• 8 Injector support
• Forced induction support, requires External Map sensor and Air Charge Temp sensor
• Closed loop Lambda control using supplied NTK Lambda
• DBW support with cruise control (Option only if the correct parts are fitted)
• Rolling antilag / pit lane limiter strategies, great for building boost on a roll.
• Adjustable traction control strategies based on lateral G and individual wheel speed monitoring.
• Adjustable launch control.
• Limp Protection strategies
• 12 switchable maps with the ability to select desired engine map, boost level, traction and launch control levels through optional rotary switch
• Individual Cylinder Knock control
• Live tuning of every aspect of the engine’s calibration.
• Fully adjustable closed loop boost control with launch level adjustments and trims for turbo speed, air charge, engine coolant temp, exhaust gas temps etc..
• Built in data logging using a market leading analysis software of up to 8 hours, with data rates at up to 1000hz.
• Anti-theft and valet modes.
• Super fast connection via RJ45 Ethernet port for live tuning anywhere in the world or even remotely if on track if connected to one of our Wifi modules.
• Configurable engine safety trips on all important parameters like oil temperature, oil pressure.
• Fuel pump control of both main, and sub pumps, as well as relative fuel pressure monitoring and limiting in the event of fuel pressure dropping on boost.
• Run up to 7bar map sensors.
• Control high or low impendence injectors.
• Ability to fit any type of external sensor to monitor and trigger safety trips from anything from crank case pressure to damper position.
• Ability to use any size DBW throttle body e.g. Chevrolet LS7.
• Wet and Dry – Wet and dry nitrous control with ability to drive solenoids directly and control n20 heaters via pressure monitoring.
• Ability to control any external vehicle features based on sensor inputs e.g. Adjustable rear wing linked to G force or exhaust control valves.
• Connect any race series dash or even one of our Syvecs edition SDM display units.
• View any input live with built in scope up to 1000hz.

And much, much more!
