ST 56015012 Wheel Spacer System DZ 10 mm DACIA Logan (SD)

ST 56015012 Wheel Spacer System DZX+ 10mm Axle 4- and 5-hole / 60,1 with 13mm wheel hub extension

The ST suspensions DZX+ wheel spacers are designed to increase track width while ensuring proper wheel centering on vehicles with specific hub design limitations. This bolt-through system incorporates a polyamide adapter ring and an additional centering sleeve, which extends the wheel hub centering and eliminates reliance on the spacer for alignment.

By maintaining accurate hub-centric positioning, the system allows the use of wider spacer configurations while preserving driving stability. Manufactured from high-quality aluminum and finished with a black anodized coating, the spacers provide reliable corrosion resistance and long-term durability under varying operating conditions.

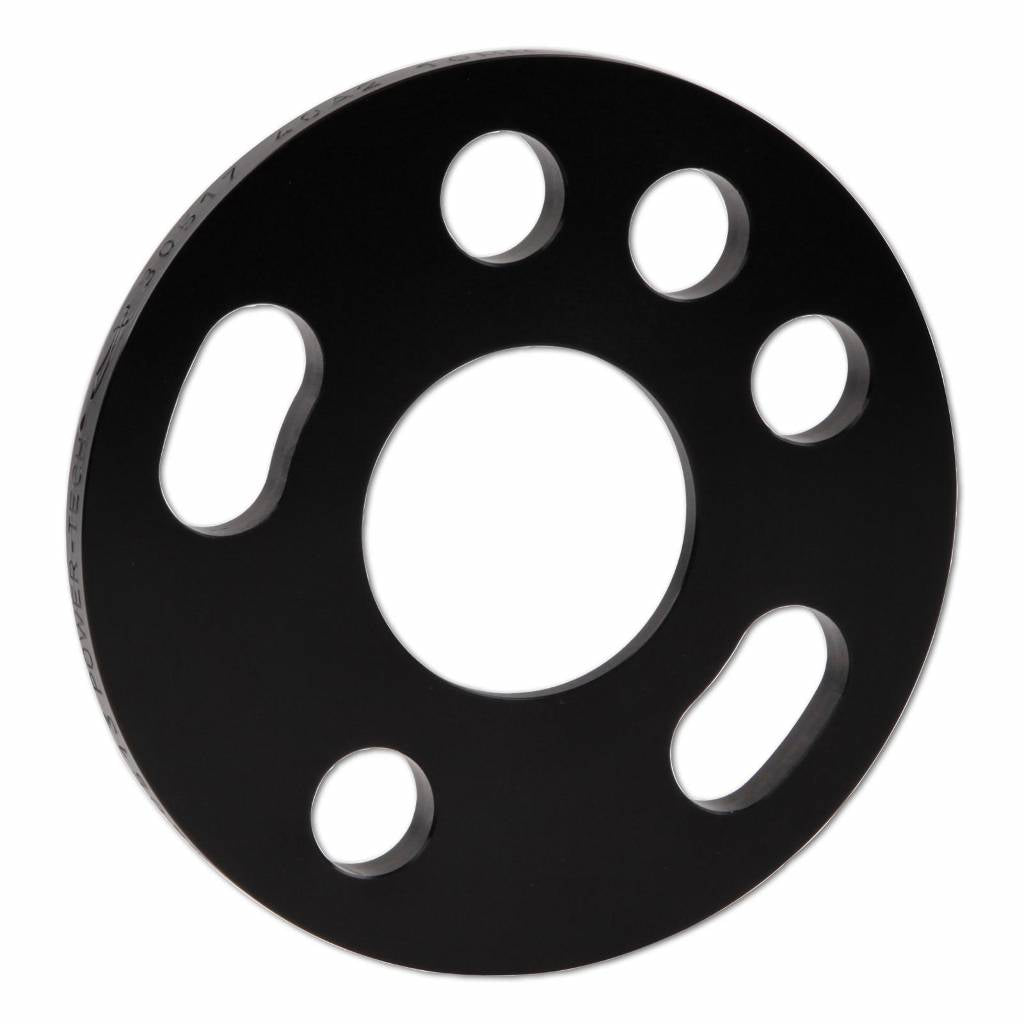

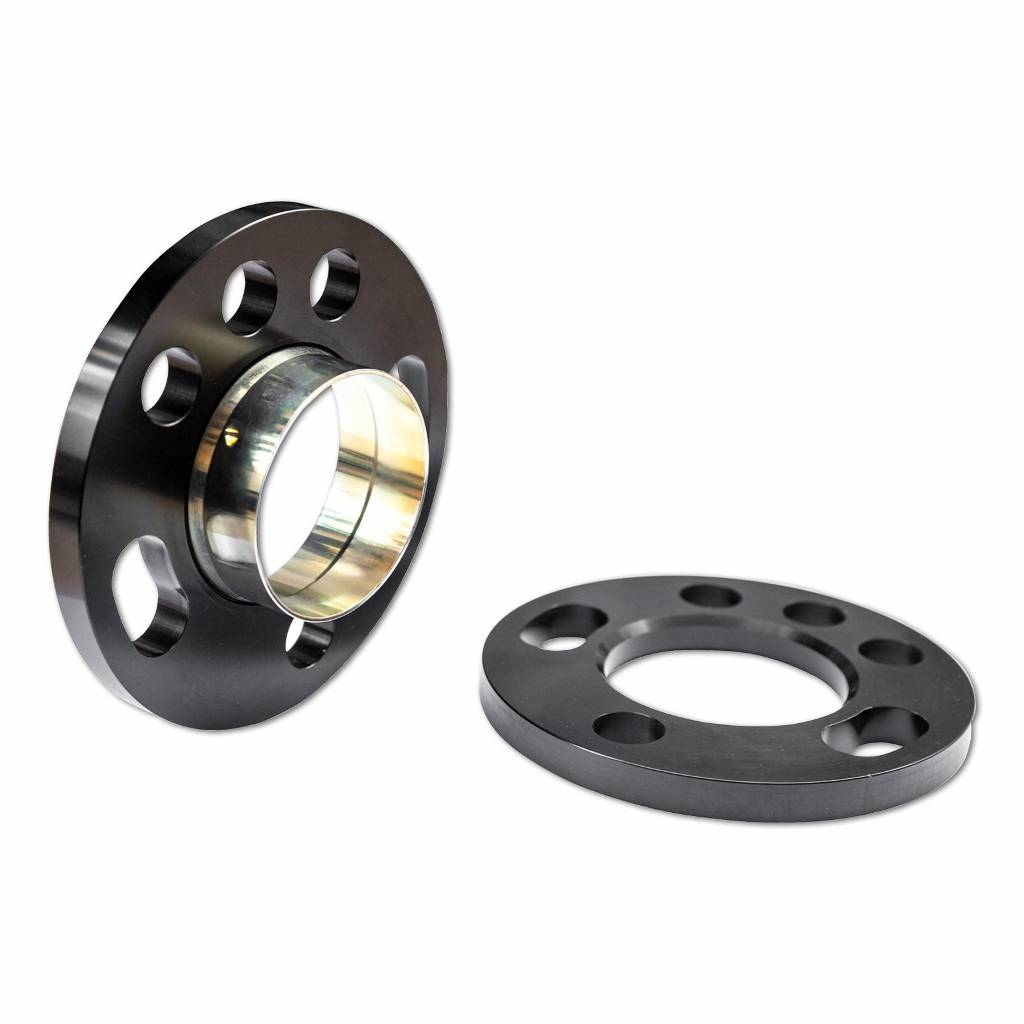

• Bolt-through DZX+ system with extended hub centering design

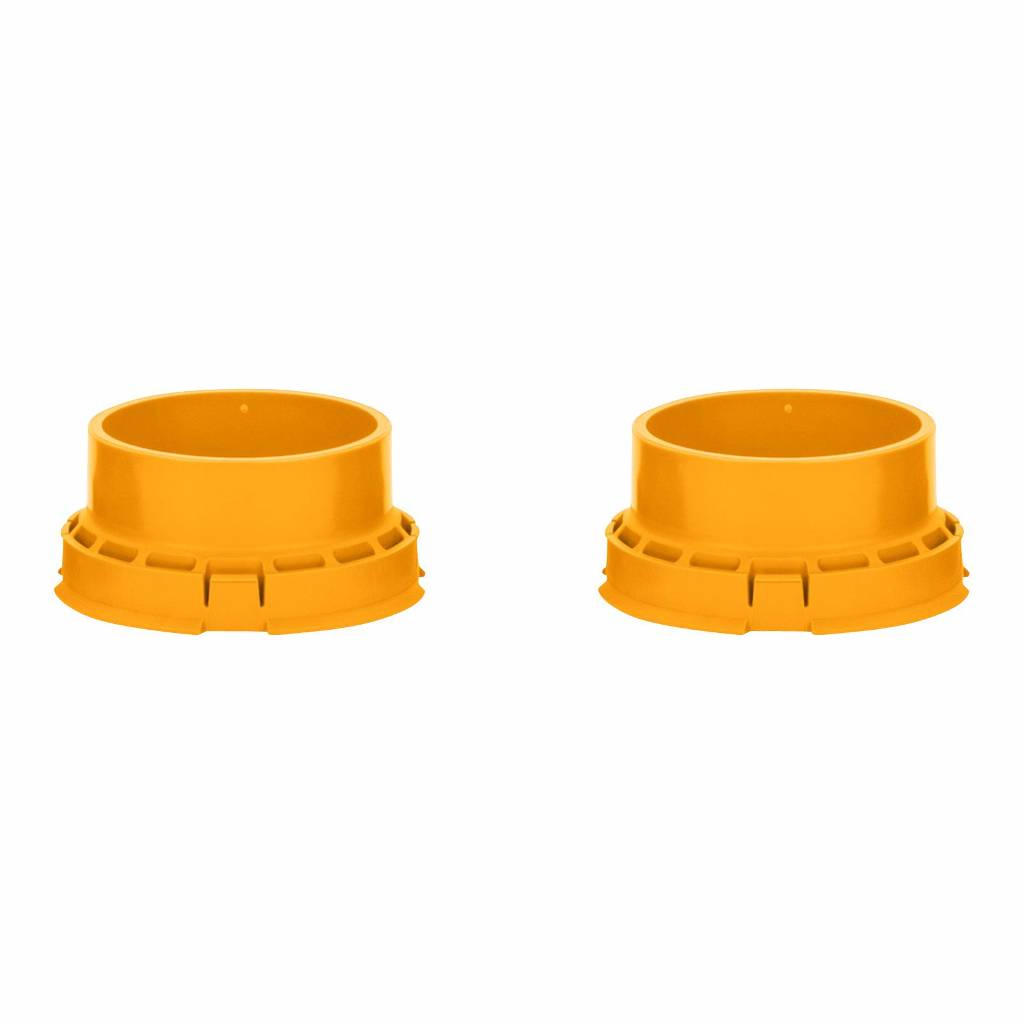

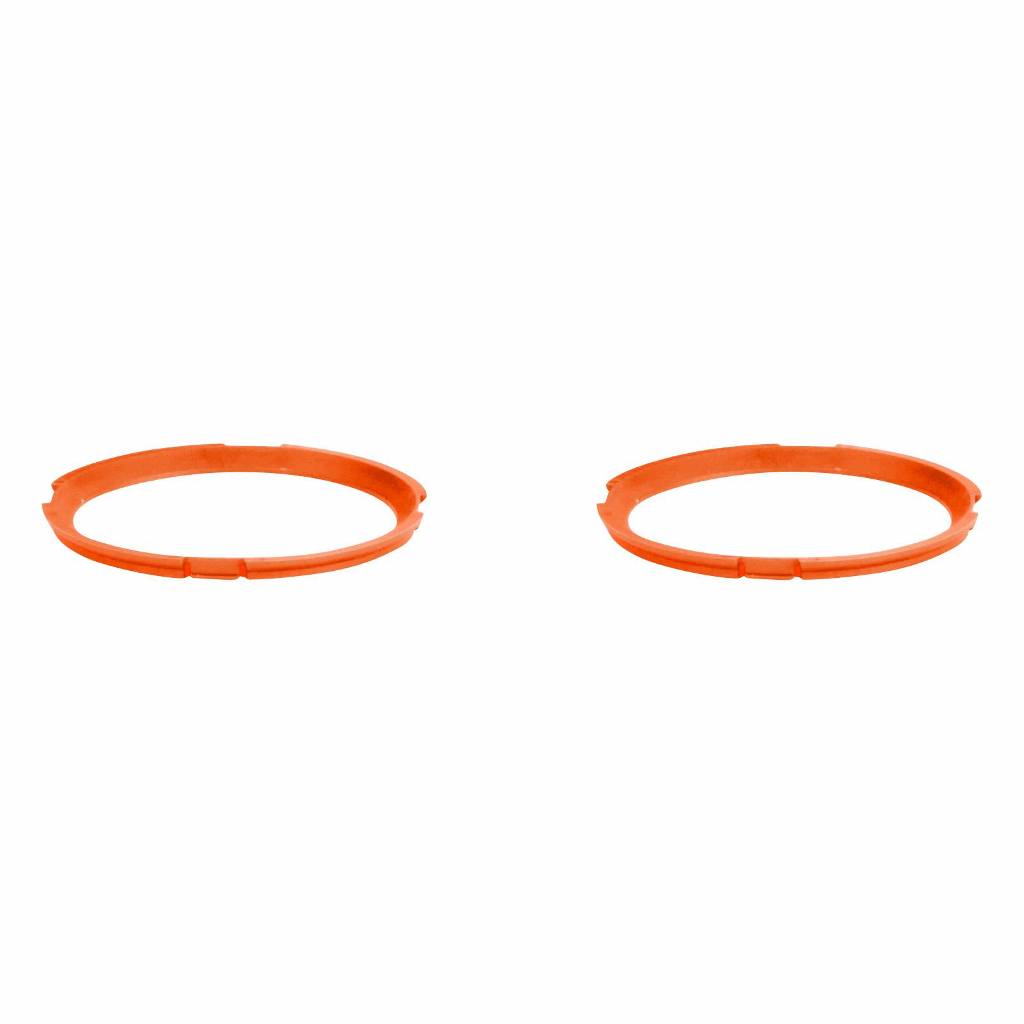

• Polyamide adapter ring and centering sleeve for precise alignment
• High-quality aluminum construction with black anodized finish
• Increased track width for improved handling and vehicle stance

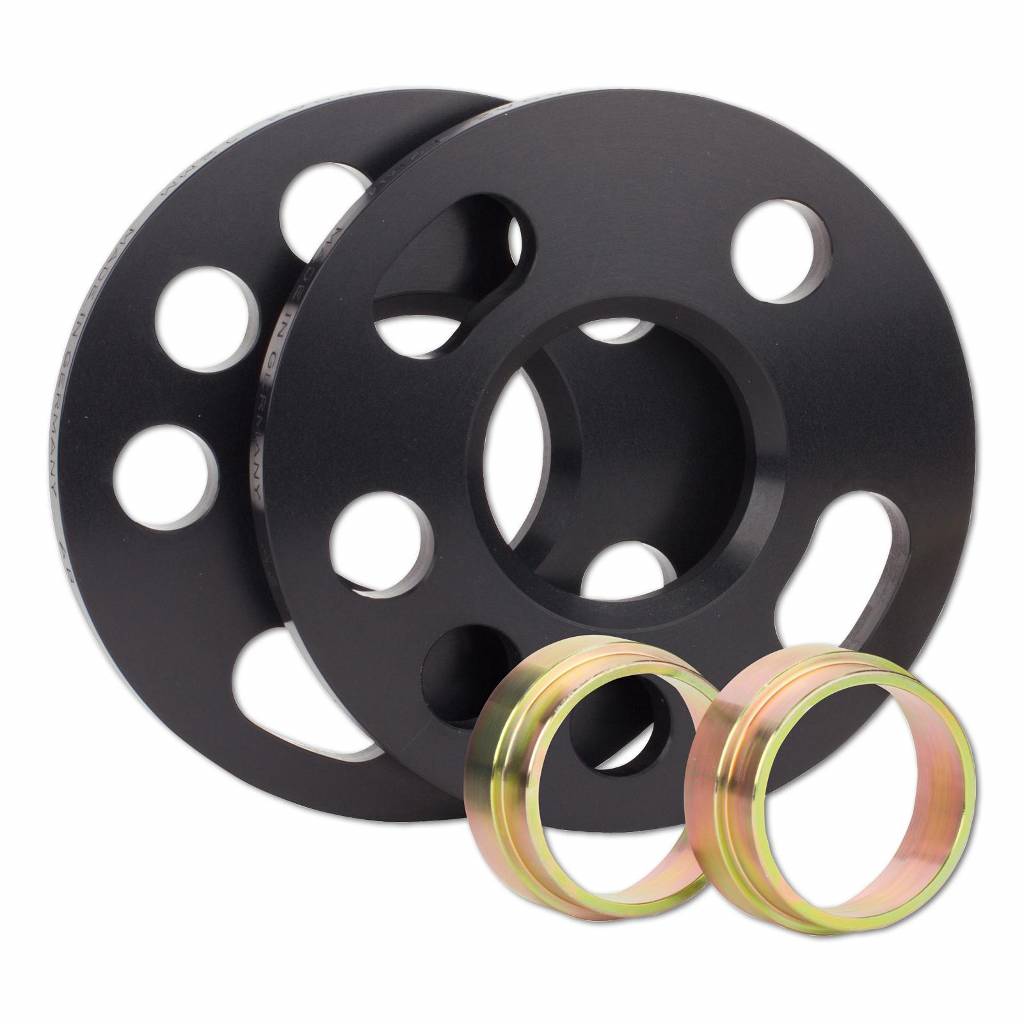

• Supplied with spacer discs, adapter rings, and centering sleeves

Specifications:

• Width per axle: 10mm
• type of installation: Through-hole system
• Design/Material: Wheel spacer/Aluminium
• bolt pattern: 4x100,5x100
• hub bore: 60,1mm
• centering collar: with
• Wheel Hub Extension: 13mm
• Content of delivery: 2 wheel spacer discs, 2 adapters, 2 centering sleeves
