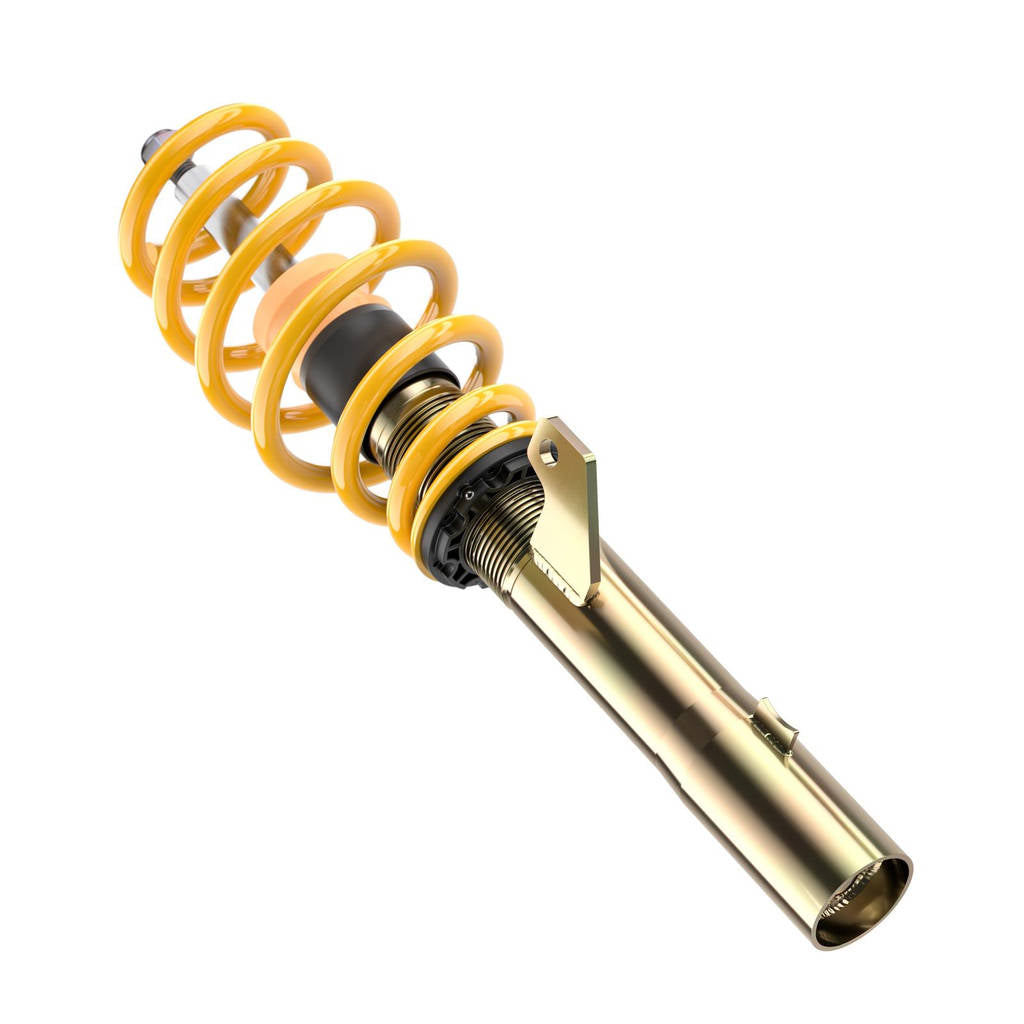

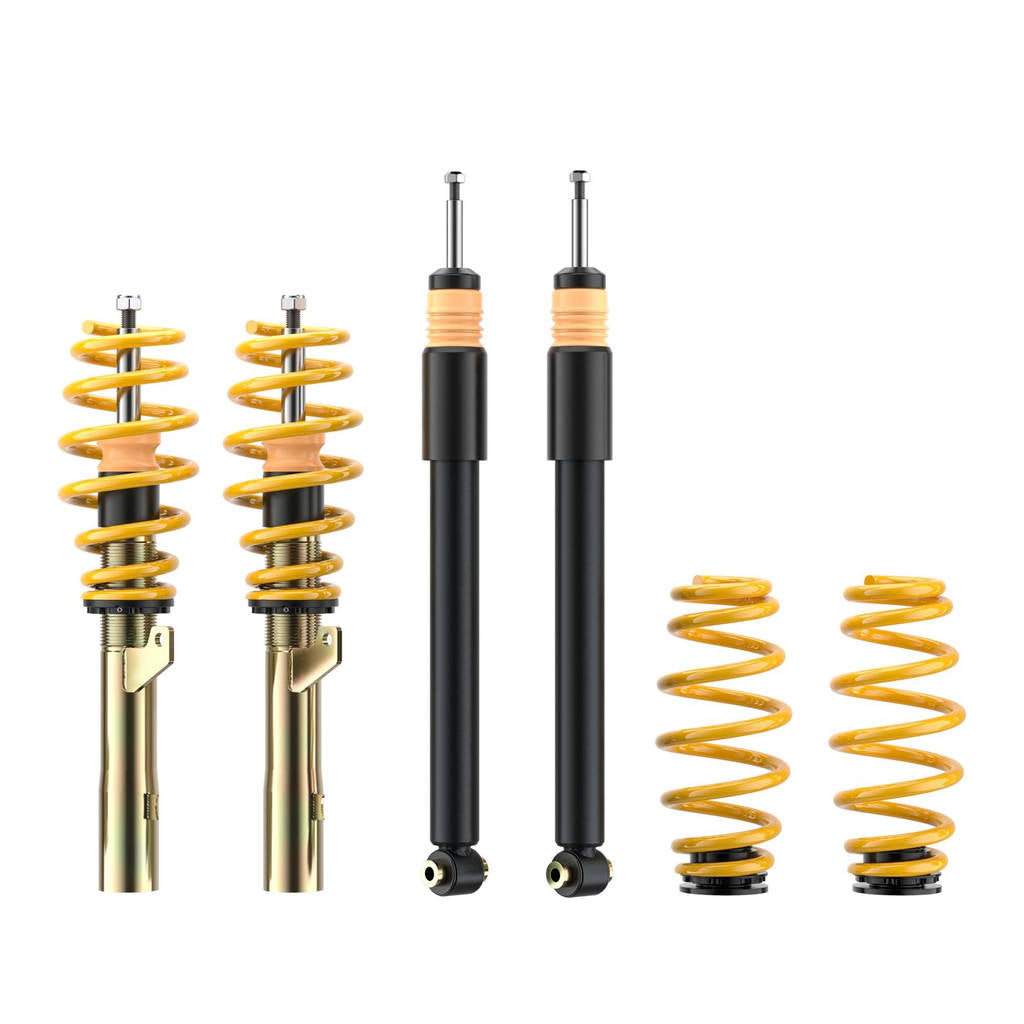

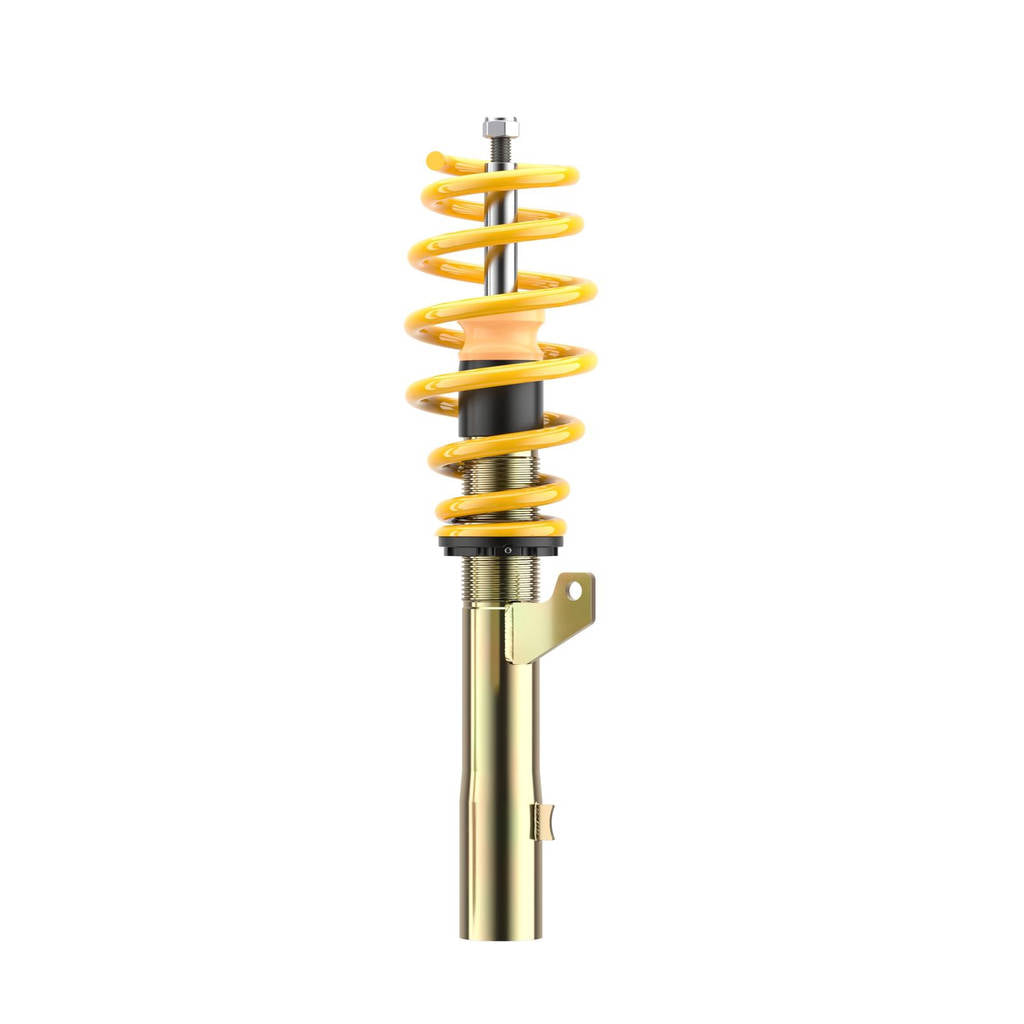

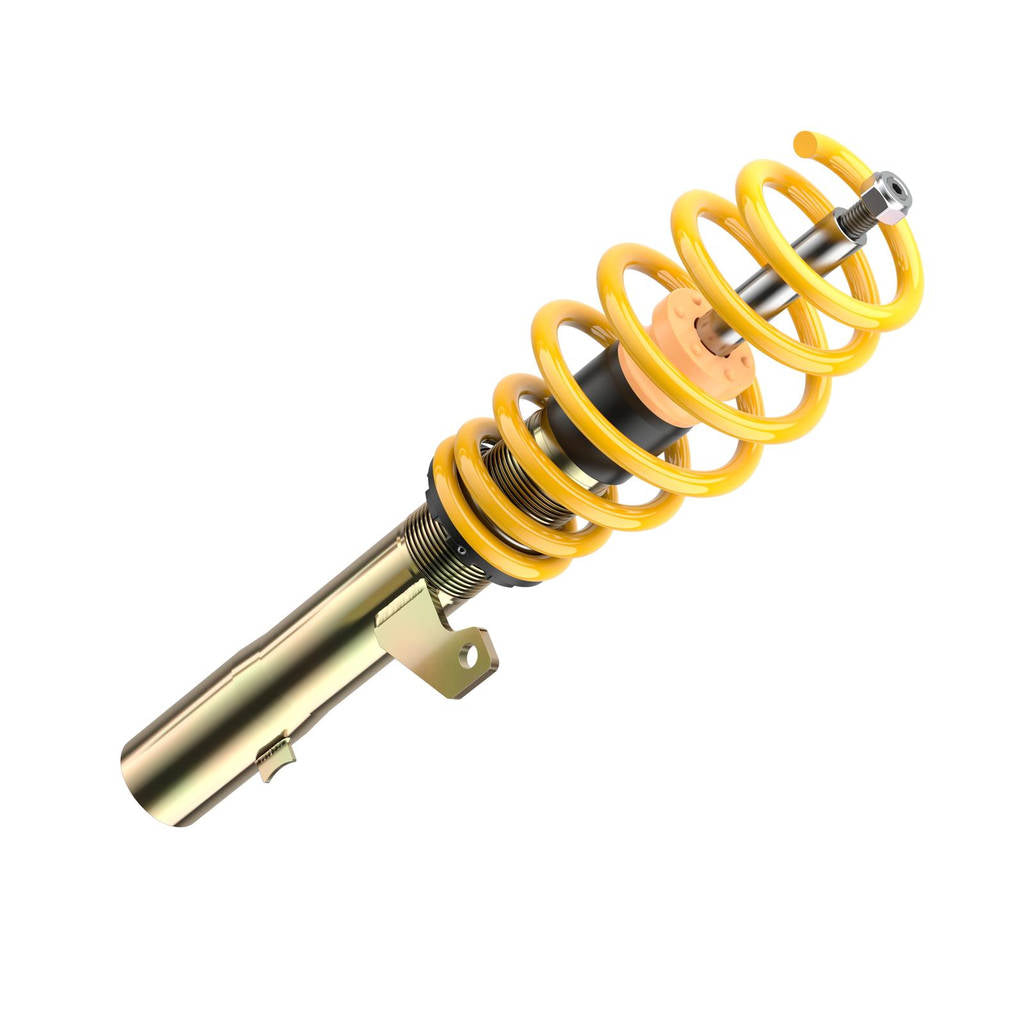

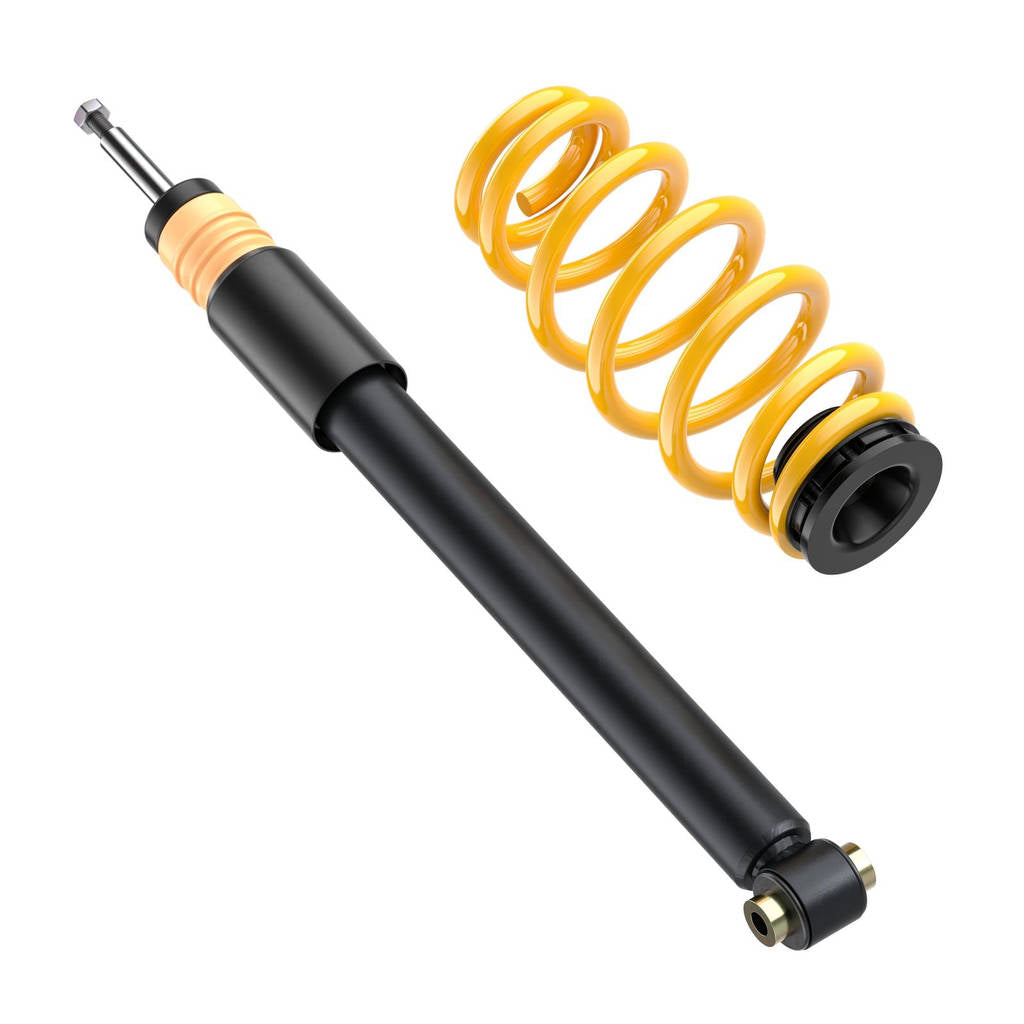

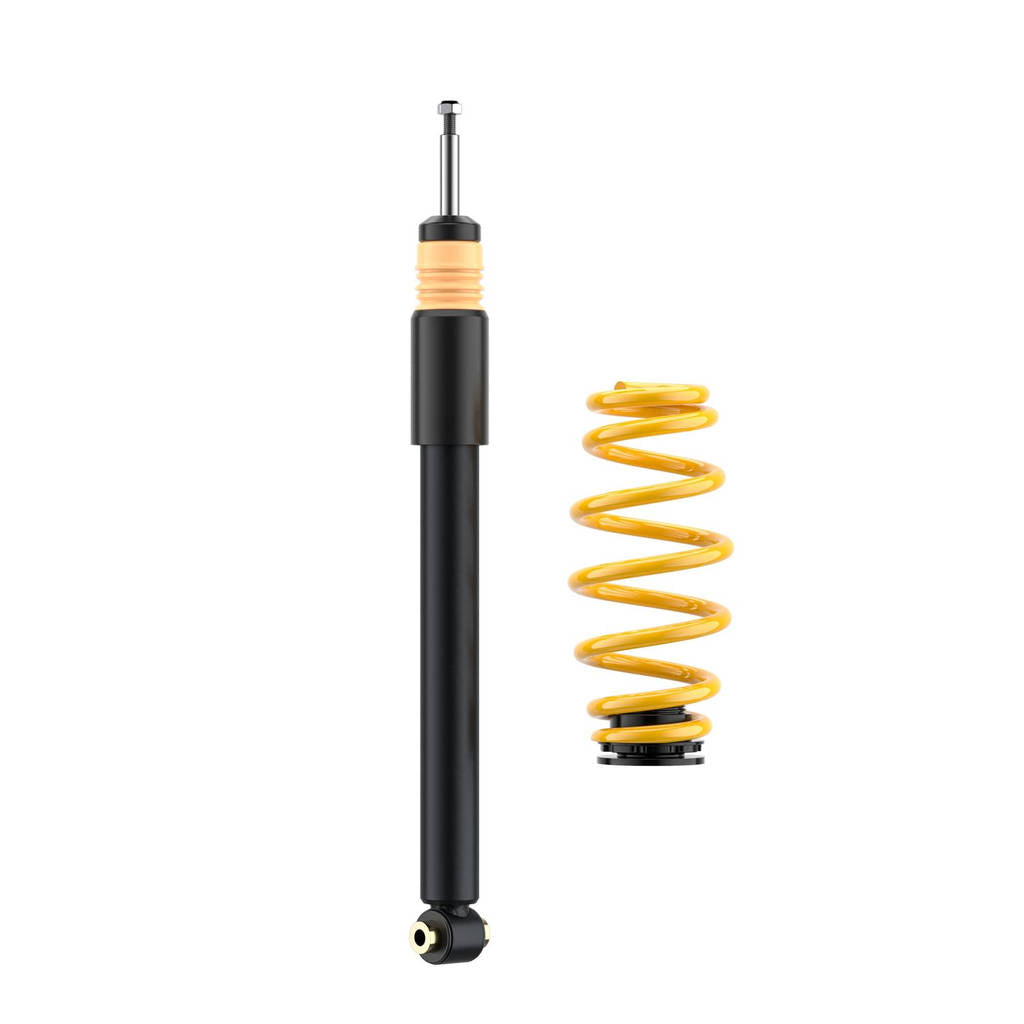

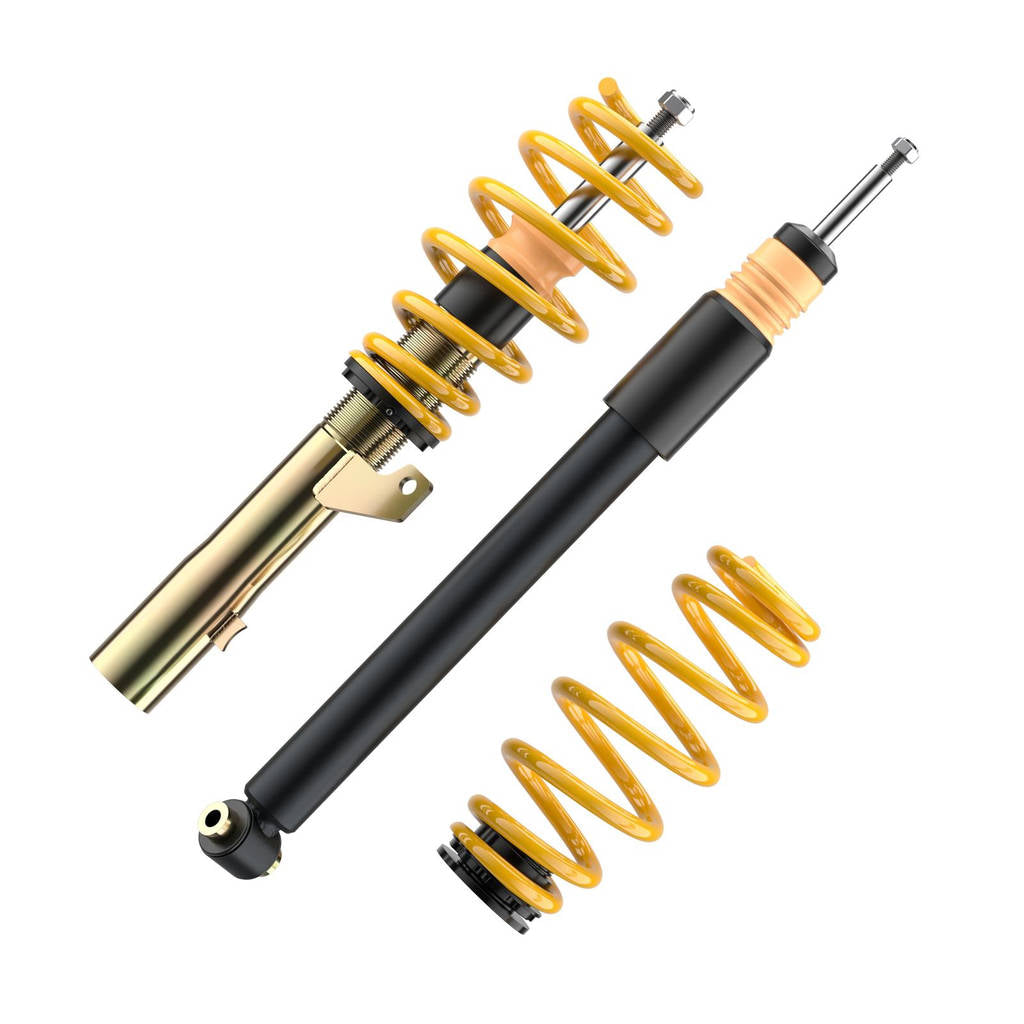

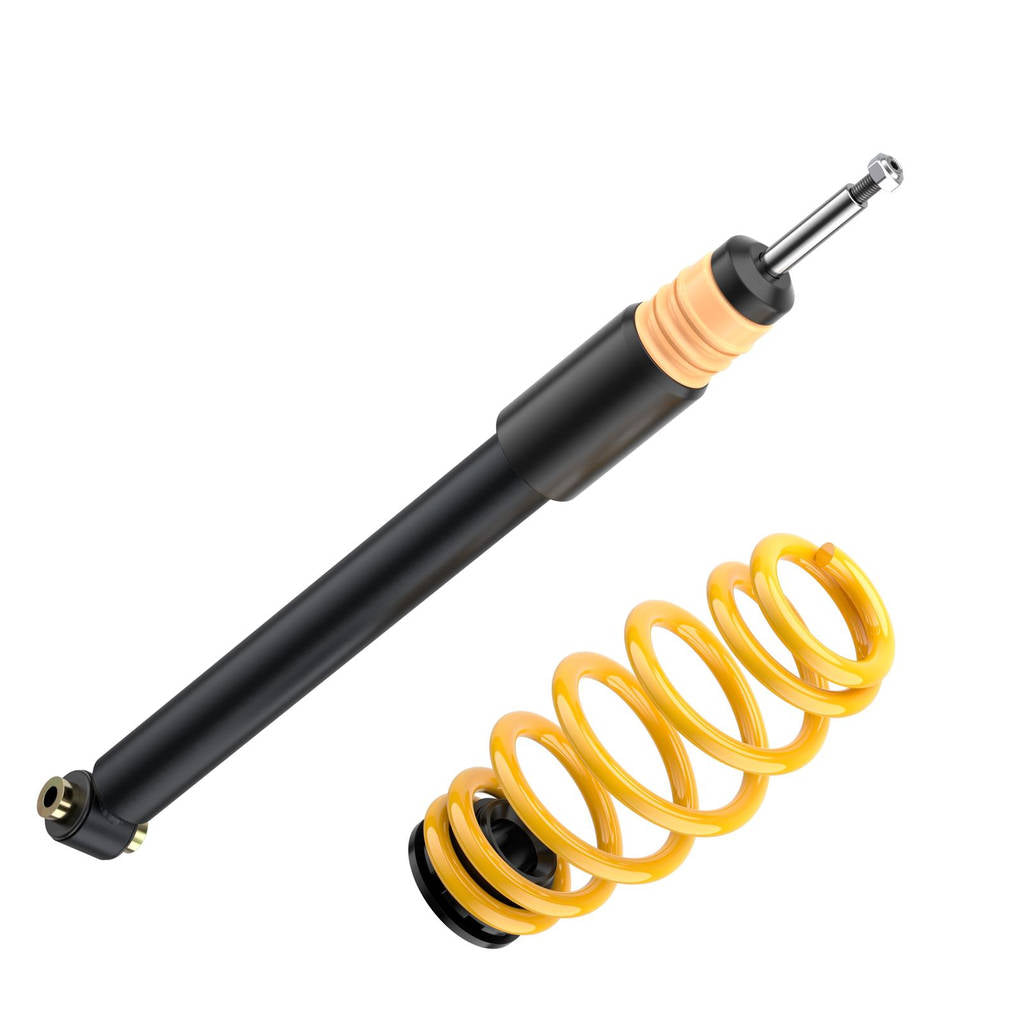

ST 132800EC Coilover Kit ST X Galvanized Steel (with Fixed Damping) for VW Passat (B9)

ST 132800EC Coilover Kit ST X Galvanized Steel (with Fixed Damping) for VW Passat (B9)

ST X Coilovers feature continuous-thread construction for height adjustment from moderate to extreme. Manufactured by KW Automotive, they provide high quality and responsive driving dynamics.

Height is adjusted using a polyamide ring on the galvanized, multiple-sealed Strut. ST X Coilovers reduce body roll during compression and improve agility during fast driving.

Each Coilover features a low-friction, pressure-resistant housing, chrome-plated Piston rod, monoblock guide, and ST seal package. These components help keep the twin-tube Shock absorbers / Dampers free from dirt particles in all weather conditions.

• Individual Lowering within the tested adjustment range
• Front axle and Rear axle thread adjustment, when possible
• Galvanized Coilover Struts with an additional coating for optimized corrosion protection
• Complete solution with adjustable spring plates, spring system, bump stops, dust protection, and twin-tube Shock absorbers / Dampers

Specifications:

• Product Line: Street Performance
• Version: X
• Damping adjustment: no
• Material: Galvanised steel
• Adjustment Front/Rear: Thread/Thread
• strut diameter front axle (mm): 55
• Approval: Parts type approval
• Content of delivery: Set Front coilover struts, Rear springs with height adjustment + dampers

Vehicle Fitment

• SKODA SUPERB IV Kombi (NZ5) 1.5 TSI mHEV
• SKODA SUPERB IV Kombi (NZ5) 2.0 TDI
• SKODA SUPERB IV Kombi (NZ5) 2.0 TSi
• VW PASSAT B9 Variant (CJ5) 1.5 eTSI
• VW PASSAT B9 Variant (CJ5) 2.0 TDI
• VW PASSAT B9 Variant (CJ5) 2.0 TSI
