SPEED ENGINEERING 14069 Track Brake Cooling System for BMW M240i LCI (F22)

Description SPEED ENGINEERING 14069 Track Brake Cooling System for BMW M240i LCI (F22)

The SPEED ENGINEERING 14069 Track Brake Cooling System is designed for the BMW M240i LCI F22 with M Package bumper. Intended for regular track use, it provides front axle brake cooling through flow-optimised air inlets and air ducts.

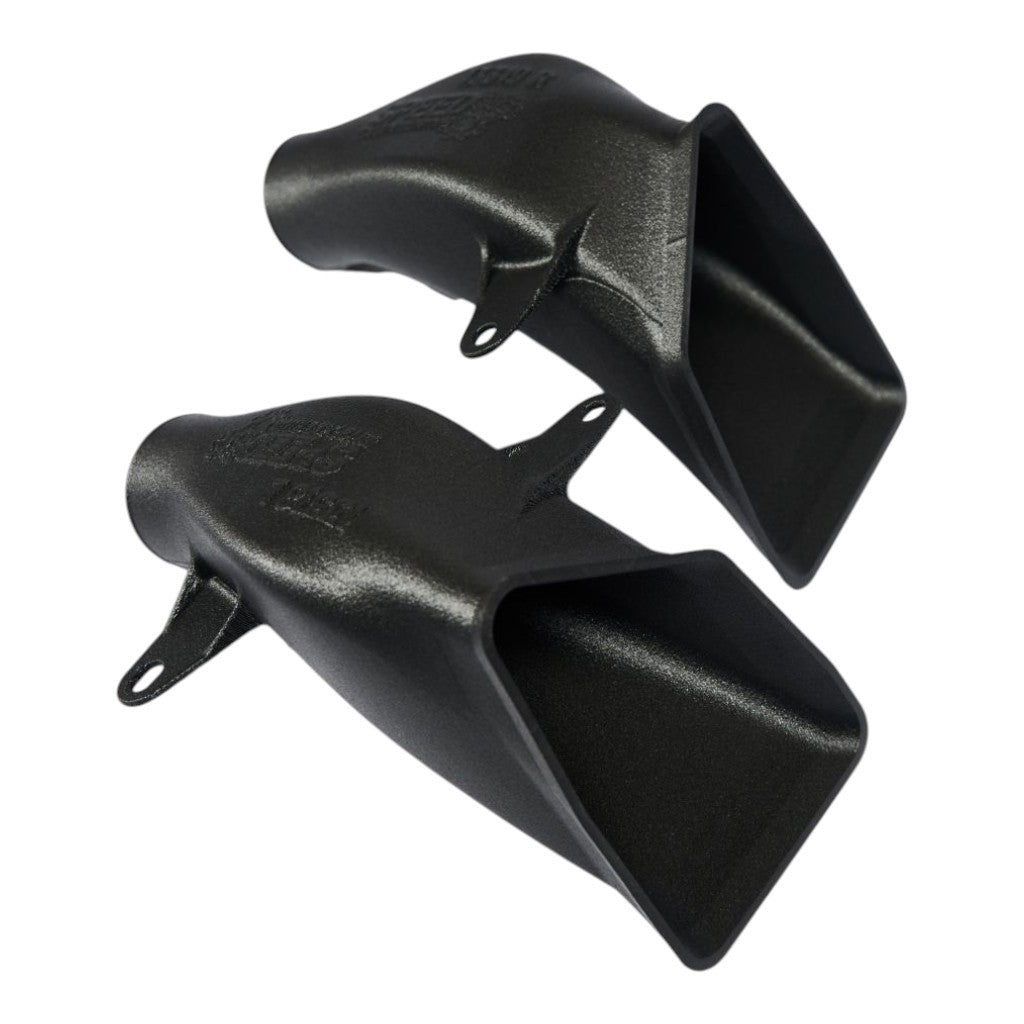

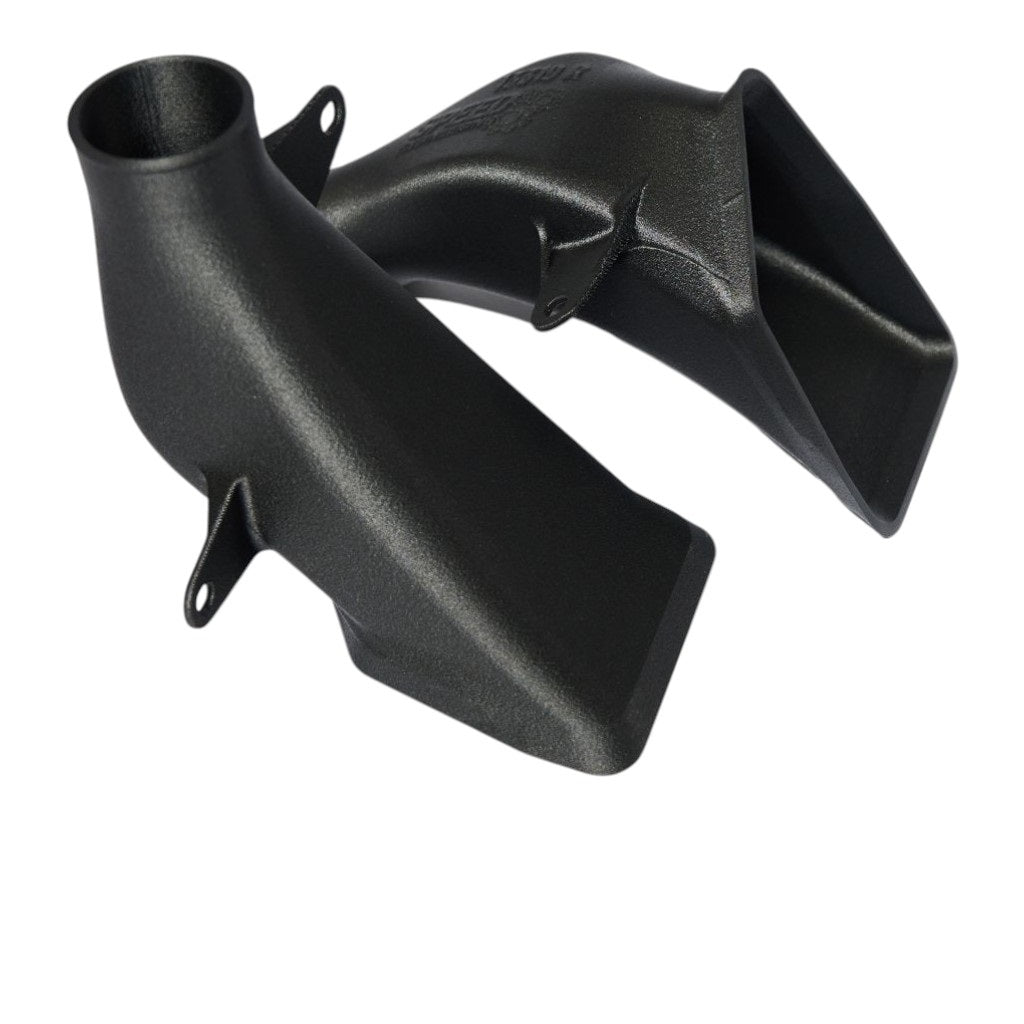

The Intake uses flow-optimised funnels that replace the original funnels in the front bumper. Each air duct features a 51 mm ventilation hose connection, routing air toward the outlet.

The outlet channels airflow toward the centre of the brake disc / brake rotor, using the turbine effect to cool it from the inside out. The lightweight, powder-coated aluminium construction provides strength and durability.

Fitment Note: Wheel position, suspension geometry, and wheel and tyre combinations vary between models. At full steering lock, the wheel may lightly touch the component; the final quarter of the steering travel should be avoided.

• Track brake cooling system designed for the BMW M240i LCI F22 with M Package bumper
• Flow-optimised funnels replace the original front bumper funnels
• Air ducts include 51 mm ventilation hose connections
• Outlet directs airflow toward the centre of the brake disc / brake rotor

Specifications:

• Installation Position: Front axle
• Material: Powder-coated aluminium
• Ventilation Hose Connection: 51 mm

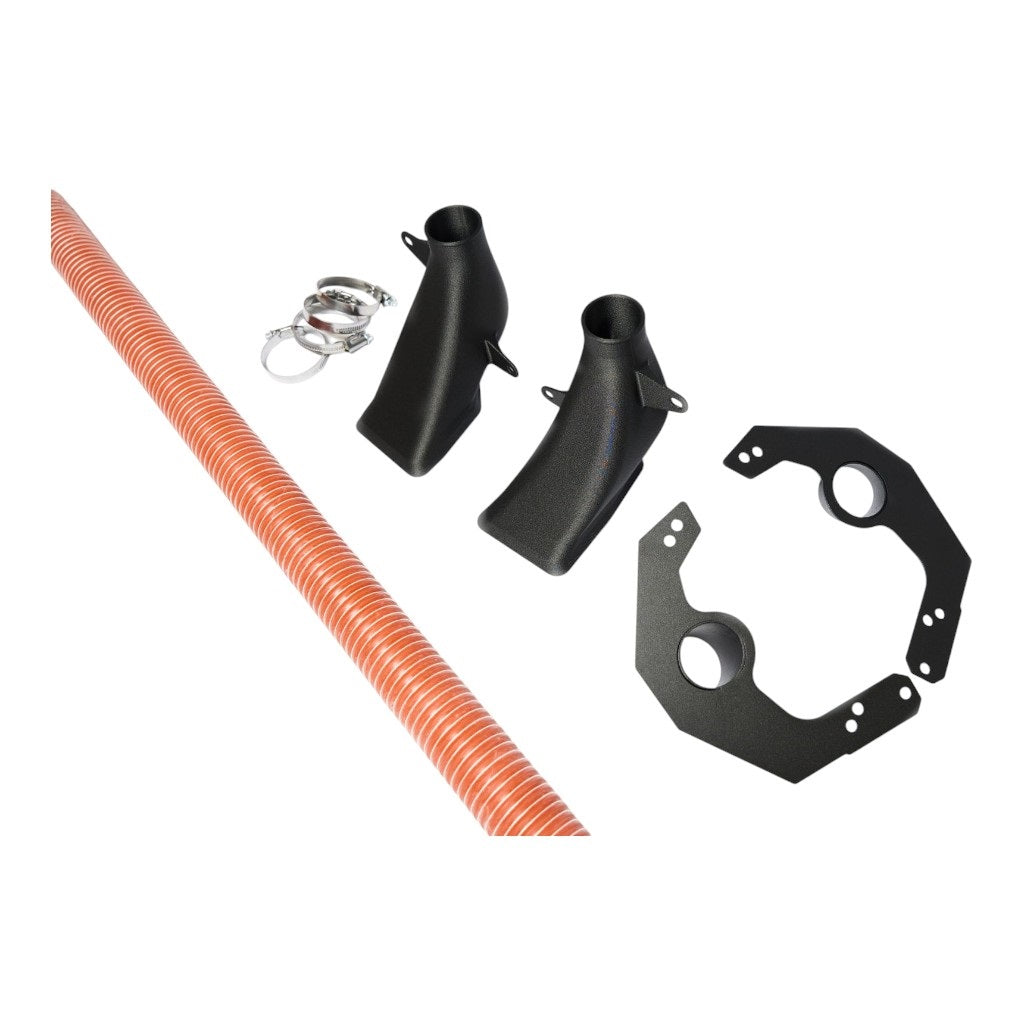

Kit comes with:

• 1x left air duct inlet for the front axle
• 1x right air duct inlet for the front axle

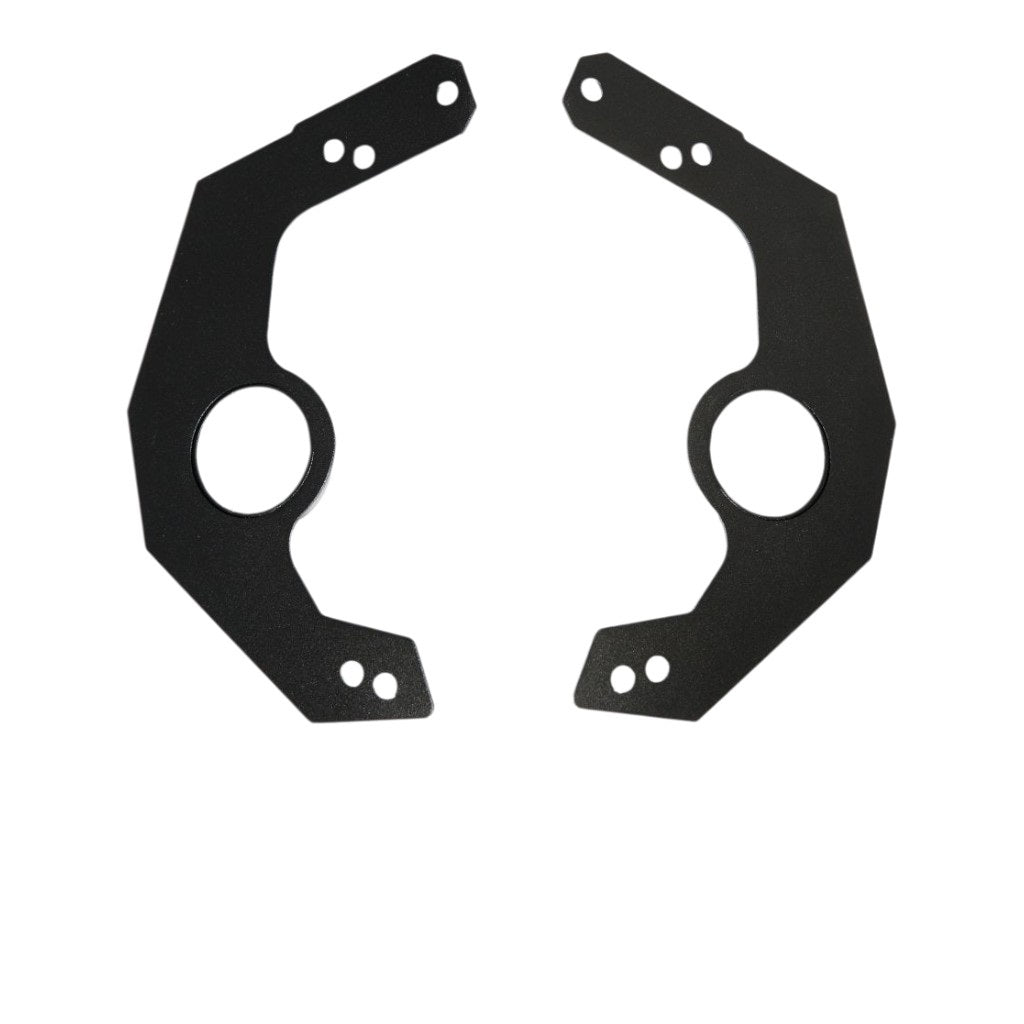

• 1x left anchor plate for the front axle
• 1x right anchor plate for the front axle
• 1x air hose
• 4x hose clamps
