SPEED ENGINEERING 13654 Front Axle Brake Cooling Kit for TOYOTA Supra (Mk5) / BMW Z4 (G29)

Description SPEED ENGINEERING 13654 Front Axle Brake Cooling Kit for TOYOTA Supra (Mk5) / BMW Z4 (G29)

The SPEED ENGINEERING 13654 Front Axle Brake Cooling Kit is designed for the front axle of the TOYOTA Supra Mk5 and BMW Z4 G29. This redesigned generation provides improved clearance around the wheel rim while directing airflow to the brake disc / brake rotor area.

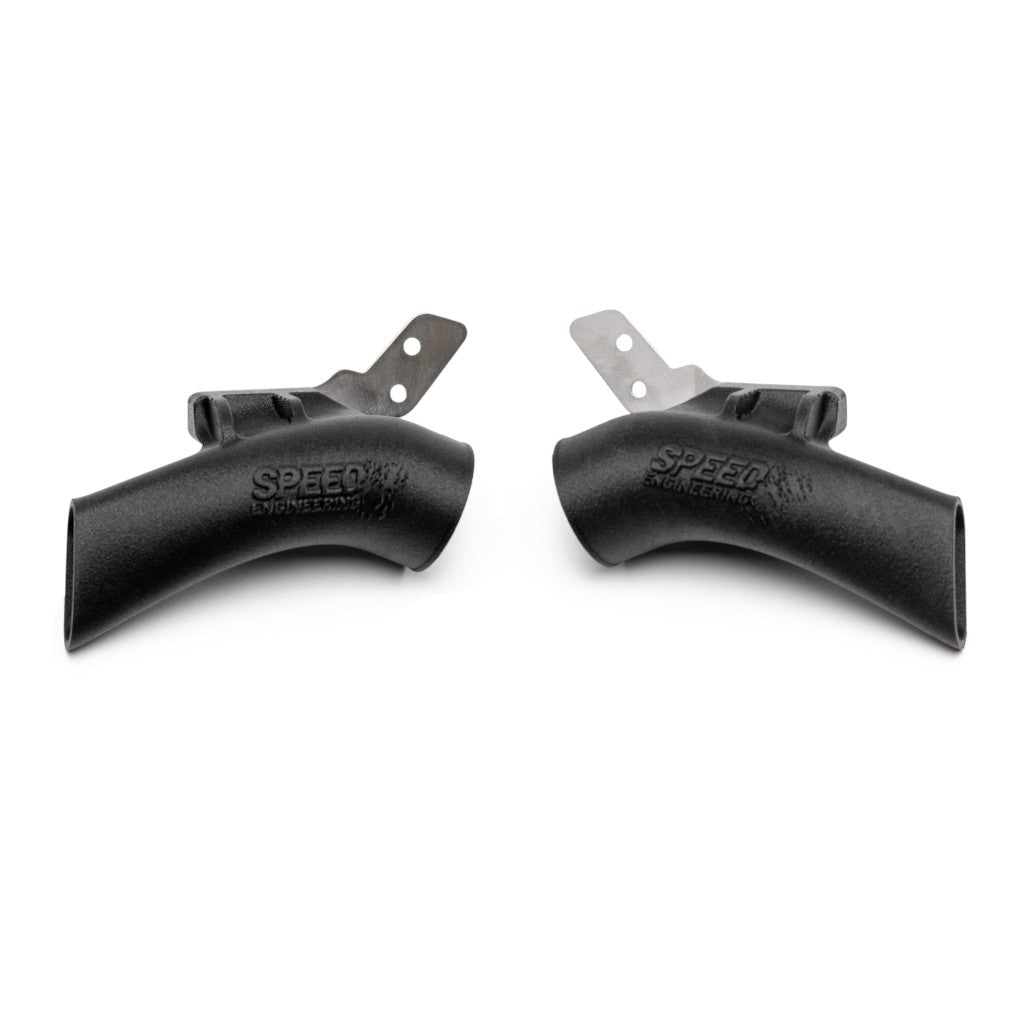

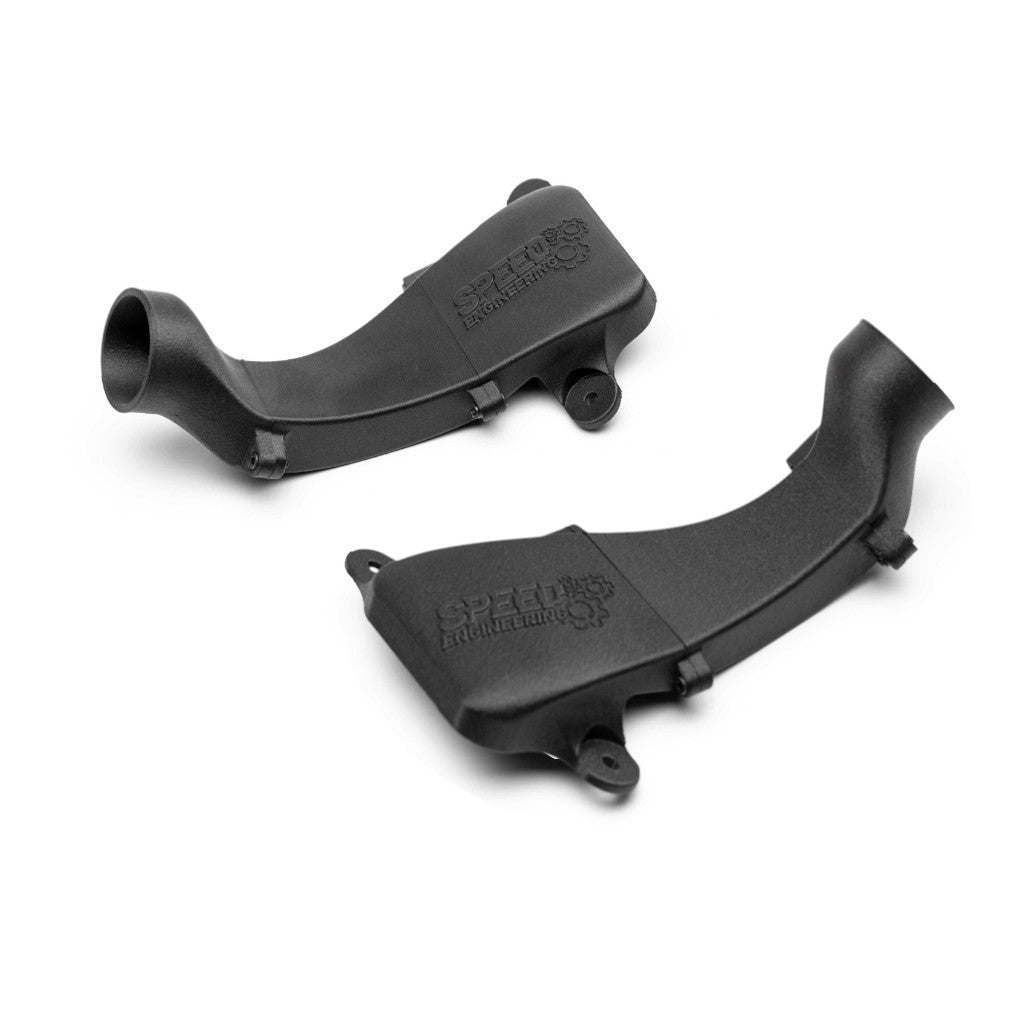

The system uses an air duct inlet and extension to guide air from the wheel arch area around the wheel and through one hose per side to the outlet. The wheel carrier-mounted outlet directs airflow toward the centre of the brake disc / brake rotor regardless of wheel position.

Existing mounting points are used without permanent vehicle modifications. The short hose layout helps reduce airflow losses and hose strain.

Installation Note: On some models, a small section of the wheel arch liner must be cut out to create space for the air duct and ensure tension-free installation.

Road Use: Motorsport parts are not approved for road use.

Fitment Note: Models vary slightly in wheel position, chassis geometry, and wheel and tyre combinations. In some cases, the wheel may lightly touch at full steering lock, and the final quarter of the steering travel should be avoided.

• Designed for the front axle of the TOYOTA Supra Mk5 and BMW Z4 G29
• Redesigned with improved clearance around the wheel rim
• One hose per side connects the air duct inlet to the outlet
• Airflow direction remains independent of wheel position

Specifications:

• Installation Position: Front axle
• Air Hose Length: 1 metre
• Additional Front Axle Upgrade: Clubsport cooling kit available separately
• Rear Axle Cooling System: Available separately

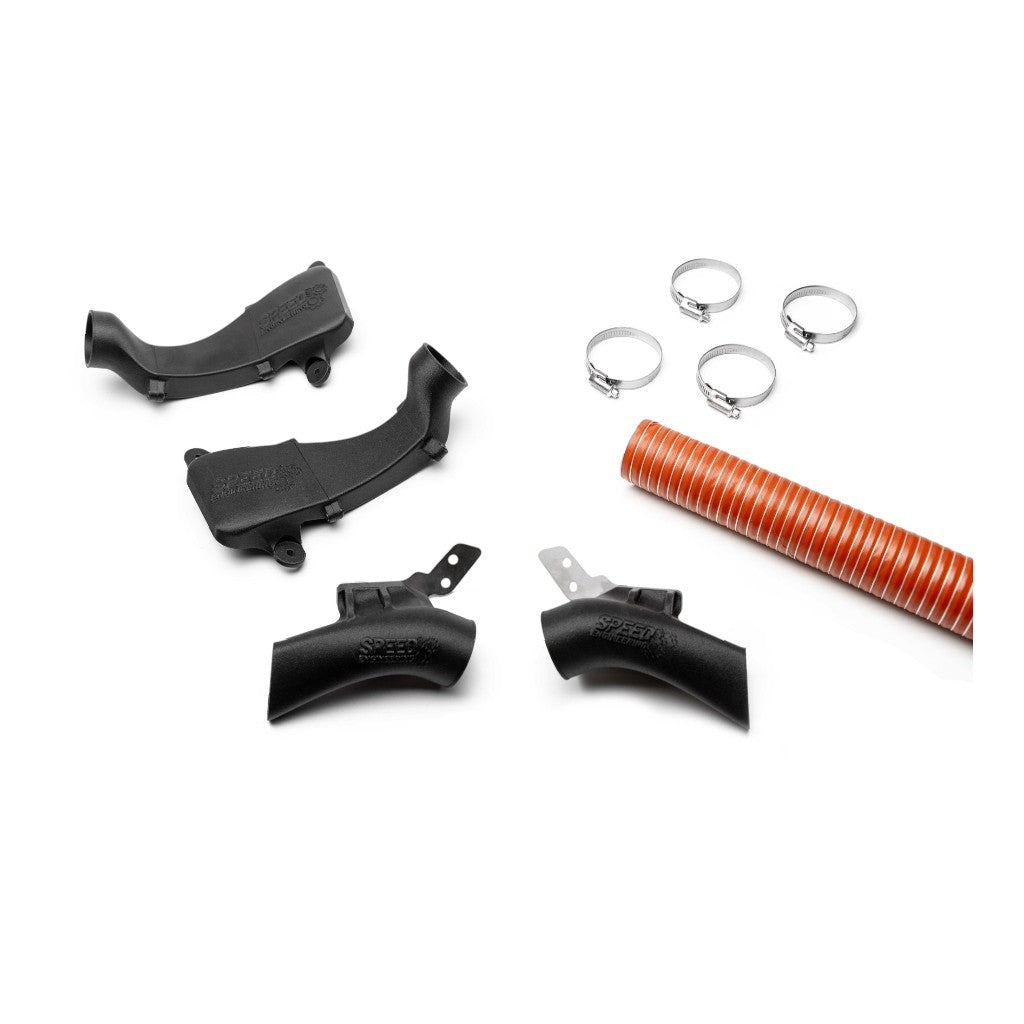

Kit comes with:

• 1x air duct inlet for front axle left
• 1x air duct inlet for front axle right
• 1x air duct outlet for front axle left
• 1x air duct outlet for front axle right
• 1x air hose, 1 metre
• 4x hose clamps
