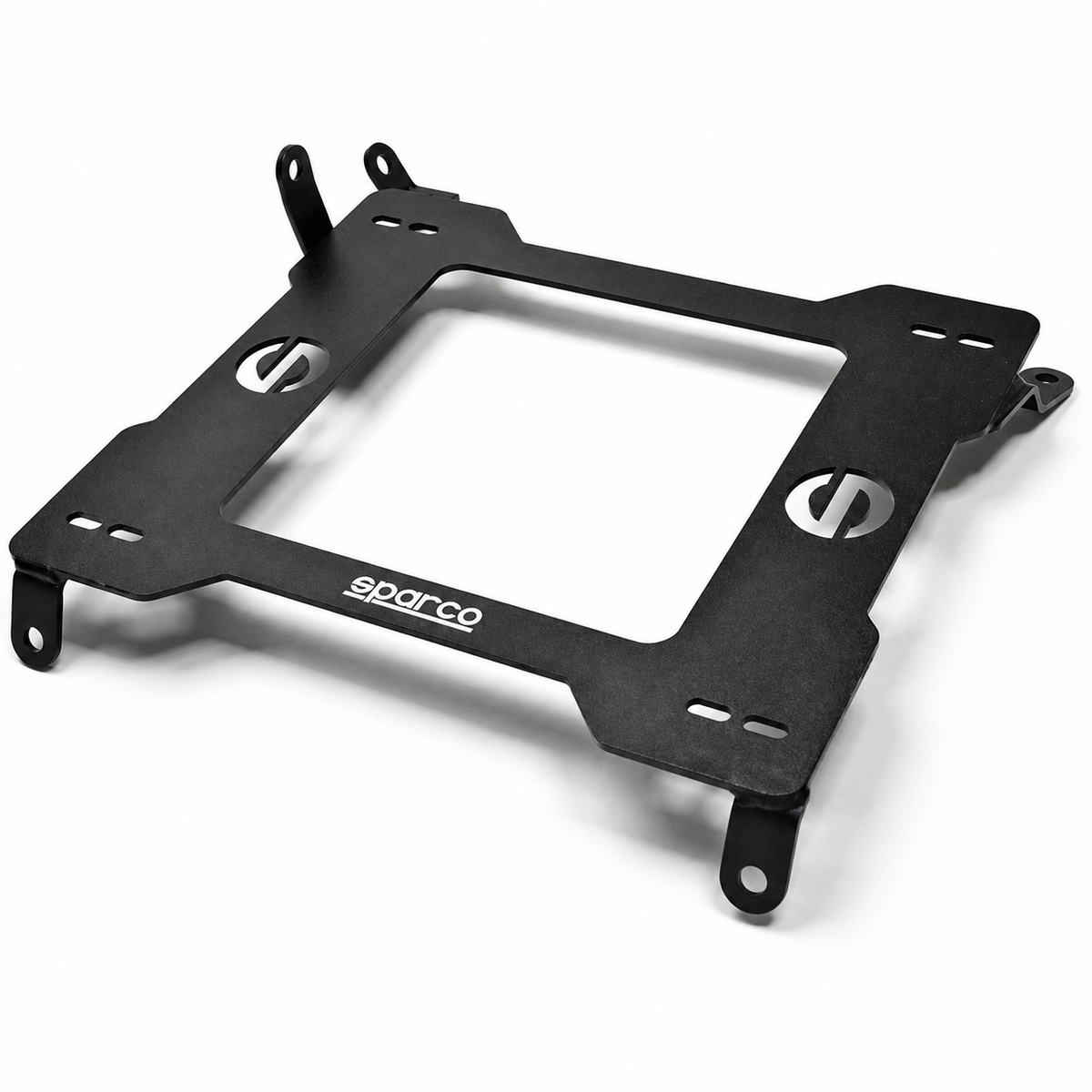

SPARCO 600SB039L Seat Base 600 Series (Left) for FORD Mustang 2005-2013

Description SPARCO 600SB039L Seat Base 600 Series (Left) for FORD Mustang 2005-2013

Sparco Seat Bases utilize the factory seat mounts on the vehicle floor and provide a flat surface for mounting a Sparco seat. All seat bases are vehicle-specific and provide a 100% Bolt-on installation.

The 600 Series Sparco Seat Base is constructed from 3/16-inch thick steel to provide a strong, flex-free mount. In addition to the mounting holes provided for standard Bolt-on installation, the Sparco base has a wide metal platform to allow custom direct mounting of side mounts to the base, with drilling required. This direct installation is an option for race vehicles where the lowest seat position is desired. The base is powder coated in a black wrinkle finish.

For proper installation of a Sparco seat, one of each of the following is required per seat: Bottom Mount Seat (Street Series Seats): Seat Base (600 Series), Track Set (#00493), and Bottom Mount Hardware Kit (#50001). Side Mount Seat (Competition Series Seats): Seat Base (600 Series), Track Set (#00493), Side Mount (steel #004902 or aluminum #600W), and Side Mount Hardware Kit (#50002).

Note: The Track Set allows forward and backward adjustment of the seat.

Note: Side mounts are not required on seat base applications marked “SIDE MOUNT ONLY” and cannot be used with the Track Set Slider.

Note: Bases may differ from the photo due to make/model.

Technology:

• 3/16-inch steel construction
• Black wrinkle powder coat finish
• Outer mounting locations allow for wider side-mount seats, including EVO L and EVO XL
• Wide mounting surface allows direct mounting of side mounts, with drilling required
