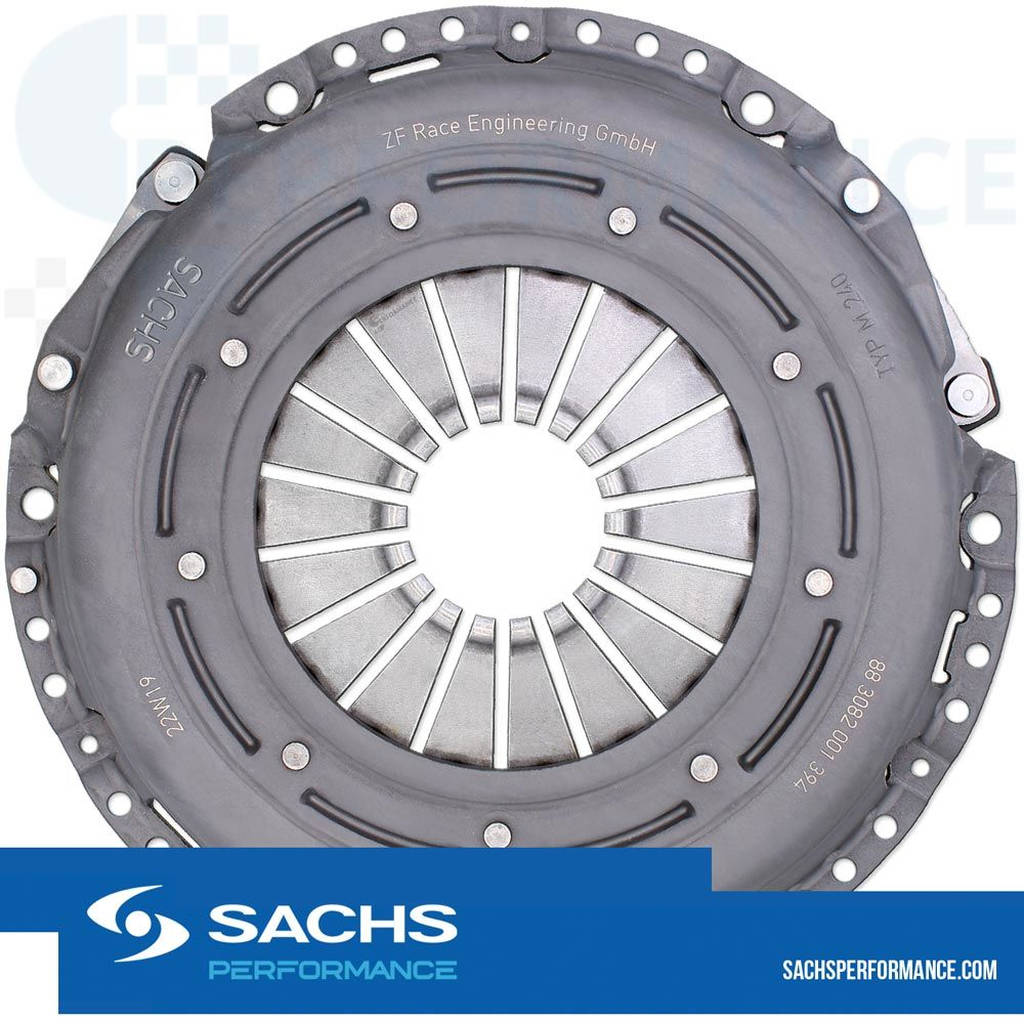

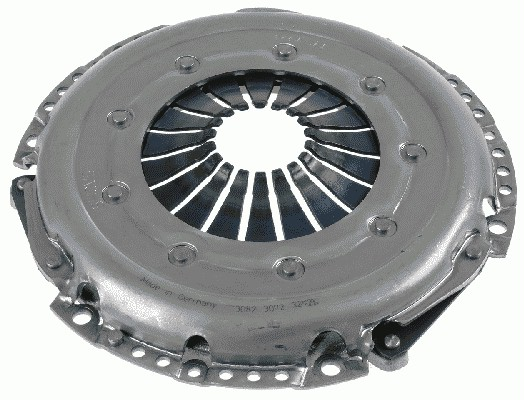

SACHS PERFORMANCE 883082001394 Clutch Cover Performance

Description SACHS PERFORMANCE 883082001394 Clutch Cover Performance

The reinforced SACHS Performance clutch cover offers fundamental advantages over an OE clutch cover, including higher transmittable Torque, greater resistance against thrust, and faster, sportier gearshifts. It is suitable for street tuning, endurance racing, hill climbing, and vehicles frequently driven at their maximum gross vehicle weight.

SACHS Performance clutches are assembled by hand, ensuring consistently high-quality clamping load and release characteristics.

Technology

The SACHS Performance clutch pressure plate is firmly bolted to the flywheel. When engaged, it transmits engine Torque to the clutch disc via the housing, tangential leaf springs, and clutch pressure plate. Decisive design factors are the pressure plate's heat capacity and the diaphragm spring's contact and release force.

When the clutch is engaged, the diaphragm spring presses the axially movable pressure plate against the clutch disc and flywheel. Its shape, material, and sporty characteristics ensure high transmittable engine Torque.

• The clutch is one of the most heavily stressed elements in the drivetrain.
• The spring remains reliable after many thousands of clutch operations.
• Force and travel ratios change due to system-related wear of the clutch friction material.

Specifications:

• Diameter (mm): 240
• Size code: M240
• Type: reinforced
