SACHS PERFORMANCE 003072000484 Clutch Housing RCS 184

Description SACHS PERFORMANCE 003072000484 Clutch Housing RCS 184

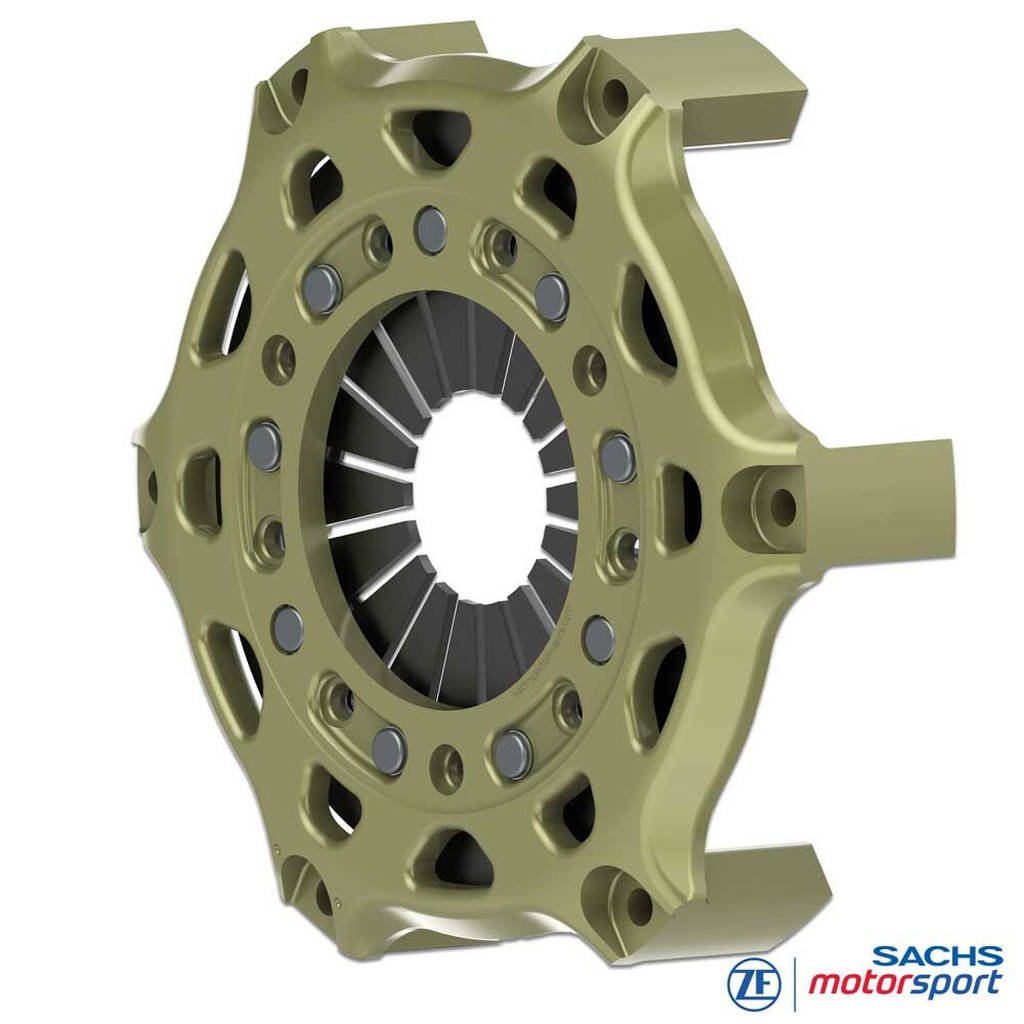

Compact, Lightweight and highly durable, the SACHS RCS 184 clutch cover (housing) is the central support structure of ZF Motorsport’s modular Racing Clutch System. It has been developed for professional use in high-performance racing clutches.

The RCS 184 version combines a compact design with high housing stiffness, precise component guidance and robust performance at high engine speeds, during fast shifts and under repeated thermal load in racing.

• Function: Accommodates the pressure plate, intermediate plates and clutch discs, guides the components precisely and transmits Torque within the modular RCS system. The high housing stiffness supports defined modulation, stable component positioning and reproducible shifts.
• Design: High-strength aluminium with series-specific RCS 184 geometry. The compact design reduces rotating mass and moment of inertia and enables a torsionally stiff construction for demanding motorsport applications.
• Clamp load: In combination with the pressure plate, diaphragm spring, intermediate plates and clutch discs, the clutch housing contributes to precisely defined clamp load. This supports repeatable Torque transmission and consistent engagement behaviour in motorsport operation.
• Release system: Available for release diameters of 44 mm and 49 mm, allowing the clutch housing to be configured for the respective release bearing, concentric slave cylinder and actuation system.
• Thermal management: The special housing geometry supports efficient heat dissipation and stabilises the temperature window of the clutch pack, particularly with short shift windows, high engine speeds and repeated thermal load.

Specifications:

• Clutch housing RCS 184-N-D-S-49
• Release diameter: 49 mm
• Release force: 4,300 N
• Replaces 003072 000134
