RN VISION P-PRO-CANCABLE-01 CAN Cable 12V Photo-0

RN VISION P-PRO-CANCABLE-01 CAN Cable 12V

AED 696.15

Tax included. Shipping calculated at checkout

RN VisionP/N: P-PRO-CANCABLE-01
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

RN VISION P-PRO-CANCABLE-01 CAN Cable 12V

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

ATOMIC-SHOP UAE (RABDAN Motorsport)

Pickup available, usually ready in 1 hour

14 10b St - Al Quoz Industrial Area 3
Dubai DU
United Arab Emirates

+971559861650

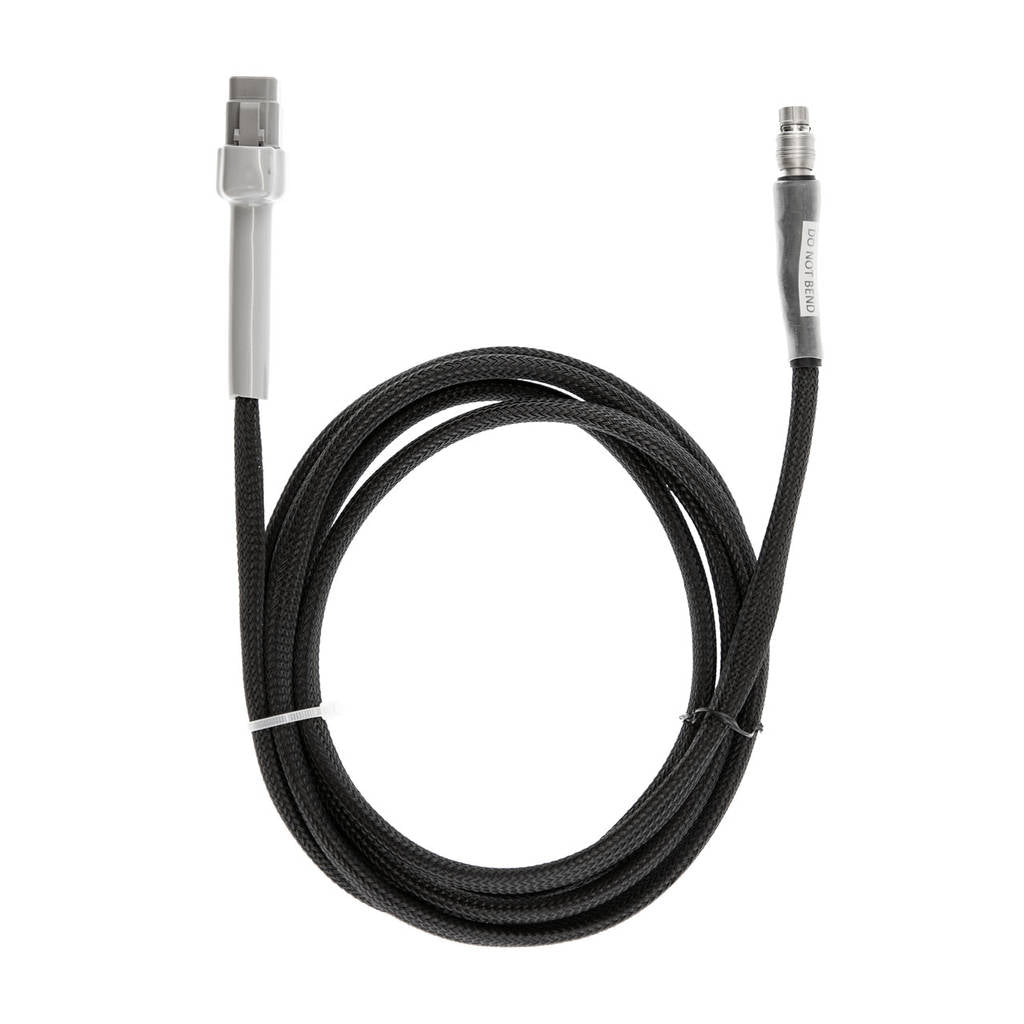

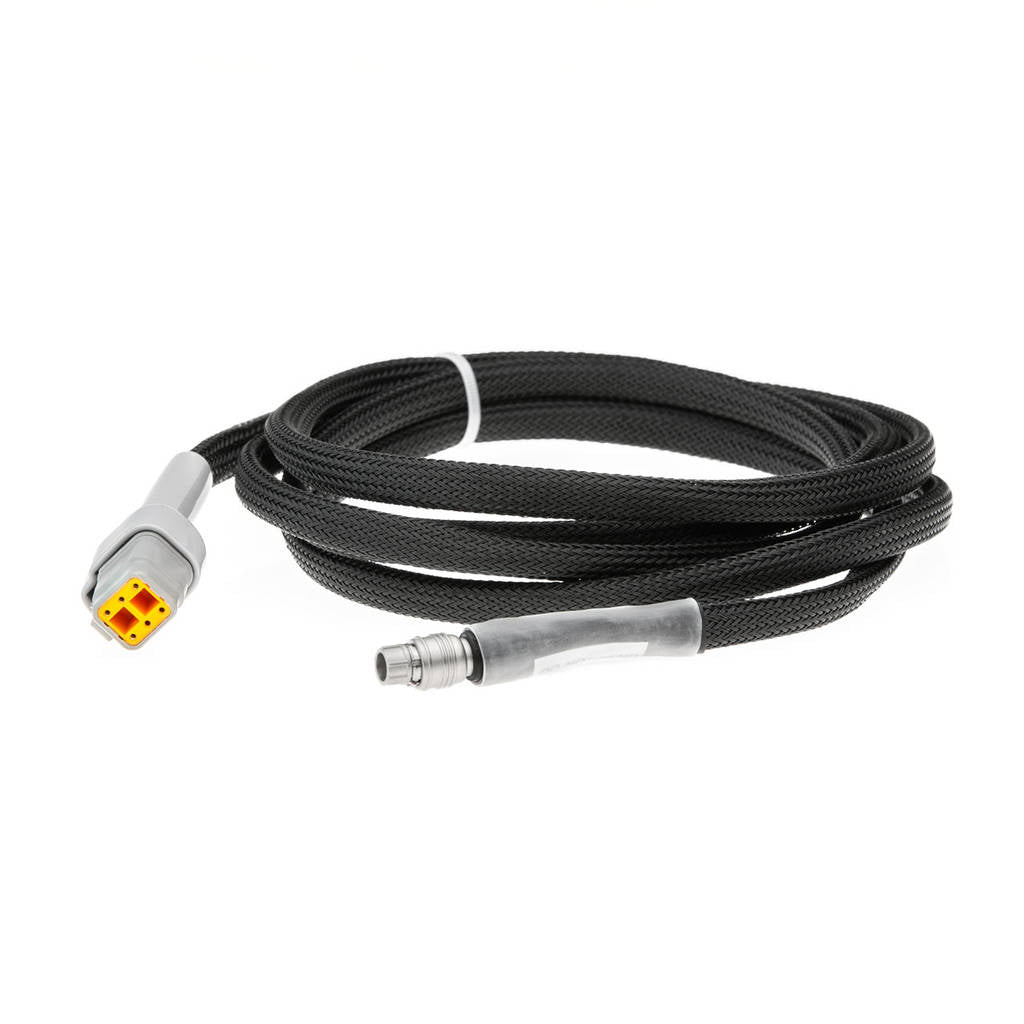

The 12V CAN Cable is required when you want to use RN CAN Adapters for a range of car models. One end of the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to the specific CAN Adapter for your car model.

Technical data:

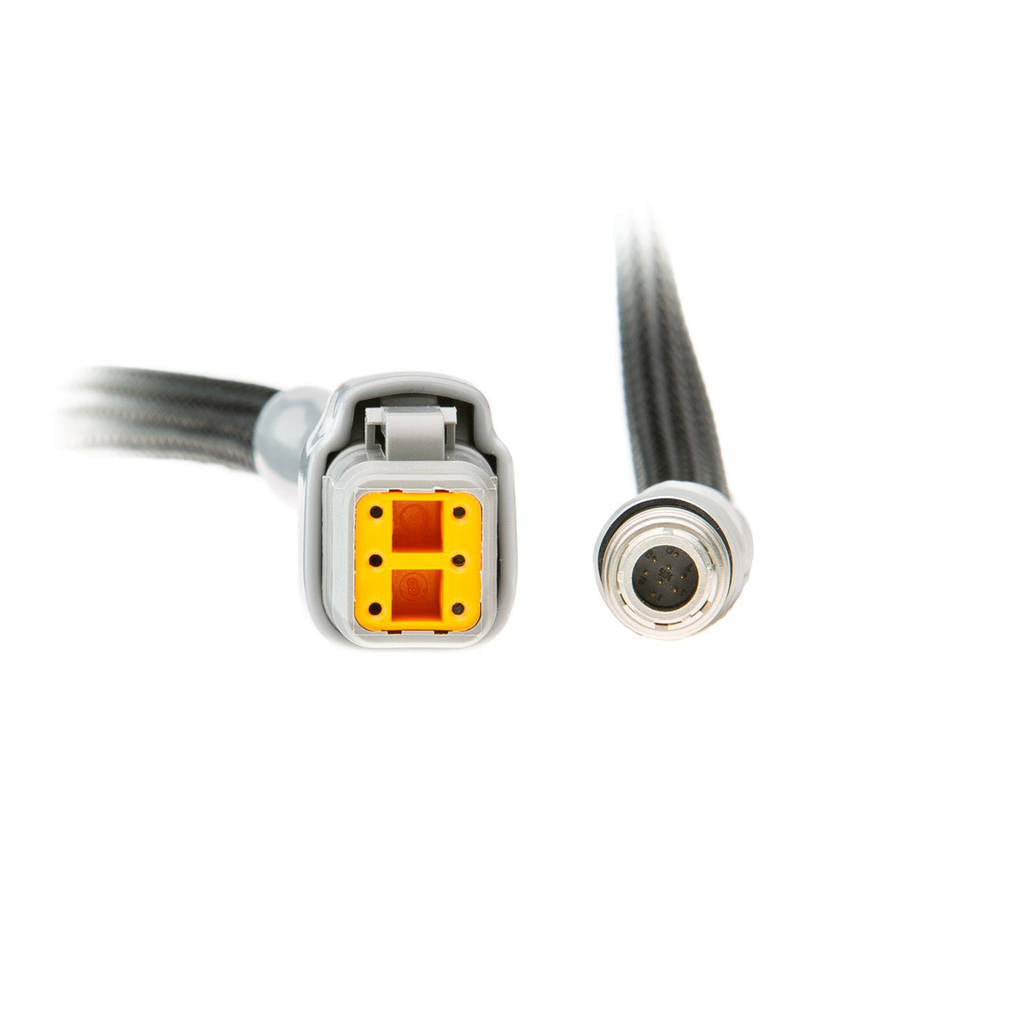

  • Pinout Deutsch DTM06-6S
  • BLUE – 4: Power (+12V)
  • BROWN – 1: Ground (GND) + Shield
  • BLACK – 5: Can High
  • RED - 6: Can Low
