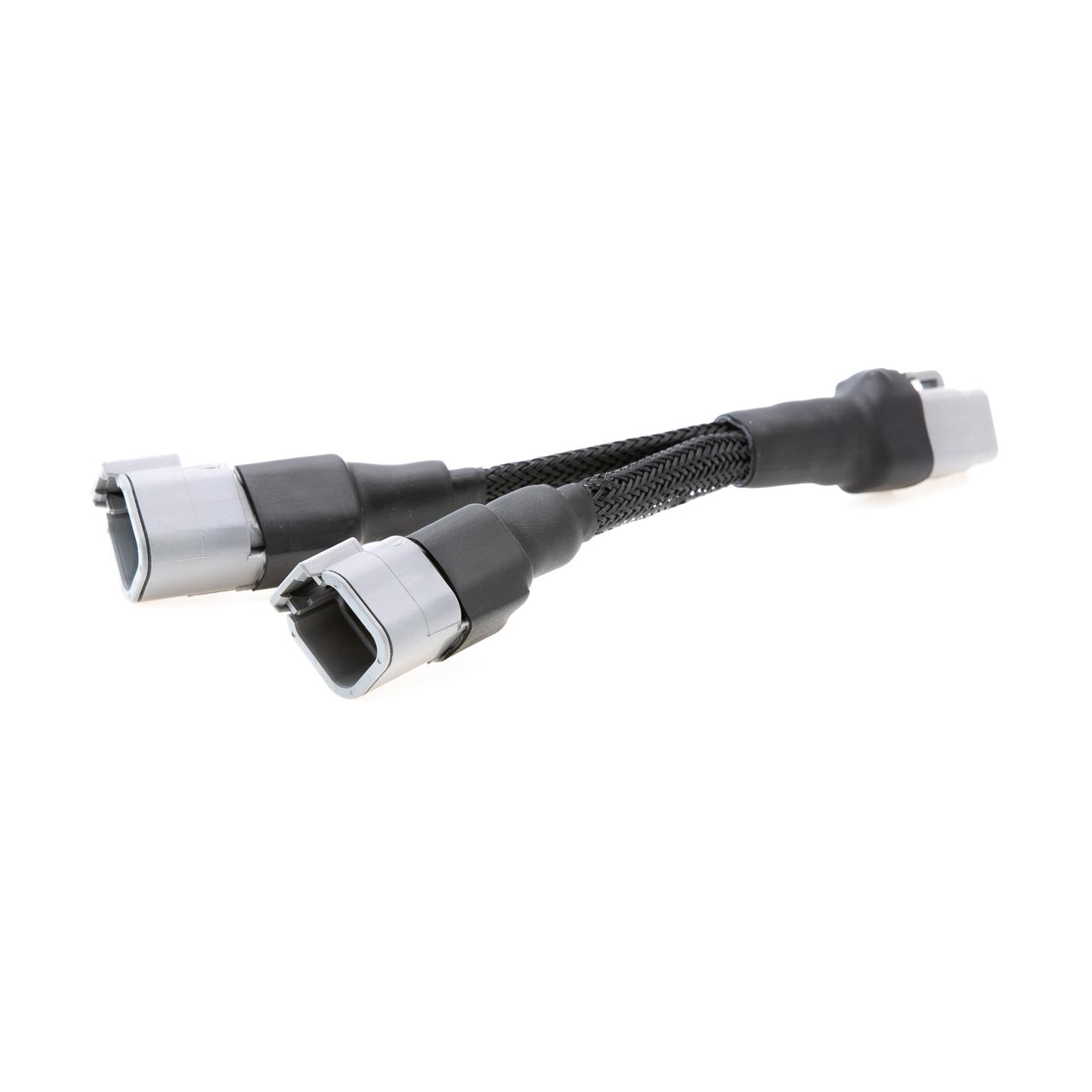

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter Photo-0

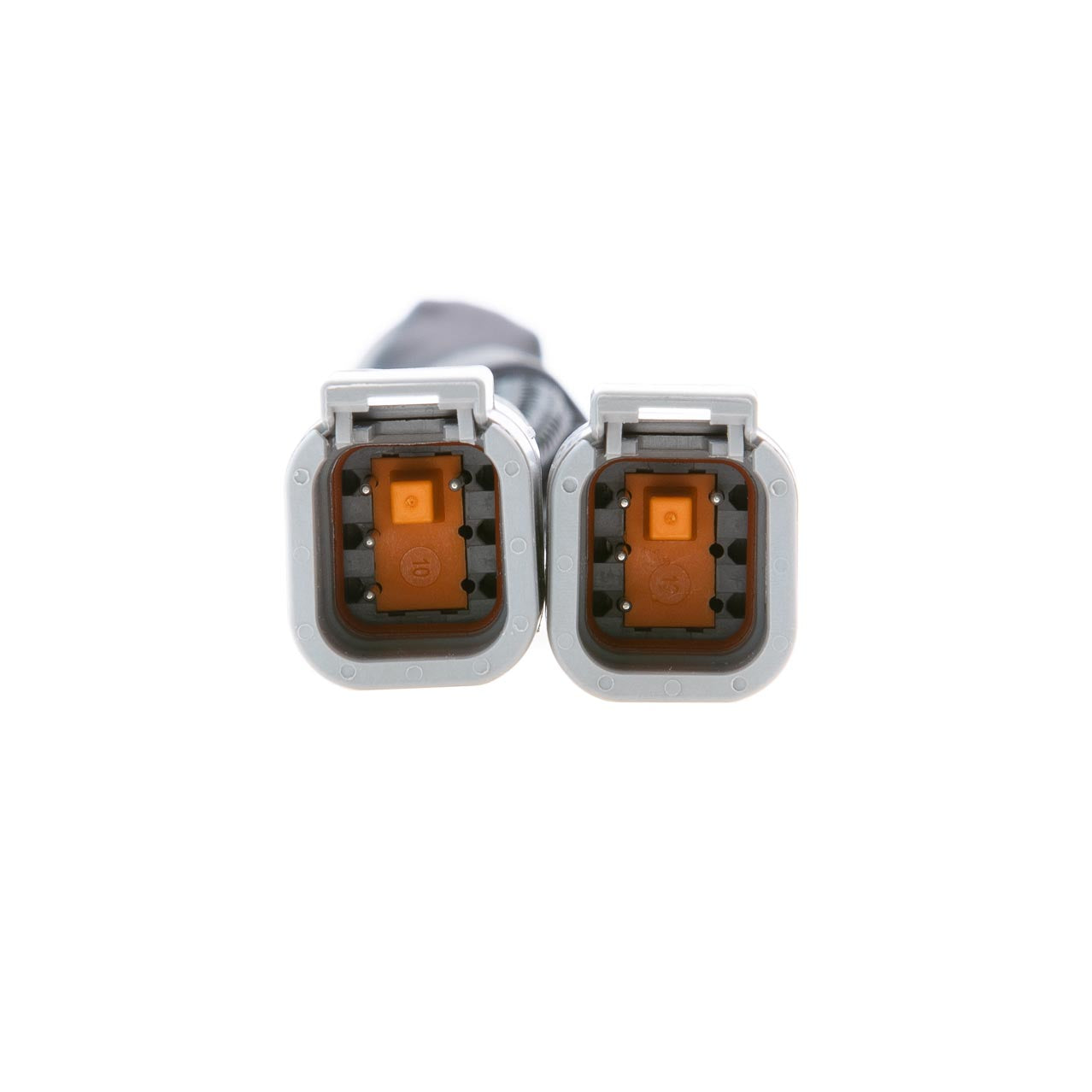

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter Photo-1

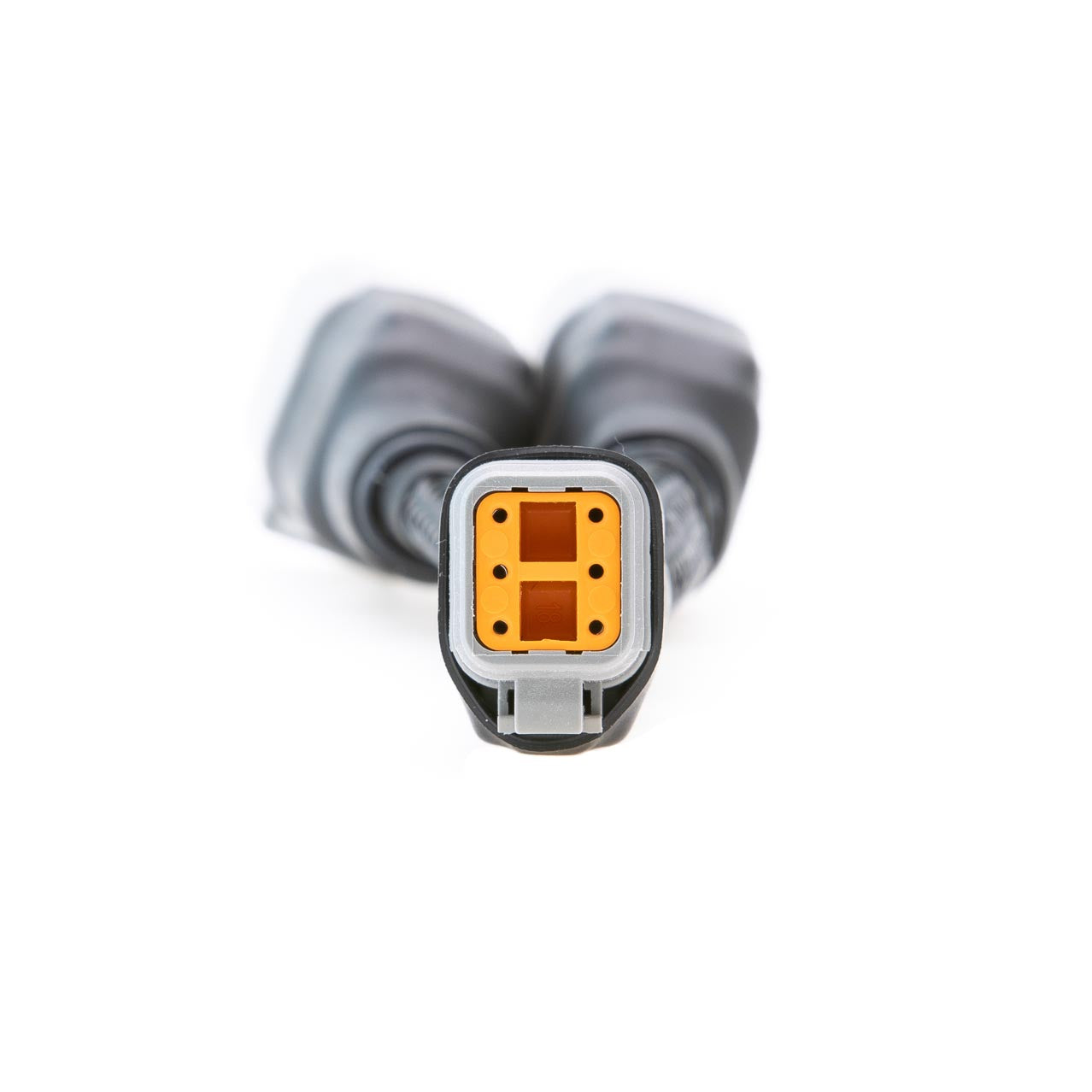

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter Photo-2

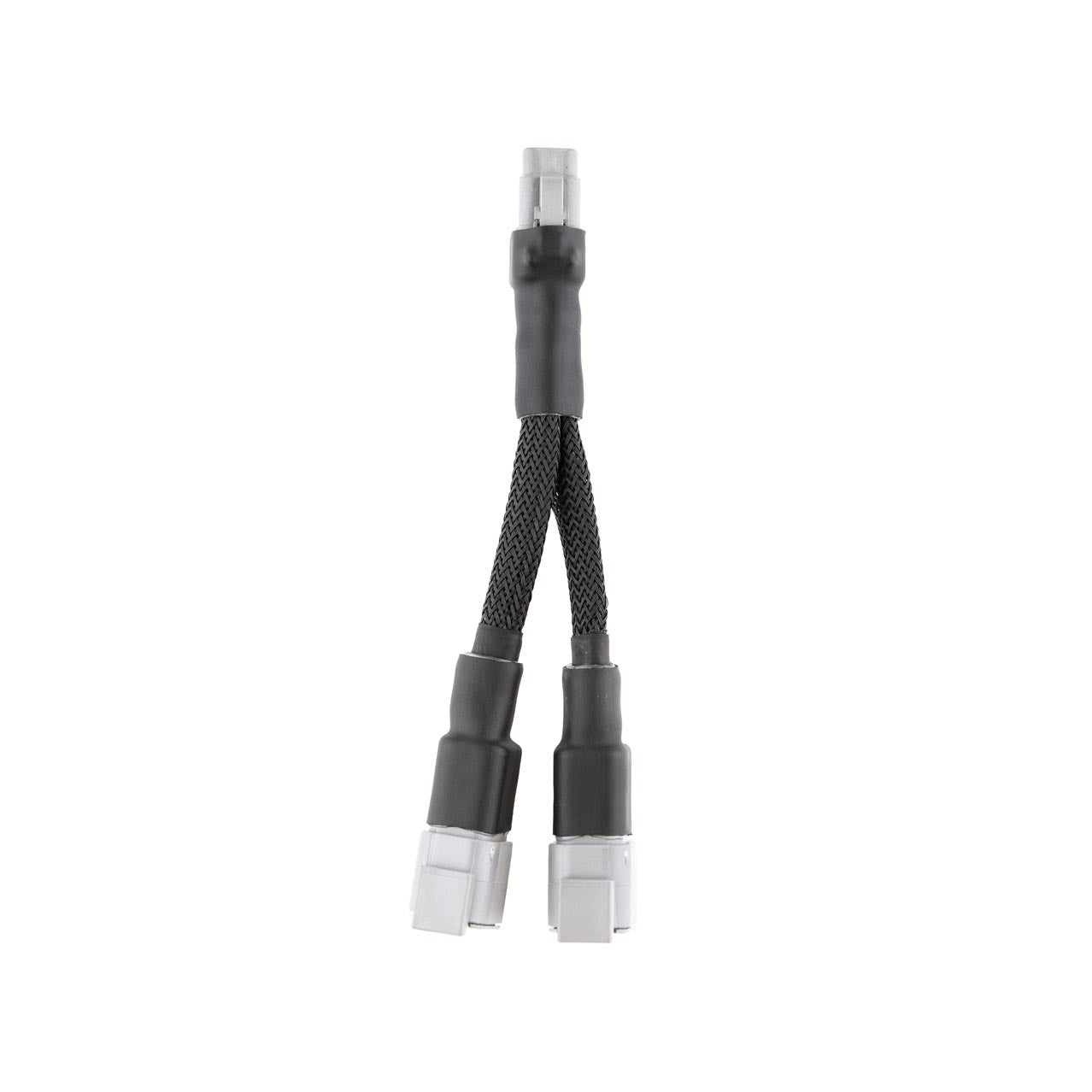

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter Photo-3

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter

AED 1,082.51

Tax included. Shipping calculated at checkout

RN VisionP/N: P-LOO-CAN-Y-ADAPTER
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at ATOMIC-SHOP UAE Usually ready in 1 hour

RN VISION P-LOO-CAN-Y-ADAPTER CAN Y-Adapter

ATOMIC-SHOP UAE

Pickup available, usually ready in 1 hour

26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

+97143580877

Thanks to this adapter, two data loggers can be connected simultaneously to the CAN-Bus of your vehicle. Many racing series now require the use of a mandatory data logger. With the CAN-Y adapter, you can simultaneously use your Race Navigator and connect it to the CAN-Bus.

Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to the specific CAN Adapter for your car model. The 12V CAN Cable is not included in this article and must be ordered separately (see accessories).

Technical data:

Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low

Pinout DTM 06-6S
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
