RN VISION P-LOO-CAN-PORSCHE-CAYMAN-GT4-GT2RS-CS-2019 Can loom for PORSCHE Cayman GT4 2019 and GT2RS Clubsport 2019
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
RN VISION P-LOO-CAN-PORSCHE-CAYMAN-GT4-GT2RS-CS-2019 Can loom for PORSCHE Cayman GT4 2019 and GT2RS Clubsport 2019
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates

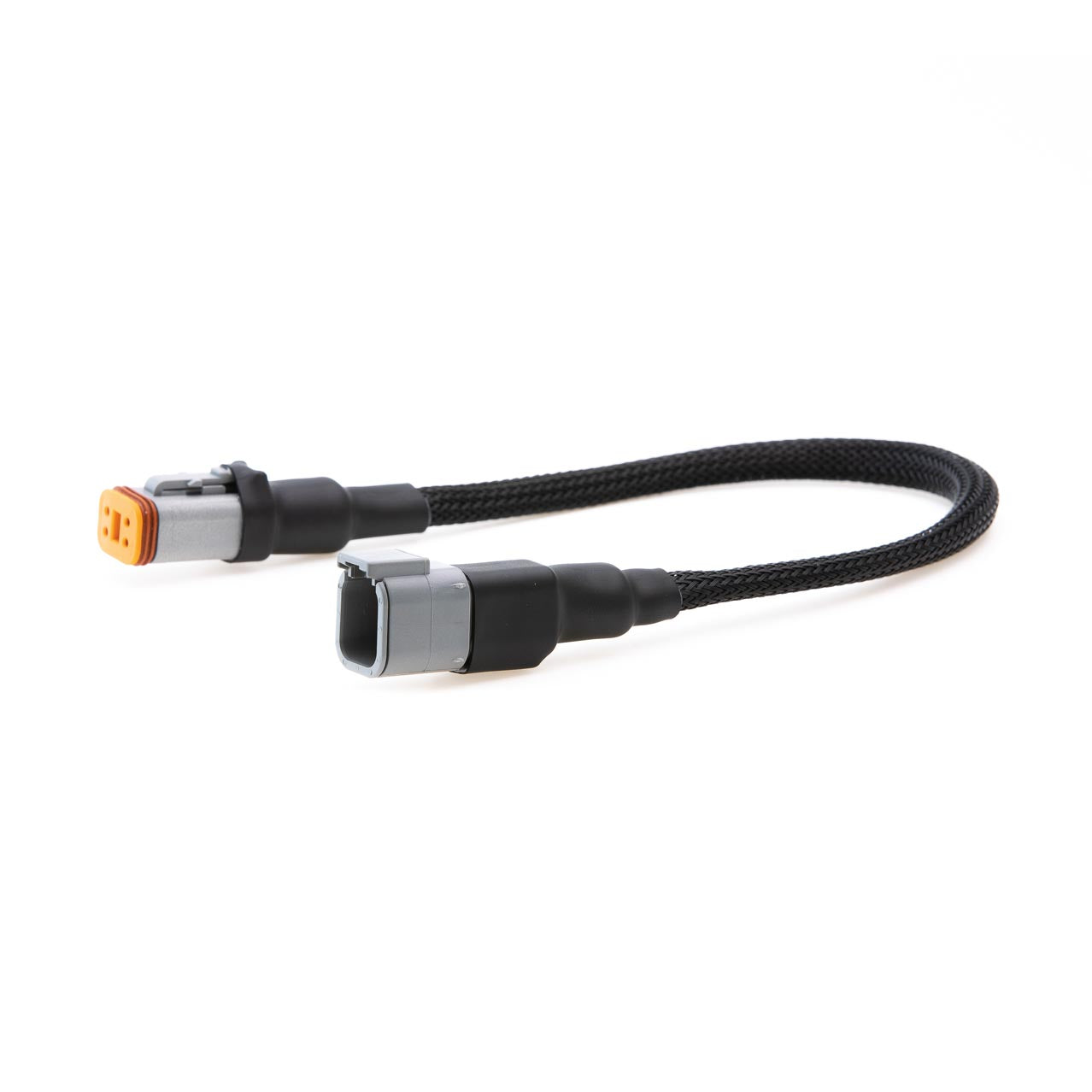

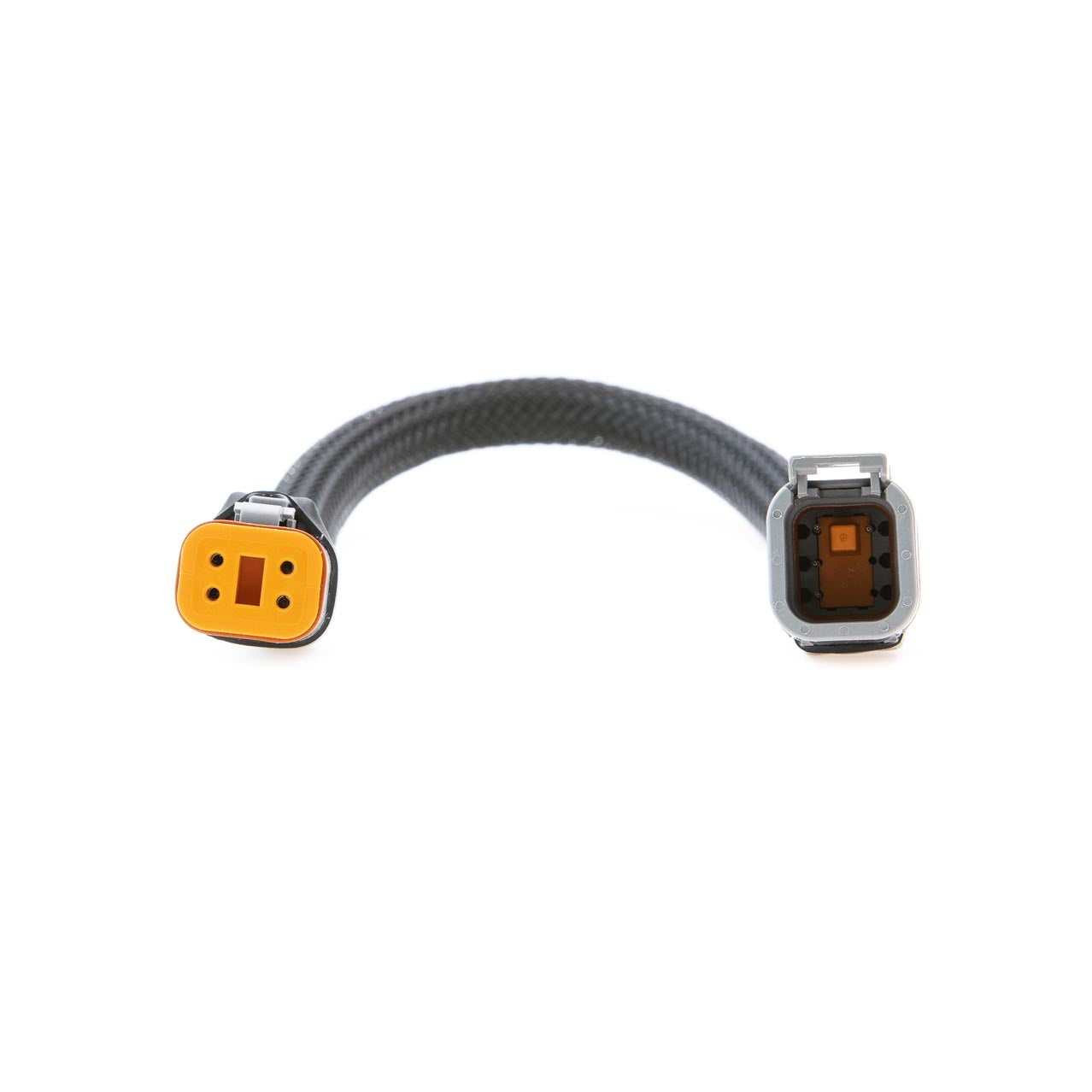

Can loom for Porsche Cayman GT4 2019 and GT2RS Clubsport 2019
Allows to read additional data via the car's CAN Bus.
Please note: This CAN Adapter will only work in combination with the 12V CAN Cable. One end the 12V CAN Cable is connected to the Race Navigator, while the other end is connected to this CAN Adapter. The 12V CAN Cable is not included in this article and must be ordered separately.
Technical data:
Pinout DTM04-6P
PIN 4: Brown Signal: 12V +
PIN 1: Blue Signal: System GND
PIN 5: Red Signal: Can High
PIN 6: Black Signal: Can Low
Pinout S-DT-06-4 S
PIN 4: Brown Signal: 12V +
PIN 3: Blue Signal: System GND
PIN 1: Red Signal: Can High
PIN 2: Black Signal: Can Low
