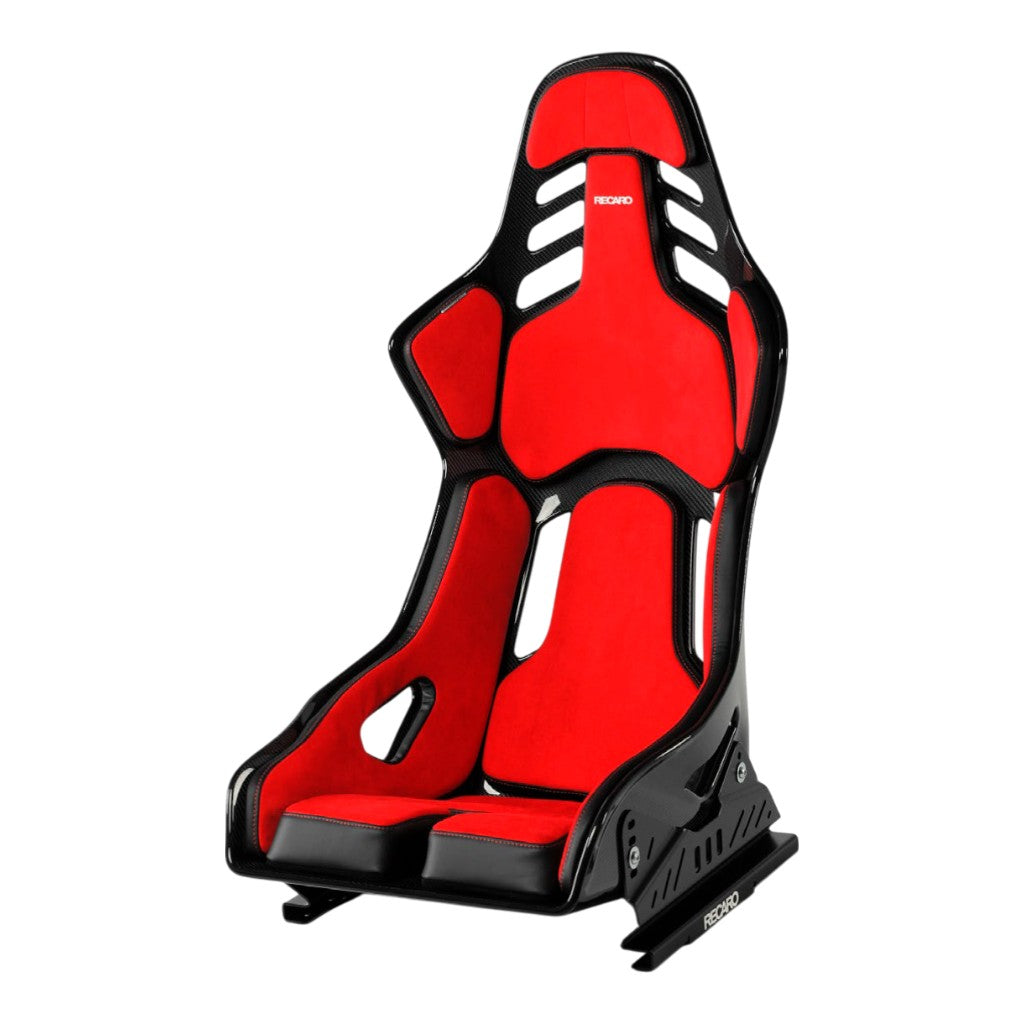

RECARO 078.31.1B23 Race Seat Podium CF Left Side (ABE / FIA 8855-1999) SAB, Red Alcantara / Black Leather, Size M

Description RECARO 078.31.1B23 Race Seat Podium CF Left Side (ABE / FIA 8855-1999) SAB, Red Alcantara / Black Leather, Size M

The RECARO Podium CF is a CFRP shell seat developed to meet the combined demands of road use and competitive track driving. Engineered and tested under intensive motorsport conditions, this model integrates lightweight composite construction with a structural design focused on driver stability, safety, and long-term comfort.

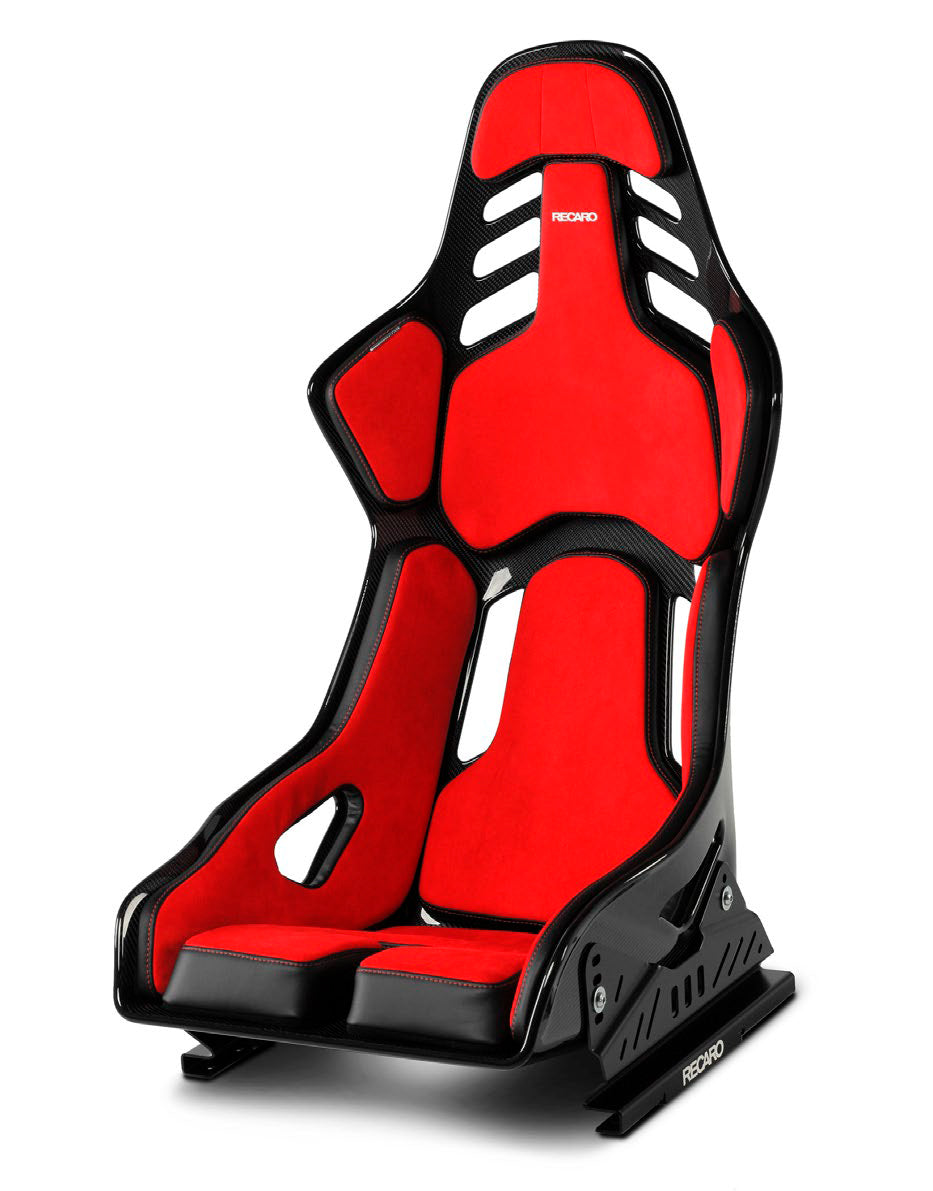

This left-side configuration in Size M is equipped with replaceable pads for medium-build drivers and finished in Red Alcantara / Black Leather. The seat is homologated in accordance with FIA 8855-1999 standards and features ABE (German general type approval) when installed together with RECARO baseframe and sidemount systems. The integrated side airbag (SAB) version represents the first retrofit shell seat equipped with an airbag system.

• Carbon fiber reinforced plastic (CFRP) seat shell

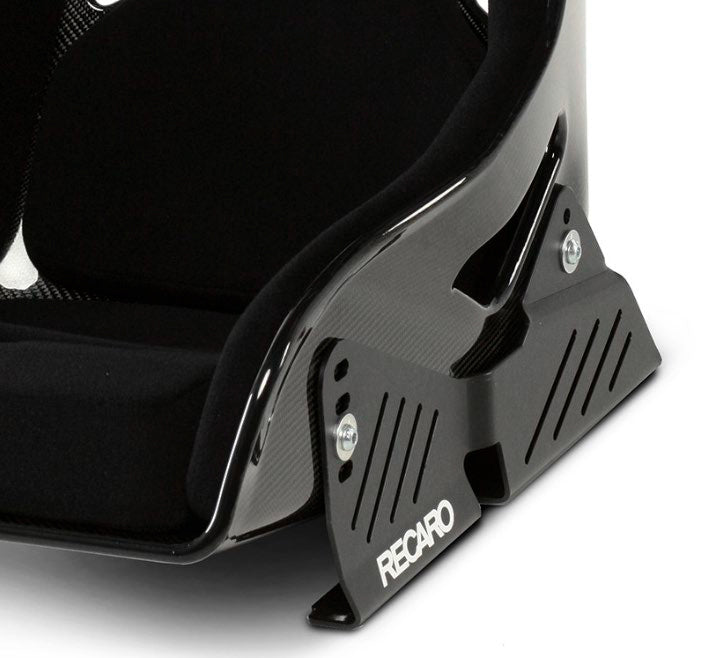

• FIA 8855-1999 homologation and ABE approval (with RECARO baseframe and sidemount)
• Integrated side airbag (SAB)
• Developed for compatibility with HANS systems

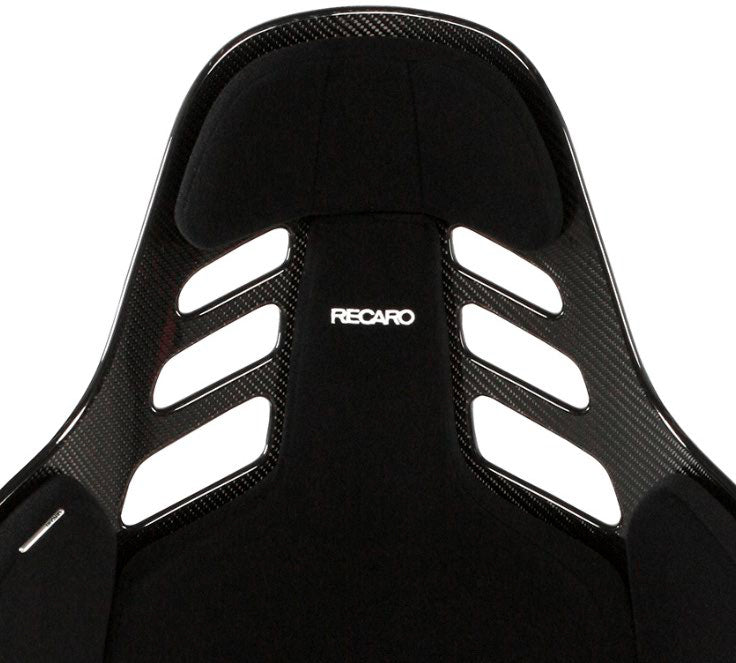

• Integrated headrest with enhanced lateral and shoulder support
• Suitable for 3- or 4-point belts (road use) and 4-, 5-, or 6-point harnesses (FIA use)
• Replaceable pad system (Size M – medium build drivers)
• Highly fire-resistant upholstery with passive ventilation through open shell design

Specifications:

• Homologation: FIA 8855-1999
• Approval: ABE (with RECARO baseframe and sidemount)
• Shell Material: Carbon fiber reinforced plastic (CFRP)
• Seat Height: 748 ±10 mm
• Shell Width (Shoulder Area): 526 ±10 mm
• Shell Width (Seat Bottom): 495 ±10 mm
• Seat Width at Bottom (Size M): 358 ±10 mm
• Seat Depth: 438 ±10 mm
• Shoulder Support Height: 544 ±10 mm
• Mounting Bolt Distance: 406 ±10 mm
• Belt Slot Height: 74 ±10 mm
• Center Belt Slot Height: 611 ±10 mm
• Weight (Complete Seat, Size M): approx. 7.4 kg
• Net Shell Weight (without mounted parts): approx. 4.9 kg
