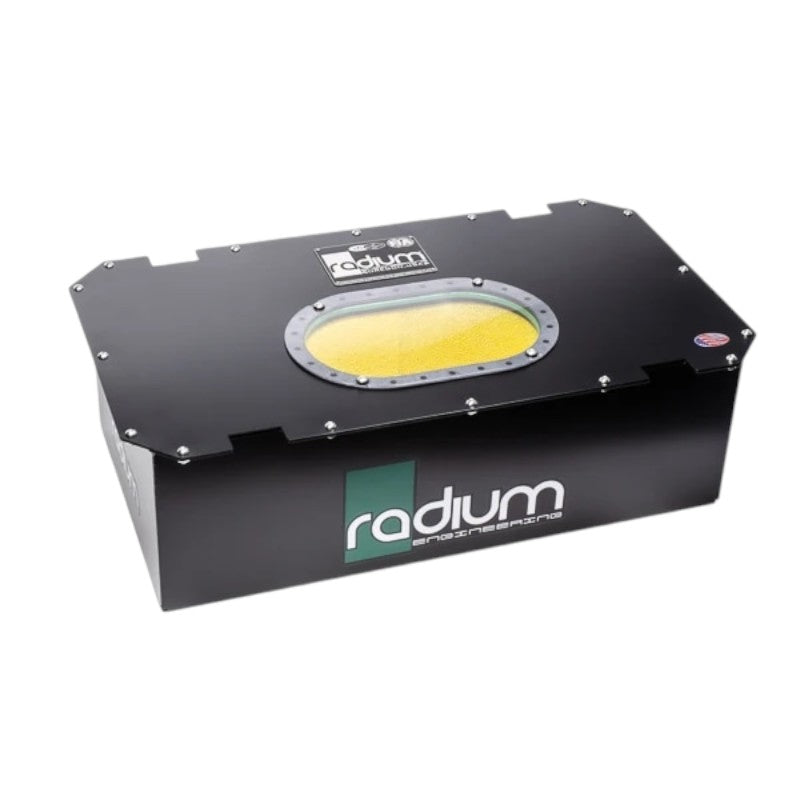

RADIUM 20-0610 R10A Fuel Cell, 10 Gallon
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
RADIUM 20-0610 R10A Fuel Cell, 10 Gallon
ATOMIC-SHOP UAE
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
ATTENTION: FUEL CELLS ARE AVERAGING A 4 TO 8 WEEK LEAD TIME.
OVERVIEW
A competition grade fuel cell provides maximum performance and safety for high performance vehicles. RA-series fuel cells are designed and manufactured by Radium Engineering to meet top safety requirements set forth by the worldwide safety organizations FiA and SFI. To learn why a certified fuel cell is superior to a fabricated tank,
These fuel cells are excellent for all types of motorsports disciplines including road racing, time attack, drifting, rally, off-road racing and many more.
CONSTRUCTION
The heart of the fuel cell is the bladder (shown below in green). This component undergoes thorough testing and carries the critical certifications. Radium RA-series bladders are made from a special polymer that is resistant to ALL fuel types (gasoline, diesel, AV gas, E15, E85, ethanol, methanol, etc).
The bladder is housed in a lightweight powder coated aluminum enclosure that protects from damage and debris. Pre-cut explosion suppressing anti-slosh foam is included as well as an innovative threaded aluminum nut ring which makes fuel pump installation fast and easy.
CERTIFICATIONS
The RA-series fuel cells have been tested and approved by FIA and SFI. All RA-series fuel cells are serialized and come with both certifications and associated paperwork.
Certifications are valid for 5 years from the date of manufacture. Radium does NOT offer fuel cells without certifications.
During tech inspections, certification decals on the bladder can be easily viewed by removing the inspection plate (shown above).
SIZES
Radium Engineering produces RA-Series fuel cells in the following external sizes.
NOTE: The stated fluid capacity will vary due to the manufacturing processes and are only approximations. Contact sales@radiumauto.com for more information.
INTERNAL DEPTH (TOP OF CAN TO BLADDER FLOOR)
20-0606, 6 Gallon: 7.7 in (195mm)
20-0610, 10 Gallon: 7.7 in (195mm)
20-0614, 14 Gallon: 11.4 in (289mm)
METRIC VOLUME CONVERSION
6 Gallon = 23 Liters
10 Gallon = 37 Liters
14 Gallon = 53 Liters
All fuel cell sales are FINAL and cannot be returned or exchanged. Measure carefully prior to ordering.
INCLUDED
-Seamless Polymer Bladder
-Explosion Suppressing Anti-Slosh Foam
-Powder Coated Aluminum Enclosure
-Anodized Aluminum Nut Ring
-Removable Inspection Plate
-FKM 6x10 24-bolt Gaskets, x2
-Stainless Steel Hardware
-Certification of Conformance
