RADIUM 20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at ATOMIC-SHOP UAE
Usually ready in 1 hour
RADIUM 20-0547 Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb
ATOMIC-SHOP UAE
Pickup available, usually ready in 1 hour
26th Street - Al Quoz Industrial Area 2
Dubai DU
United Arab Emirates
Remote Mount Fill Neck, 24AN Elbow, 1.5in Barb
Remote Mount Fill Neck is primarily used with a body-mounted remote filler (see 20-0505-V). The -24AN fill neck mates to a 24AN hose end capable of 360 degree rotation. It features a 75 degee elbow and uses a 1.5" barb. A bespoke 1-7/8" aluminum wrench is provided for tightening the B-nut and prevent marring. The fill neck features a flapper check valve for rollover protection.

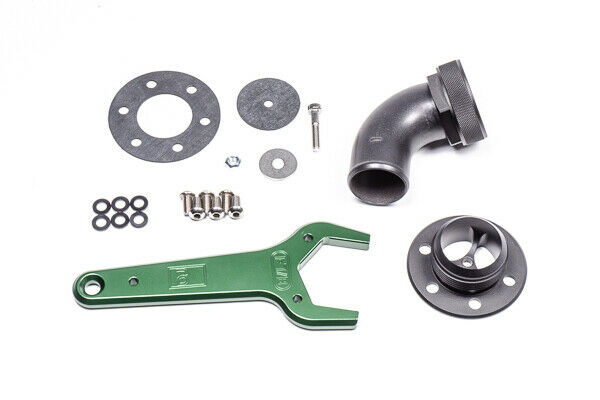

In the Box:
- 24AN Flanged Fill Neck
- 24AN Hose End Elbow for 1.5" ID Hose
- Aluminum Wrench, 1-7/8"
- FKM Gasket Flange Seal
- FKM Flapper Valve
- Nylon Sealing Washers
- Stainless Steel Hardware
Note: Does not include filler hose, fuel cap, etc.
INSTALLATION INSTRUCTIONS can be downloaded here
