RADIUM 20-0105-FL Oil Catch Can Kit, PCV, Fluid Lock for MITSUBISHI EVO X

Description RADIUM 20-0105-FL Oil Catch Can Kit, PCV, Fluid Lock for MITSUBISHI EVO X

The Radium Engineering PCV Catch Can Kit is engineered to intercept oil vapor, unburned fuel, and contaminants from the PCV system before they enter the intake manifold. Installed directly behind the right-hand headlight, the system is designed for seamless integration with the OEM PCV hose routing. The closed-loop configuration relies on intake manifold vacuum to activate the PCV valve, maintaining emissions compliance and performance integrity.

Featuring a pressure-sealed design, this catch can is ideal for both naturally aspirated and forced induction engines, tolerating any boost level without the need for a check valve. Its robust construction and integrated filtration system ensure high-efficiency separation of blow-by particulates, enhancing engine cleanliness and reducing carbon accumulation on intake components.

Note: Installation may interfere with headlamp washer reservoirs on select European-spec models.

Specifications

• Closed-loop system compatible with forced induction setups
• Pressure-sealed catch can withstands all boost levels
• Integrated internal condenser and serviceable dipstick
• Designed for direct installation behind RH headlight

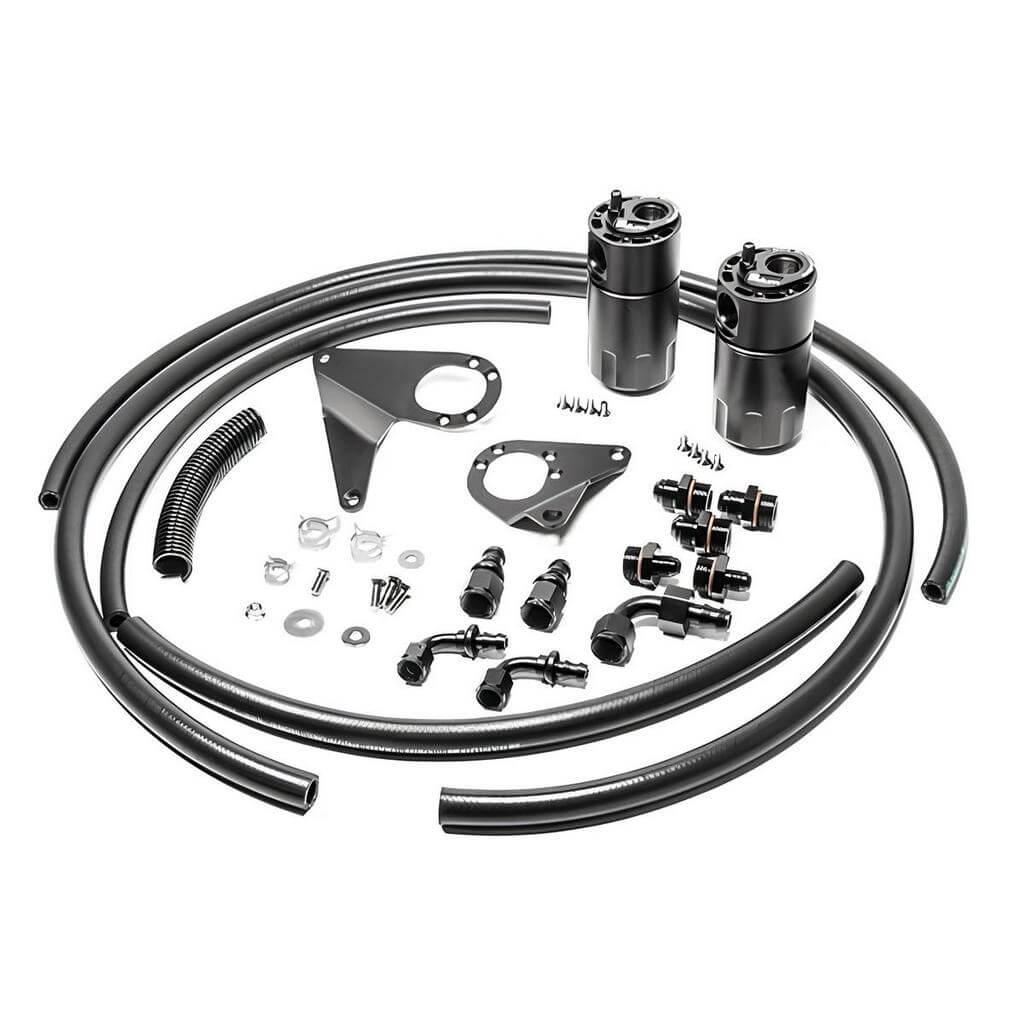

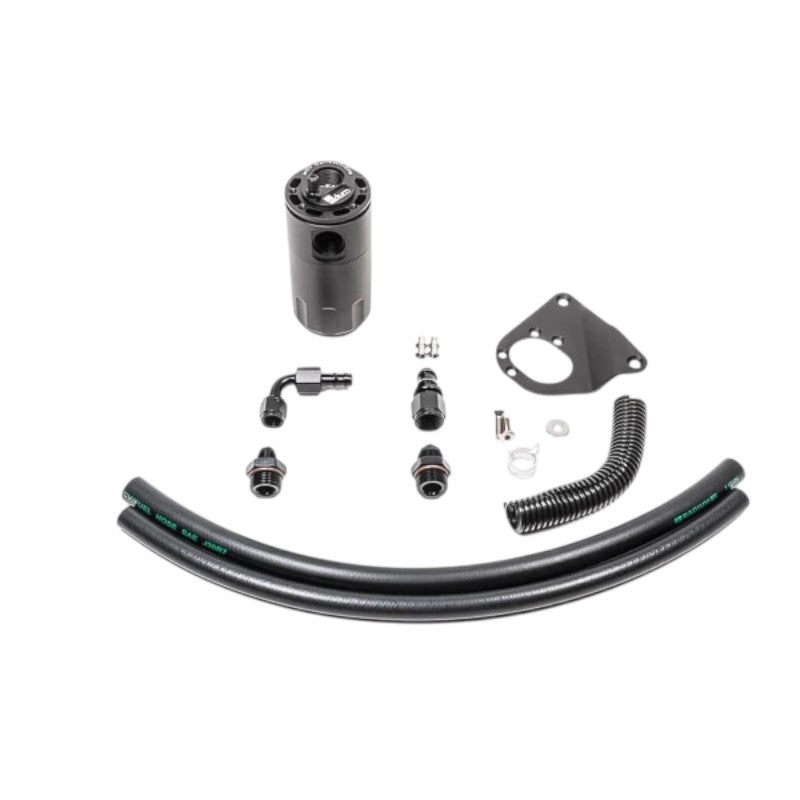

Included

• Billet oil catch can with integrated condenser and dipstick
• Bracket: Laser-cut, powder-coated for RH-side mounting
• Fittings: 6AN and 8AN hose ends and adapters
• Hose: Supplied 3/8" and 1/2" PCV-rated for custom routing
• Hardware: Stainless steel fasteners included
