RACELOGIC RLVDHD2HTRC VBOX Video HD2 with HDMI Output - 2 Camera Track System Including CAN Splitter

Description RACELOGIC RLVDHD2HTRC VBOX Video HD2 with HDMI Output - 2 Camera Track System Including CAN Splitter

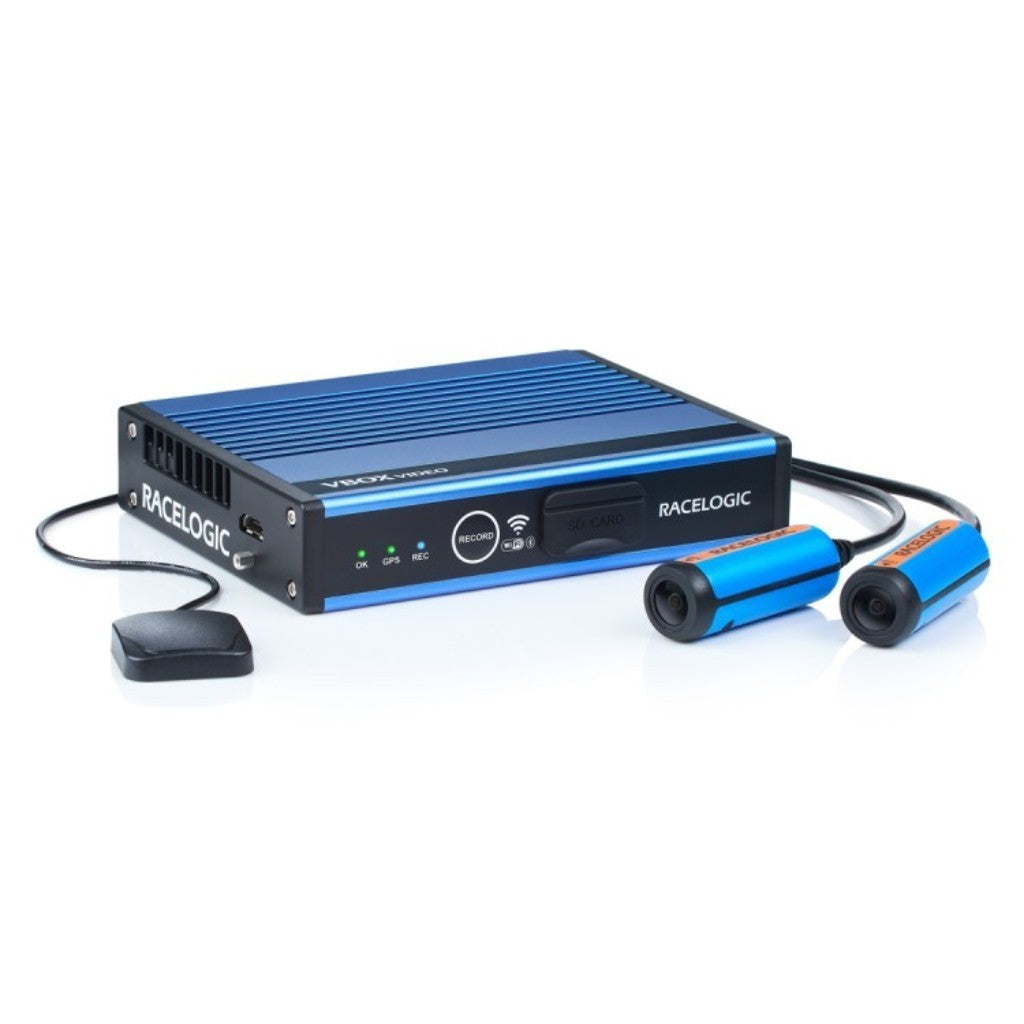

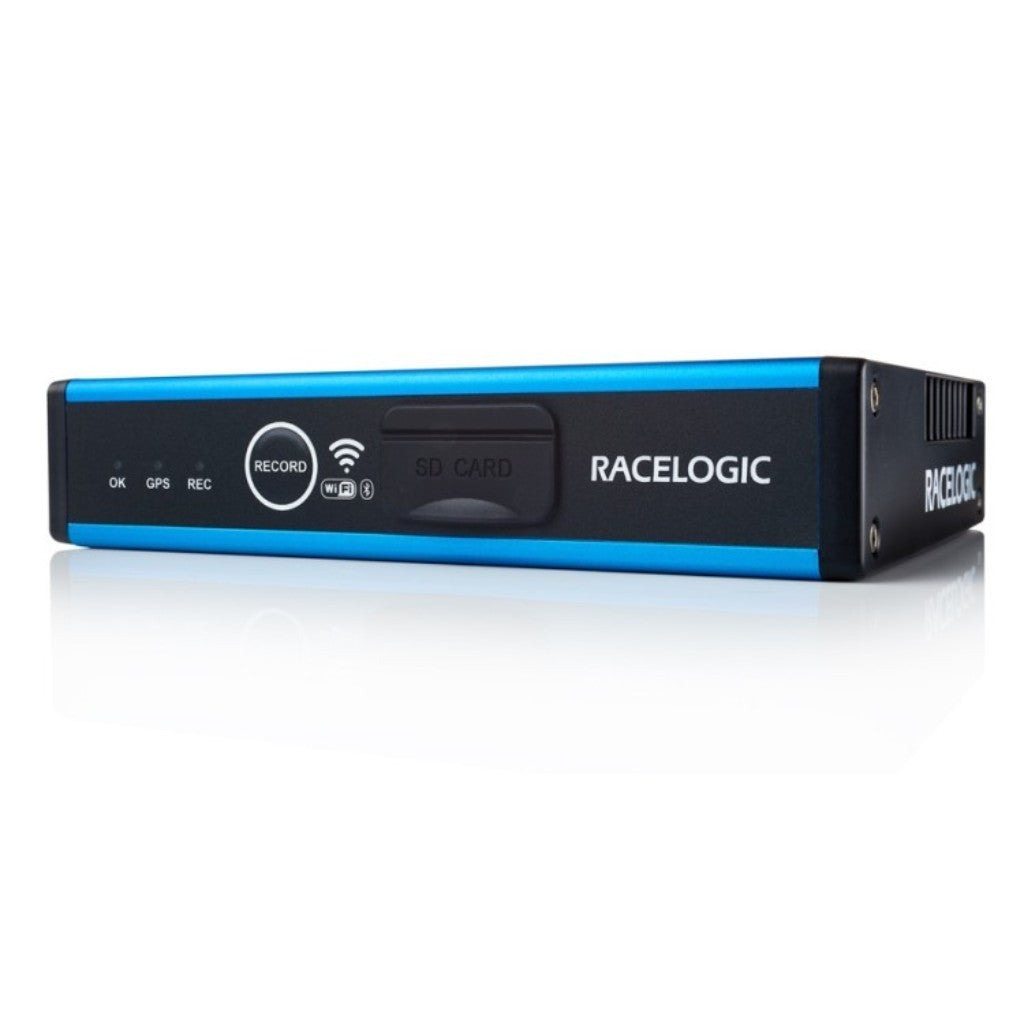

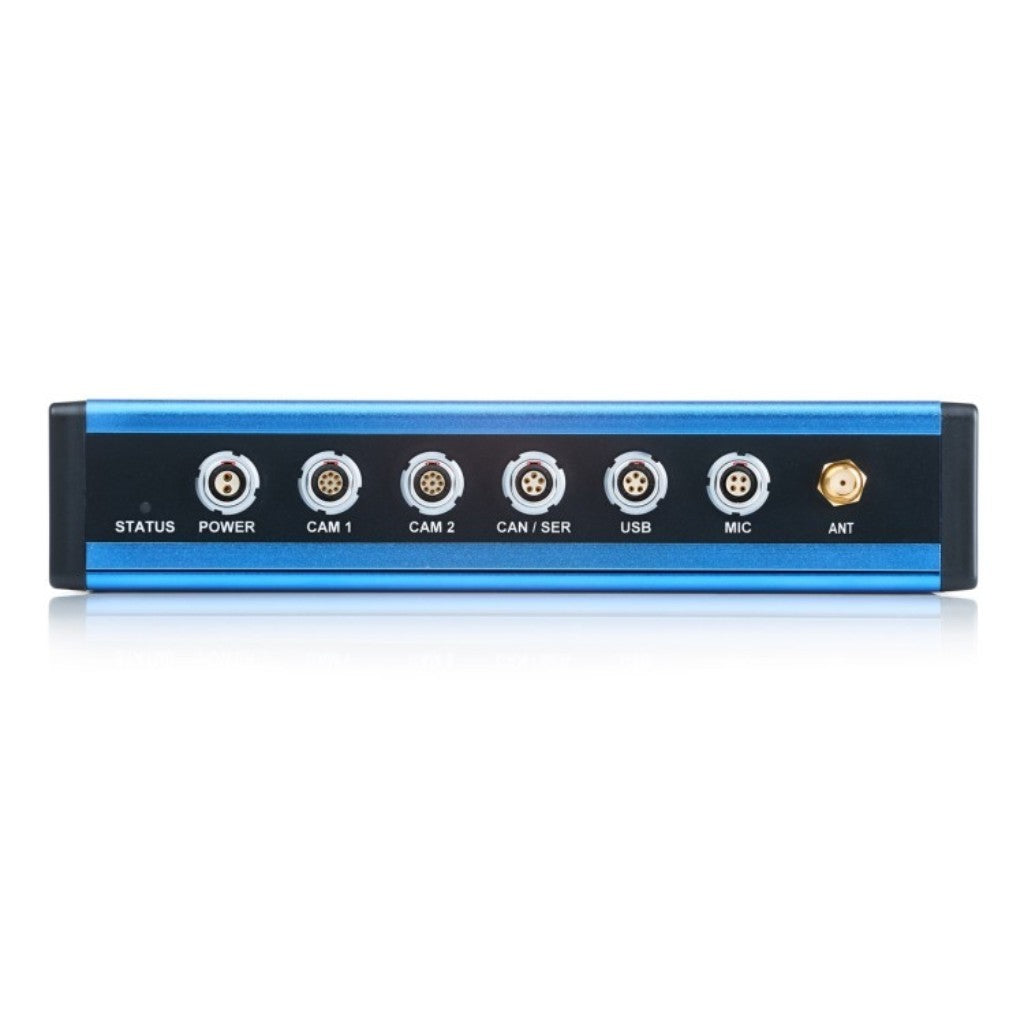

The RACELOGIC VBOX Video HD2 Track Package is a dual-camera video and data logging system configured for installation in fully race-prepared vehicles. The package includes roll cage camera mounts, an unterminated in-car power cable, and a CAN splitter cable to support integration with motorsport electrical and data systems.

The system records synchronized 1080p video, GNSS data, and vehicle CAN information for lap analysis, driver development, and race-team review. Two camera inputs support a primary view with picture-in-picture display, while the HDMI output allows real-time video and audio transmission to compatible monitors, recorders, and streaming devices.

• Track-focused package with roll cage camera mounts and an unterminated power cable
• Dual-camera recording with primary and picture-in-picture views
• Wide-angle lenses capture track activity in high-definition video
• Records directly to an SD card or USB flash drive
• Logs up to 80 channels of CAN data from compatible dashboards and ECUs
• Supports vehicle parameters including throttle angle, RPM, and brake pressure
• CAN splitter cable supports connection to the vehicle CAN network
• HDMI output provides real-time video and audio for monitoring, recording, or streaming
• Android and iOS application supports camera alignment using a live video feed
• Customizable high-definition graphics overlays for dashboard and gauge layouts
• Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
• Automatic recording, pre-record buffer, and internal power backup help prevent data loss

Specifications:

• Video Resolution: 1080p
• Frame Rate: 30 fps
• Camera Inputs: 2
• CAN Data Logging Capacity: Up to 80 channels
• GNSS Receiver Frequency: 25 Hz
• Video Storage: SD card or USB flash drive
• Video Output: HDMI

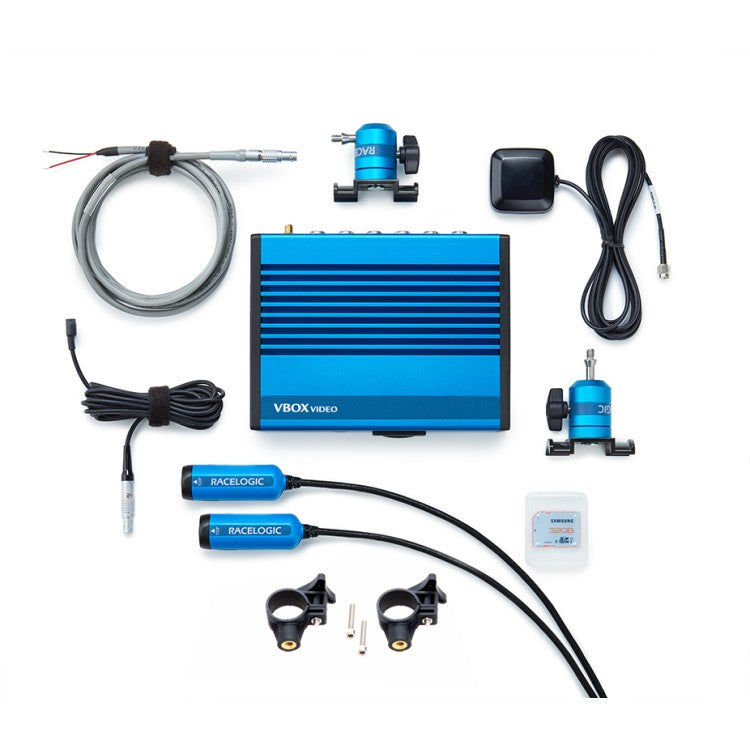

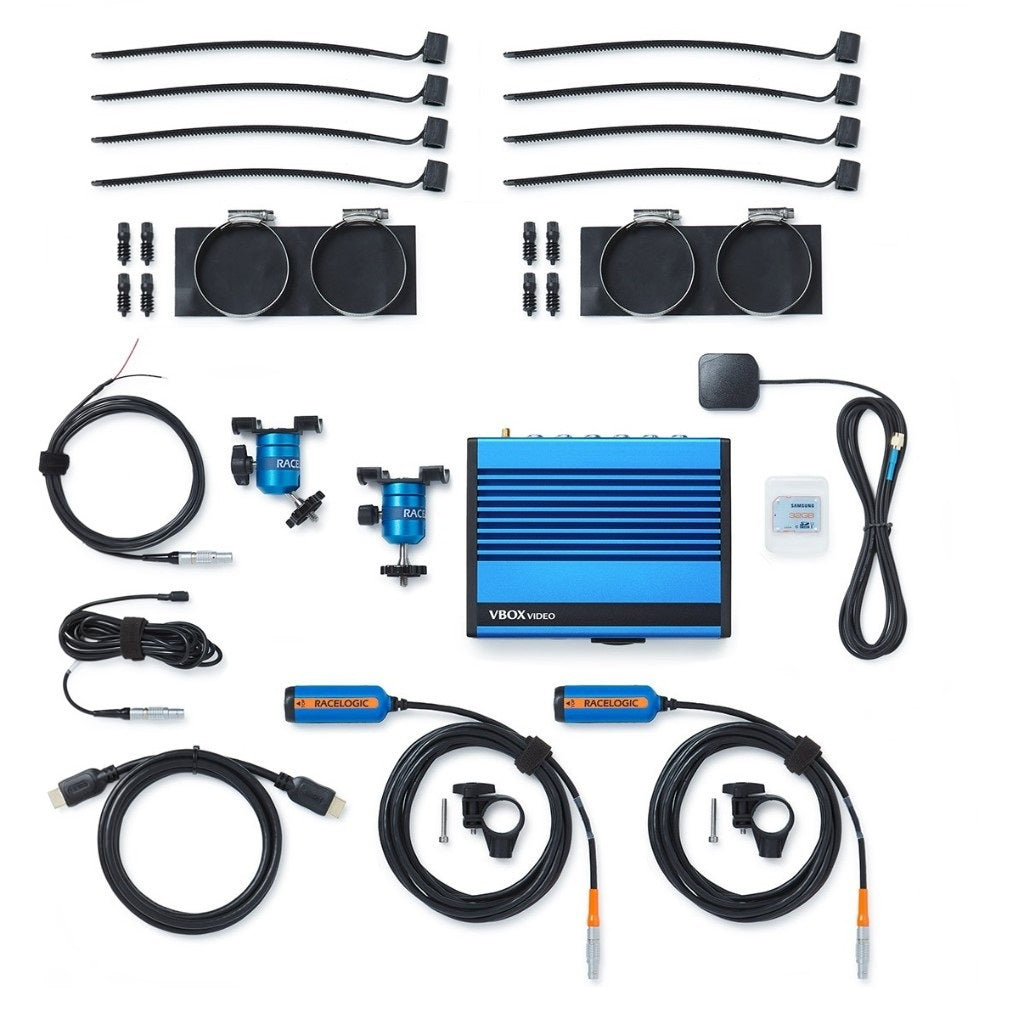

Package Contents:

• VBOX Video HD2 Data Logger
• Cameras × 2
• Microphone
• Roll Cage Camera Mounts × 2
• Unterminated In-Car Power Cable
• GNSS Antenna
• 32 GB SD Card
• HDMI Cable
• CAN Splitter Cable
