RACELOGIC RLVDHD2HTR VBOX Video HD2 with HDMI Output - 2 Camera Track System

Description RACELOGIC RLVDHD2HTR VBOX Video HD2 with HDMI Output - 2 Camera Track System

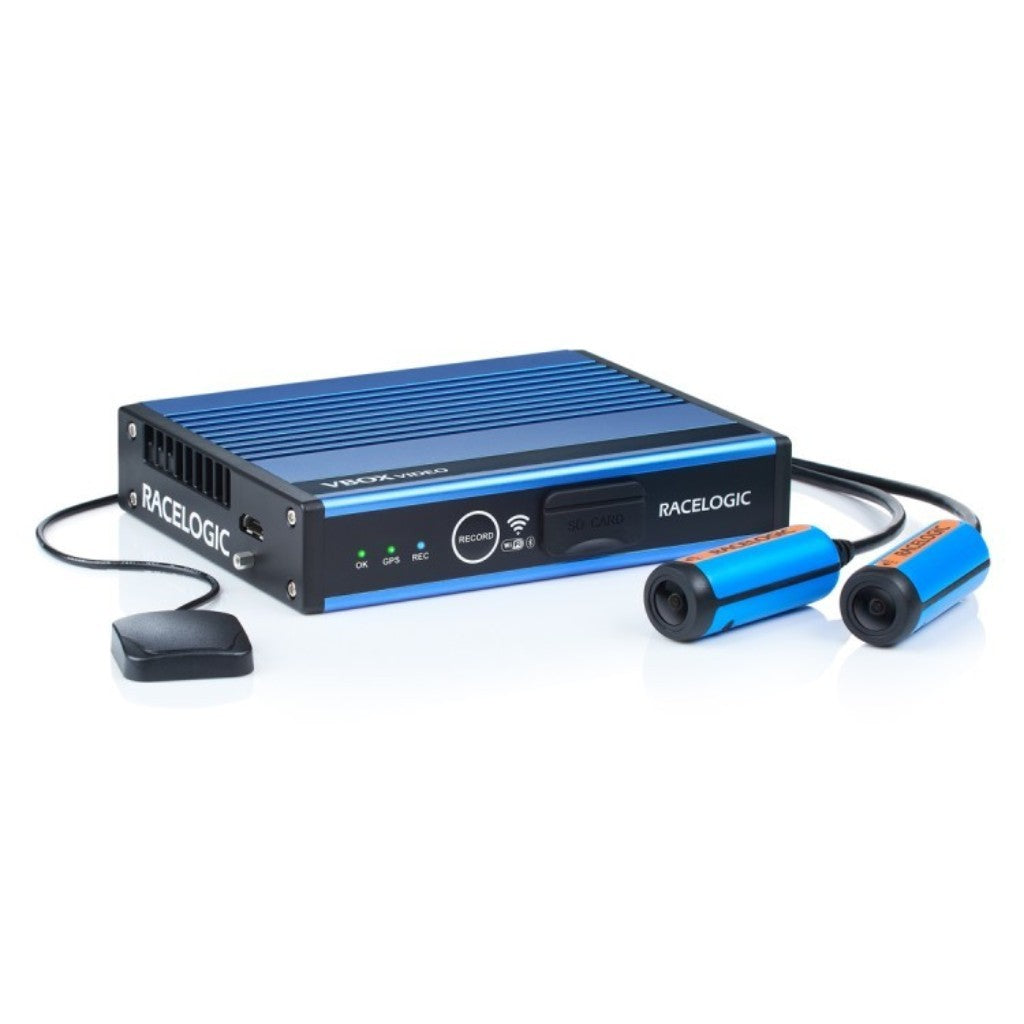

The RACELOGIC VBOX Video HD2 Track Package is a dual-camera video and data logging system configured for installation in fully race-prepared vehicles. The package includes roll cage camera mounts and an unterminated in-car power cable, supporting easier integration with dedicated motorsport electrical systems and vehicle interiors.

The system records synchronized high-definition video, GNSS data, and vehicle CAN information for lap analysis, driver development, and race-team review. Two camera inputs provide a primary view with picture-in-picture display, while the HDMI output enables real-time video and audio transmission to compatible monitors, recorders, and streaming devices.

• Track-focused package with roll cage camera mounts and an unterminated power cable
• Dual-camera recording with primary and picture-in-picture views
• Wide-angle lenses capture track activity in high-definition video
• Records directly to an SD card or USB flash drive
• Logs up to 80 channels of CAN data from compatible dashboards and ECUs
• Supports vehicle parameters including throttle angle, RPM, and brake pressure
• HDMI output provides real-time video and audio for monitoring, recording, or streaming
• Android and iOS application supports precise camera alignment using a live video feed
• Customizable high-definition graphics overlays for dashboard and gauge layouts
• Integrated GNSS receiver automatically recognizes racetracks and configures track maps and lap timing
• Automatic recording, pre-record buffer, and internal power backup help prevent data loss

Specifications:

• Video Resolution: 1080p
• Frame Rate: 30 fps
• Camera Inputs: 2
• CAN Data Logging Capacity: Up to 80 channels
• GNSS Receiver Frequency: 25 Hz
• Video Storage: SD card or USB flash drive
• Video Output: HDMI

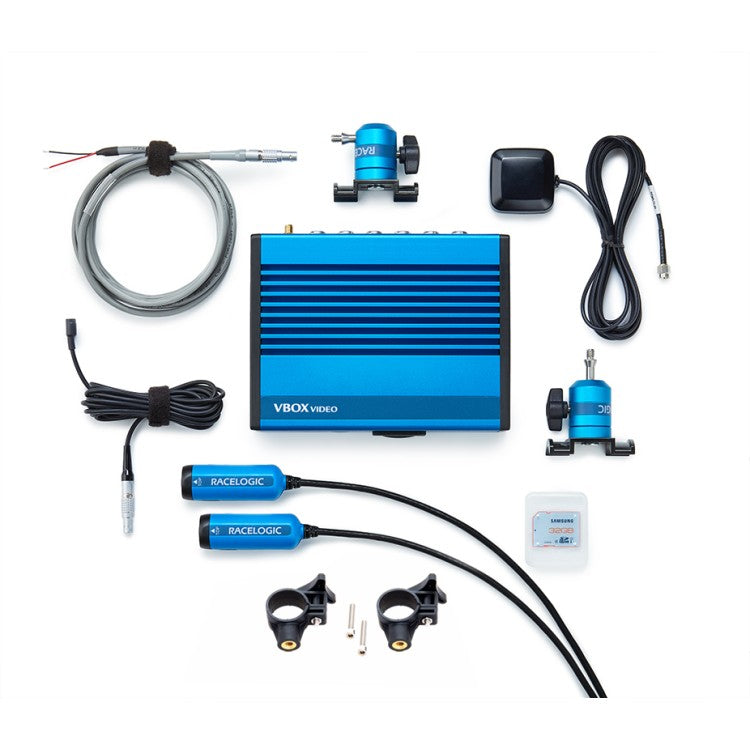

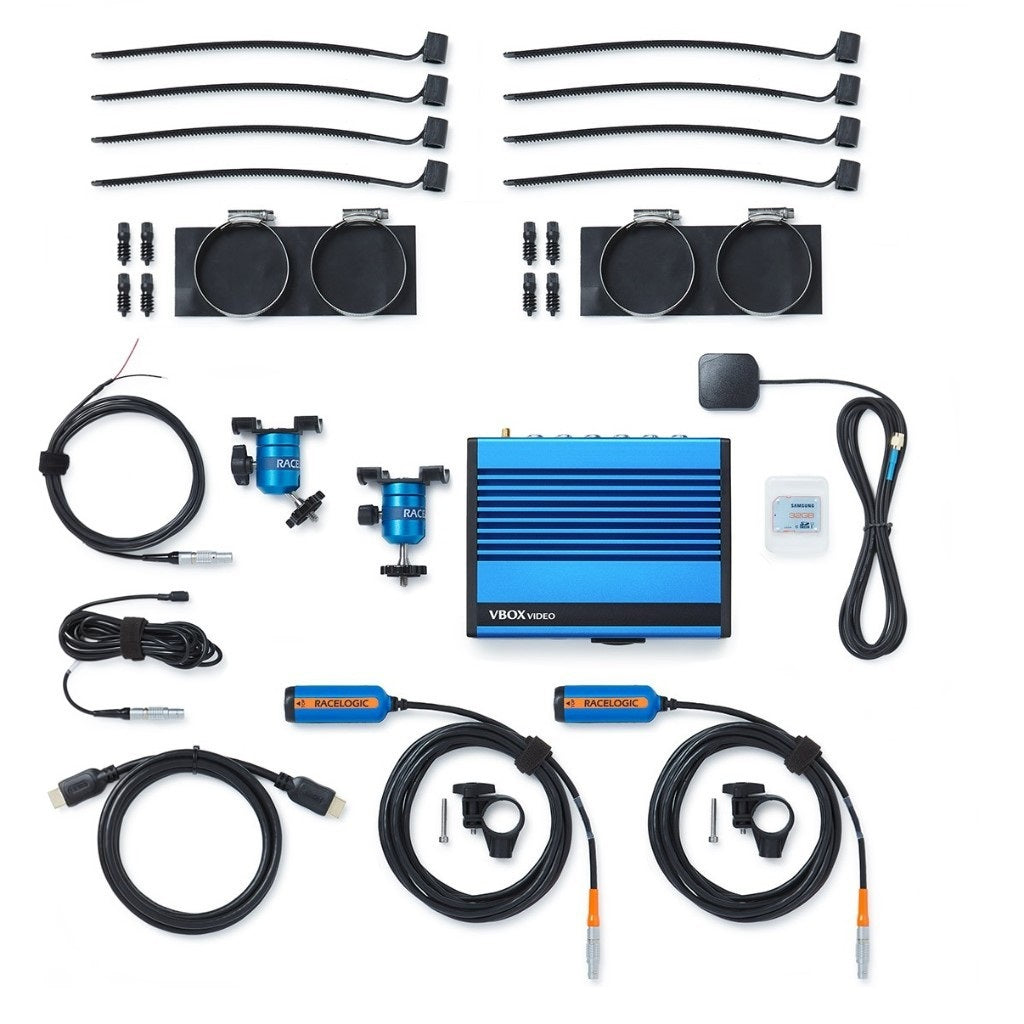

Package Contents:

• VBOX Video HD2 Data Logger
• Cameras × 2
• Microphone
• Roll Cage Camera Mounts × 2
• Unterminated In-Car Power Cable
• GNSS Antenna
• 32 GB SD Card
• HDMI Cable
